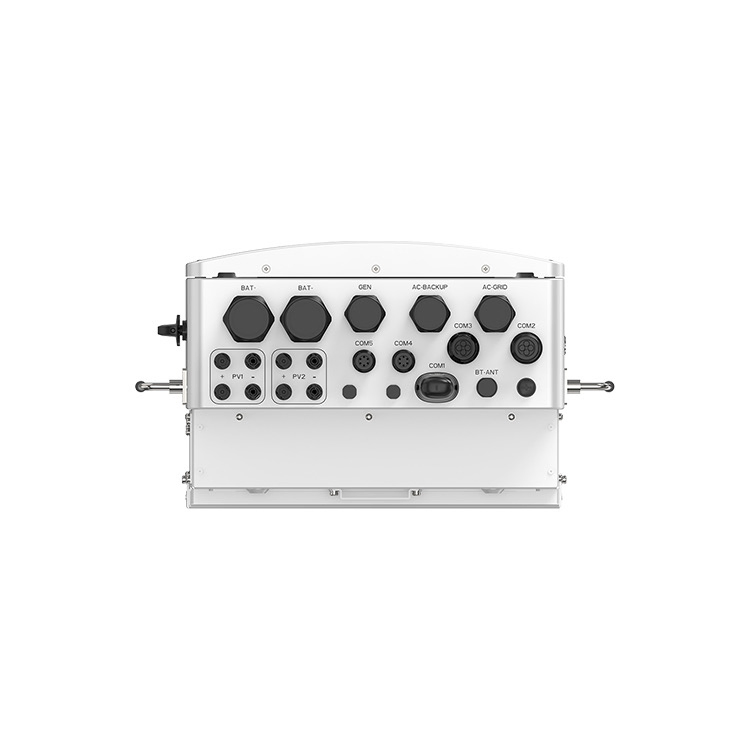

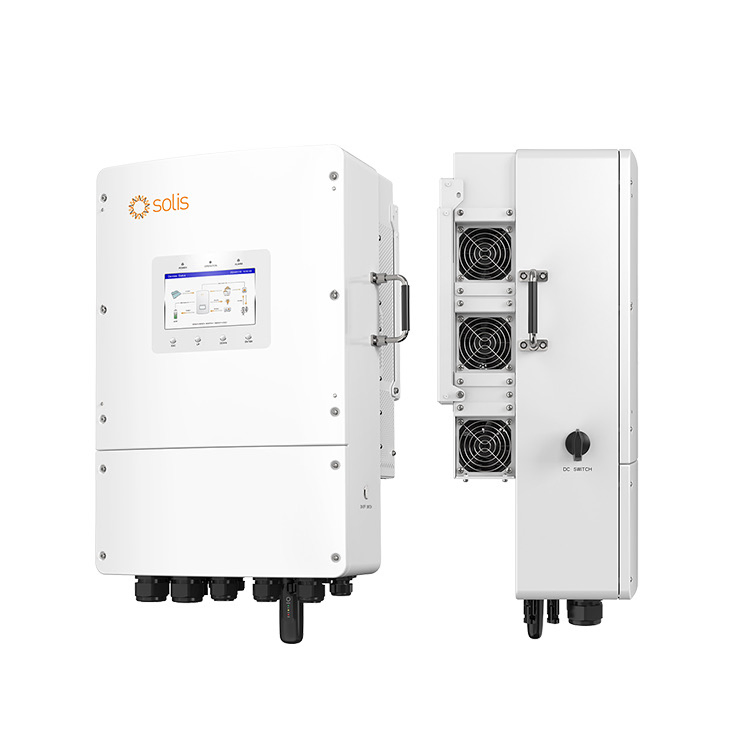

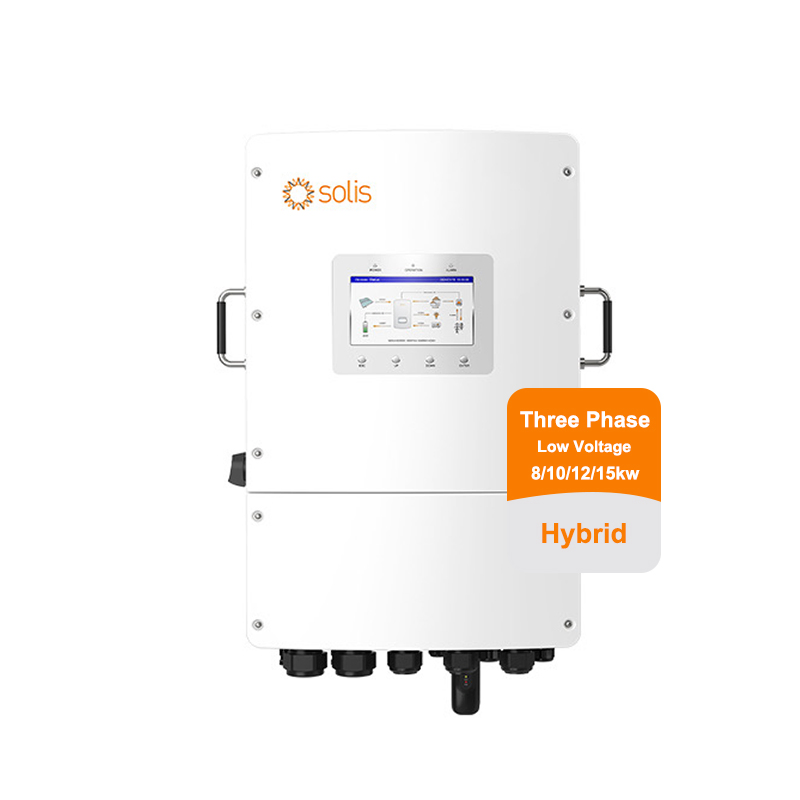

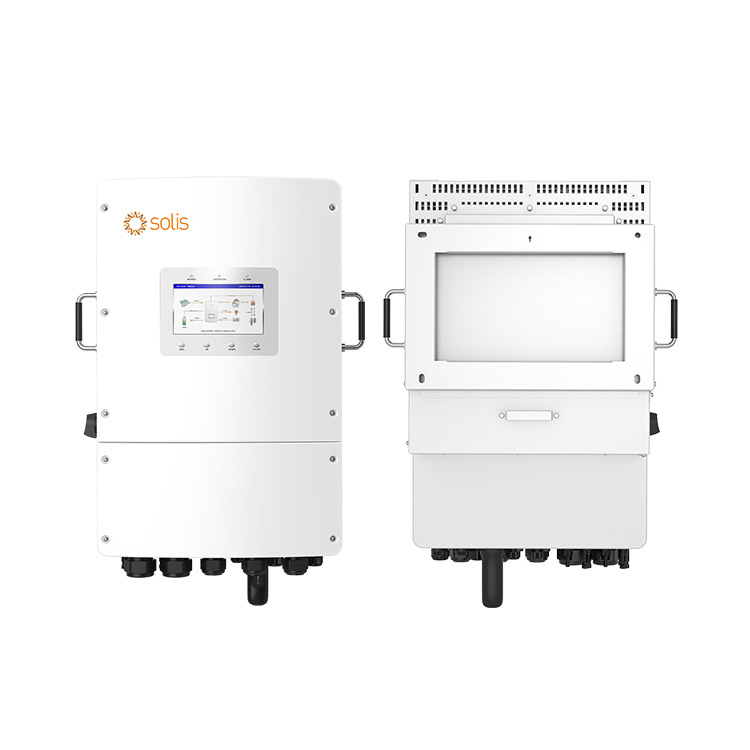

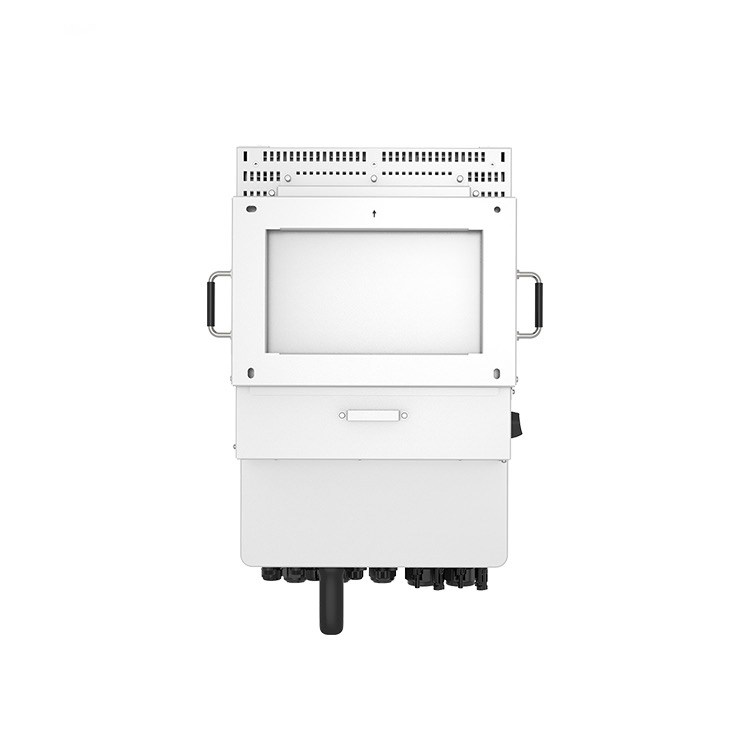

Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
1 / 5
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters
Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters

Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-Eh3p (8-15) K02-Nv-Yd-L Three Phase Low Voltage Energy Storage Inverters

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.S6-EH3P(8-15)K02-NV-YD-L
PhaseThree Phase
Output Power8-15kw
Battery TypeLi-ion / Lead-Acid
ProtectionIP66
Input Voltage550V
Output Voltage380/400V
Output Frequency50/60Hz
Weight42kg
CoolingIntelligent Fan-Cooling
📝

Product Description

Solis 8kw 10kw 12kw 15kw Hybrid Solar Inverter S6-EH3P(8-15)K02-NV-YD-L Three Phase Low Voltage Energy Storage Inverters

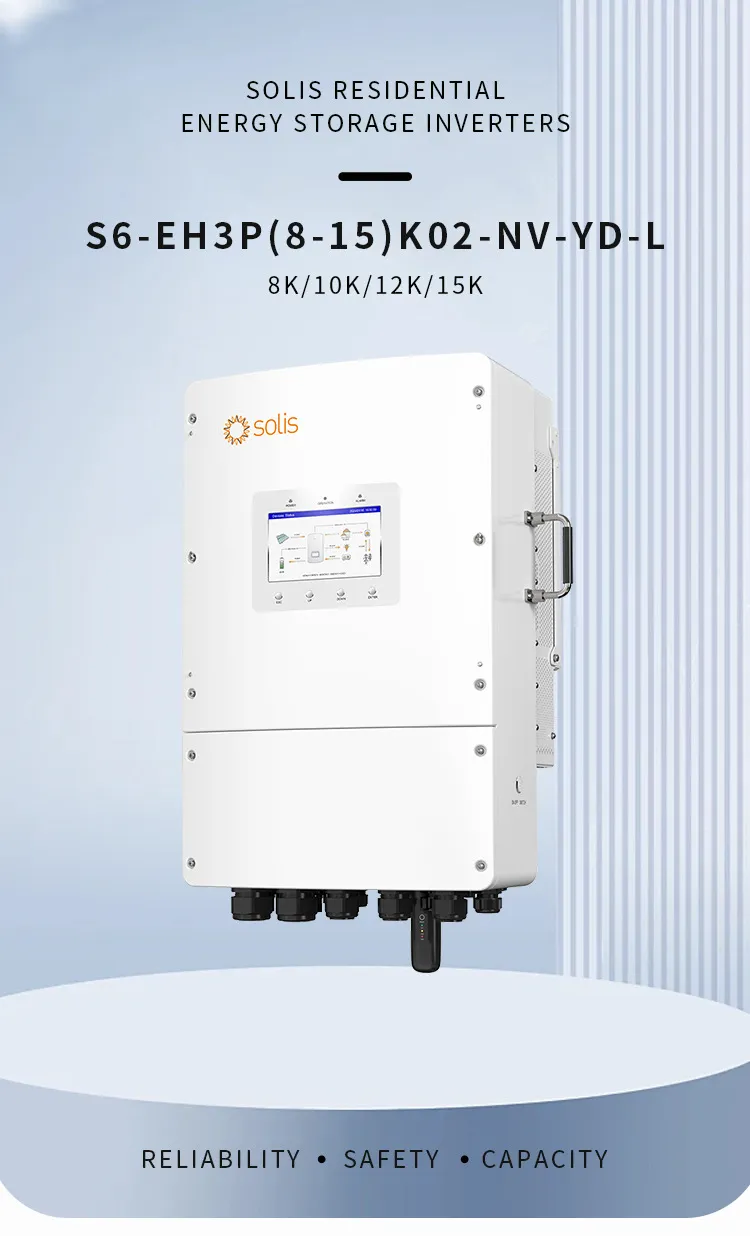

Solis Hybrid Inverter Main
⚙️

Technical Parameters

Models 8K 10K 12K 15K
Max. PV input power 12.8 kW 16 kW 19.2 kW 24 kW
Max. input voltage 1000 V
MPPT voltage range 200-850 V
Max. input current 20 A / 40 A 40 A / 40 A
Battery voltage range 40 - 60 V
Max. charge / discharge current 180 A 220 A 250 A 290 A
Rated grid voltage 380 V / 400 V
Back-up switch time <10 ms
Max. efficiency 97.6%
Ingress protection IP66
💡

Product Features

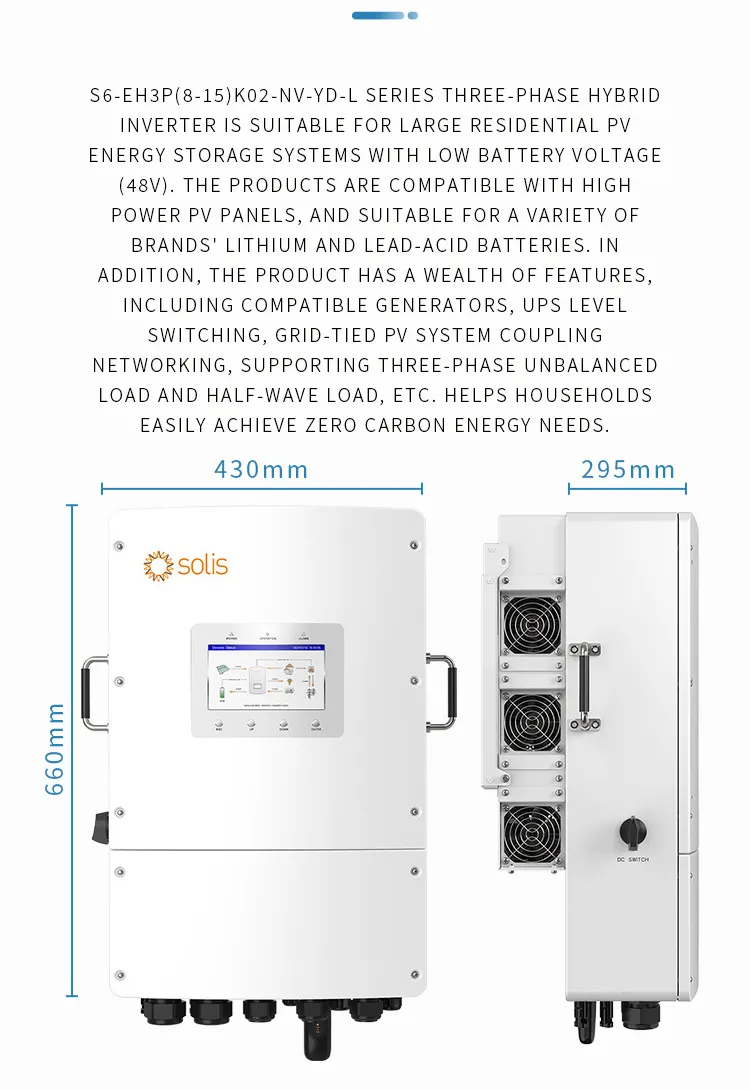

Feature 1

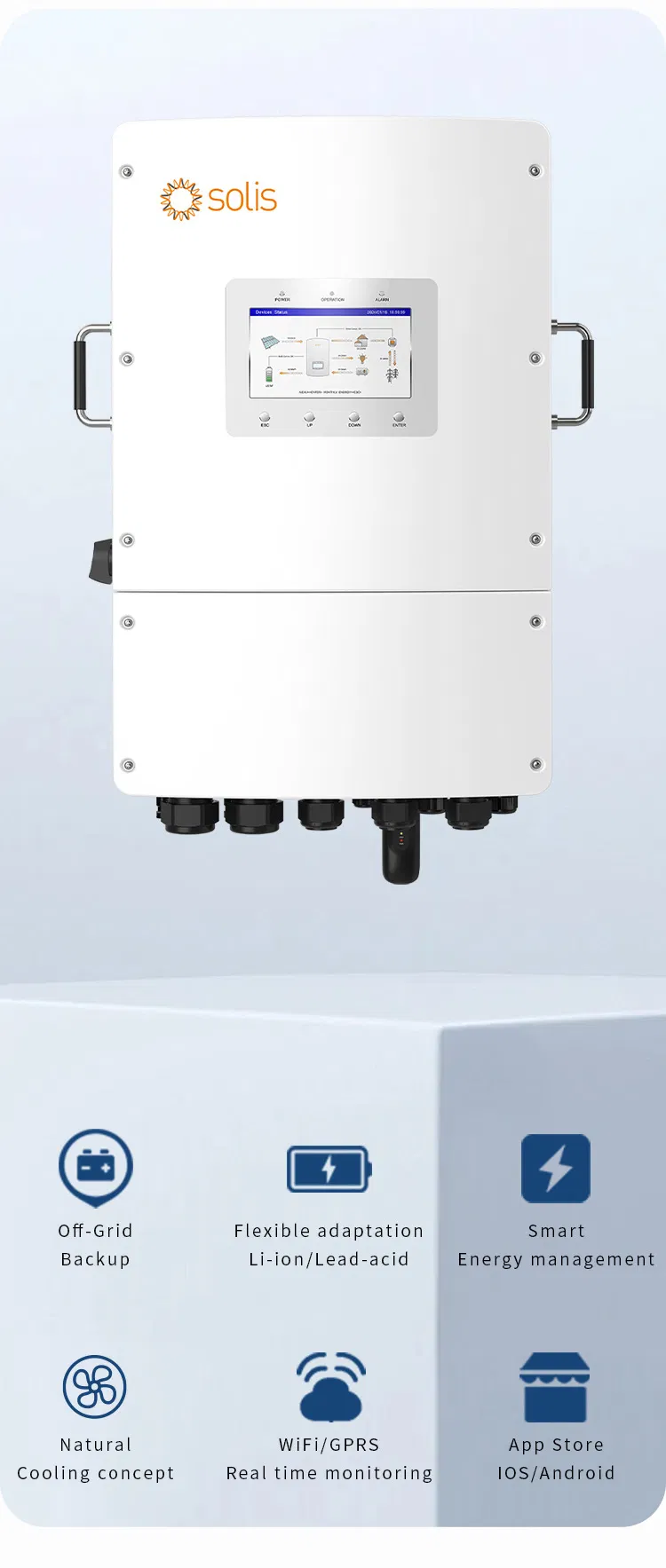

Feature 2
🏠

Project Case

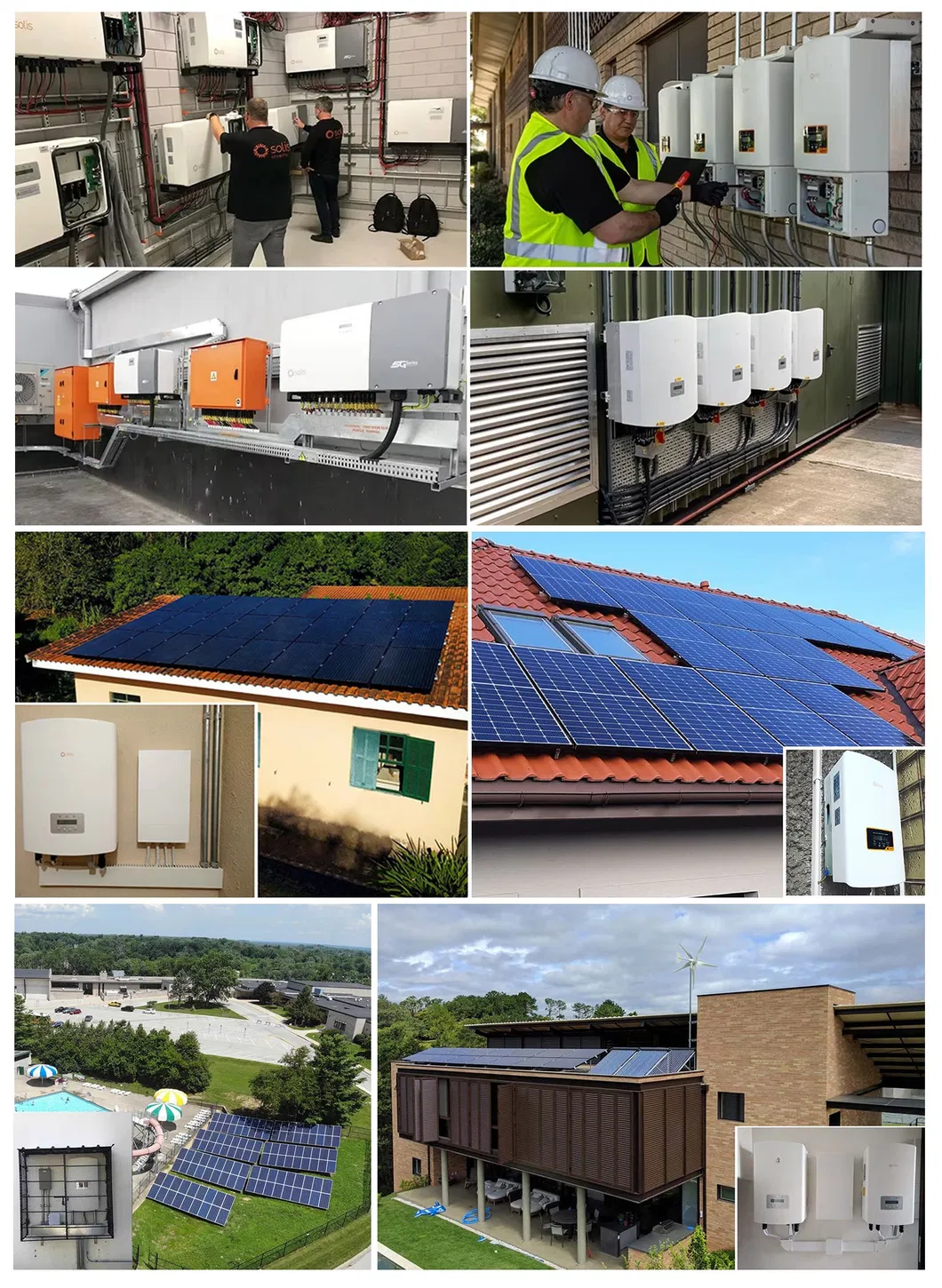

Project Case Study
Service Information
❓

Frequently Asked Questions

1. What battery types are compatible with this inverter?
The Solis S6 hybrid inverter is compatible with both Lithium-ion (Li-ion) and Lead-acid batteries, specifically in the 40-60V low voltage range.
2. How fast does the system switch to backup power during a grid failure?
The backup switch time is less than 10 milliseconds, ensuring an uninterruptible power supply for critical loads.
3. Can this inverter be installed outdoors?
Yes, the inverter features an IP66 ingress protection rating, making it highly resistant to dust and high-pressure water jets, suitable for outdoor installation.
4. What is the maximum efficiency of the S6 series hybrid inverter?
The series reaches a maximum efficiency of 97.6%, with an EU efficiency rating of 97.0% for optimized energy conversion.
5. Does it support parallel operation for larger power requirements?
Yes, the series supports various communication protocols like CAN and RS485 to facilitate integrated system management and storage expansion.
6. What is the maximum PV input power for the 15kW model?
The 15kW model (15K) supports a maximum usable PV input power of up to 24kW, allowing for significant DC oversizing.
