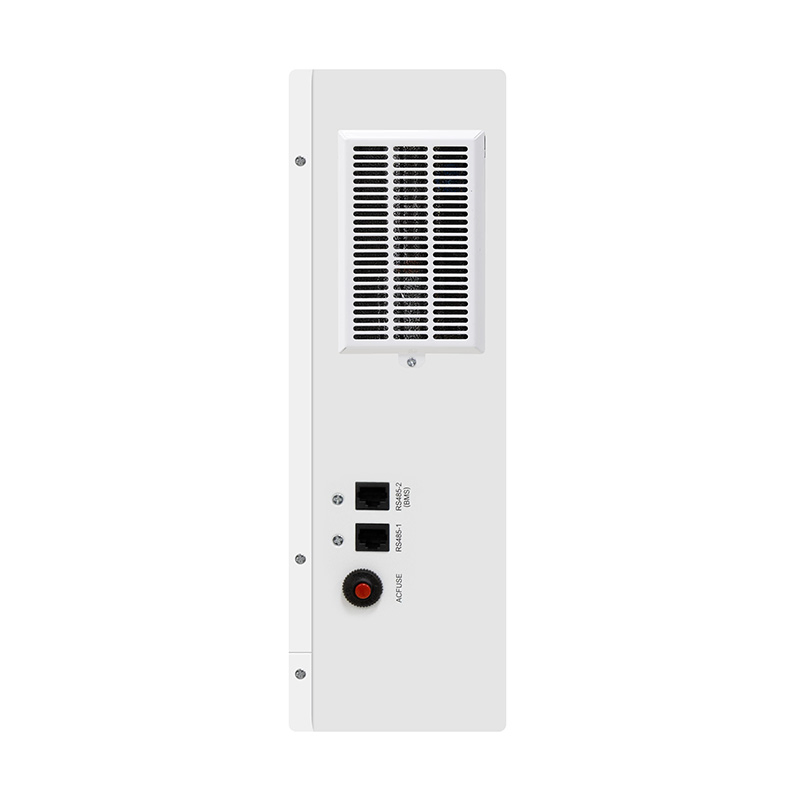

Renewable Energy Best Photovoltaic 12kw 3000W 10kw 3kw 6kw 4000W Single Phase off on Grid Pure Sine Wave MPPT Power Solar Hybrid Energy Inverter Price for Home

1 / 5

Renewable Energy Best Photovoltaic 12kw 3000W 10kw 3kw 6kw 4000W Single Phase off on Grid Pure Sine Wave MPPT Power Solar Hybrid Energy Inverter Price for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	24 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

XD-HFP

Nature of Source Flow

Active Inverter

Phase

Single Phase Solar Inverter

Output Power

3300W/4300W/6300W/8300W/10.3kw/12.3kw

Certification

CE, ISO9001, Test Report

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave String

Pure Sine Wave Solar Inverter

Rated Output Voltage

220V /230V/240V

Application

Home/Industrial/Office /Solar Power System

Output Efficiency

94%

Charging Mode

MPPT Solar Inverter

Battery Type

Lithium /Lead Acid /Gel Battery and Others

Output Frequency

50/60Hz Solar Inverter

Display

LCD+LED Display

Protection

Overload/Short Circuit/Temperature Protection

✨ Inverter Features

01High-frequency design, high power density, small size, and high overall efficiency.

02Bidirectional energy storage design for flow control of photovoltaic and mains electricity.

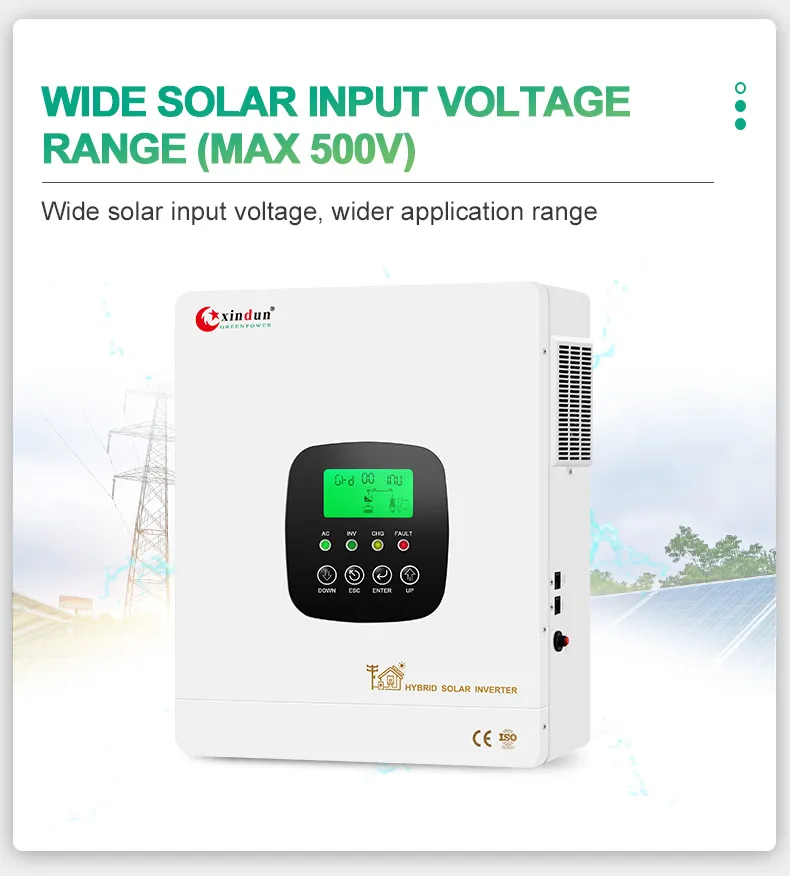

03Ultra wide MPPT range: min 40Vdc (24V models) / 80Vdc (48V models).

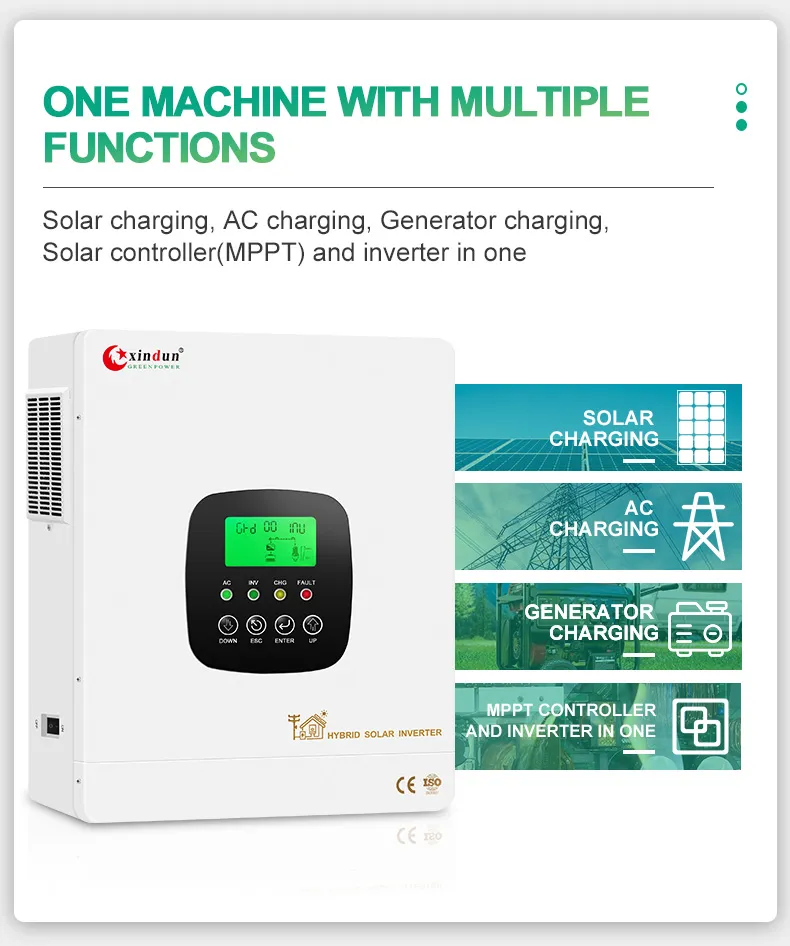

04Multiple working modes: grid-connected, off-grid, and hybrid mode.

05Equipped with grid-connected current and output priority setting functions.

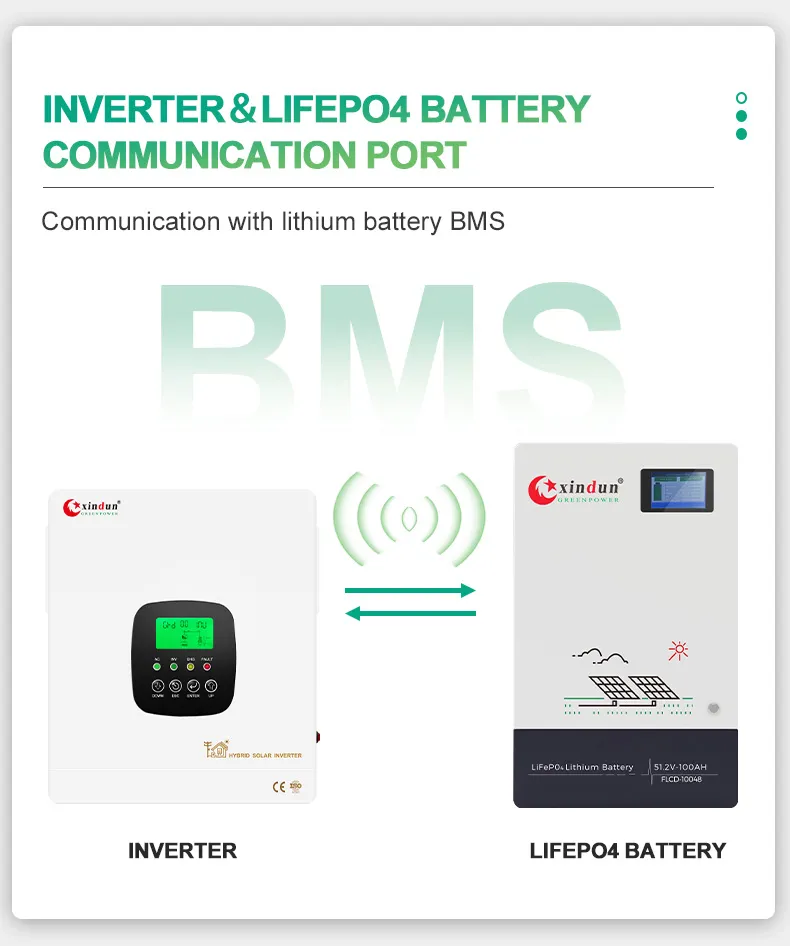

06Supports lithium battery BMS communication and battery-less operation mode.

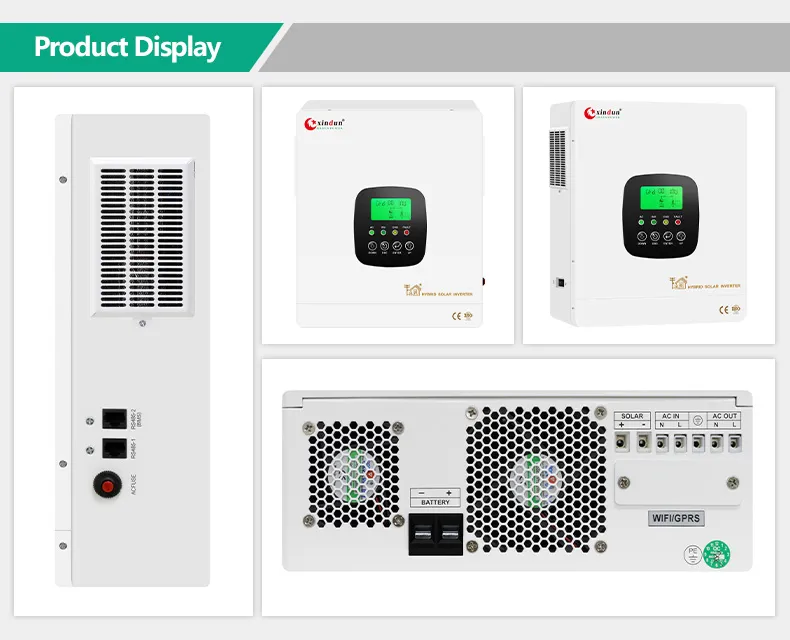

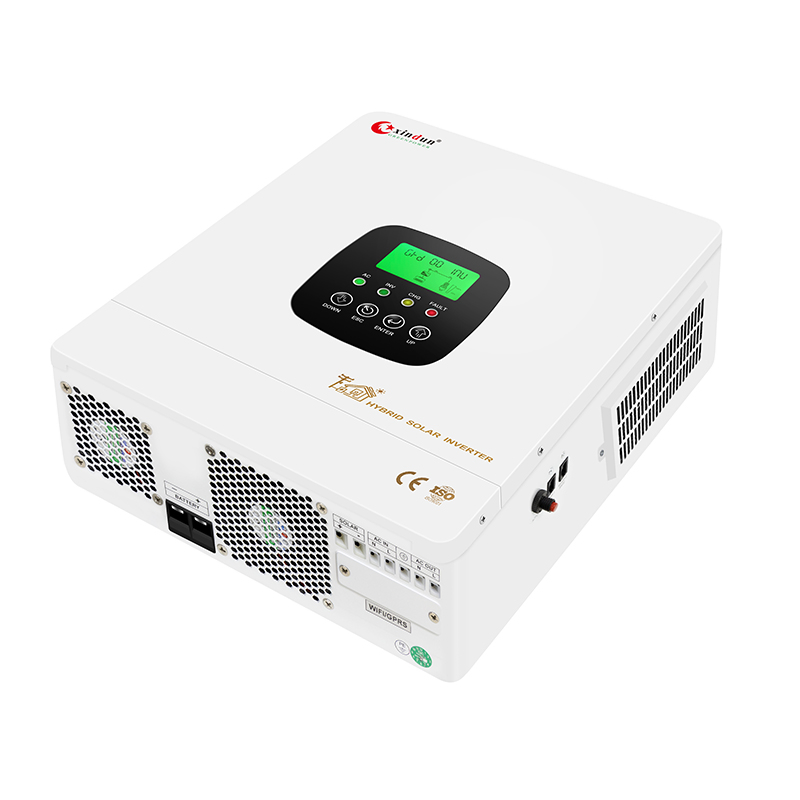

📷 Product Details

📊 Technical Specifications

Model: HFP		33224	43224	63248	83248	103248	123248
PV Input	Max PV Input Power	5000W		7000W	4500W*2	6000W*2	6000W*2
	MPPT Tracking Range	40VDC-450VDC		80VDC-450VDC
	Max Input Voltage	500VDC
Battery	Rated Voltage	24VDC		48VDC
Battery	Max Charging Current	120A	150A	120A	150A	180A	200A
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Output Voltage	220VAC/230VAC/240VAC
	Waveform	Pure Sine Wave

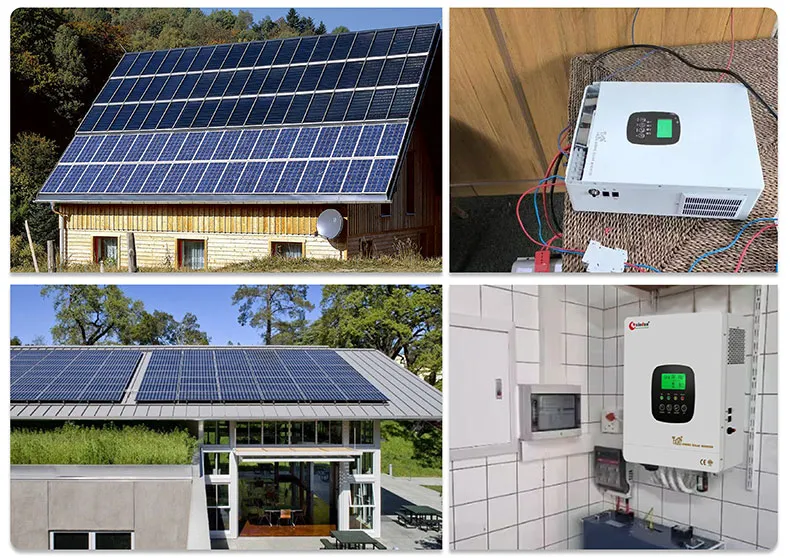

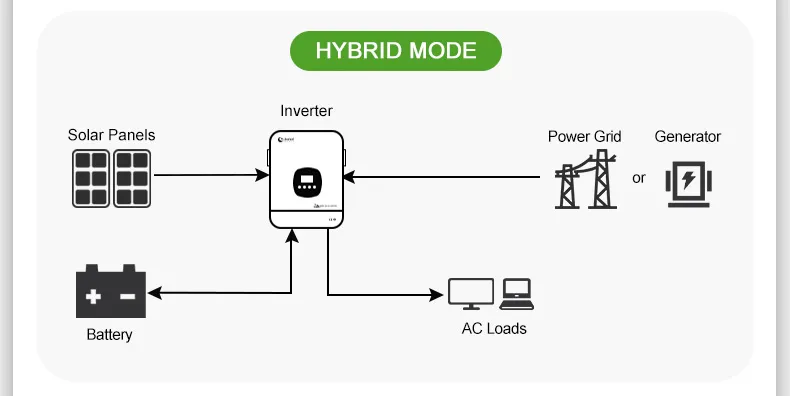

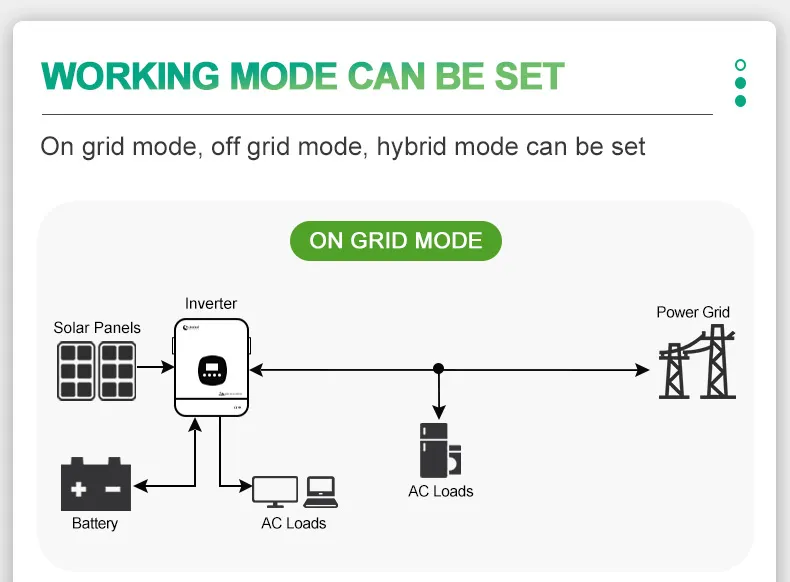

💡 Wiring Diagram & Application

📦 Packing & Shipping

Package: Carton Box for standard packaging, or Wooden Box advised for Samples to ensure protection during transportation.

Shipping Methods:

Fedex / DHL / TNT / UPS for door-to-door samples.
By air or by sea for batch goods (CFL, Air port/Port receiving).
Customer-specified freight forwarders or negotiable shipping methods.
Delivery time: 7 days for samples; 10 to 25 days for batch goods.

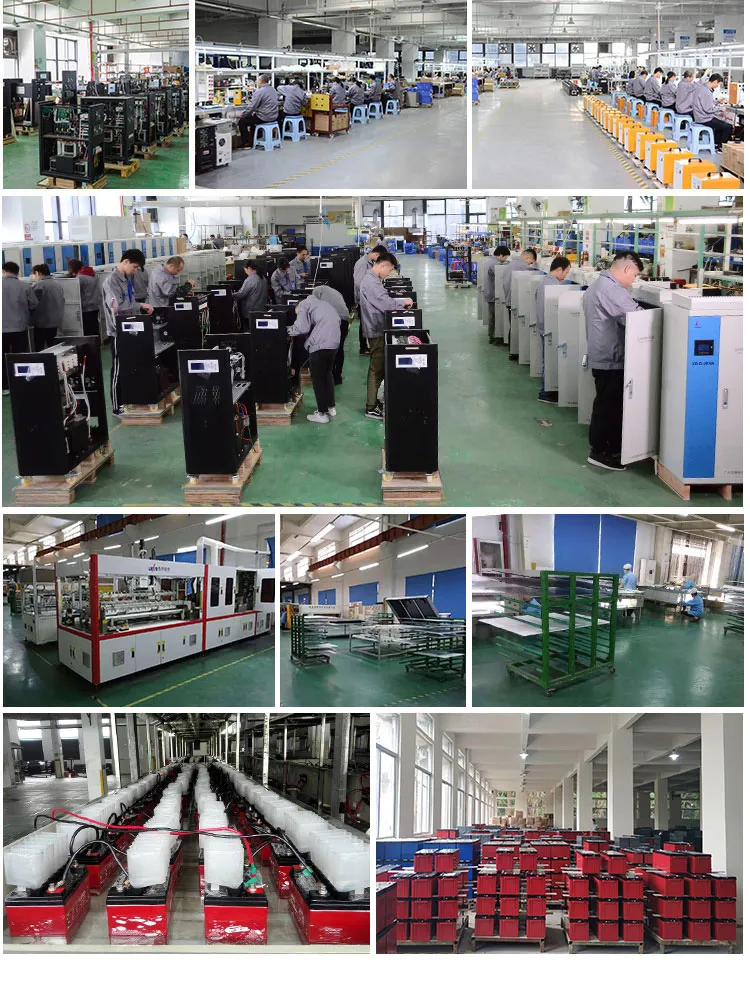

🏭 Workshop & Facilities

❓ Frequently Asked Questions

Q1: What types of batteries are compatible with this solar hybrid inverter?

A1: It is compatible with Lithium, Lead-acid, and Gel batteries. Parameters can be customized through the operation board to suit different battery types.

Q2: Can the inverter operate without a battery?

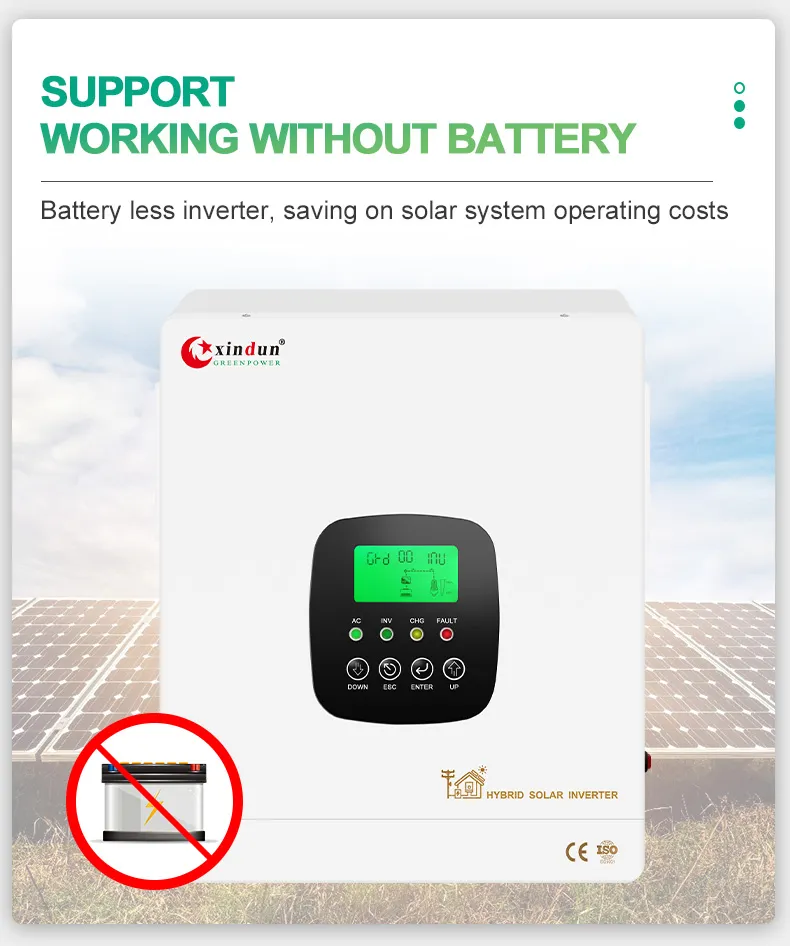

A2: Yes, this model supports a battery-less operation mode, allowing energy to be supplied directly from PV or the grid.

Q3: What is the maximum conversion efficiency of this device?

A3: The inverter achieves a peak conversion efficiency of 94% during battery discharge and an MPPT tracking efficiency of ≥99.9%.

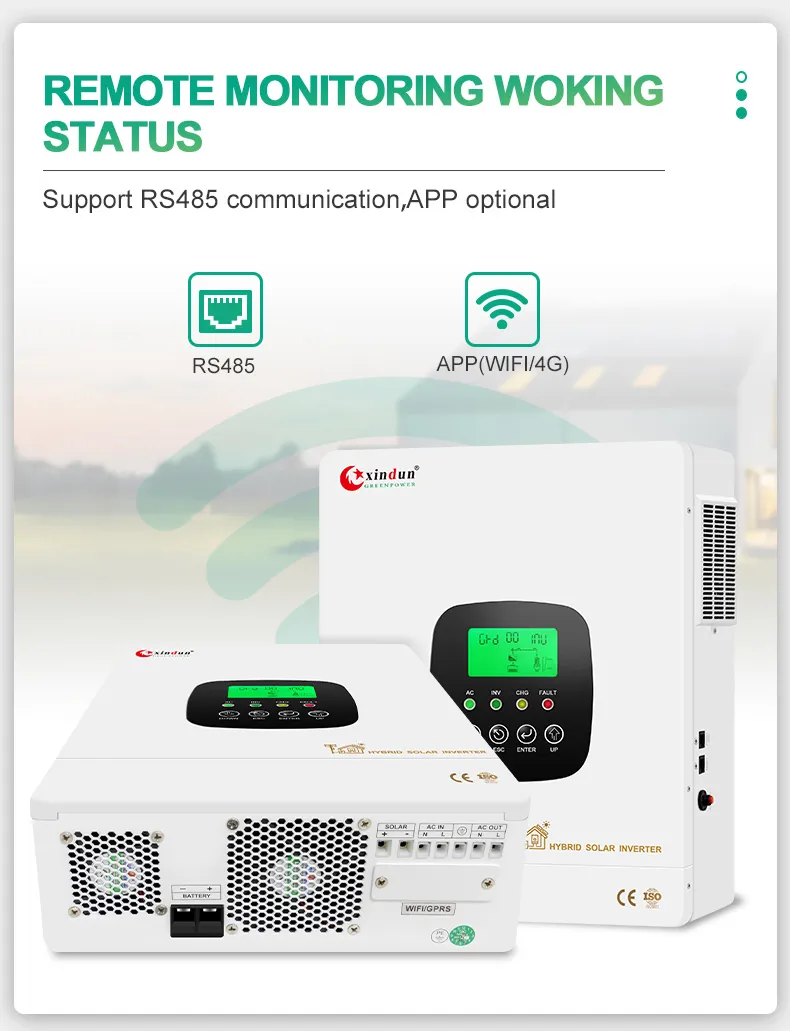

Q4: Does the inverter support mobile monitoring?

A4: Yes, it supports RS485 communication and offers optional WiFi or GPRS monitoring via a mobile app.

Q5: What safety protections are built into the system?

A5: It includes comprehensive protection against overload, short circuits, high temperatures (>90 ºC), and battery low voltage.

Q6: What are the primary working modes available?

A6: Users can set the device to Grid-connected mode, Off-grid mode, or Hybrid mode depending on energy needs and priority settings.
