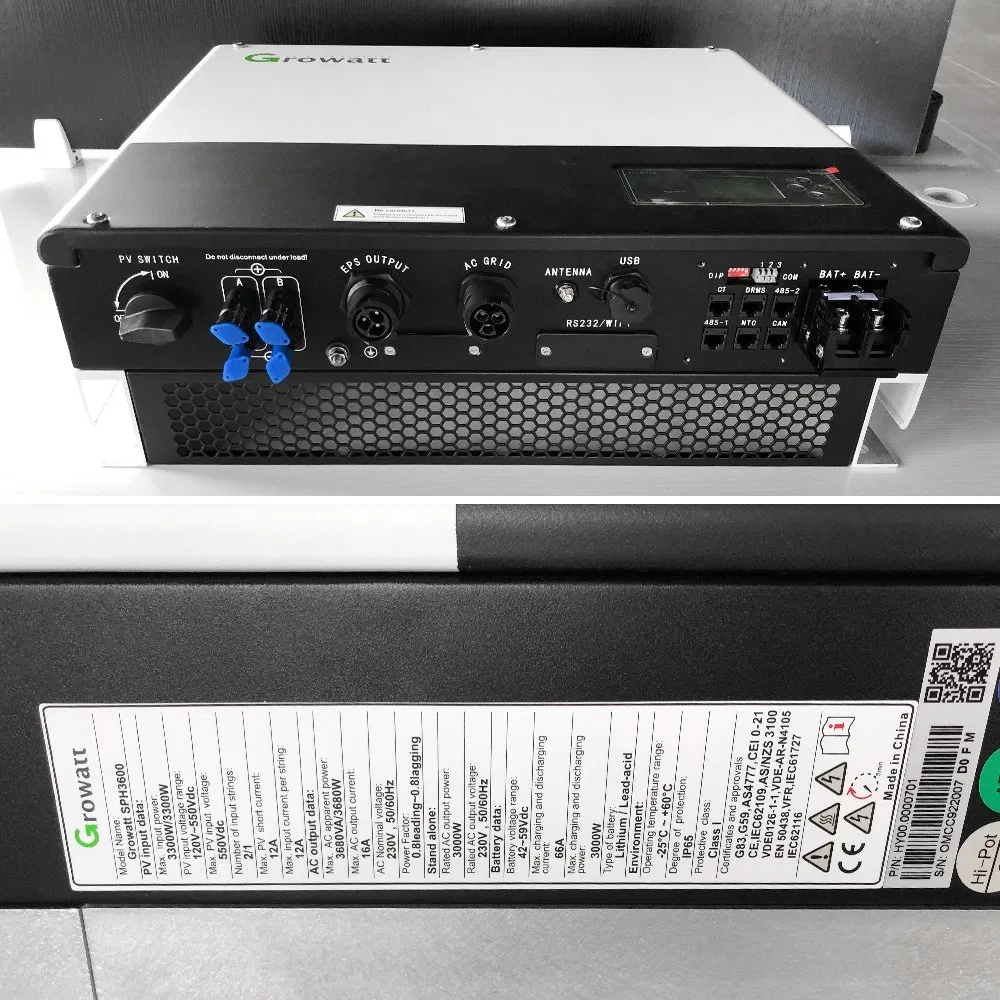

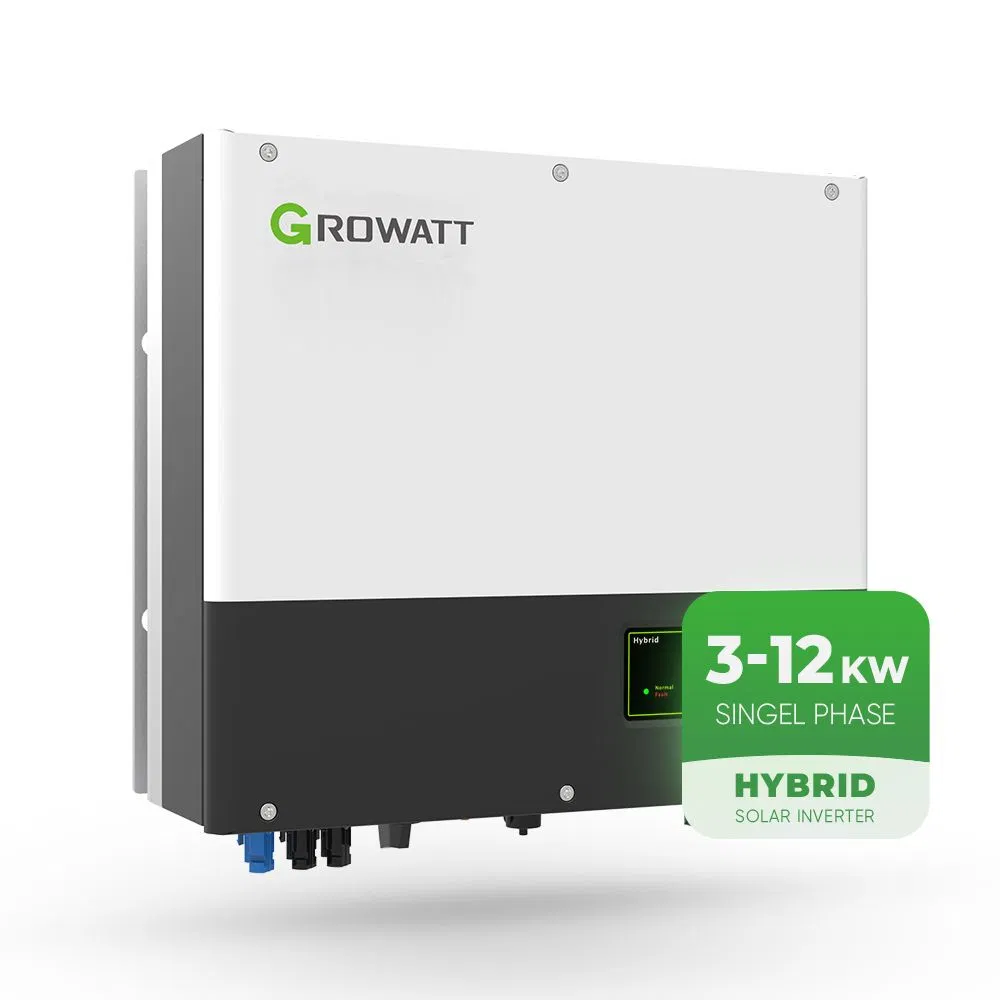

Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
1 / 5
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters
Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters

Growatt Mppt Solar Power Energy Inverter 3Kw 5Kw 6Kw 6.2Kw 10Kw 15Kw Single Phase Hybrid Off Grid Solar Inverters

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
Growatt inverter 3-12KW-HY
Nature of Source
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Battery Voltage
48V DC
Protection Rating
IP65
Max. PV Voltage
550V
Communication
WiFi / RS485
MPPT Trackers
2/1

Product Overview

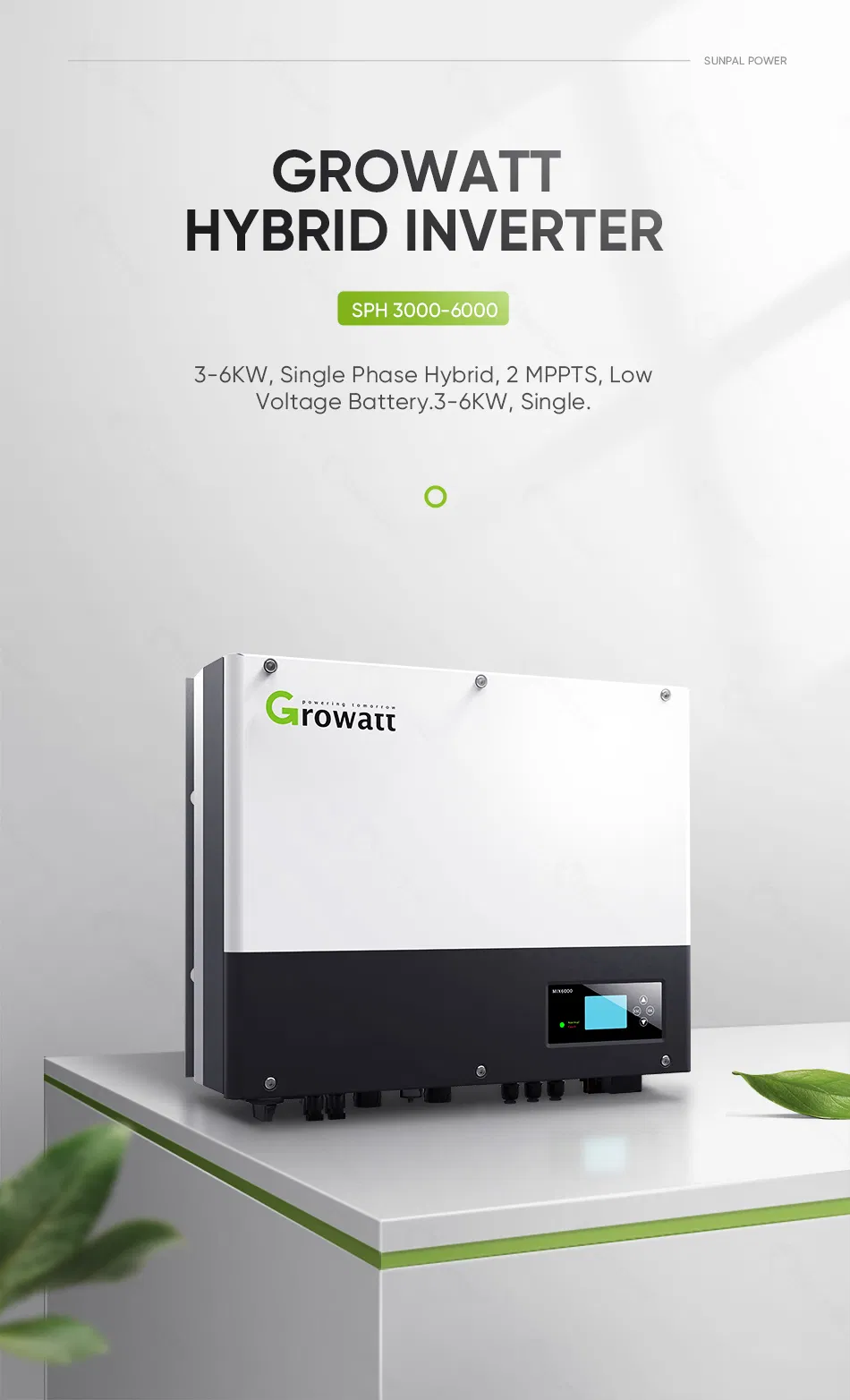

Inverter Features

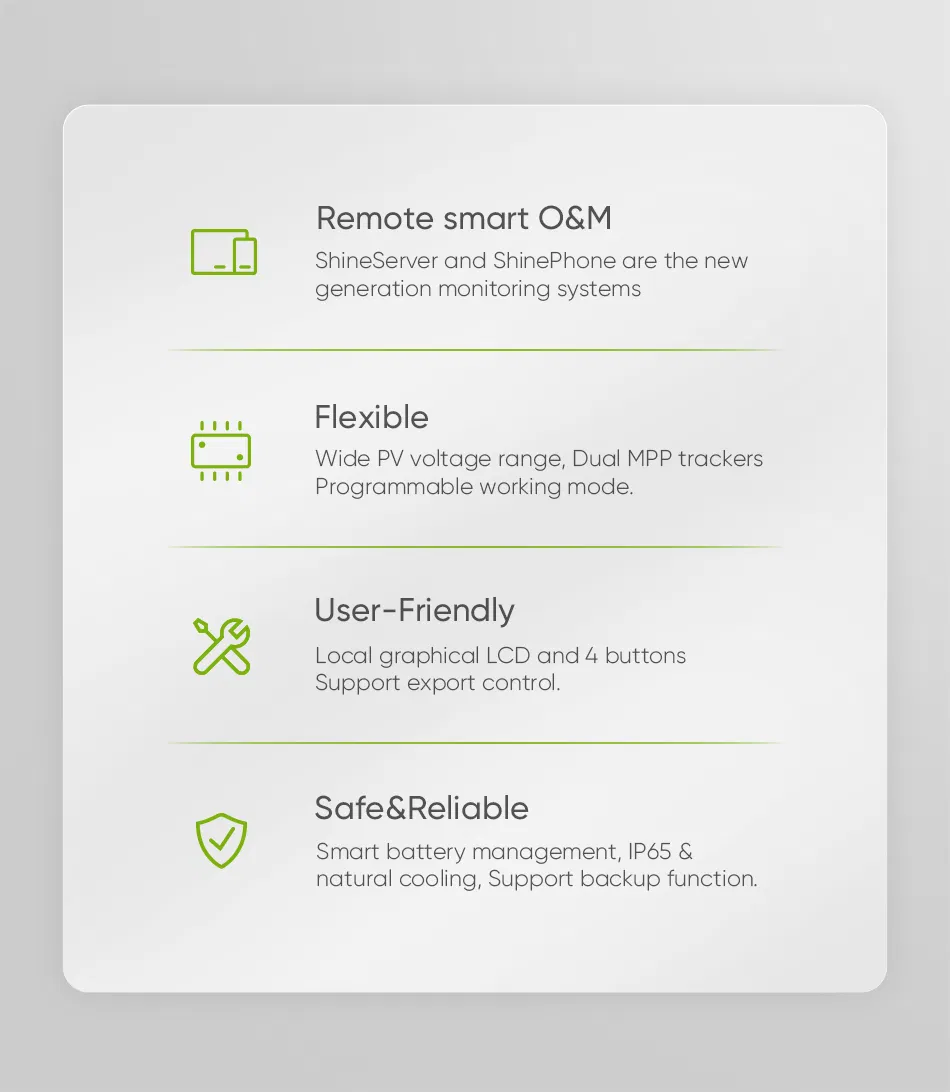

Technical Design

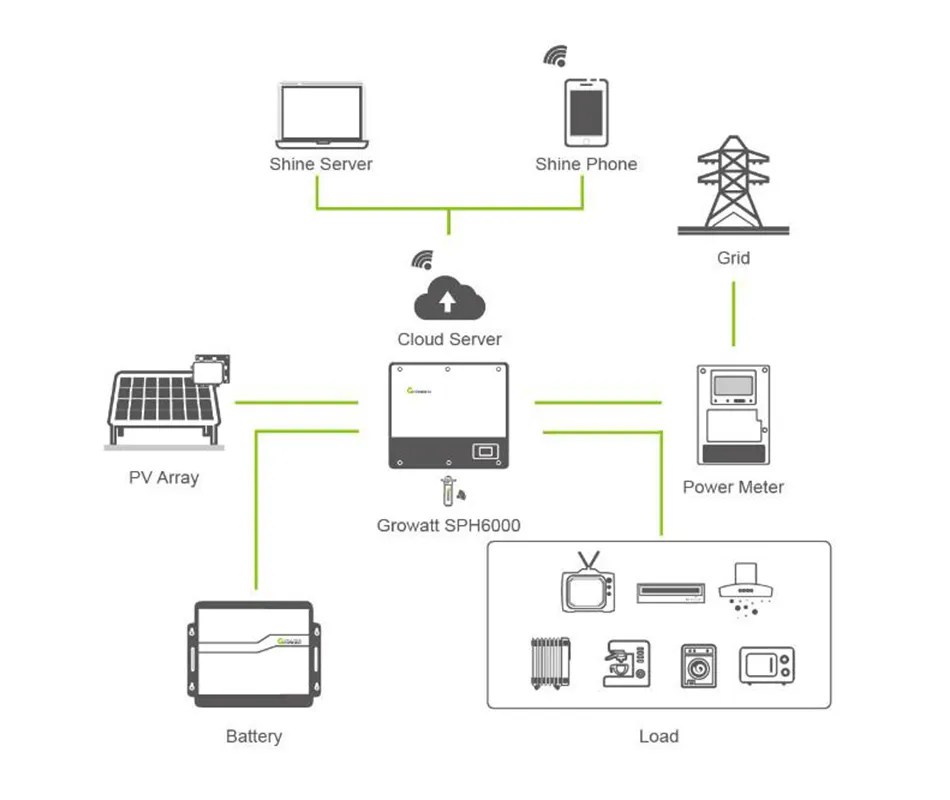

Hybrid Storage System

Storage System

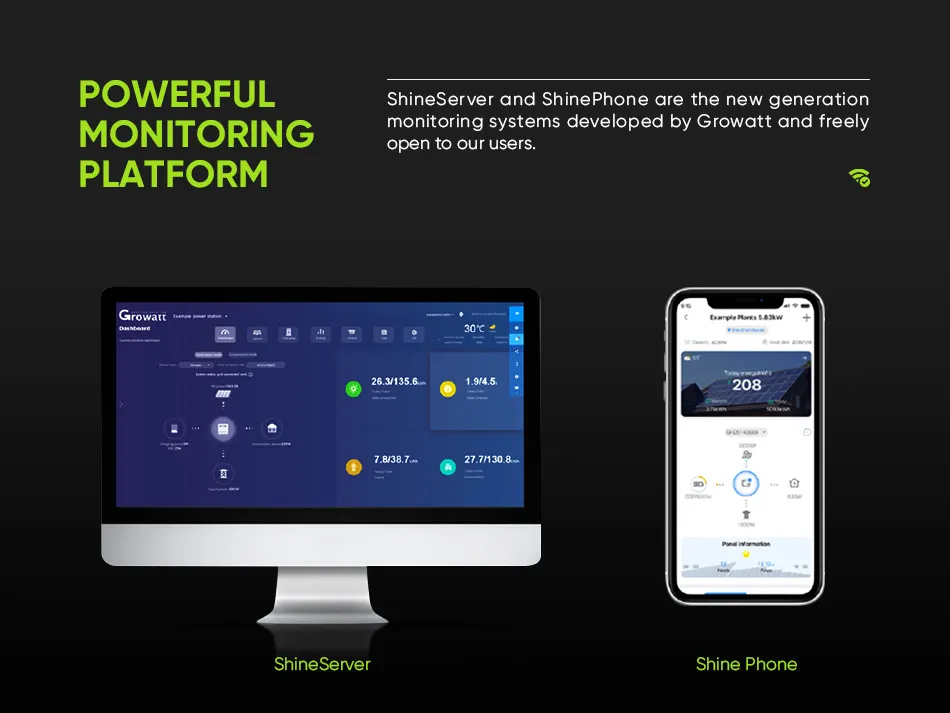

Online Smart Monitoring

Smart Monitoring

Technical Parameters

Datasheet SPH 3000 SPH 3600 SPH 4000 SPH 4600 SPH 5000 SPH 6000
DC Input Data
Max. PV Power 6600W 6600W 6600W 8000W 8000W 8000W
Start Voltage / Max Voltage 150V / 550V
MPPT Voltage Range 150V-550V / 360V
AC Output
Rated AC Power 3000W 3680W 4000W 4600W 4999W 6000W
Max. Output Current 16A 16A 22A 22A 22A 27A
Battery Data
Battery Voltage Range 42~59V
Max Charge/Discharge Power 3000W
Efficiency & Protection
Max Efficiency 97.5% 97.5% 97.5% 97.6% 97.6% 97.7%
Protection Devices DC Switch, Reverse Polarity, Over Current, Over Voltage, Grid Monitoring

Product Packaging & Logistics

Packaging

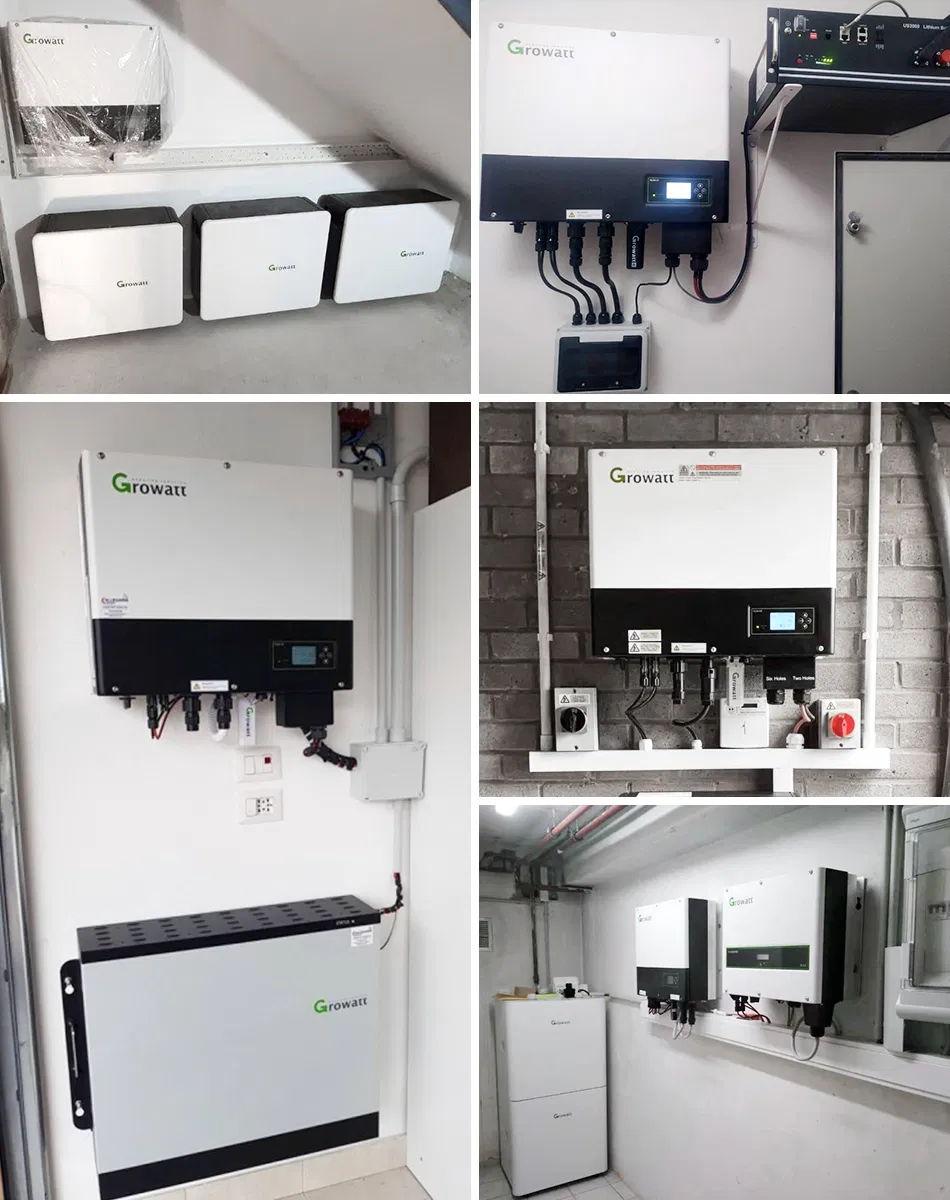

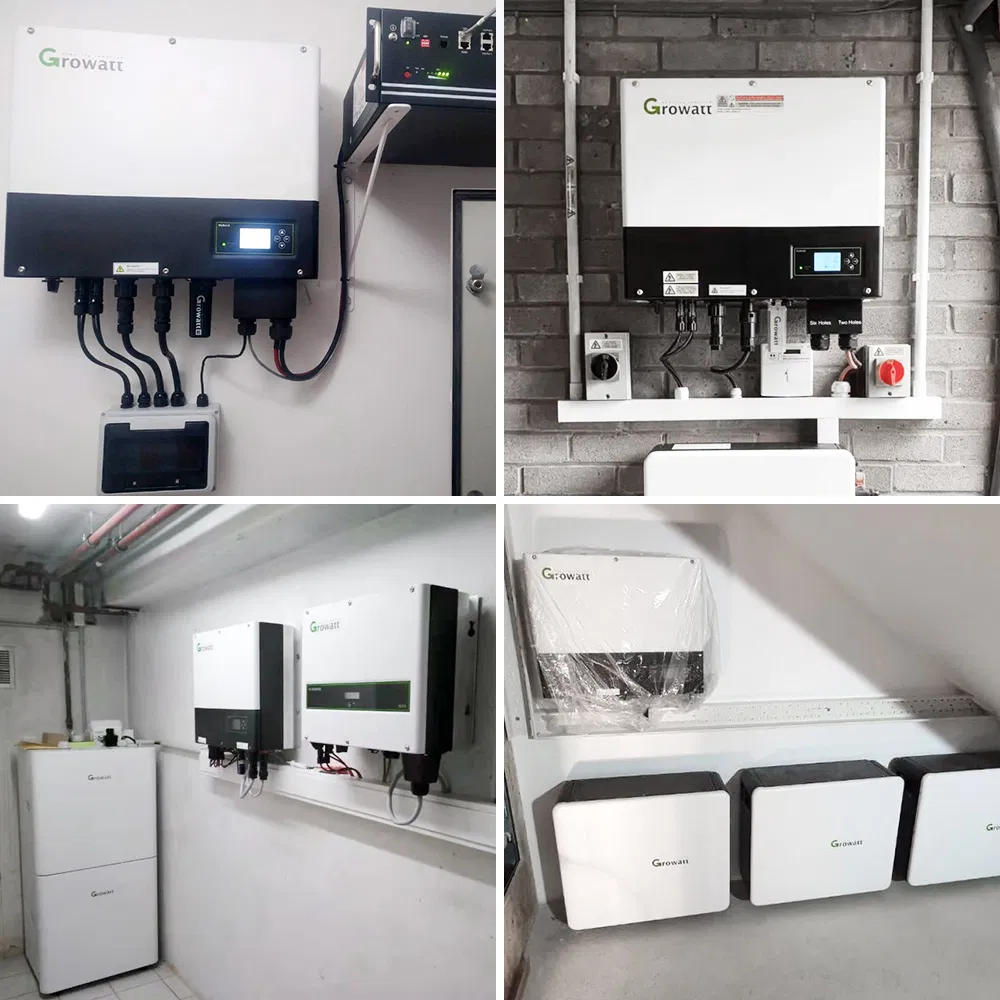

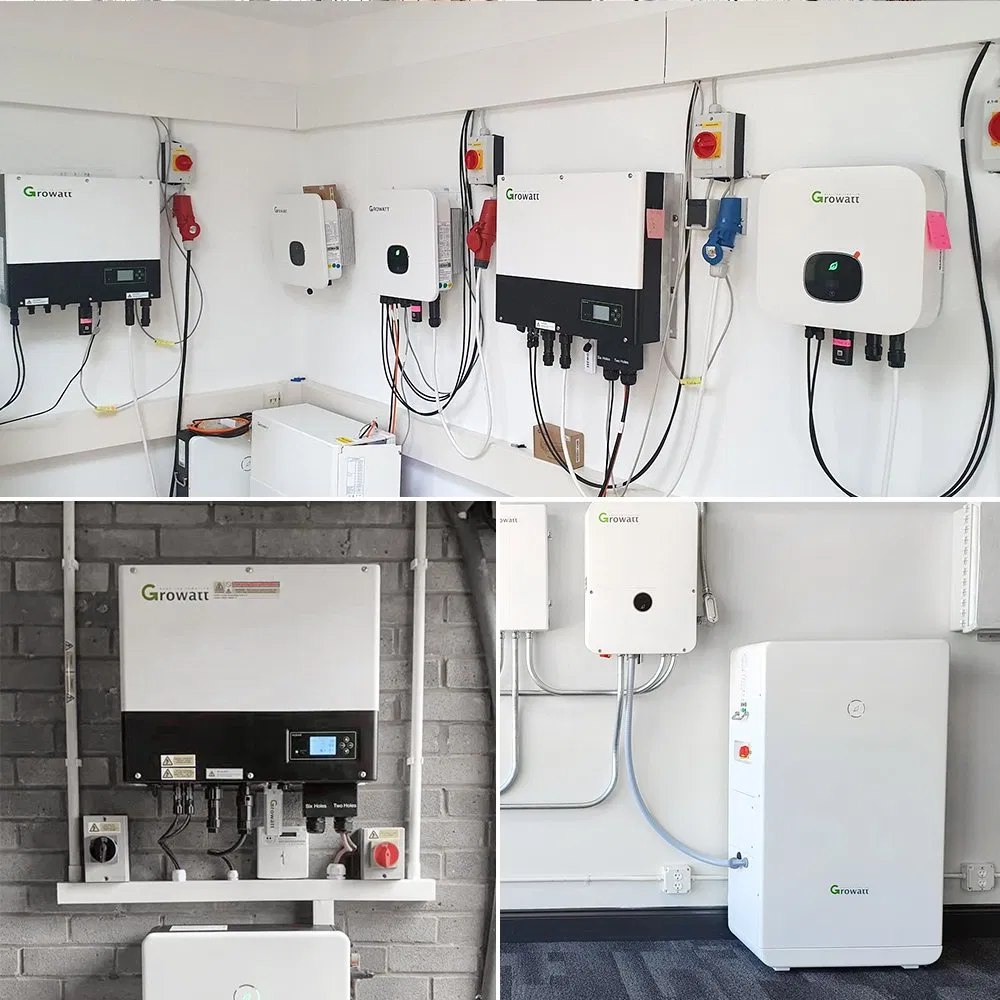

Application Scenarios

Application

Our Advantages

Advantage 1
Advantage 2
Advantage 3

Exhibition Showcase

Exhibition

Frequently Asked Questions

What battery types are compatible with this hybrid inverter?
The system is compatible with both Lithium and Lead-acid batteries with a voltage range of 42V to 59V.
Can I monitor my solar system remotely?
Yes, the inverter supports online smart monitoring via WiFi, GPRS, and RS485 interfaces for real-time data access.
What is the maximum efficiency of these inverters?
The series offers a maximum efficiency of up to 97.7% and an MPPT efficiency of 99.9%.
Is the inverter suitable for outdoor installation?
Yes, the unit features an IP65 environmental protection rating, making it suitable for outdoor conditions.
What safety protections are integrated into the system?
The inverter includes DC switch protection, battery reverse protection, output over-current/voltage protection, and ground fault monitoring.
What is the standard warranty period?
The product comes with a standard 5-year warranty, with an optional extension to 10 years available.
