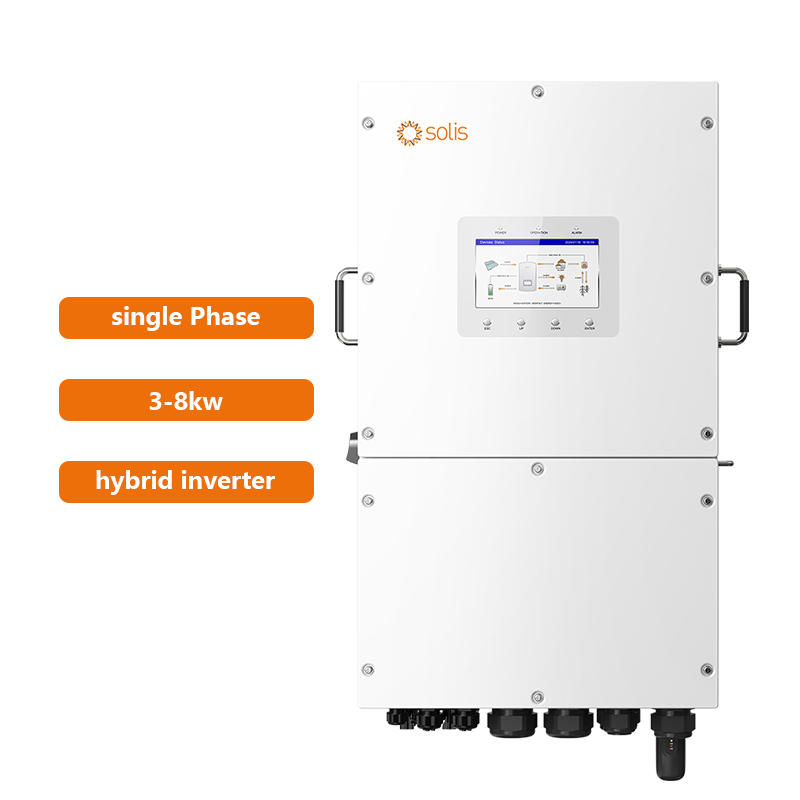

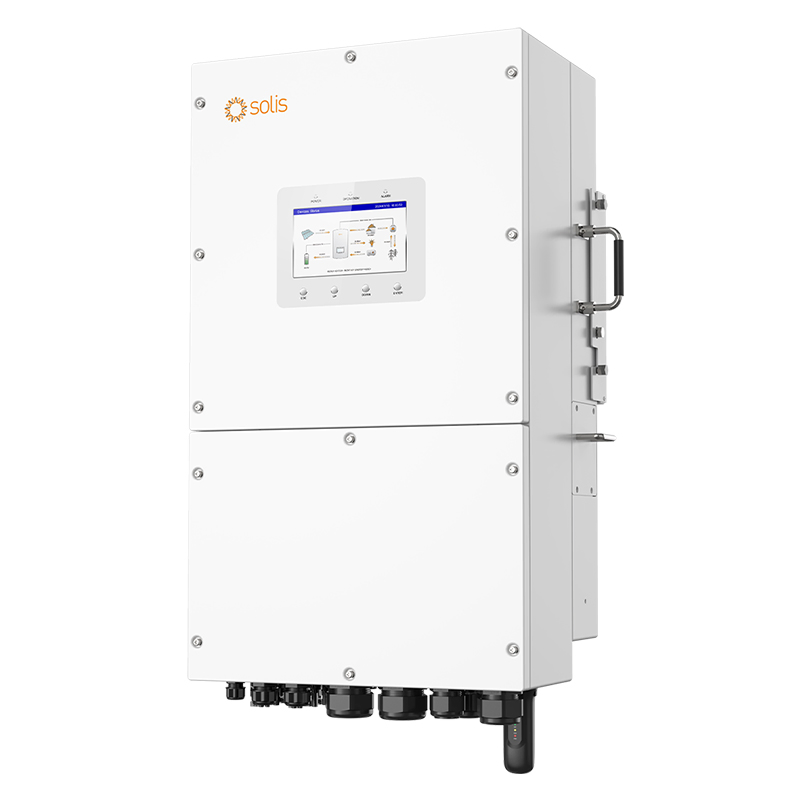

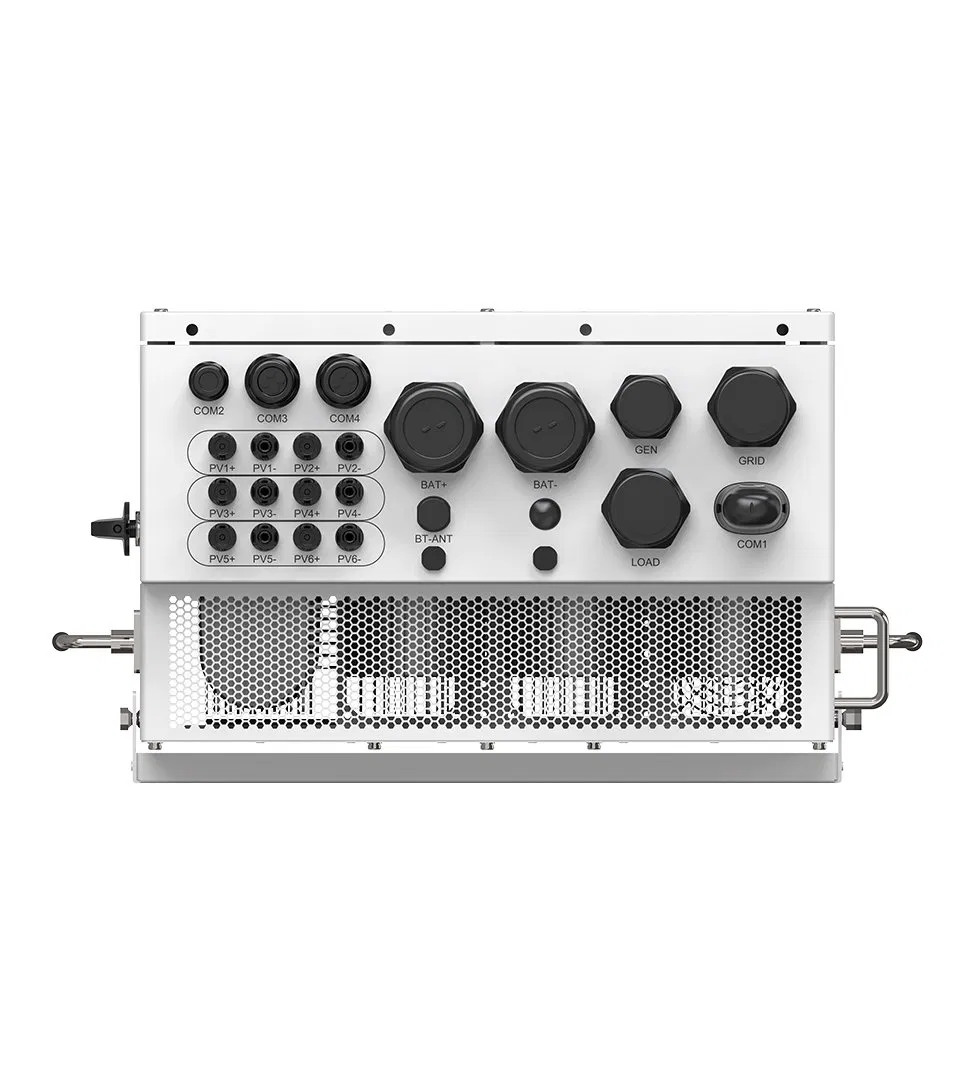

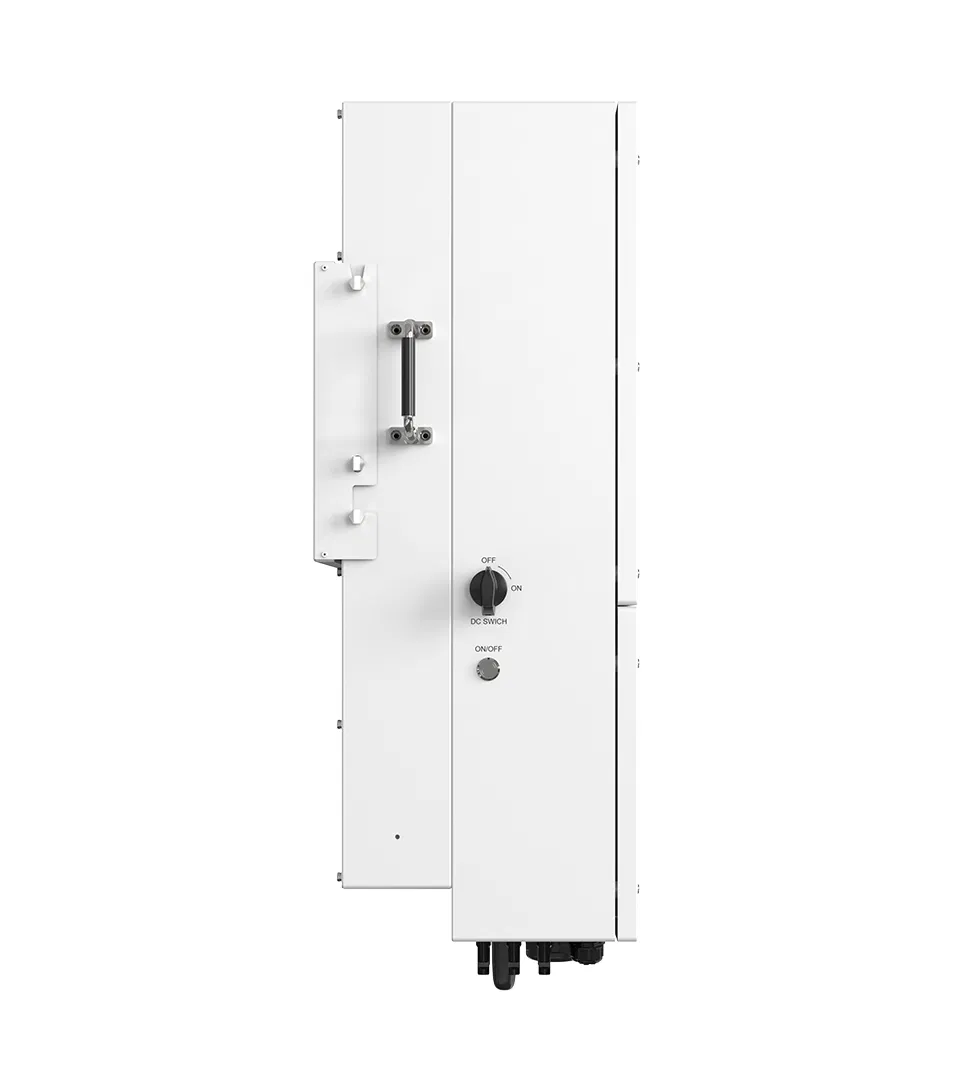

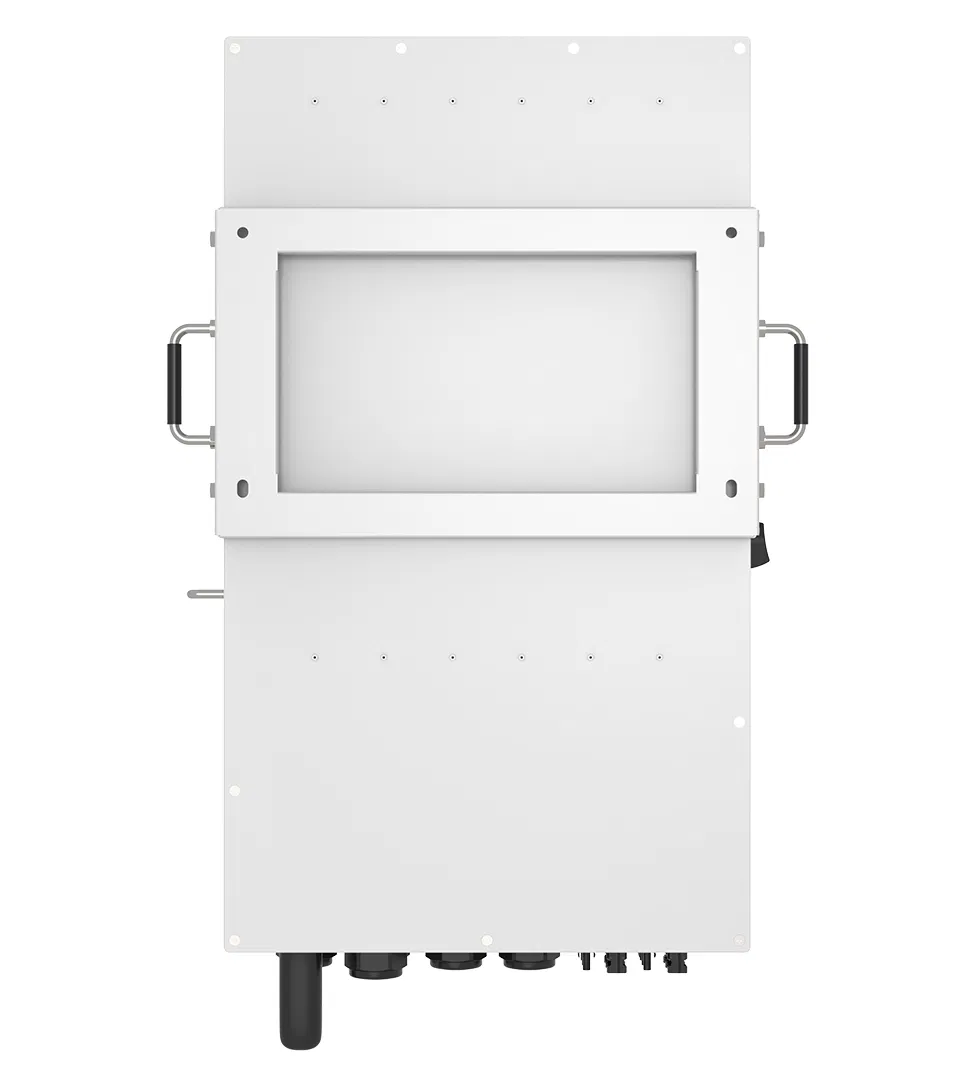

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info
Model NO.
S6-EH1P(3-8)K-L-PLUS
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Input Voltage
500V
Output Voltage
220V/230V
Protection
IP66
Battery Type
Lead Acid \ Lithium
Dimensions
335 *560 *227 mm
Product Description

Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS

Single Phase Low Voltage Energy Storage Inverter. Advanced solution for residential energy storage systems.

Inverter Overview

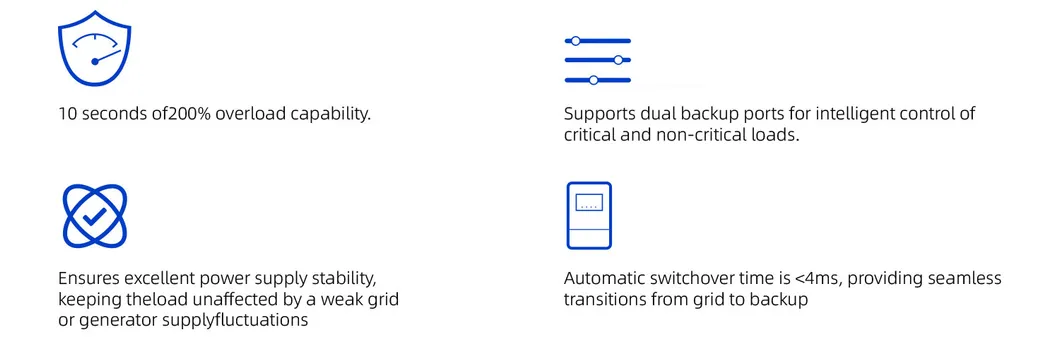

Inverter Features
Product Parameters
S6-EH1P(3-8)K-L-PLUS Series
Models 3K 3.6K 5K 6K 8K
Max. PV Array size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. input voltage 500 V
MPPT voltage range 90-435 V
Battery Settings
Battery Type Li-ion / Lead-acid
Voltage range 40-60 V
Max Charge/Discharge 70 A 80 A 112 A 135 A 190 A
Output AC (Grid Side)
Rated power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Max apparent power 3 kVA 3.6 kVA 5 kVA 6 kVA 8 kVA
Back-up switch time < 4ms

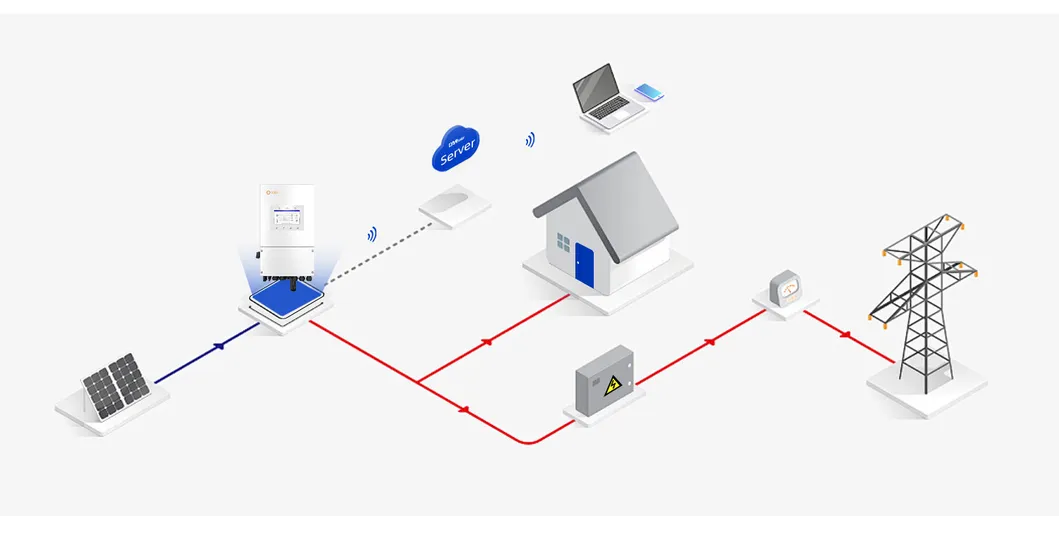

Basic System Architecture
Architecture Diagram
Packaging & Shipping
Shipping Details
Project Case

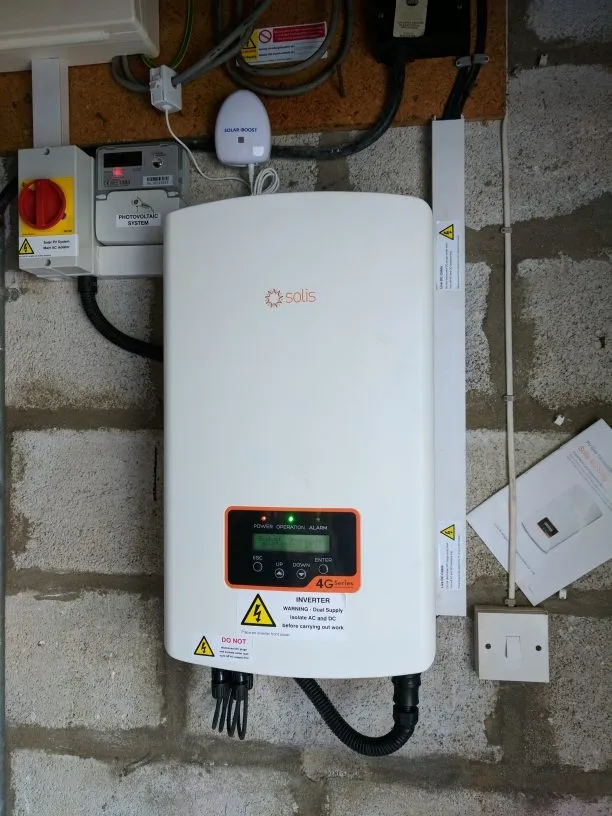

Case 1

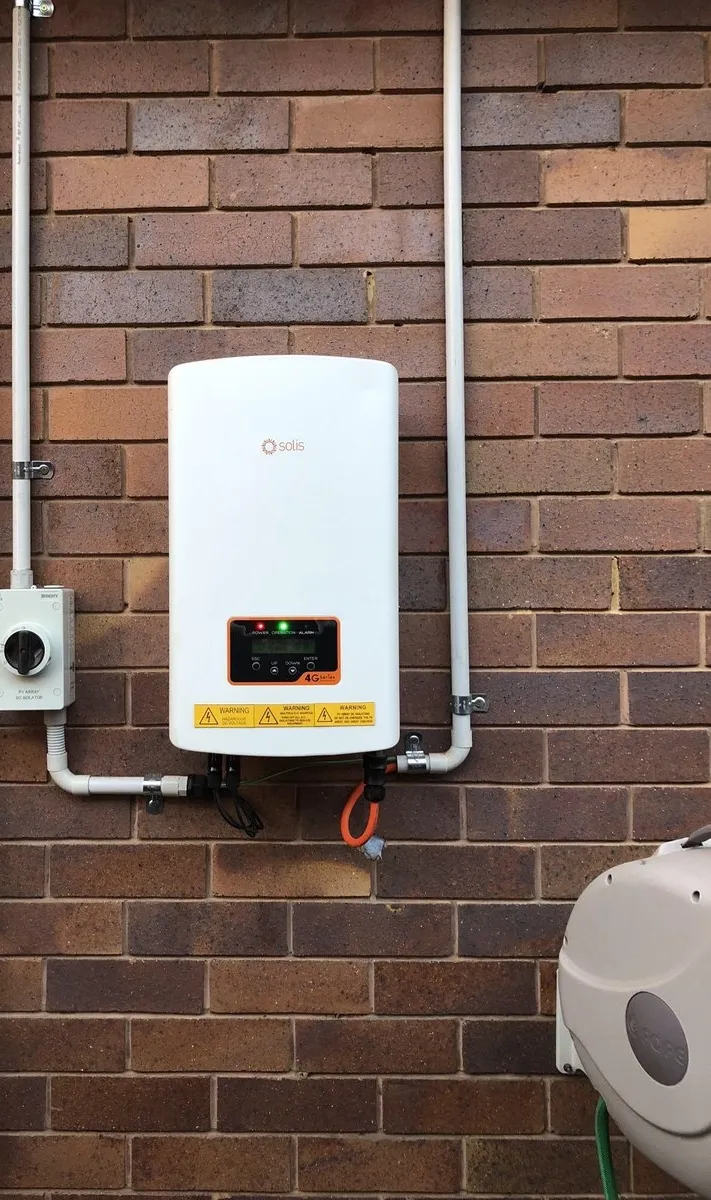

Case 2

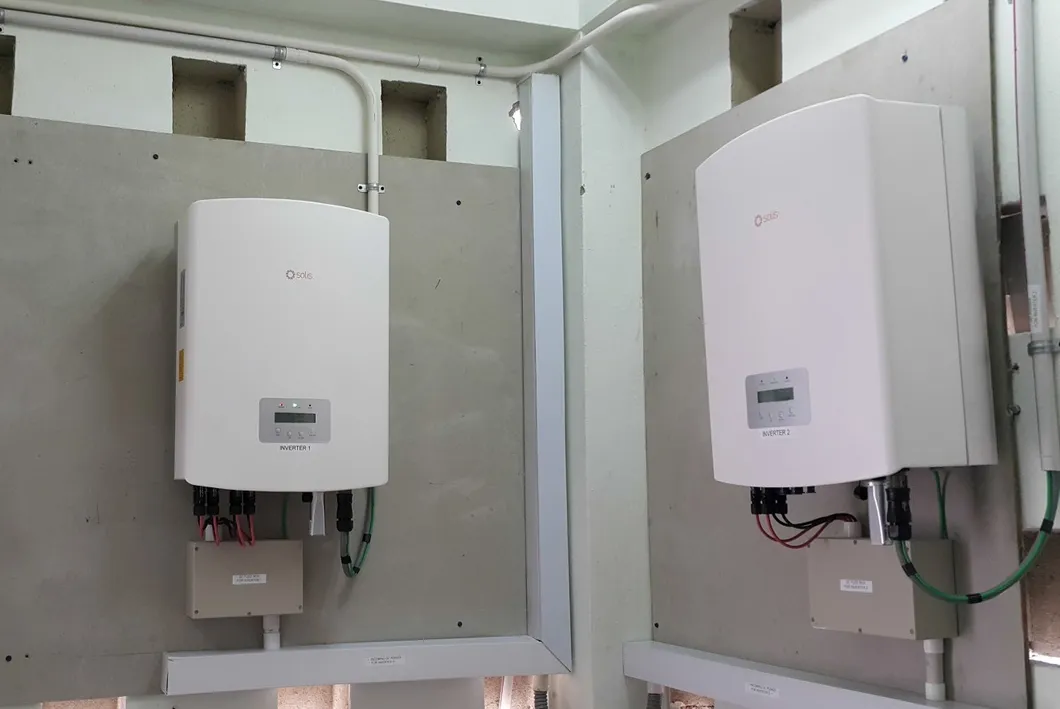

Case 3

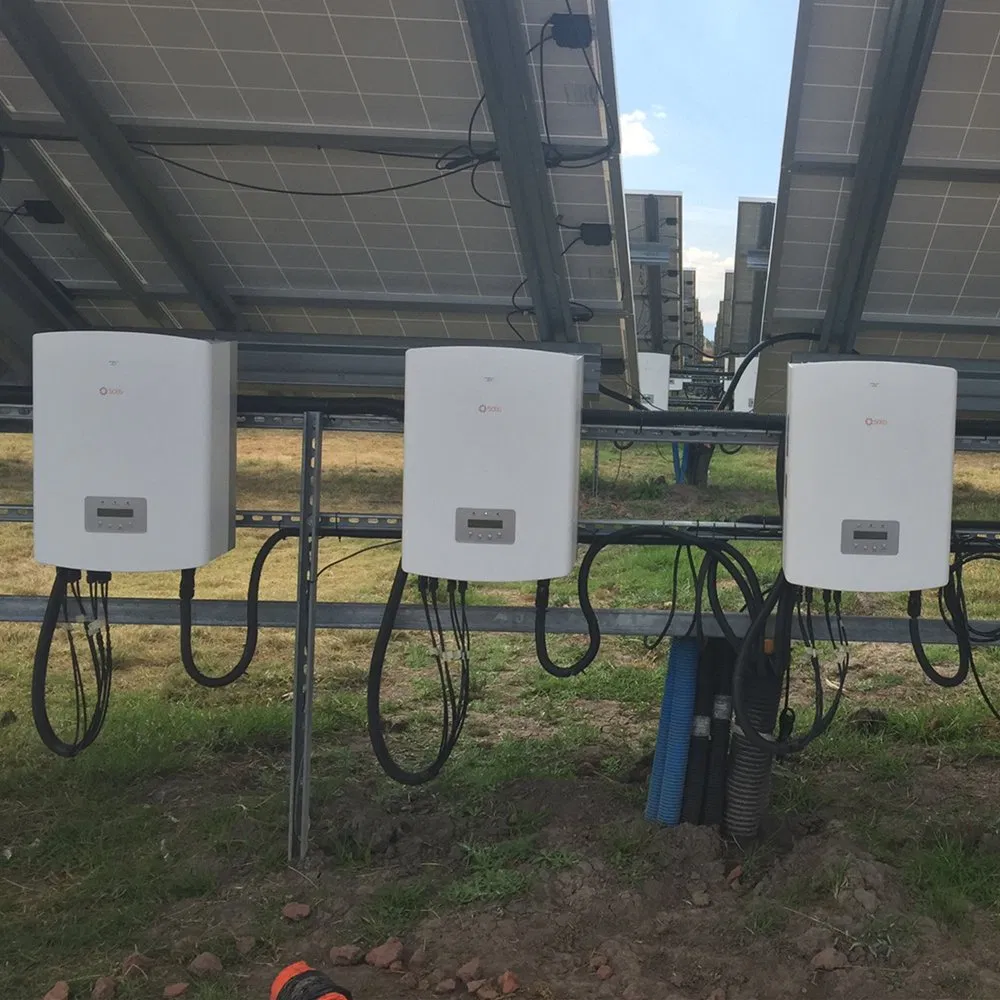

Case 4

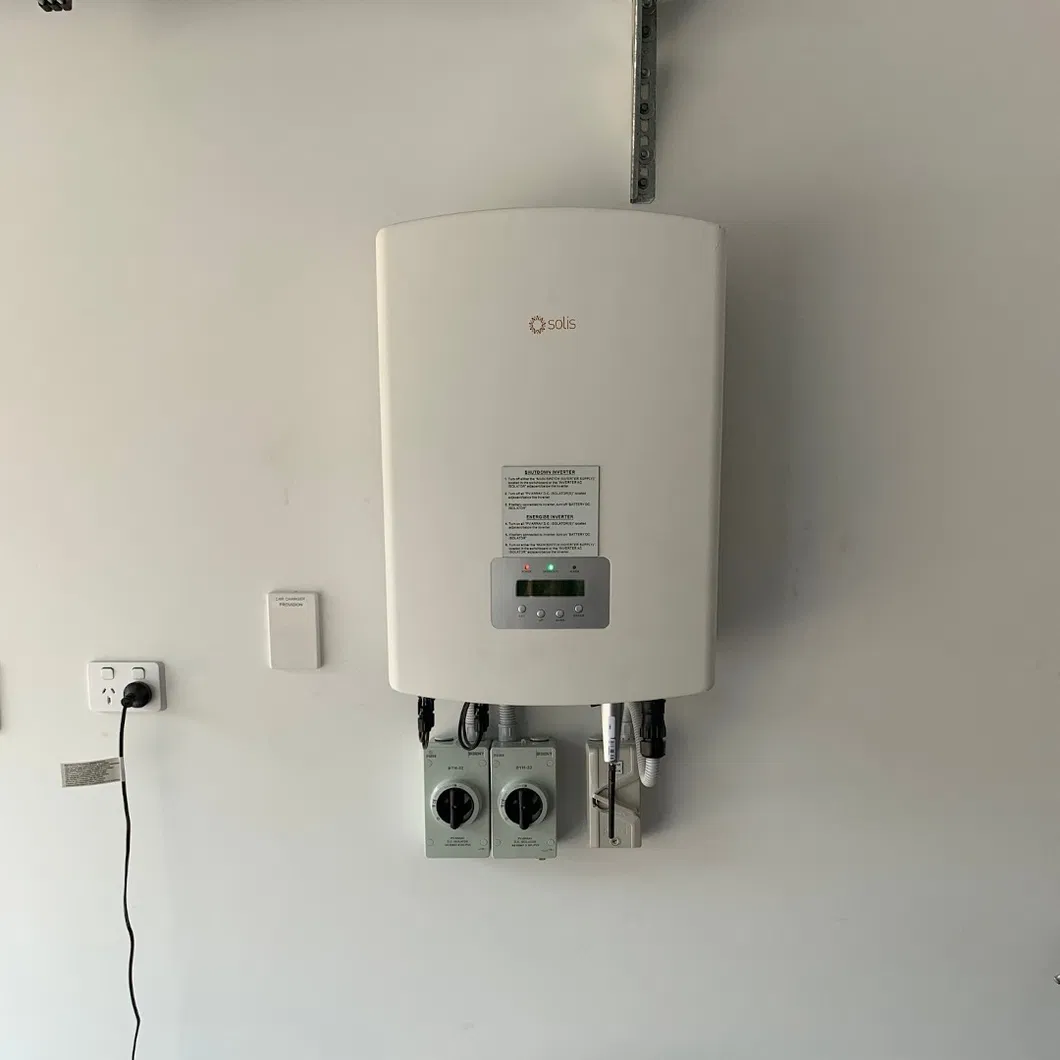

Case 5
Frequently Asked Questions
What is the output power range of the S6-EH1P series?
The series offers a versatile power range from 3kW up to 8kW, including 3.6kW, 5kW, and 6kW models to suit different residential needs.
What battery types are compatible with this inverter?
This hybrid inverter is compatible with both Lithium-ion and Lead-acid batteries, with a battery voltage range of 40-60V.
How fast is the backup power switching?
The inverter features an ultra-fast switching time of less than 4ms, ensuring an uninterrupted power supply for sensitive loads during grid failure.
What is the protection rating for outdoor installation?
It is rated IP66, providing superior protection against dust and powerful water jets, making it suitable for harsh outdoor environments.
Does the system support remote monitoring?
Yes, it features a 7.0" LCD display and supports Bluetooth + APP connectivity, with optional Wi-Fi, GPRS, and LAN communication modules.
What cooling method does the inverter use?
The 3-5kW models utilize natural convection for silent operation, while the 6-8kW models use intelligent redundant fan-cooling for optimal thermal management.
