off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
1 / 5
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT
off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
SUB-D
Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Wave Form
Sine Wave Inverter
MPPT Range
150-500 VDC
Origin
China
☀️

Off Grid Hybrid Solar Inverter (3-11KW)

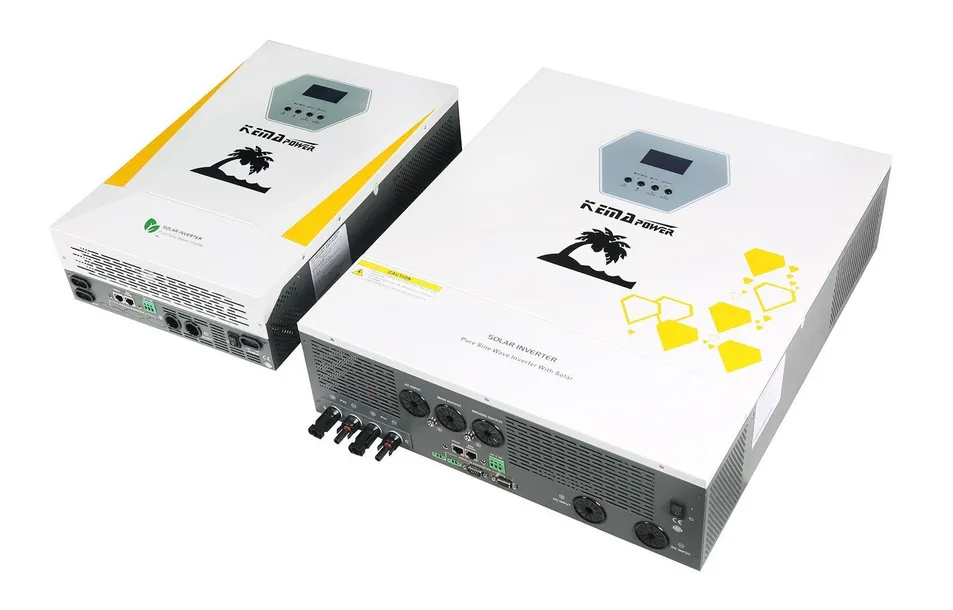

Hybrid Solar Inverter Overview
✔ High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
✔ 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
✔ Working without battery during daytime
✔ Support lithium activation wake-up and cold start function
✔ Intelligent Distribution of solar panel/mains/battery power shares
✔ AC and PV charge voltage adjustable for different battery types
✔ WiFi Plug or GPRS option for Mobile App monitoring
✔ Pure sine wave output, suitable for sensitive loads

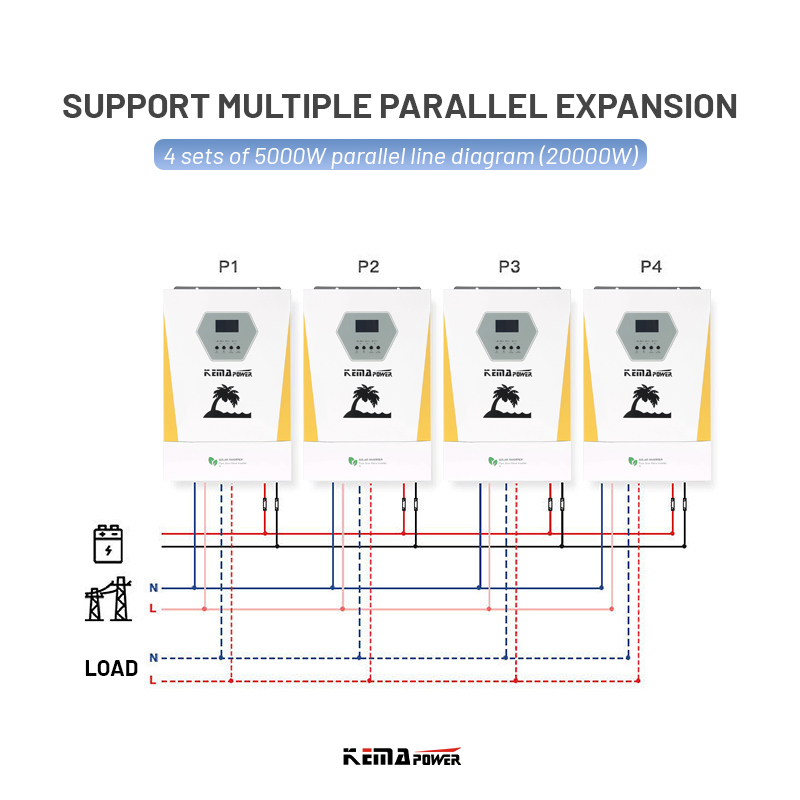

✔ Parallel function for 6.2KW/11KW models (Max 9 units)
✔ Wide MPPT range up to 500VDC
🖼️

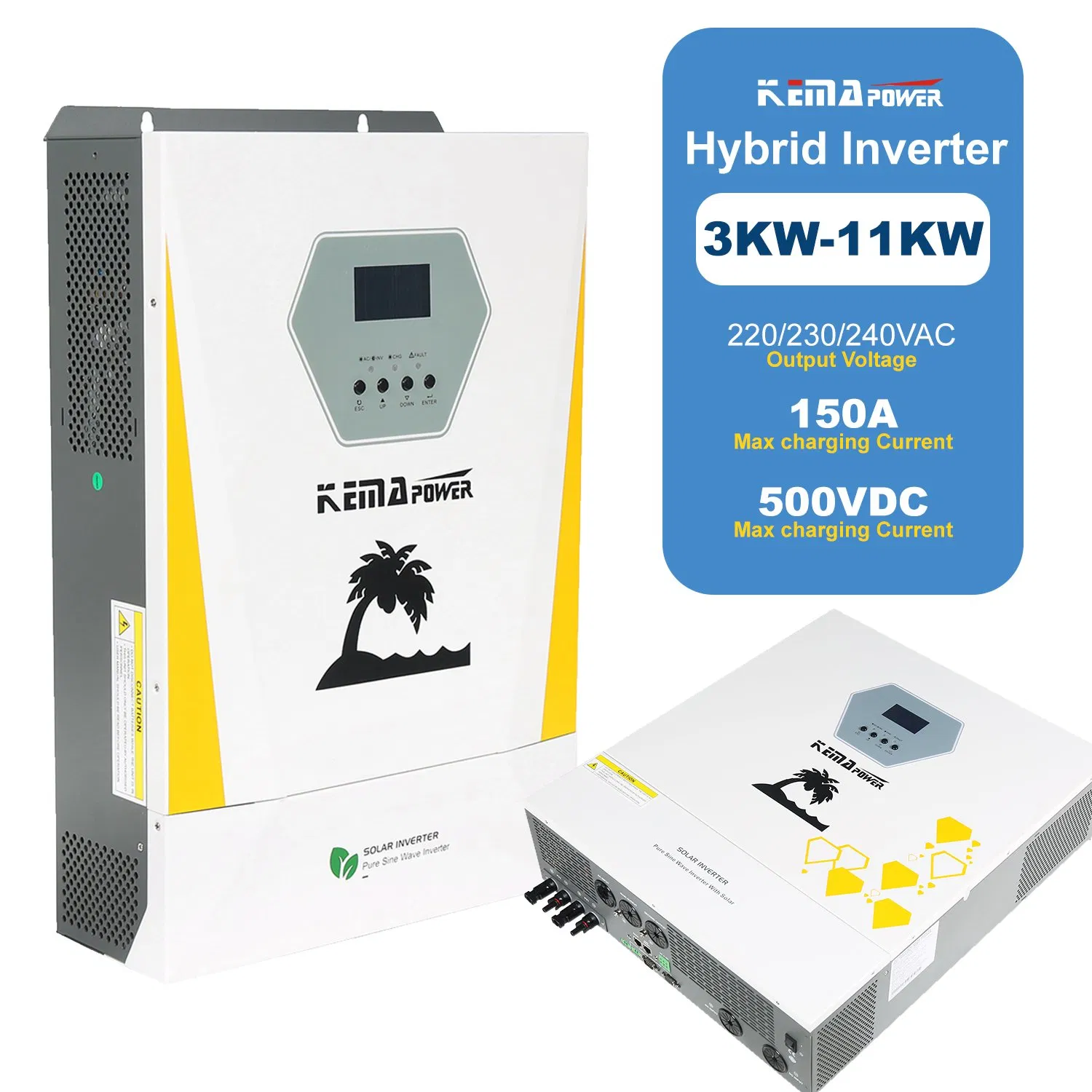

Product Gallery

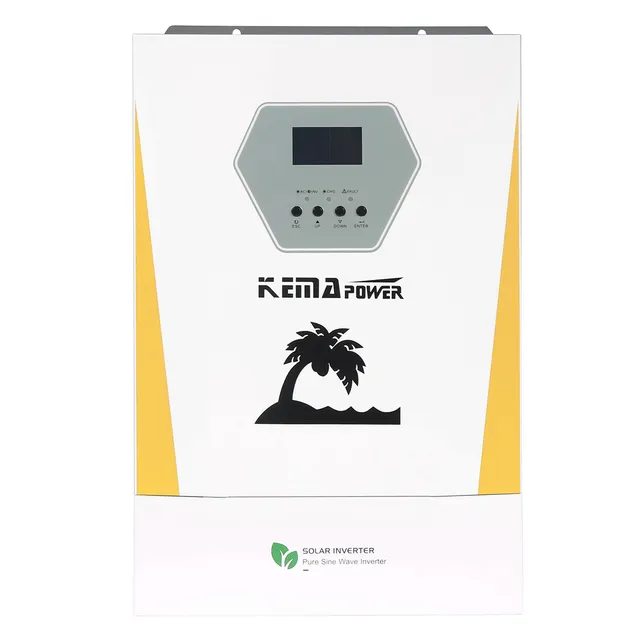

Inverter View 1

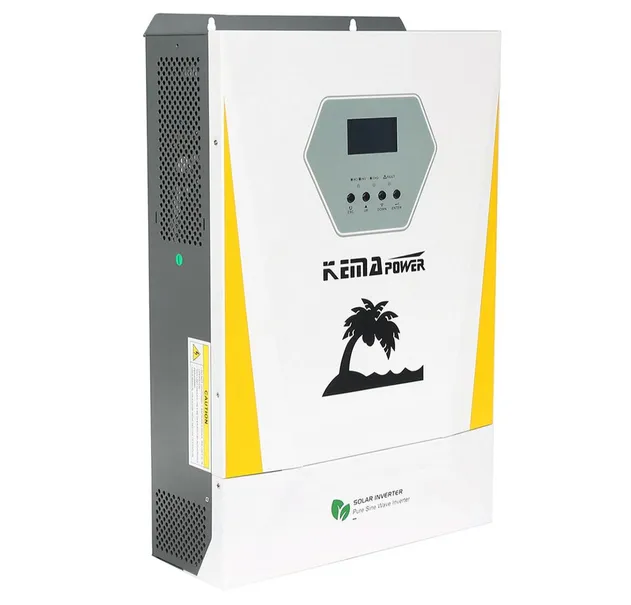

Inverter View 2

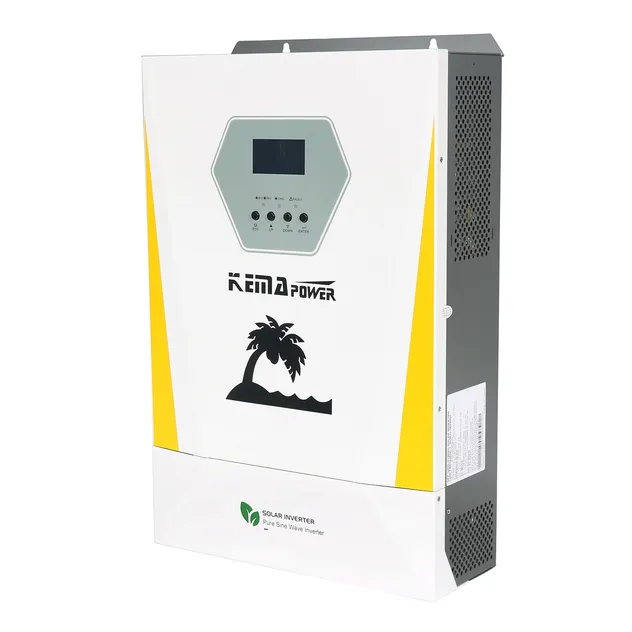

Inverter View 3

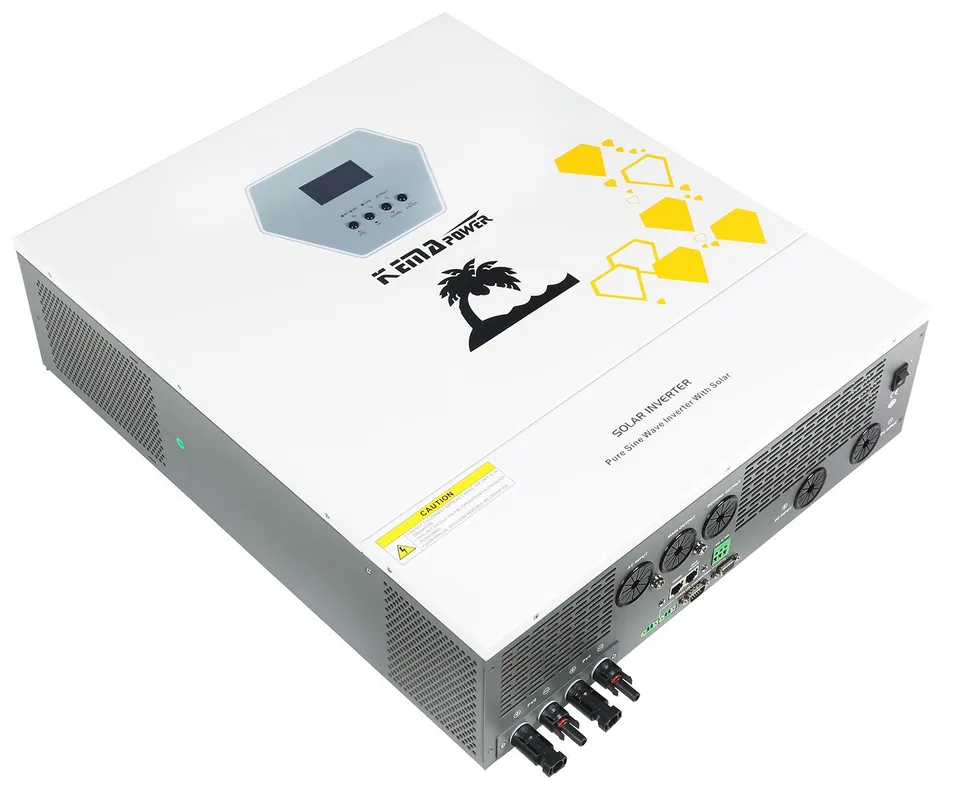

Inverter Detail 1

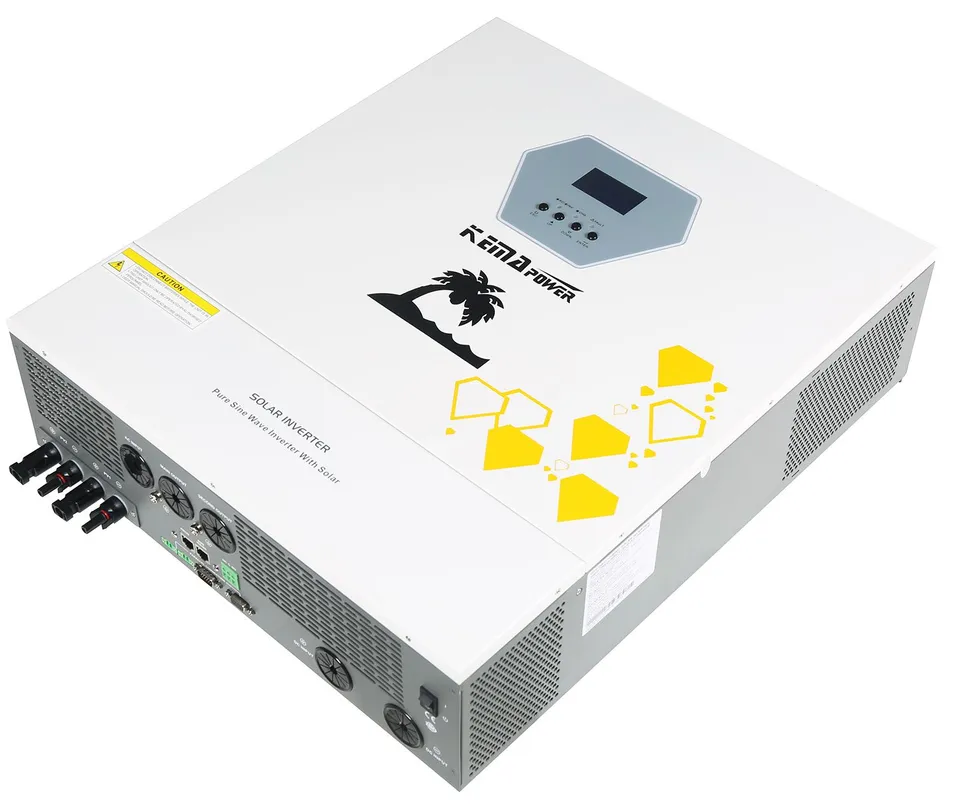

Inverter Detail 2
📊

Technical Specifications

ITEM Model SUB-D 3024 3624 6248 11048
Rated Power Power 3KW 3.6KW 6.2KW 11KW
Input Voltage 220/230/240VAC
Output Efficiency 97% (PV to INV Peak)
Battery Voltage 24VDC 24VDC 48VDC 48VDC
Solar Charger Max PV Power 3KW 4.2KW 6.2KW 2*5.5KW
Environment Op. Temp -10°C to 50°C
⚙️

System Layout & Ports

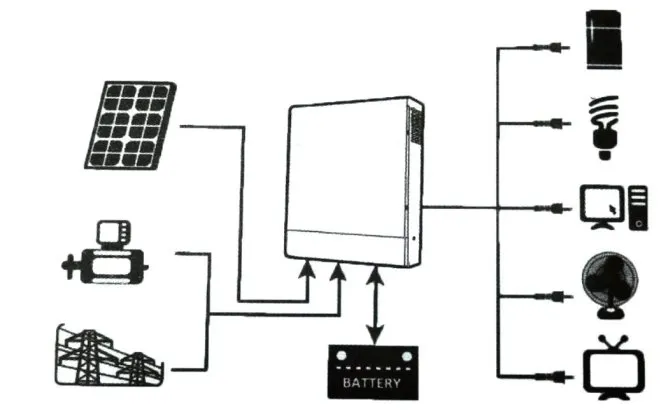

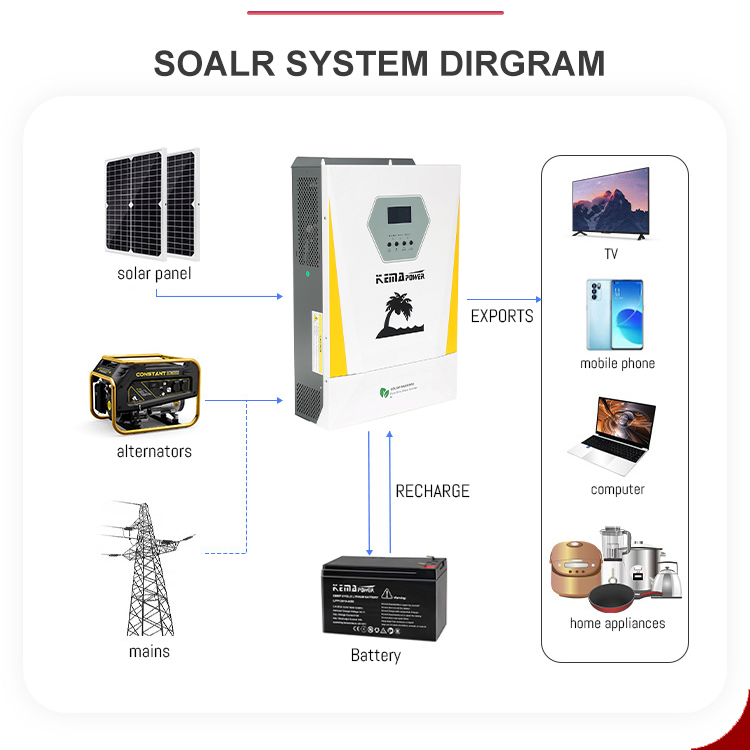

Working Mode Diagram

Working Mode Diagram

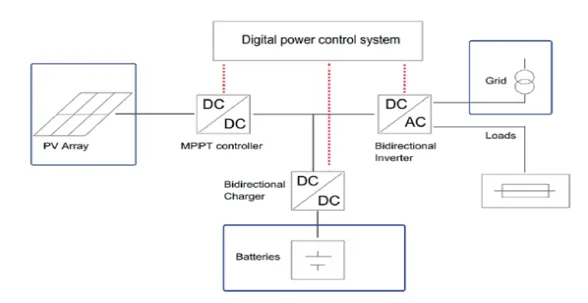

Design Layout

Design Layout

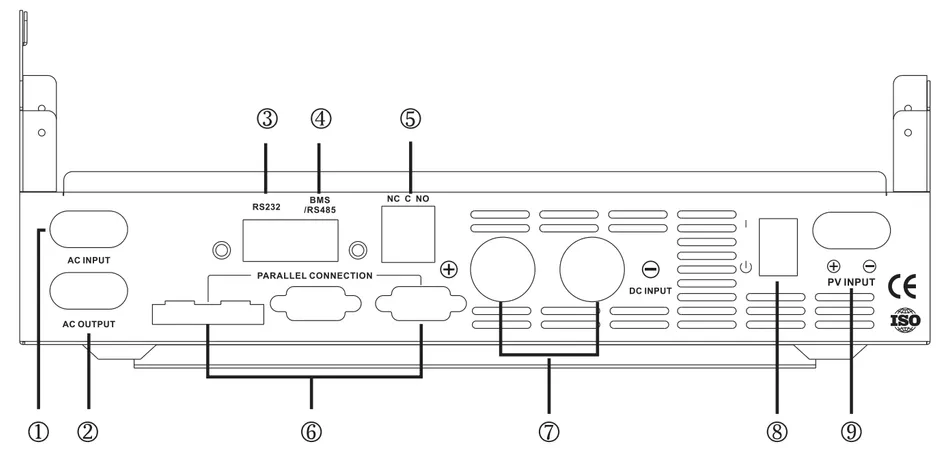

Ports Detail
Feature Graphic 1 Feature Graphic 2 Feature Graphic 3 Feature Graphic 4
❓

Frequently Asked Questions

Q1: Can this hybrid inverter work without a battery?
A: Yes, the SUB-D series is designed to operate without a battery during the daytime by utilizing solar energy directly.
Q2: What is the maximum number of units that can be connected in parallel?
A: The 6.2KW and 11KW models support parallel functions, allowing for a maximum of 9 units to be connected.
Q3: Does the inverter support lithium batteries?
A: Yes, it features adjustable charge current and voltage settings, and supports both lead-acid and lithium batteries, including lithium activation wake-up.
Q4: What communication interfaces are available?
A: The inverter includes RS232, BMS/RS485, and Dry Contact ports. It also offers optional WiFi or GPRS plugs for mobile app monitoring.
Q5: Is the output a pure sine wave?
A: Yes, it provides a pure sine wave output, which is suitable for all types of loads, including sensitive electronic devices and home appliances.
Q6: What protections does the system include?
A: It comes with comprehensive protection for overload, over-temperature, short-circuits, battery low voltage, and battery reverse connection.
