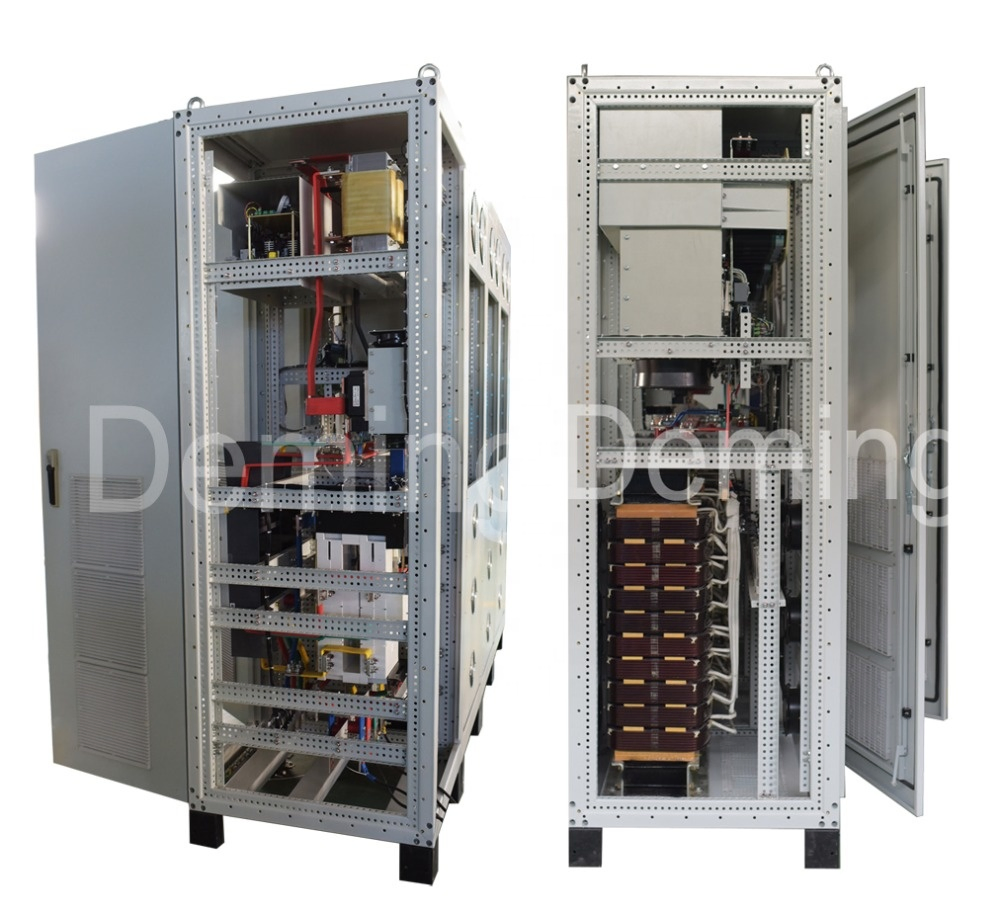

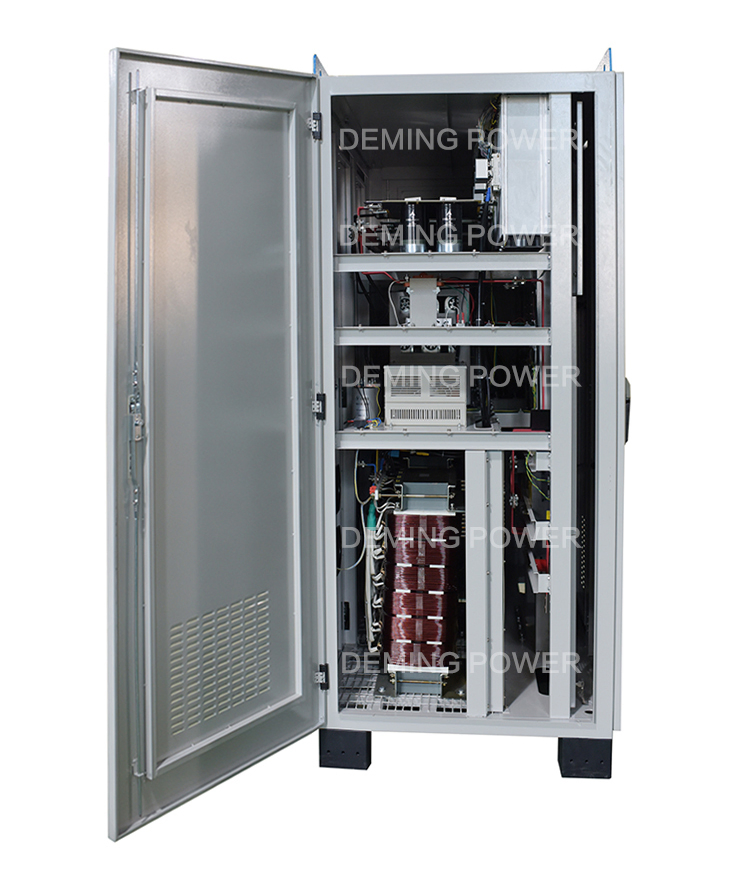

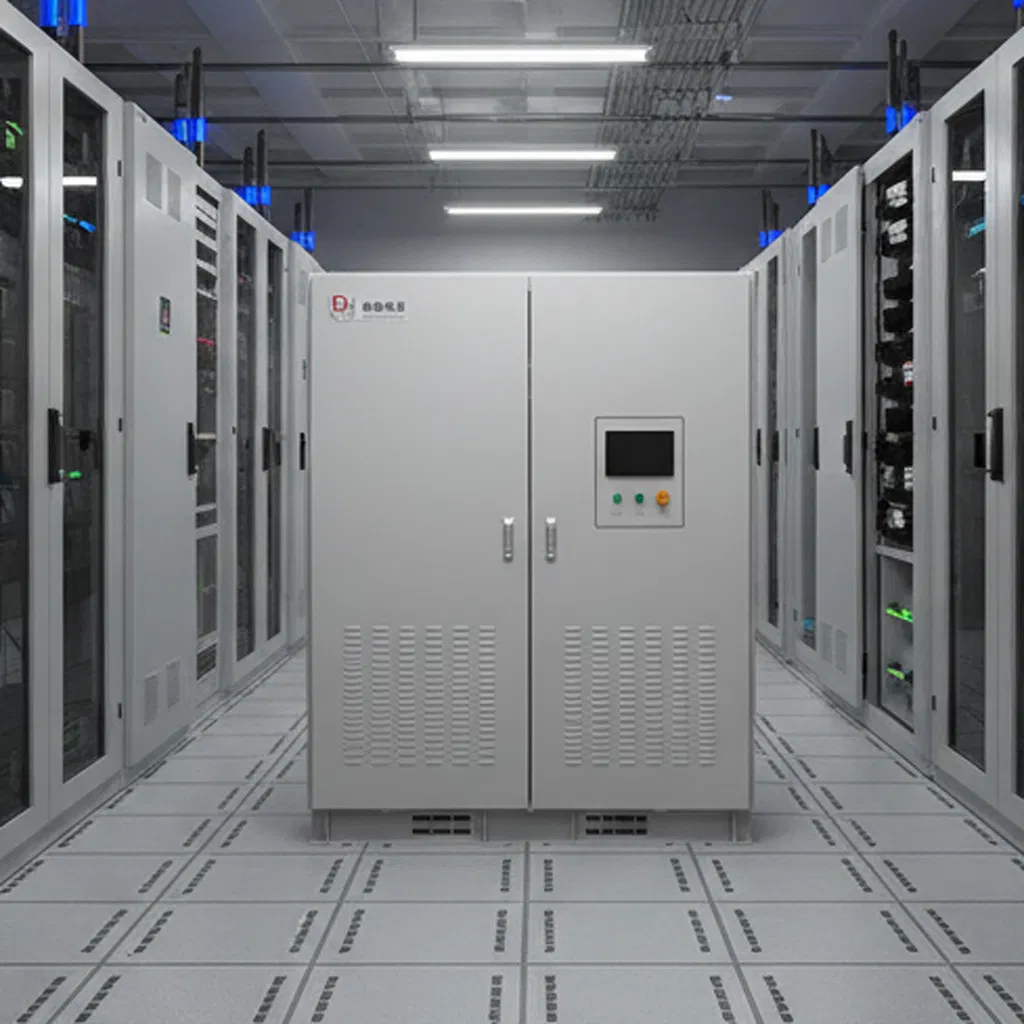

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
1 / 5
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

Customization: Available
Nature of Source Flow: Active Inverter
Certification: ISO9001, CE
Send Inquiry

Product Description

📊
Basic Specifications
Model NO.
NB576-1000KSZ
Output Power
1000kw
Grid Type
Off-Grid Inverter
Output Type
Triple
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
AC Wiring Mode
3 Phase 3 Wire / 3 Phase 4 Wire
Output Voltage
AC220V/380V/440V/690V
Battery Type
LiFePO4 Lithium
DC Input Range
DC420V / DC480V / DC768V
Package
Wooden Box
Capacity
100/Month
🚀
Product Description & Functions
Pure Sine Wave Inverter DC AC 1000KVA (380Vac/400Vac/415Vac):
  • High-performance IGBT components from Mitsubishi or Infineon for superior power handling.
  • Advanced American microprocessor control for precise figure management.
  • Comprehensive protection mechanisms and intelligent warning functions.
  • Compact circuit frame design with maximum efficiency ≥94%.
  • Support for wide DC input voltage ranges.
  • Standard RS232/485 communication with multiple interface options.
  • Large-screen English LCD/LED display with a user-friendly interface.
  • Built-in Isolate Transformers for filtering and supporting inductive loads (pumps, motors, etc.).
🌐
System Applications

Off-grid Solar Wind Hybrid / Wind / Solar Power Systems:

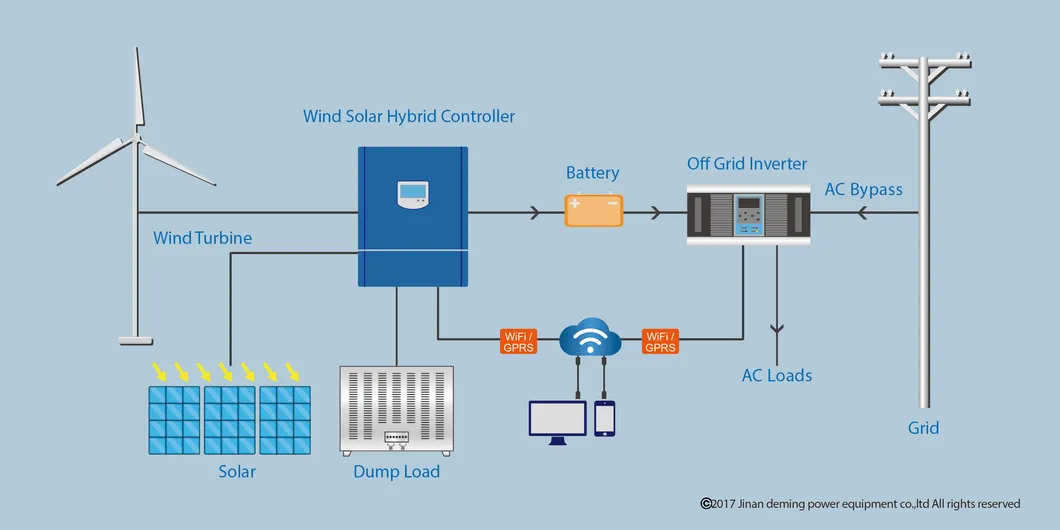

Off grid solar wind hybrid system

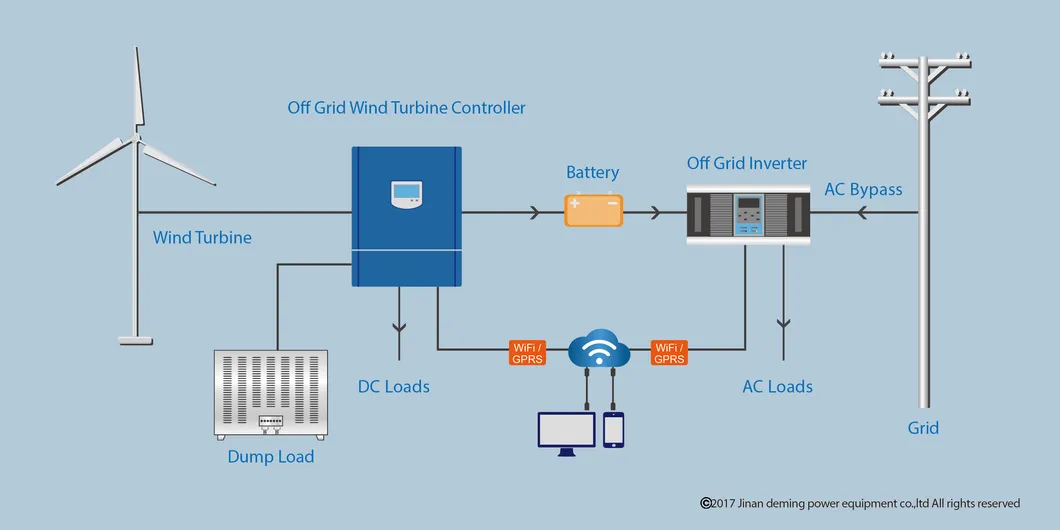

Off grid wind power system

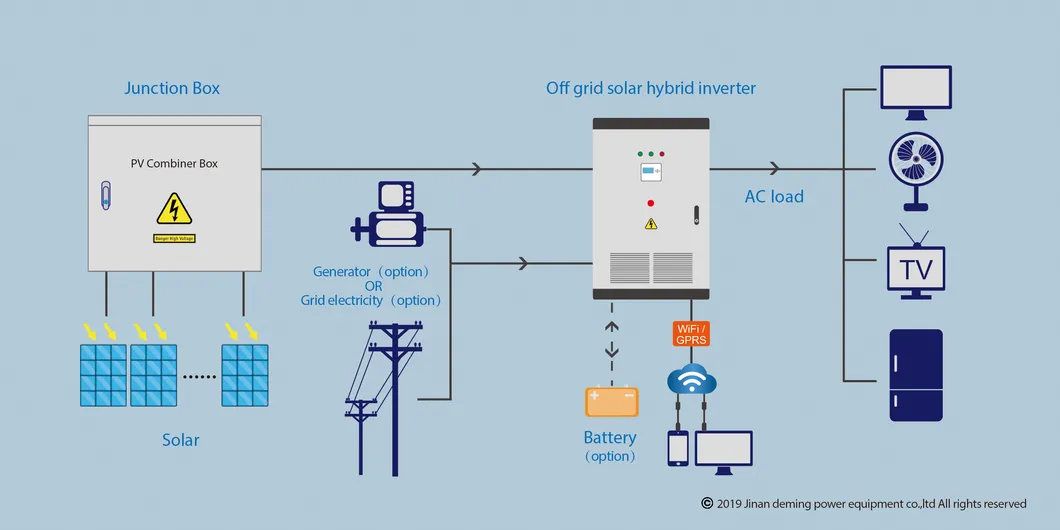

Off grid solar power system
⚙️
Technical Parameters
ModelNB576-1000KSZ
DC InputRated Voltage576 VDC
Rated Current1929 A
Voltage Range480-744 VDC
AC Input (Bypass)Voltage Range220V/380V/400V AC ± 15%
Transfer Time≤ 200 ms
AC OutputRated Capacity1000KVA / 800KW
Voltage/Freq220V/380V/400V AC, 50Hz/60Hz
THD (Linear)≤ 3%
Overload120% (10 min), 200% (10 sec)
Efficiency90%
EnvironmentTemperature-10ºC ~ +50ºC
Noise (1m)≤ 50dB
ProtectionsReverse, Under-voltage, Overload, Short circuit, Thermal protection
📸
Product Gallery

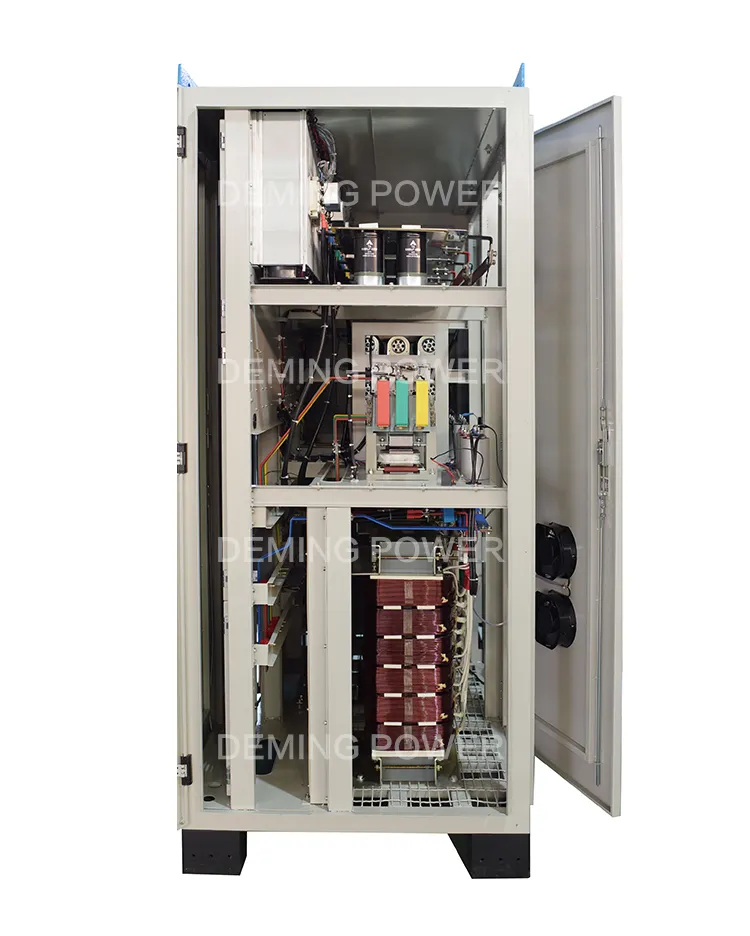

Inverter Details 1

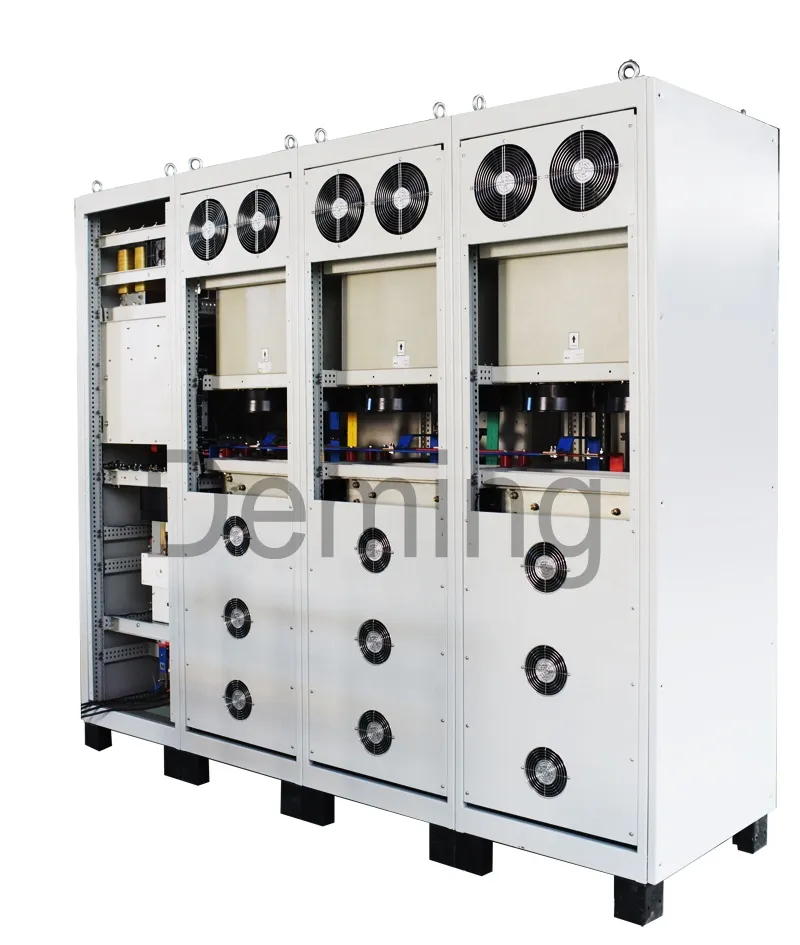

Inverter Details 2

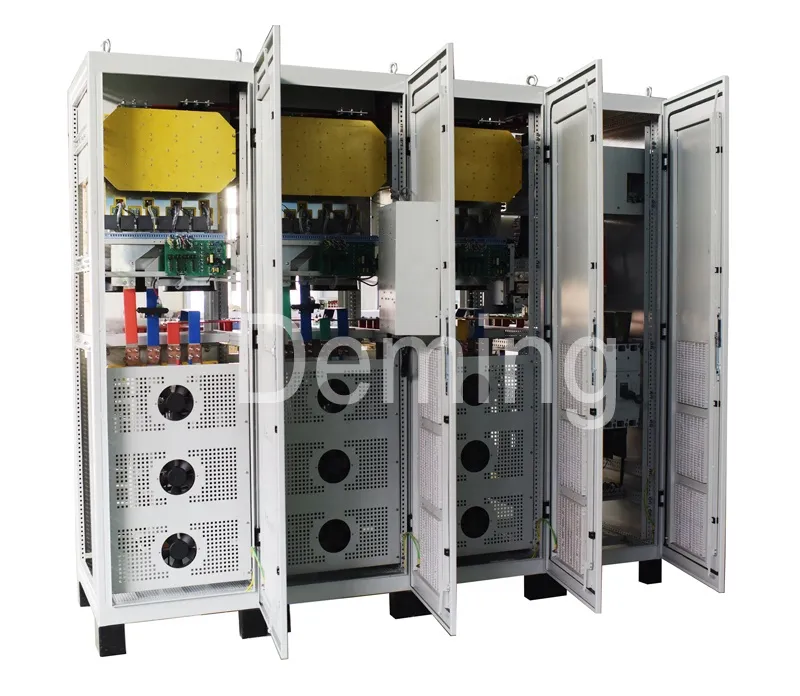

Inverter Details 3
Full System View
❓
Frequently Asked Questions
What is the maximum efficiency of this 1000kw inverter?
The inverter features a compact circuit frame design with a maximum efficiency of ≥94%.
Can this inverter handle heavy motor or pump loads?
Yes, it is equipped with built-in isolate transformers and high-quality IGBTs, allowing it to supply inductive loads such as water pumps and motors effectively.
What kind of batteries can be used with this system?
This model is optimized for use with LiFePO4 Lithium battery systems, supporting high-capacity energy storage.
How does the inverter handle temporary power surges?
The unit has a robust overload capacity, supporting 120% load for 10 minutes and up to 200% load for 10 seconds.
Is remote monitoring available for this inverter?
Yes, it supports RS232 and RS485 communication interfaces, allowing for multi-communication integration and remote monitoring.
What protections are built into the hardware?
It includes input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, and thermal protection.
