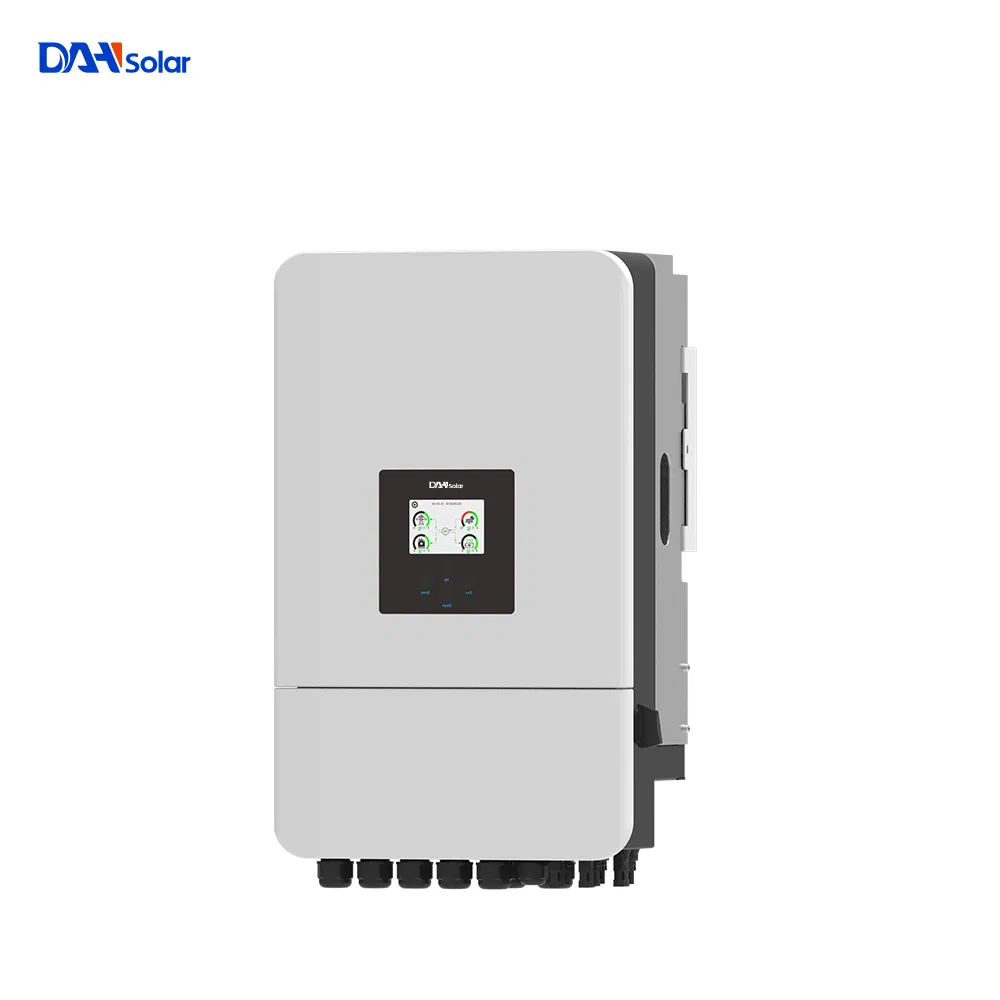

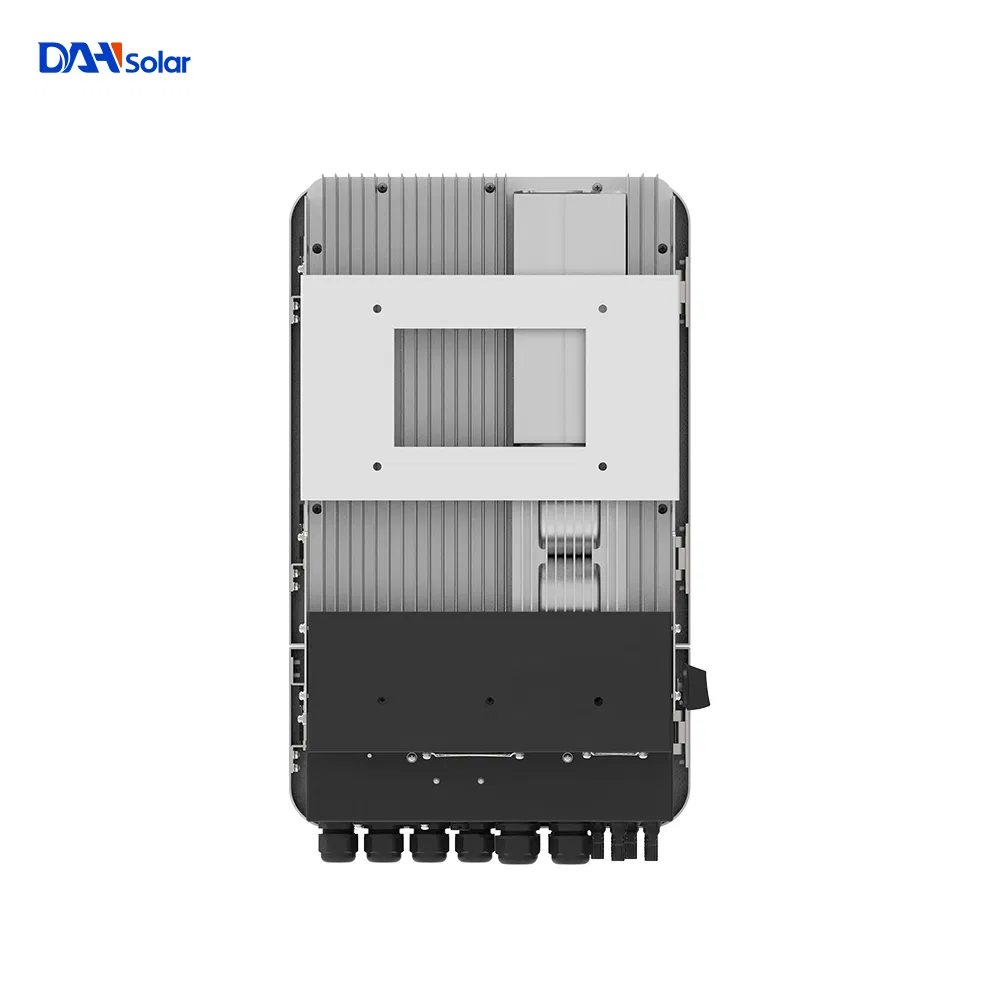

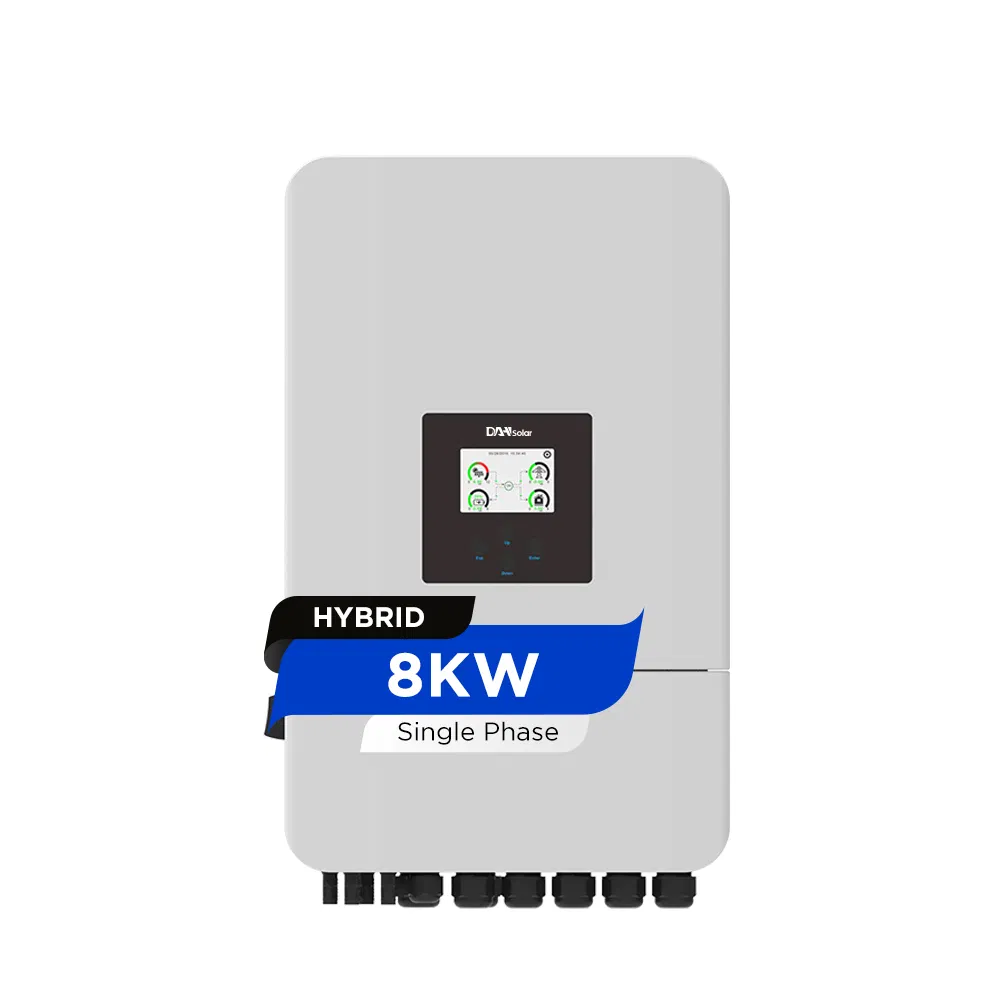

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
1 / 5
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
SUN-8K-SG05LP1-EU-SM2
Nature of Source
Active Inverter
Phase
Single Phase
Output Power
6000W
Certification
SAA, CE, ROHS, ISO9001
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
MPPT Efficiency
99.9%
Ingress Protection
IP 65
Frequency
50/60 Hz
Origin
China
📦

Packaging & Delivery

Package Size
62.00cm * 46.00cm * 35.00cm
Gross Weight
30.000kg
Transport Package
Carton
📝

Product Description

Deye Hybrid Inverter Monitoring

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

Model SUN-3.6K SUN-5K SUN-6K SUN-7K SUN-7.6K SUN-8K
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range(V)40-60
Max. Charging Current(A)90120135175190190
Max. Discharging Current(A)90120135175190190
PV String Input Data
Max PV Input Power(W)46806500780010000988010400
Max PV Input Voltage(V)500
MPPT Voltage Range(V)150-425
AC Input/Output Data
Rated AC Power(W)360050006000700076008000
Max Apparent Power(VA)396055006600770083608800
Peak Power (off-grid)2 times of rated power, 10s
Efficiency
Max Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency>99%

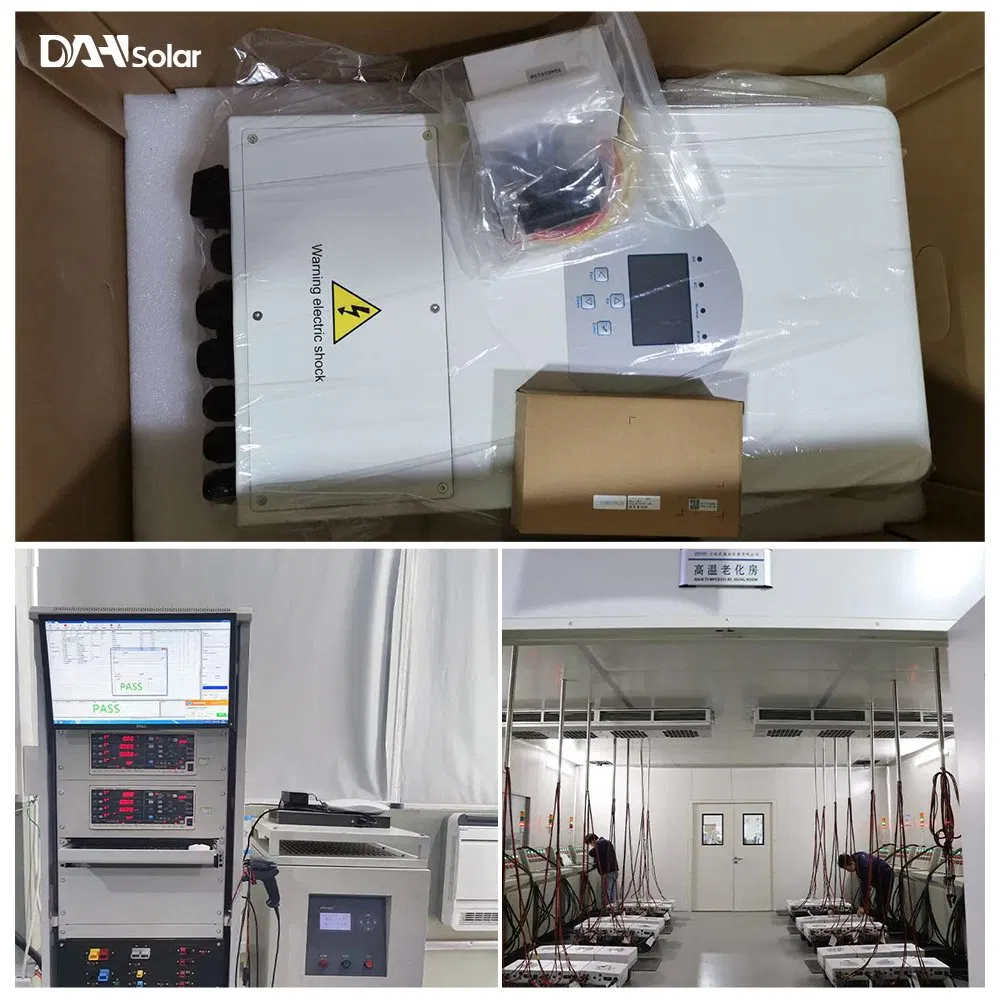

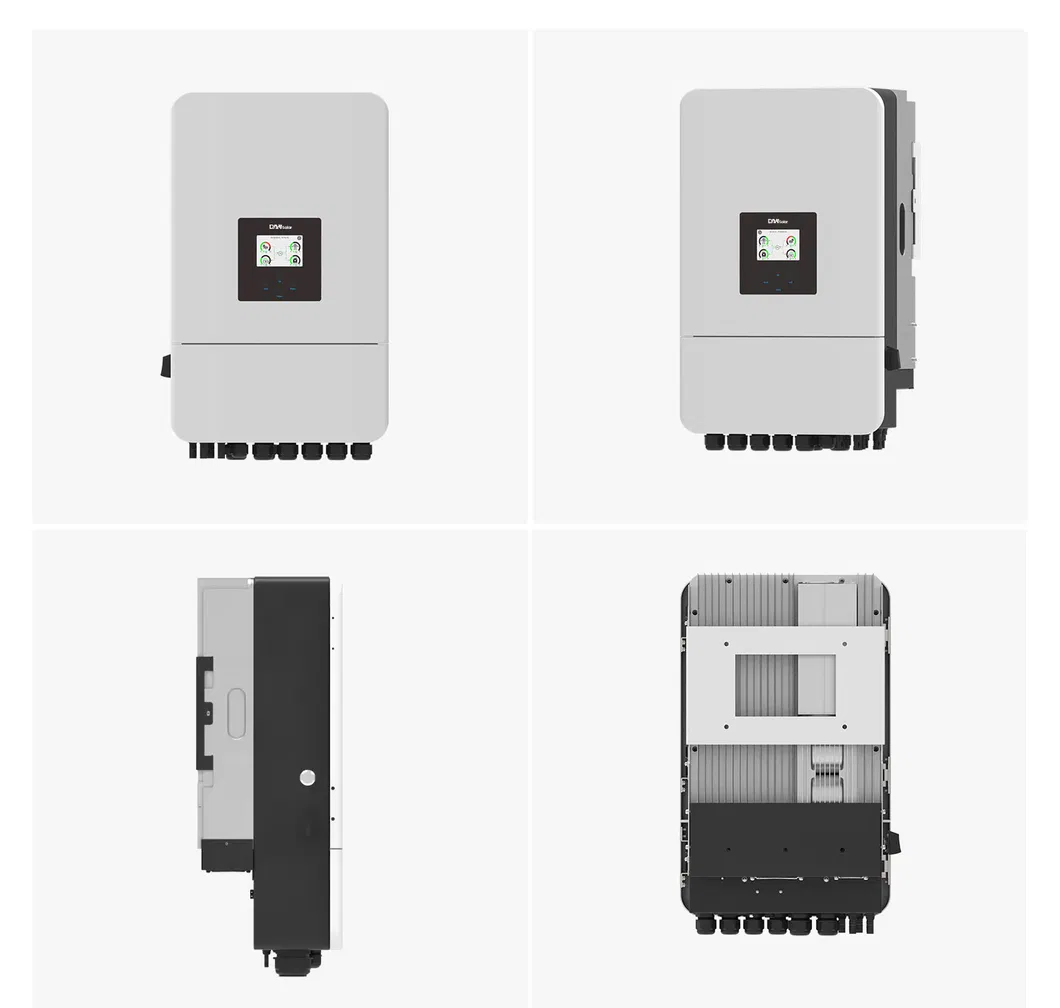

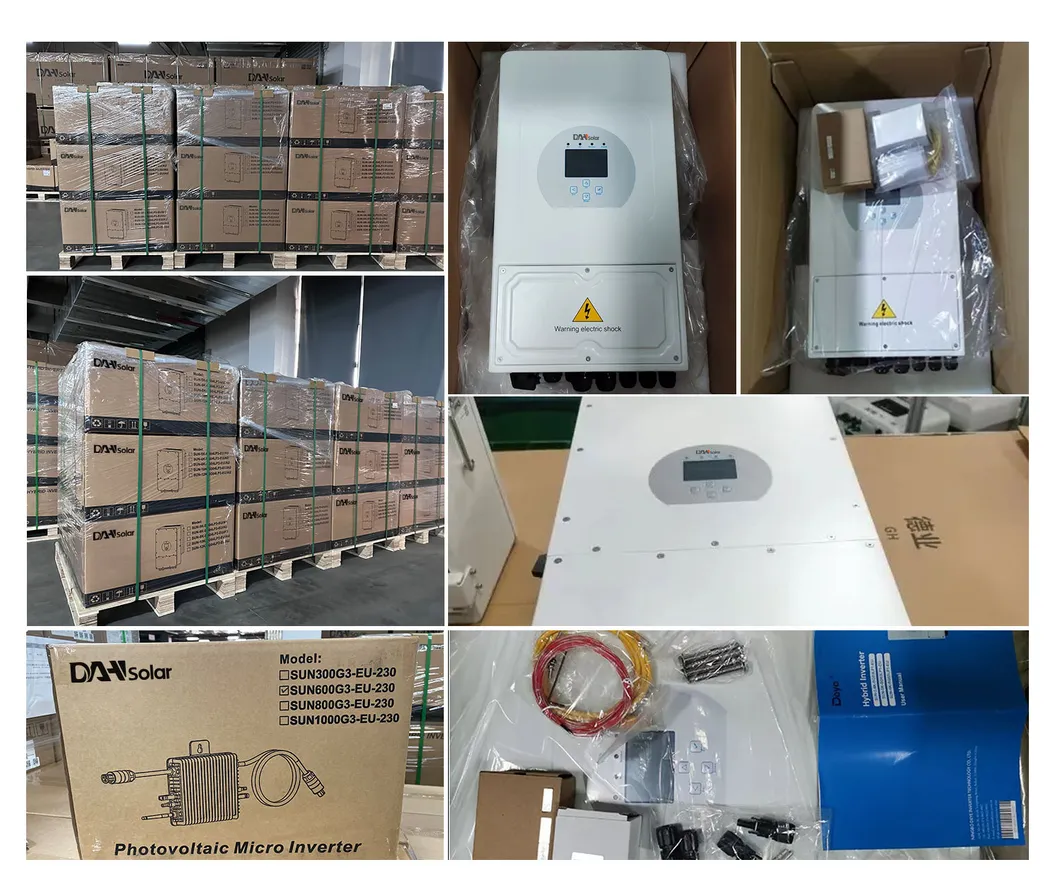

Deye Inverter Features Packaging Info
🏗️

Project & Shipping

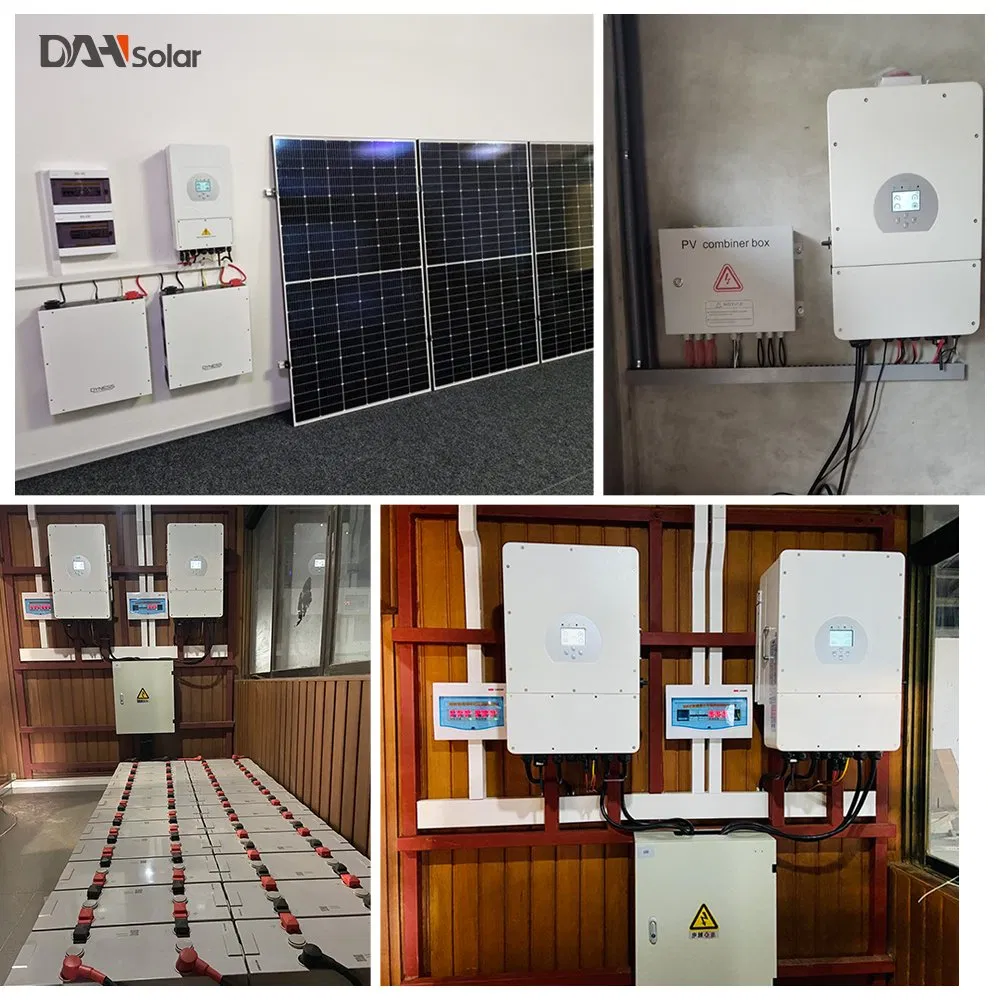

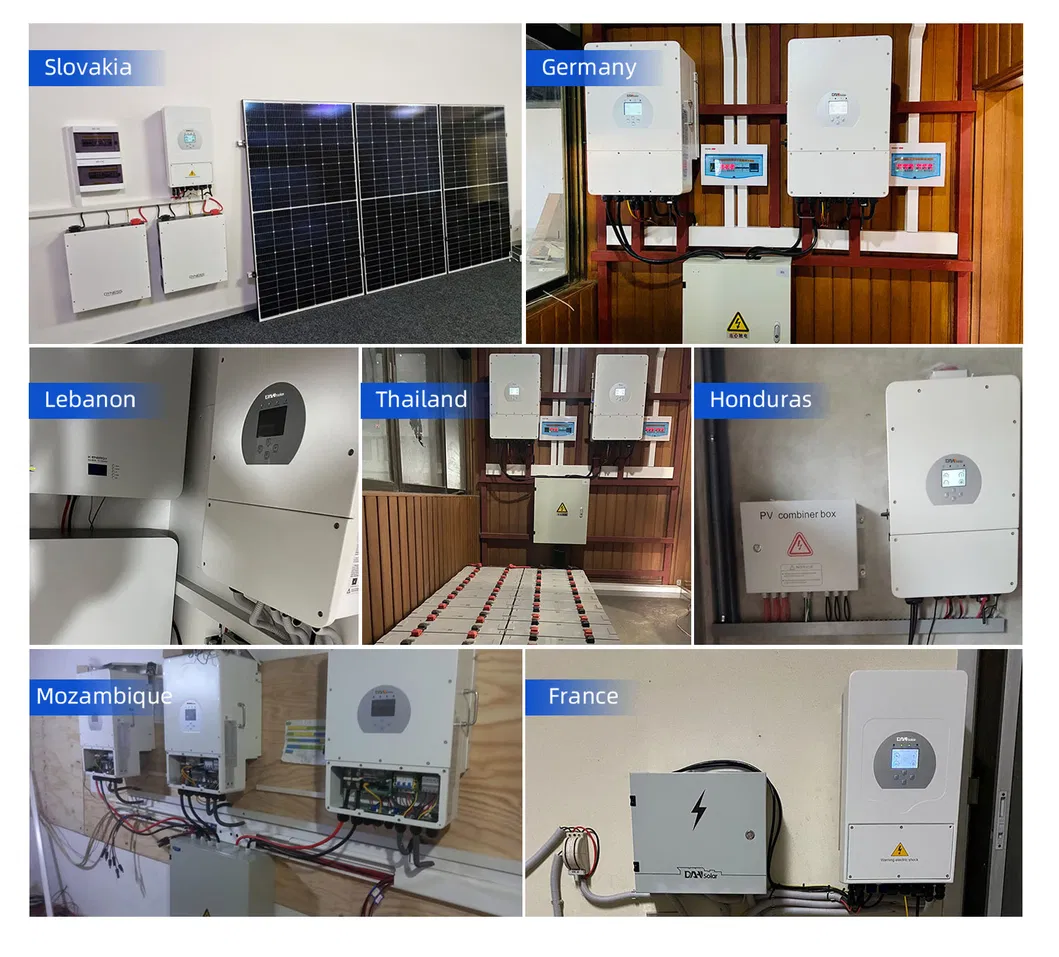

Solar Project Display Project Details
❓

Frequently Asked Questions

What types of batteries are compatible with this inverter?
The inverter is compatible with both Lead-acid and Lithium-ion batteries, featuring self-adaption to BMS.
Does the system support remote monitoring and management?
Yes, it features a smart monitoring platform that supports remote shutdown, parameter setting, and firmware updates.
What is the maximum efficiency of the SUN-8K series?
The system reaches a maximum efficiency of 97.6%, with an MPPT efficiency of over 99.9%.
What is the protection rating for outdoor installation?
The inverter has an IP65 ingress protection rating, making it suitable for various environmental conditions.
Is there integrated safety protection against electrical faults?
Yes, it includes DC polarity reverse connection, AC overcurrent/overvoltage protection, short circuit protection, and ground fault monitoring.
How much noise does the inverter produce during operation?
The inverter operates quietly with a noise level of less than 30 dB(A) thanks to its intelligent air cooling system.
