OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

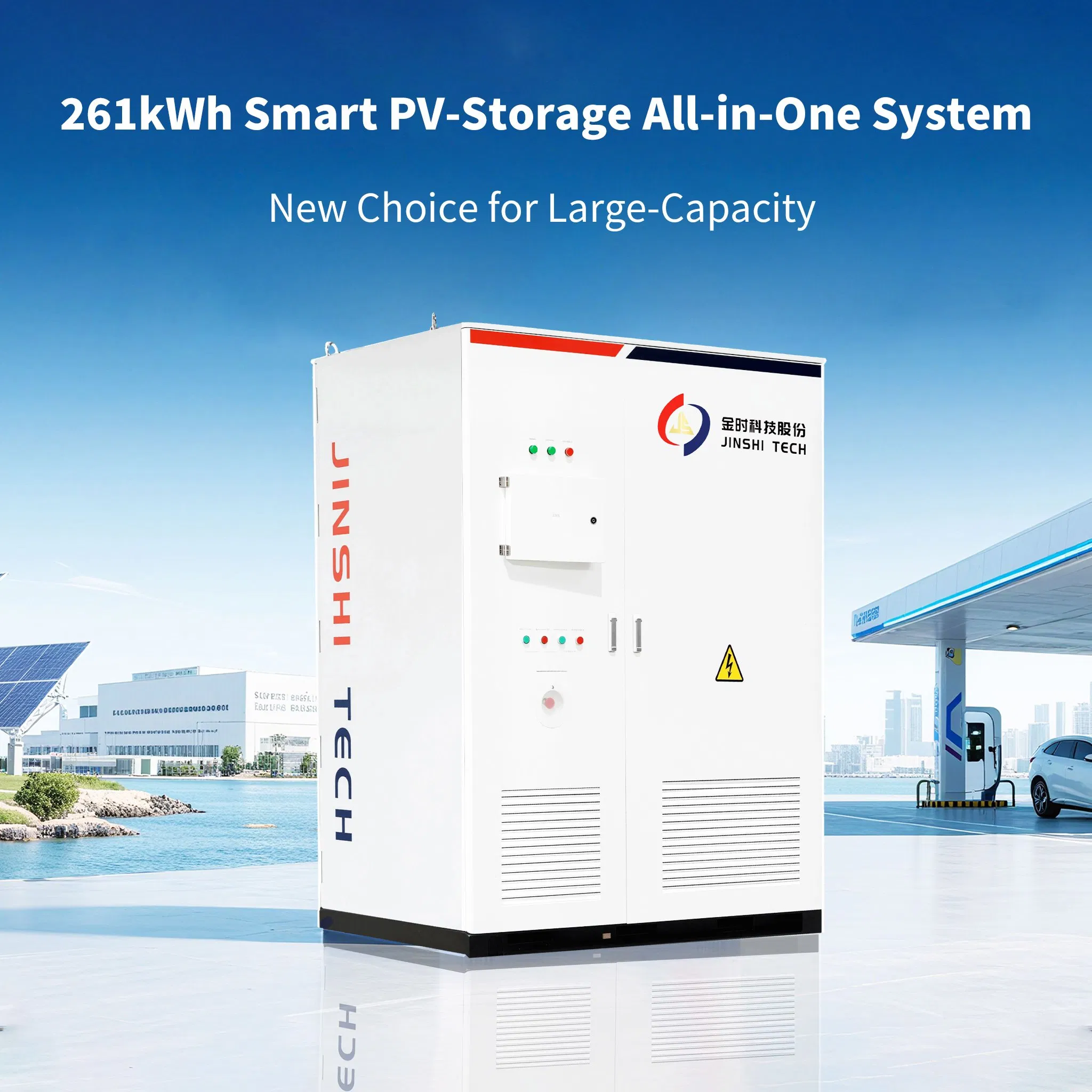

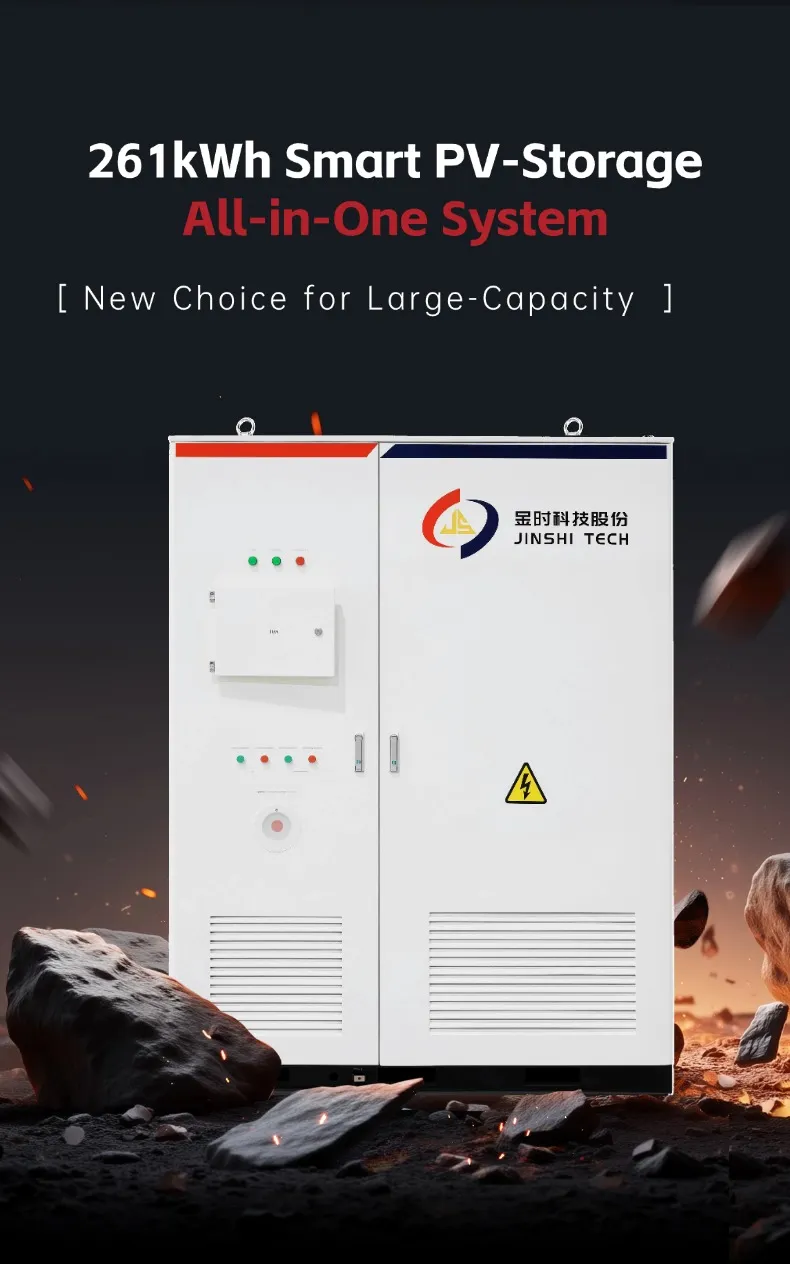

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity

314ah

Cycle Life

6000

Rated Power

125kw

Overload Capacity

110% Long-Term

Max PV Power

125kw

MPPT Voltage

438-900V

Battery Type

3.2V/314ah/LFP

Rated Voltage

832V

Battery Capacity

261kwh

Cooling System

Intelligent Liquid Cooling

Protection Level

IP54

Packaging & Delivery

Package Size

170.00cm * 130.00cm * 225.00cm

Gross Weight

3000.000kg

Fire Protection

Perfluorohexane/Aerosol (Optional)

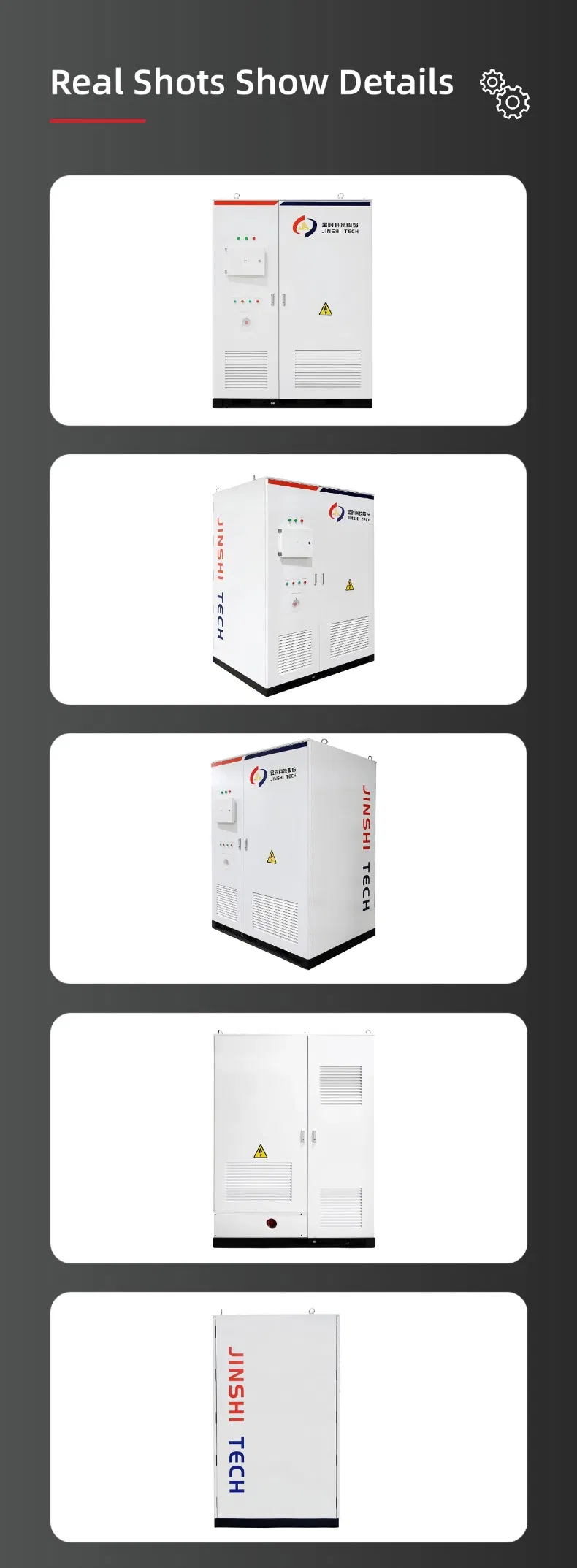

Product Visuals

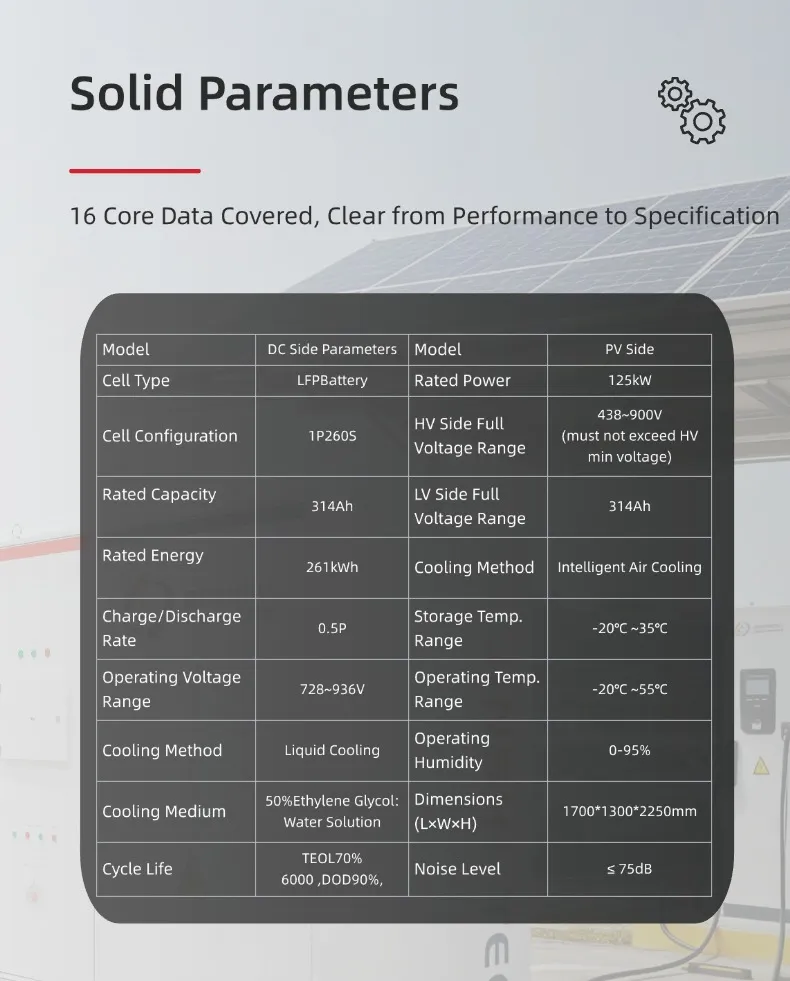

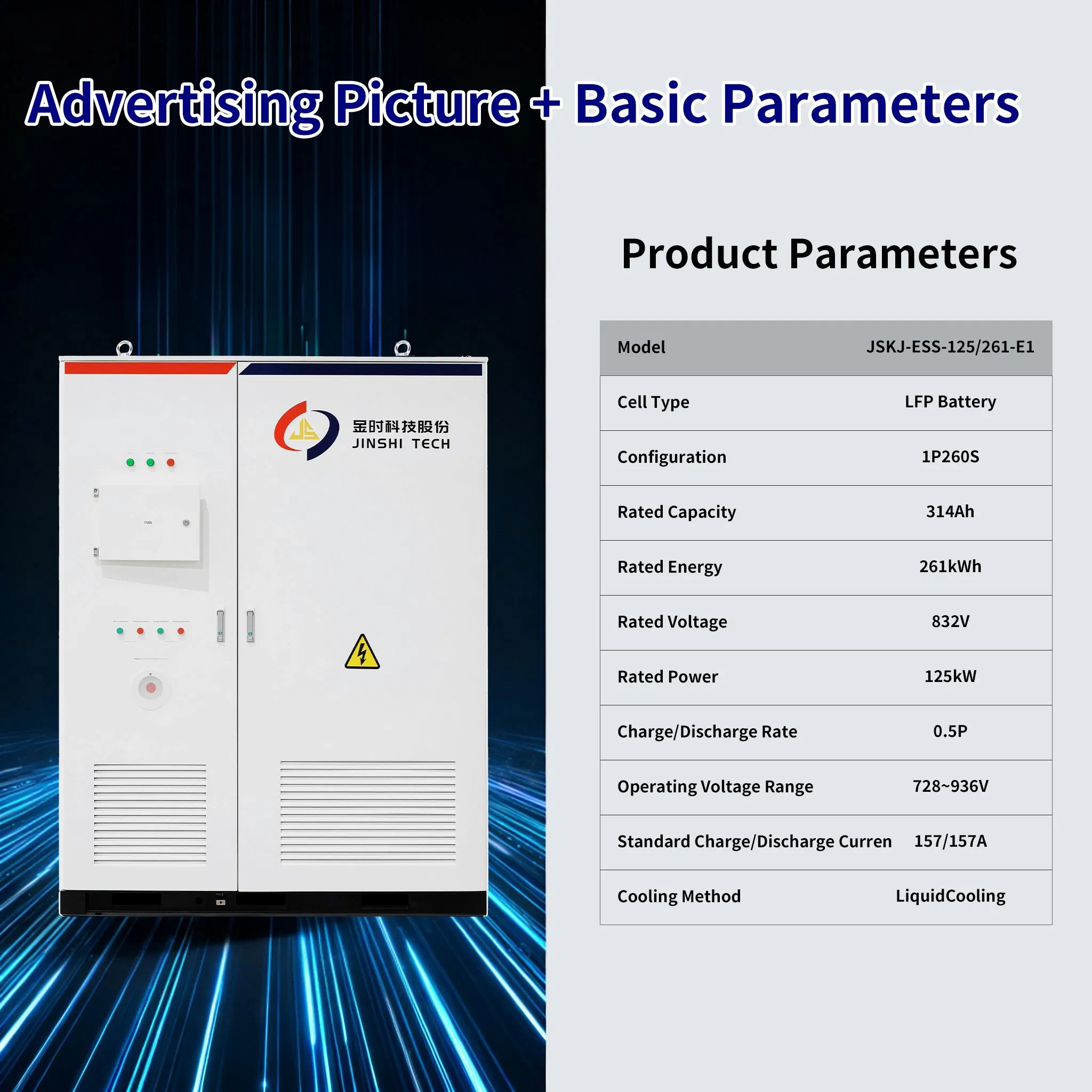

Product Parameter Detail

Parameter	Specification
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

Frequently Asked Questions

Q1: What is the expected cycle life of the Smart PV-ESS Unit?

The system is designed for high durability with a cycle life of approximately 6000 cycles, ensuring long-term reliability for energy storage needs.

Q2: How does the liquid cooling system benefit the battery?

The Intelligent Liquid Cooling system provides superior thermal management compared to air cooling, maintaining optimal battery temperatures and extending the overall lifespan and efficiency of the cells.

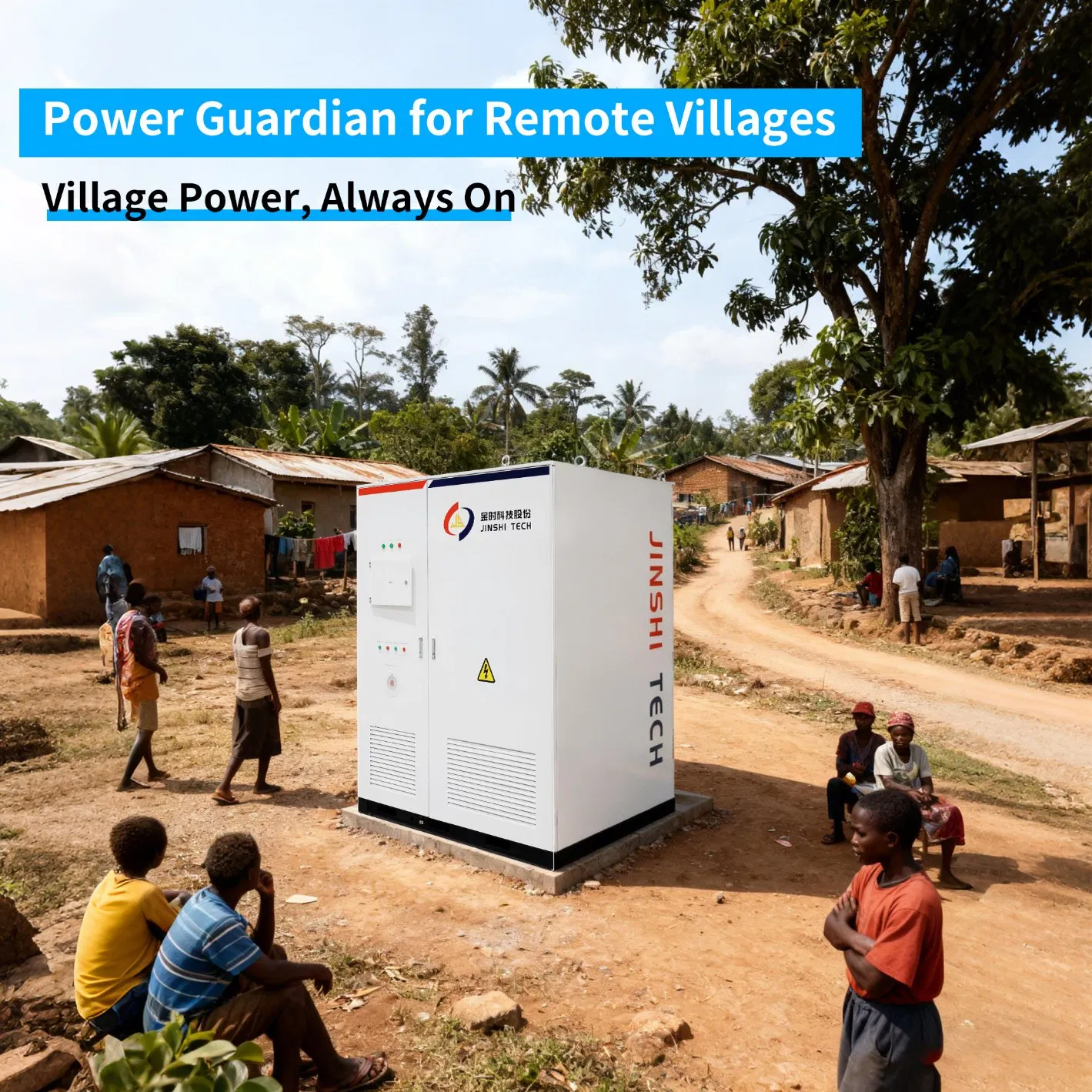

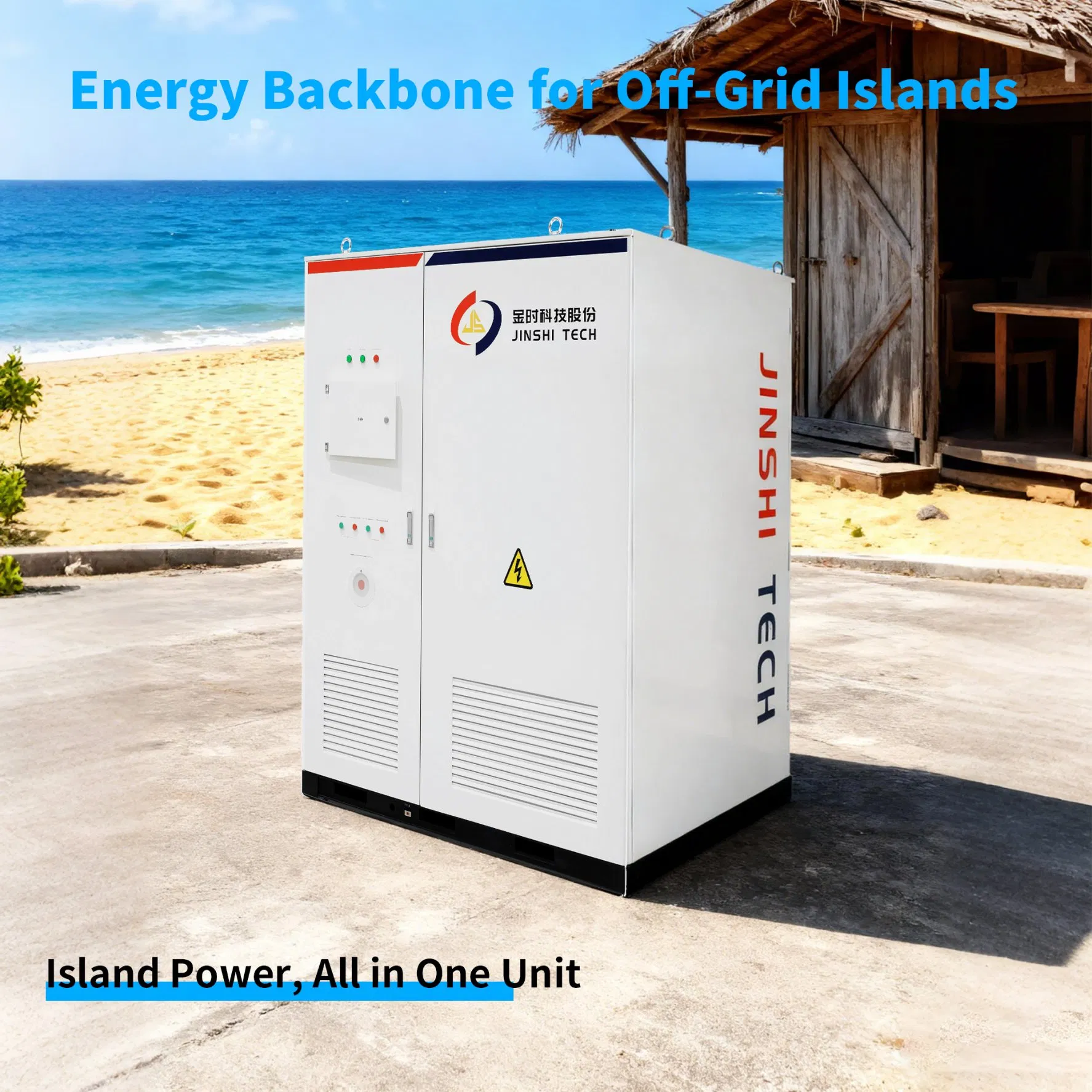

Q3: Is this system suitable for outdoor installation?

Yes, the unit features an IP54 protection level, making it suitable for outdoor environments by providing protection against dust ingress and water splashes.

Q4: What are the fire protection options available?

Safety is a priority; the system includes Perfluorohexane or Aerosol fire protection systems as optional configurations to ensure maximum site safety.

Q5: Can the specifications be customized for specific project requirements?

Yes, we offer standard specifications as well as customized solutions for transport packaging and technical specifications to meet diverse OEM/ODM project needs.

Q6: What is the maximum efficiency of the energy storage system?

The system achieves a maximum efficiency of up to 99%, minimizing energy loss during the charge and discharge processes.
