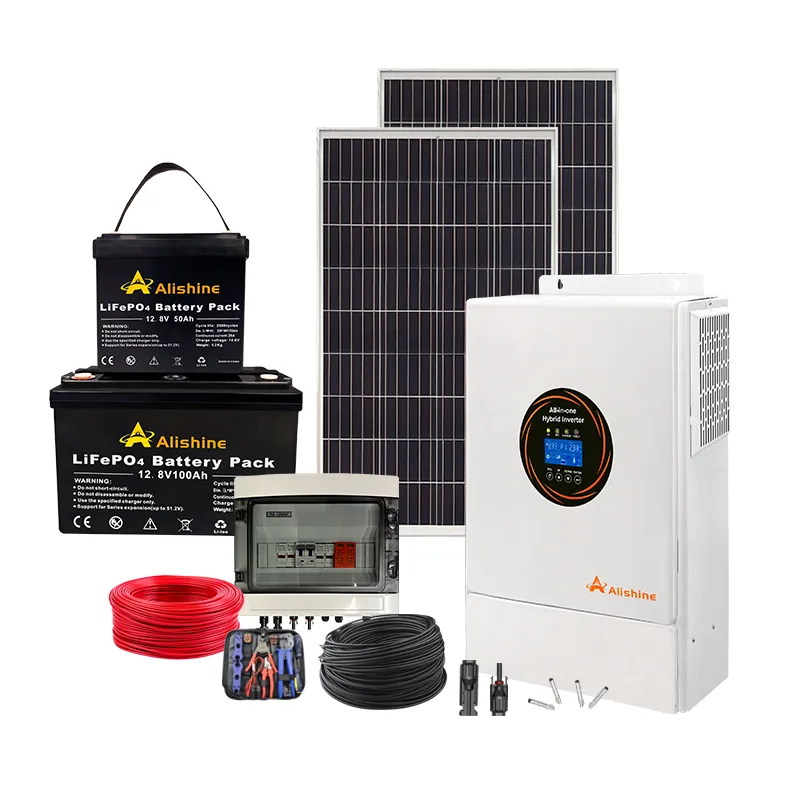

10kw Off Grid Solar Energy System for Homes Complete Solar Power Solution for Global B2B Buyers

Overview & Basic Info

Model NO.

15KW solar system

Nature of Source Flow

Passive inverter

Phase

Single

Output Power

>1000W

Certification

CE, ROHS, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Output Wave

Pure Sine Wave

DC Voltage

48V / 5.5kw

AC Voltage

230V

PV Voltage Range

120-500V

Parallel Support

Supports Up to 9 Machines

Product Description

Product Advantages

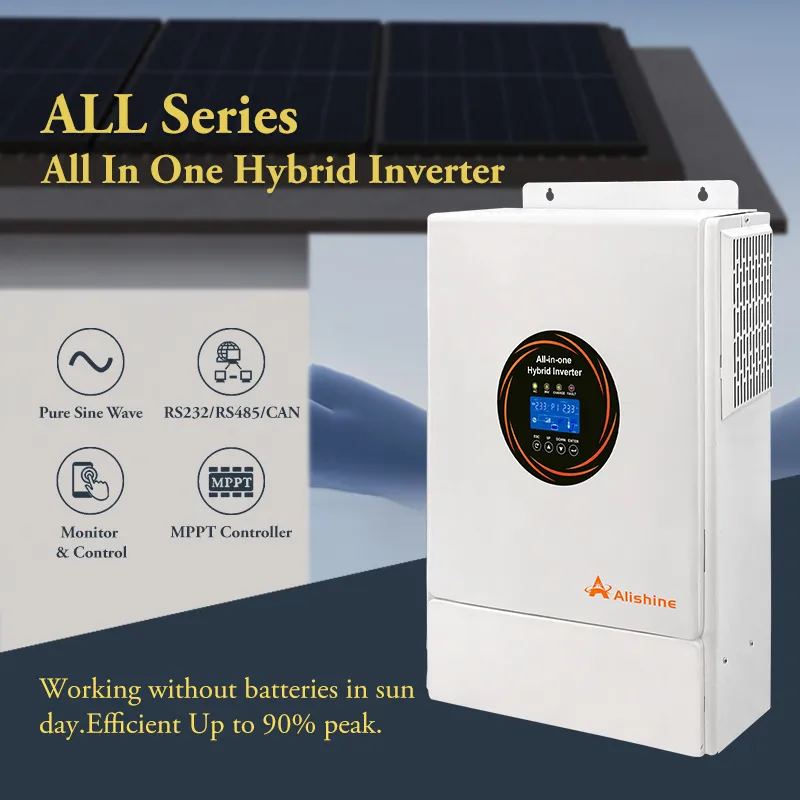

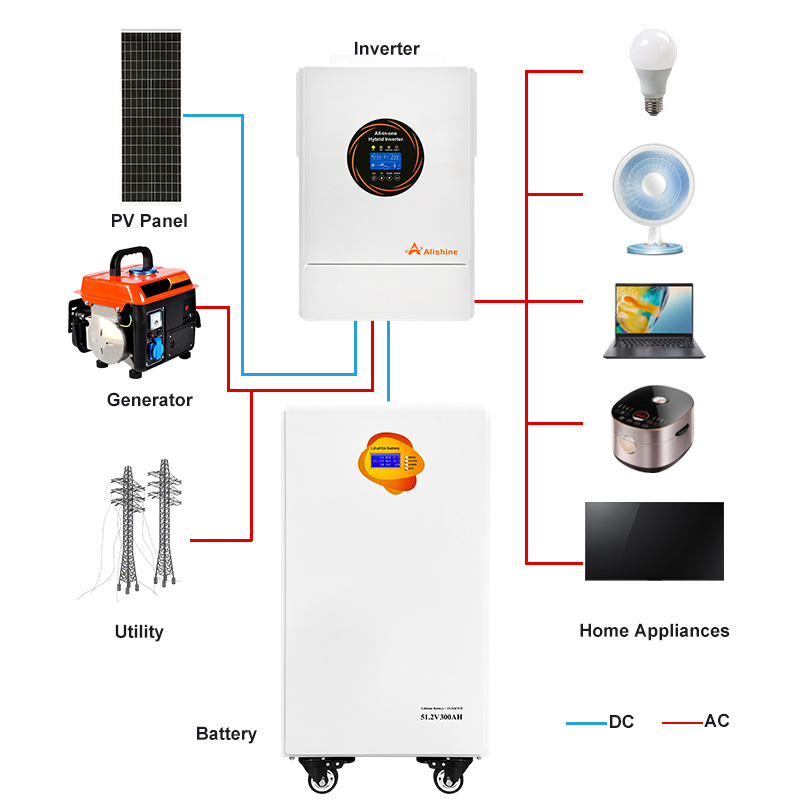

Off-grid hybrid solar inverter: 3 in 1 design (Inverter + MPPT controller + Grid Charger).
Battery-free operation: Can work without battery during daytime.
Lithium Ready: Support lithium activation wake-up and cold start function.
Smart Recovery: Auto restart while AC is recovering.
Adjustable Charging: AC and PV charge voltage/current is adjustable for various battery types.
Priority Management: Selectable Solar, Grid, or Battery priority modes.

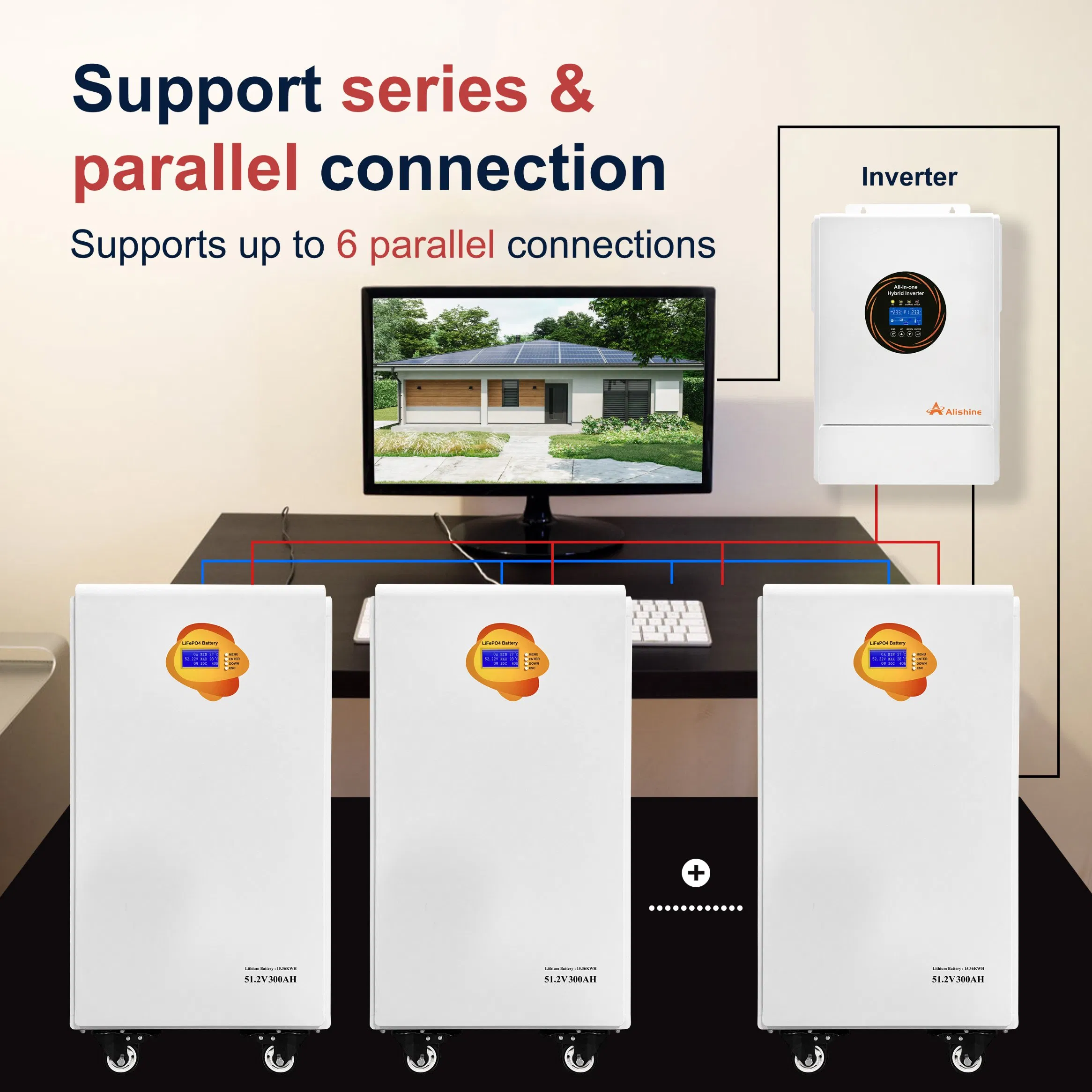

Parallel Capability: Supports parallel function for up to 9 units.
Full Protection: Overload, over temperature, short-circuit, and battery reverse connection protection.

Product Parameters

Model Name	Parameters	Features & Dimensions
AL-5.5KW	DC48V / AC230V MPPT: Max 100A PV Voltage: 120-500V	Stand-alone use (No parallel support) Size: 536350135mm
AL-5.5KW Pro	DC48V / AC230V MPPT: Max 100A PV Voltage: 120-500V	BMS communication Supports 9 units in parallel Size: 536350135mm
AL-11KW	DC48V / AC 220V Rated current: 150A MPPT range: 90V-500VDC	Standard BMS, 232 communication Dual PV array (5500W * 2) Size: 570500148mm

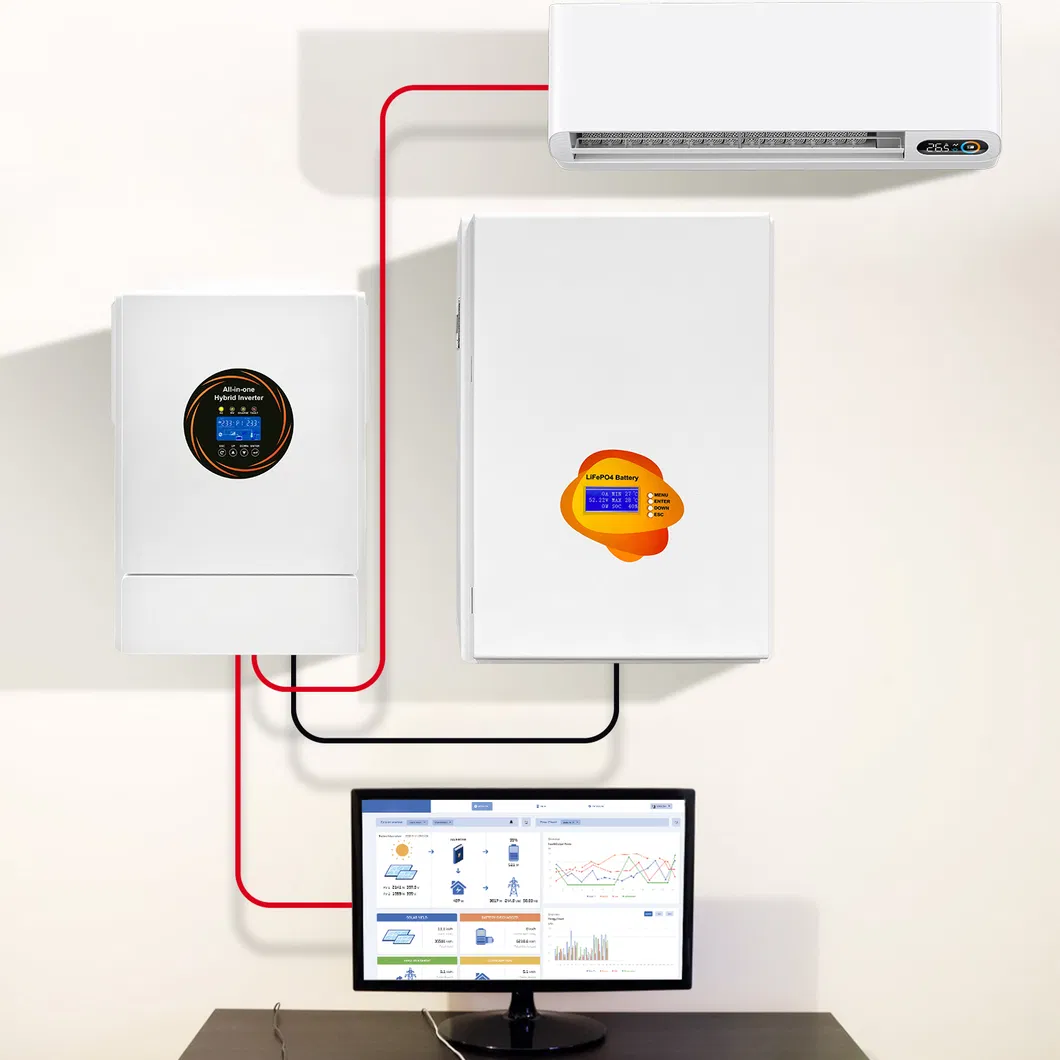

Installation Instructions

• Do not mount the inverter on flammable construction materials. Mount on a solid surface.

• The recommended installation position is to be adhered to the wall vertically.

• Ensure adequate heat dissipation space and room for wire management.

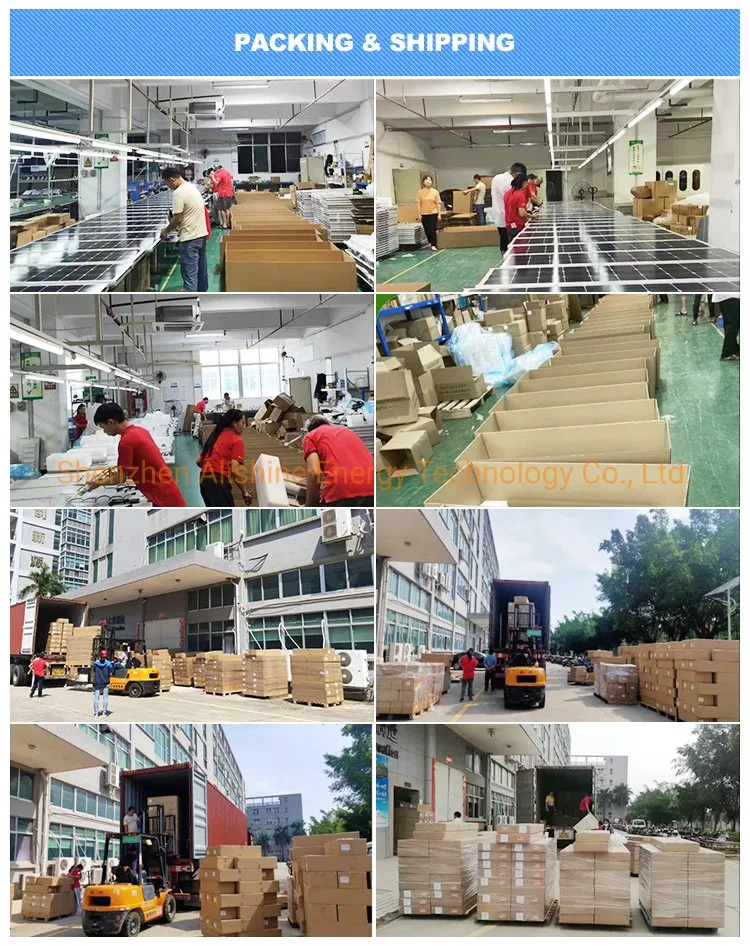

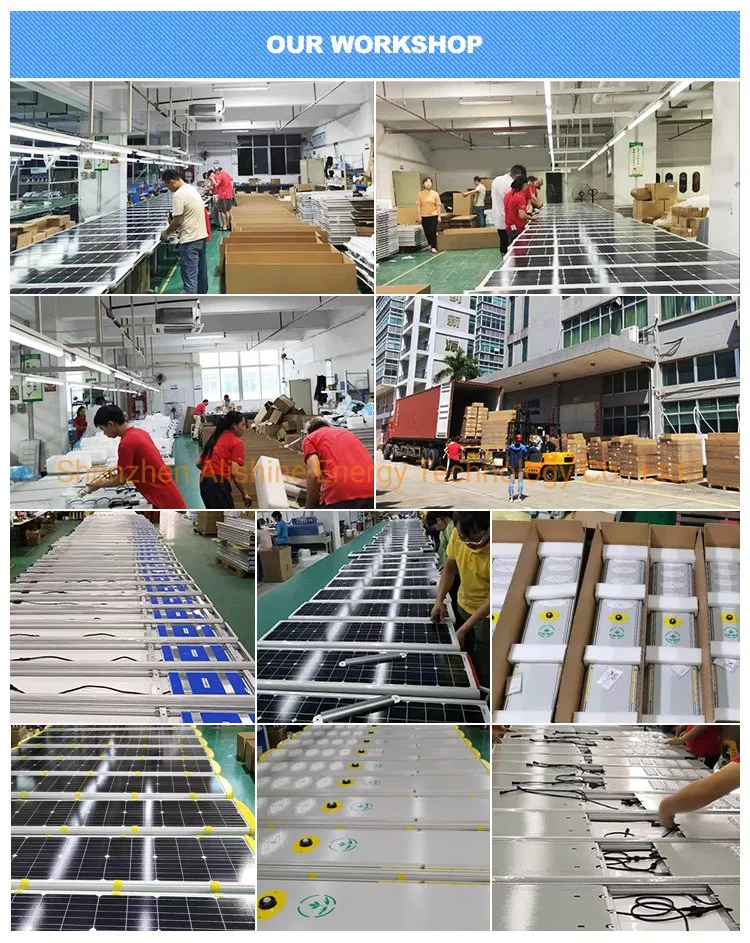

Production Display

Frequently Asked Questions

Q1: What certificates do the products have? A: Our products are manufactured under ISO9001, ISO14001, and ISO45001 standards. All products carry CE certificates, and other custom certifications can be arranged upon request.

Q2: Are you a factory or trading company? A: We are a professional manufacturer with our own factory facilities. We provide comprehensive OEM/ODM services for global clients.

Q3: Can I request samples before placing a bulk order? A: Yes, we provide sample products for quality testing and performance evaluation. Please reach out to our team for sample request procedures.

Q4: What is the typical delivery timeline? A: Sample orders are usually processed within 7-10 days, while bulk production typically takes between 15-20 days.

Q5: Is the product quality guaranteed? A: With over 16 years of experience in lithium battery and solar products, safety and quality remain our highest priority. We maintain a flawless safety record.

Q6: Do you provide installation and technical support? A: Yes, we offer 24-hour online technical assistance for installation and after-sales service via email or messaging platforms.
