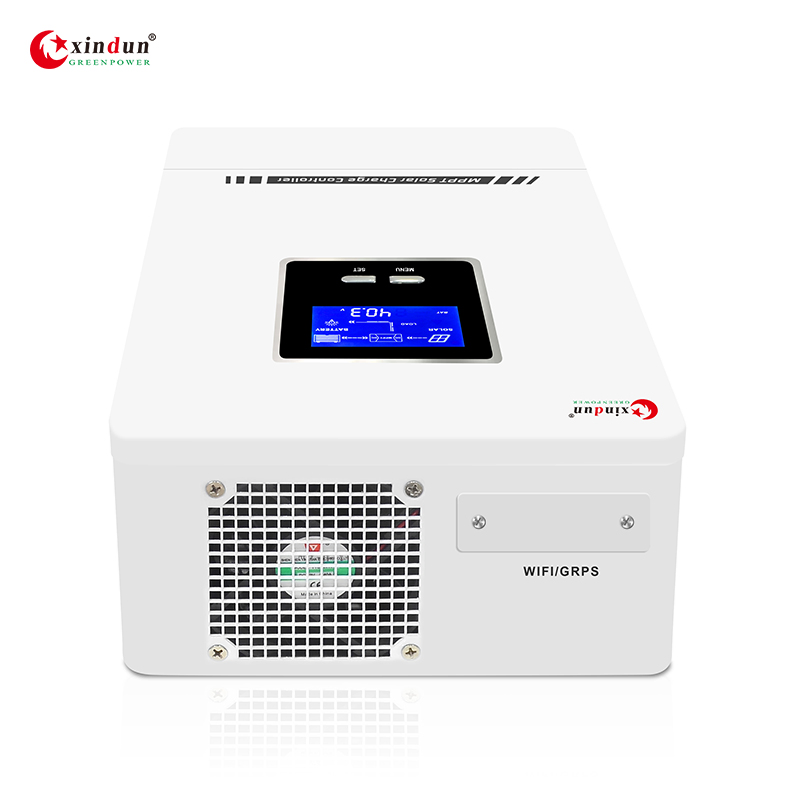

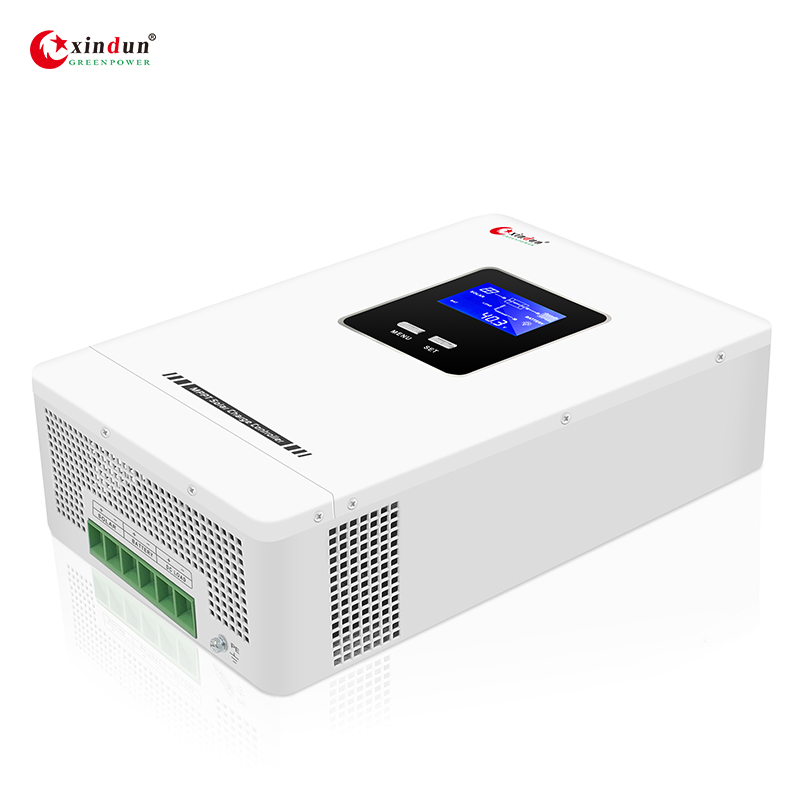

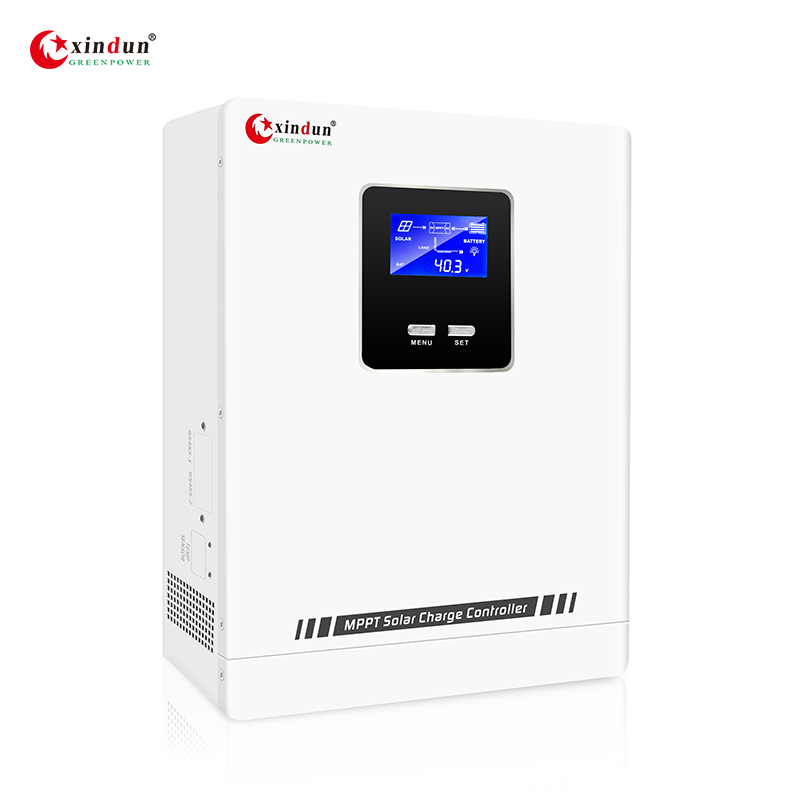

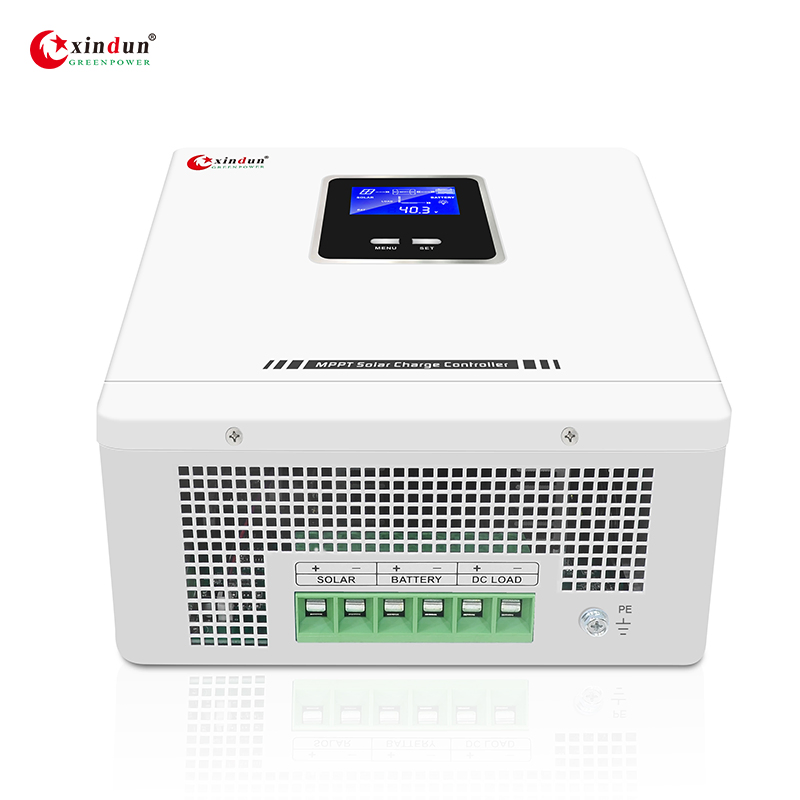

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
1 / 5
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years
Send Inquiry

Product Description

Basic Info.
Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Solar Working Station, Voltage Controller
Rated Voltage
12V/24V/48V
Rated Current
10A/20A/30A/40A/50A/60A/80A/100A
MPPT Tracking Efficiency
>99%
Communication
RS485/APP (WiFi Monitoring or GPRS Monitoring)
Max PV Power
140W~5600W
Conversion Efficiency
>98%
Inverter Features
01 Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%.
02 LCD graphic display of photovoltaic power generation data and simulation of power generation process.
03 Multiple load working modes can be set to adapt to different working occasions.
04 Ultra wide photovoltaic input voltage range, more convenient system configuration.
05 It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters.
06 Lithium battery activation function.
07 Full range of electronic protection: battery anti reverse, PV anti reverse, over-current, over temperature, over-voltage and undervoltage protection.
08 Intelligent battery management function, extending battery life.
09 RS485 communication interface (Mod Bus protocol) and mobile phone APP for easy integration and management.
Highlights
MPPT Controller Highlight 1
MPPT Controller Highlight 2

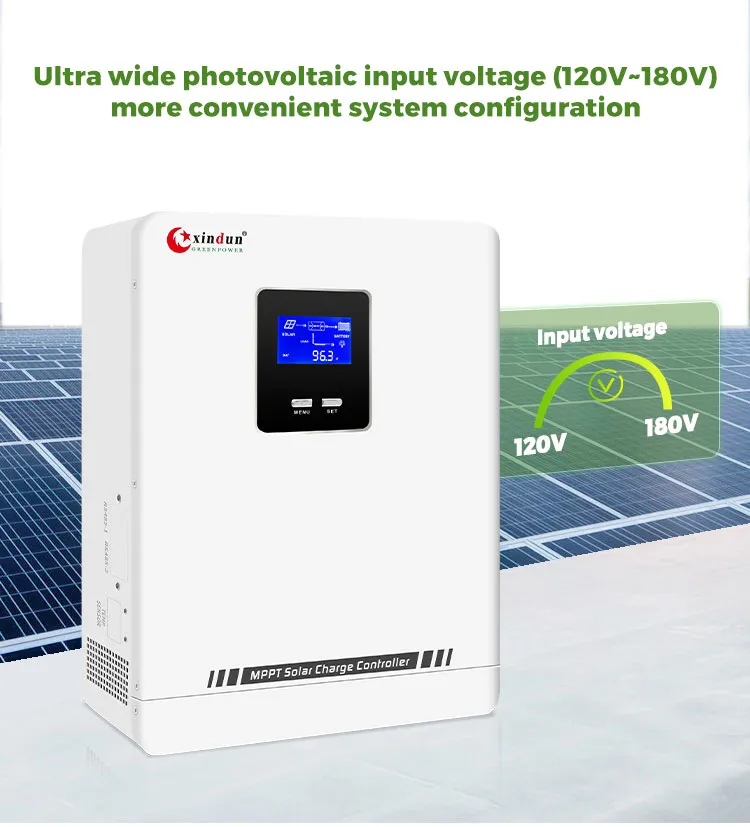

MPPT Controller Highlight 3
MPPT Controller Highlight 4

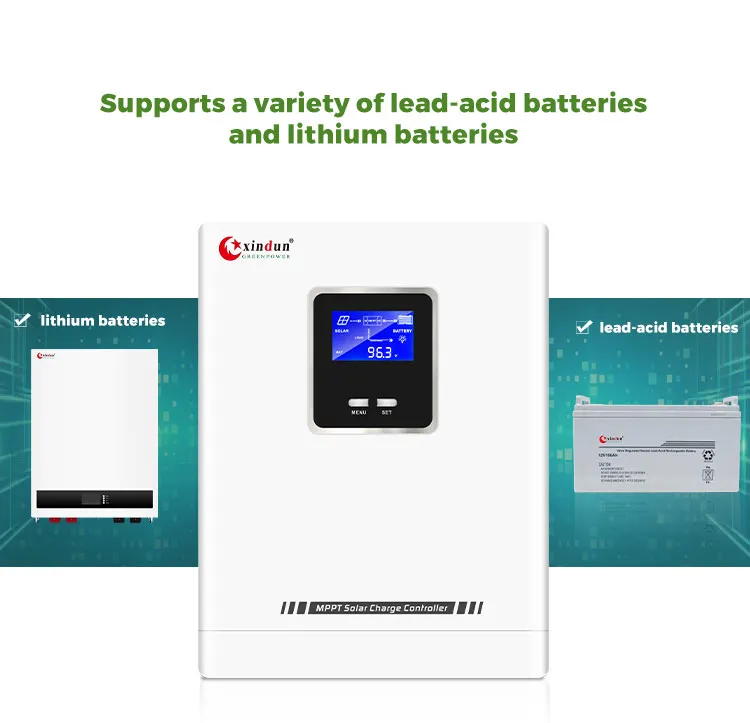

MPPT Controller Highlight 5

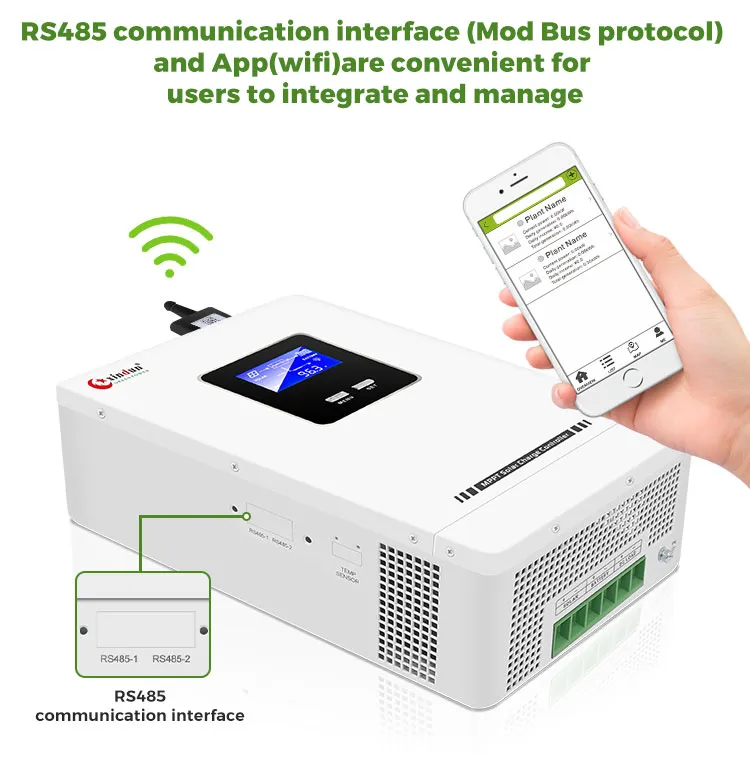

MPPT Controller Highlight 6
Specification Table
Model: Wonder2 10124 - 30124 1048 - 3048 40124 - 60124 4048 - 6048 80124 - 100124 8048 - 10048
Rated Current10A/20A/30A40A/50A/60A80A/100A
System Voltage12V/24V48V12V/24V48V12V/24V48V
Max PV Voc120V180V120V180V120V180V
Tracking Efficiency>99%
Conversion Efficiency>98%
Battery TypeLead acid / Lithium / User customized
Charging MethodThree stages: constant current(MPPT); constant voltage; floating charge
CommunicationRS485/APP(WIFI monitoring or GPRS monitoring)
Product Details & Wiring

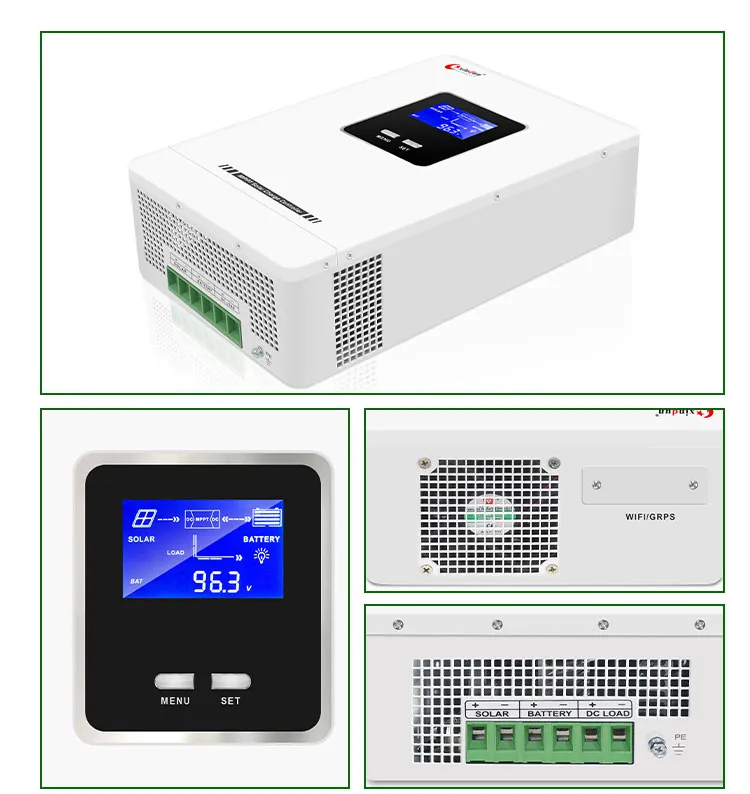

Product Detail

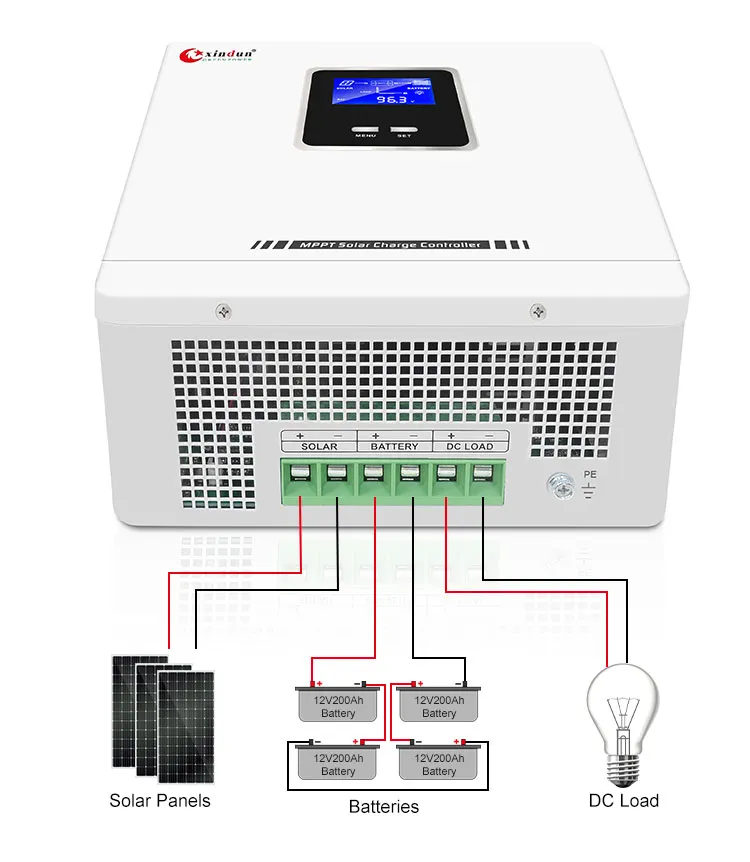

Wiring Diagram
Packing & Delivery

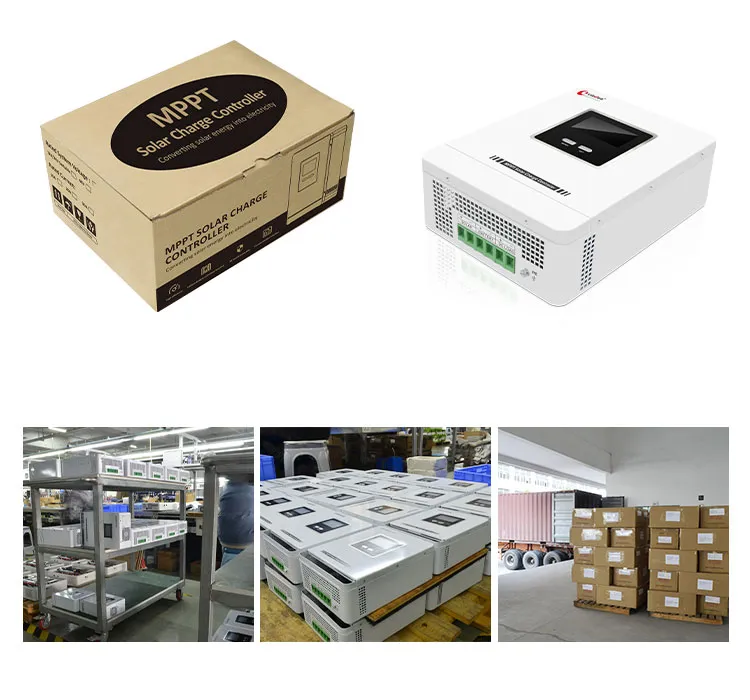

Packing Info
Package

Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.

Shipping
  • 1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
  • 2. By air or by sea for batch goods.
  • 3. Customers specifying freight forwarders or negotiable shipping methods.
  • 4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Workshop Display
Company Showcase

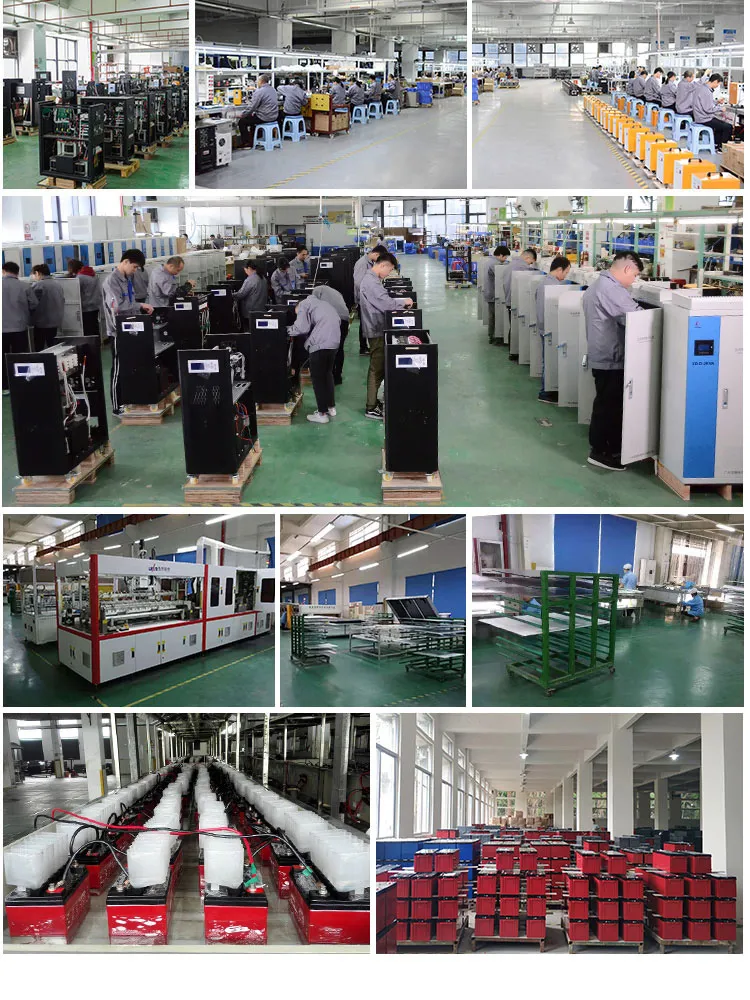

Workshop 1
Workshop 2
Production Line
Frequently Asked Questions
Q1: What is the tracking efficiency of this MPPT solar controller?
The controller utilizes an advanced MPPT tracking algorithm that achieves a tracking efficiency of over 99%, significantly improving power generation compared to PWM controllers.
Q2: Does this controller support lithium batteries?
Yes, it supports a wide variety of batteries including lead-acid and lithium batteries. It also features a specific lithium battery activation function and allows users to customize charging parameters.
Q3: Can I monitor the solar system data on my mobile phone?
Absolutely. The controller is equipped with an RS485 communication interface (Mod Bus protocol) and supports WiFi or GPRS monitoring via a dedicated mobile APP.
Q4: What kinds of protections are built into the device?
It includes a full range of electronic protections: battery anti-reverse connection, PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, over-voltage, and undervoltage protection.
Q5: What is the maximum PV input voltage supported?
The maximum PV input voltage (Voc) depends on the model, ranging up to 120V for standard systems and up to 180V for 48V systems.
Q6: How does the cooling system work?
The controller uses an intelligent fan control system for cooling, which activates based on the internal temperature to ensure efficient thermal management and quiet operation.
