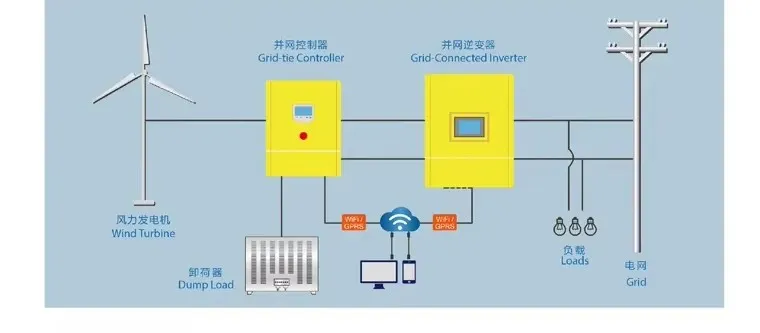

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, then converted into DC electrical energy by the on grid controller for efficient grid-tie inversion.
| Type | FKJ-GT5KW | FKJ-GT10KW | FKJ-GT20KW |
|---|---|---|---|
| Wind turbine rated power | 5KW | 10KW | 20KW |
| Wind turbine Max. power | 10KW | 20KW | 40KW |
| Wind turbine rated voltage | AC220V/380V | AC380V | AC380V |
| Solar panels power | 1.5KW | 10KW | Optional |
| Protection | Over voltage, Network cut-off, Arrester, Manual Brake | ||
| Display content | Voltage, Current, Power (Wind/Solar/DC), Cumulative Generation | ||
| Efficiency | >92% | ||

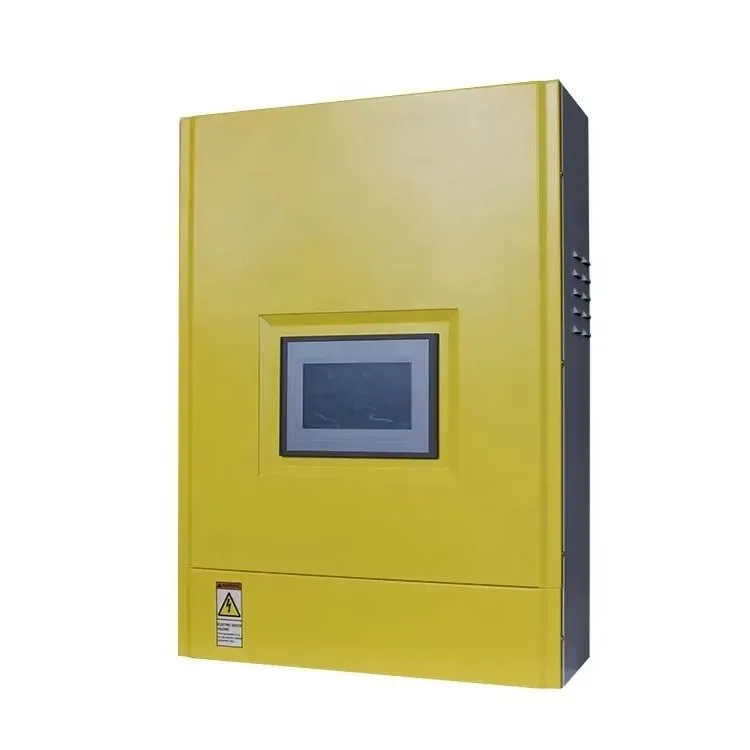

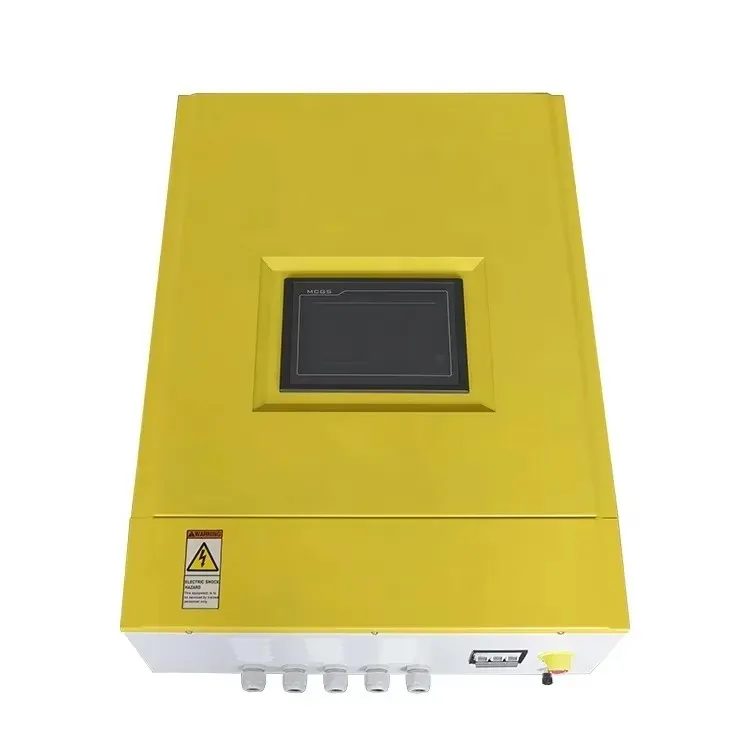

Color touch screen visually displays working status and allows real-time adjustment of technical parameters for different turbines.
Features PWM constant voltage/current system combined with a three-phase braking system for maximum reliability.
Equipped with internal surge protectors to conduct lightening current to earth and prevent equipment damage.
Supports Modbus, RS485, WiFi, and GPRS. Compatible with Android and IOS for real-time mobile monitoring.

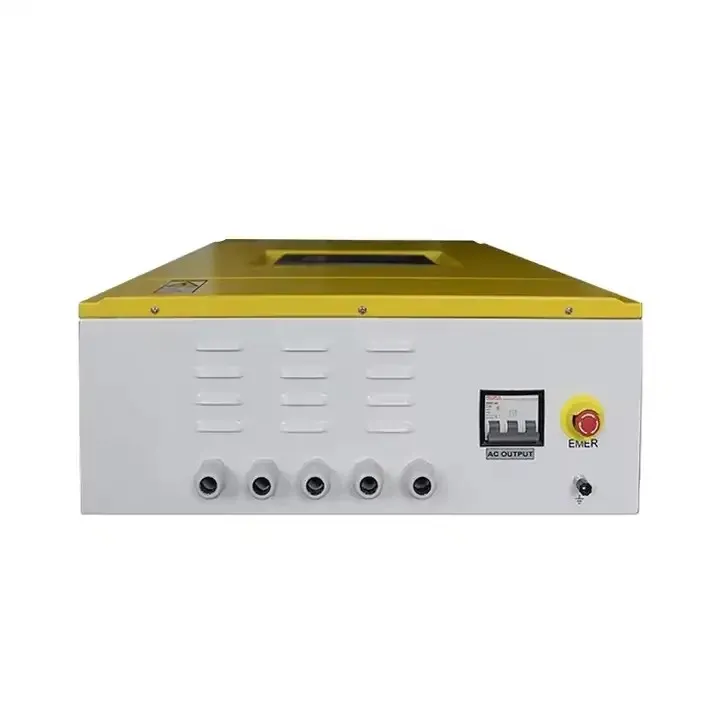

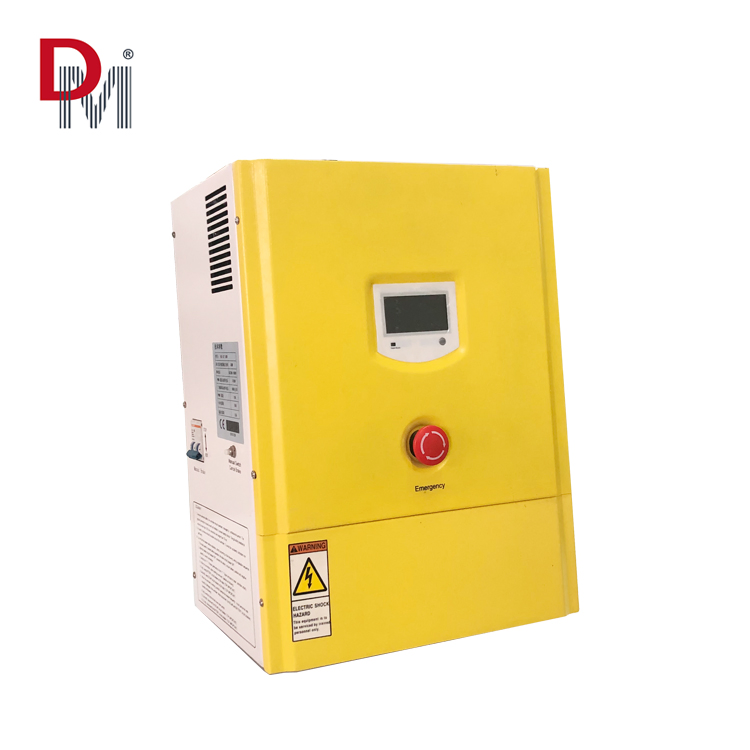

Automatic brake control during grid failure or strong winds. Includes manual and emergency stop switches.

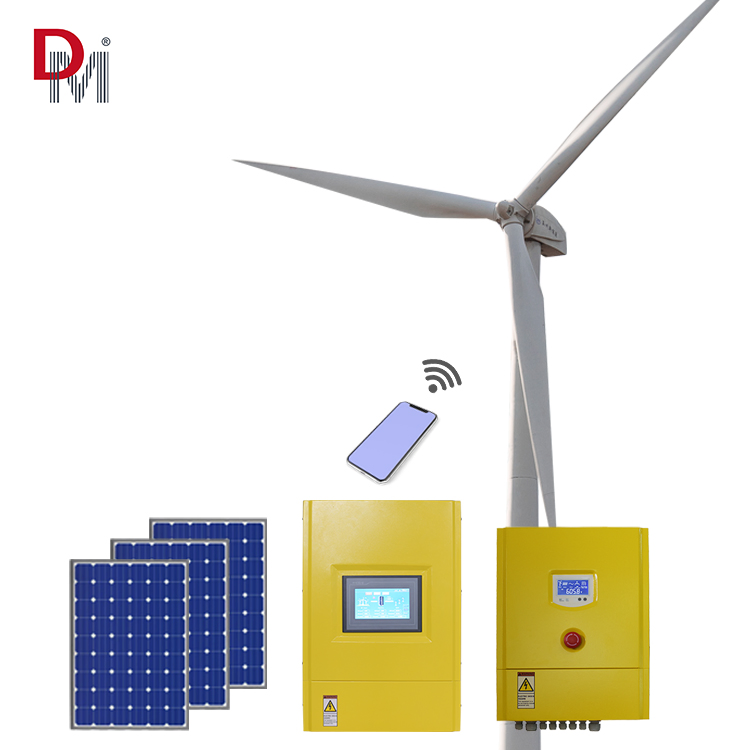

The controller is designed to manage wind and solar hybrid systems, converting wind/solar energy into stable DC power for grid-tie inverters to feed electricity back into the grid.
It utilizes a PWM constant voltage system and a three-phase braking system. If winds are too strong, it limits the output or engages the brake to protect the inverter and turbine.
Yes, the controller supports RS485, WiFi, GPRS, and Ethernet. You can check real-time and historical data via a PC or a mobile phone (Android/iOS).
Yes, the internal structure includes a surge protector that conducts high lightening currents directly into the earth to prevent damage to the electronic components.
When the grid is cut off, the controller automatically engages the wind turbine brake and the inverter stops outputting to the grid for safety. It resumes operation automatically when the grid returns.
Yes, the technical parameters can be adjusted via the color touch screen, and additional functions like yaw control or hydraulic brake control can be added based on specific needs.
