Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

1 / 5

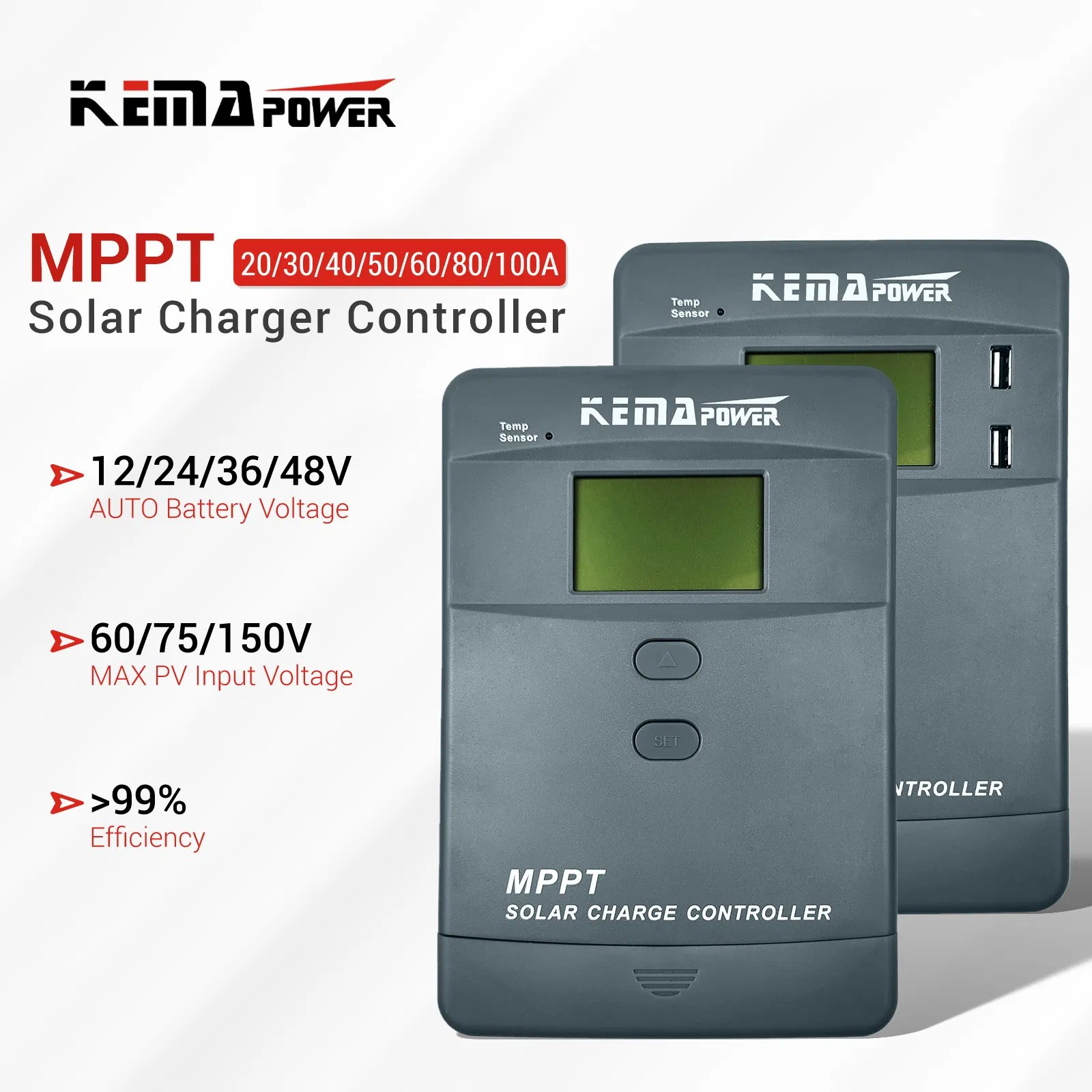

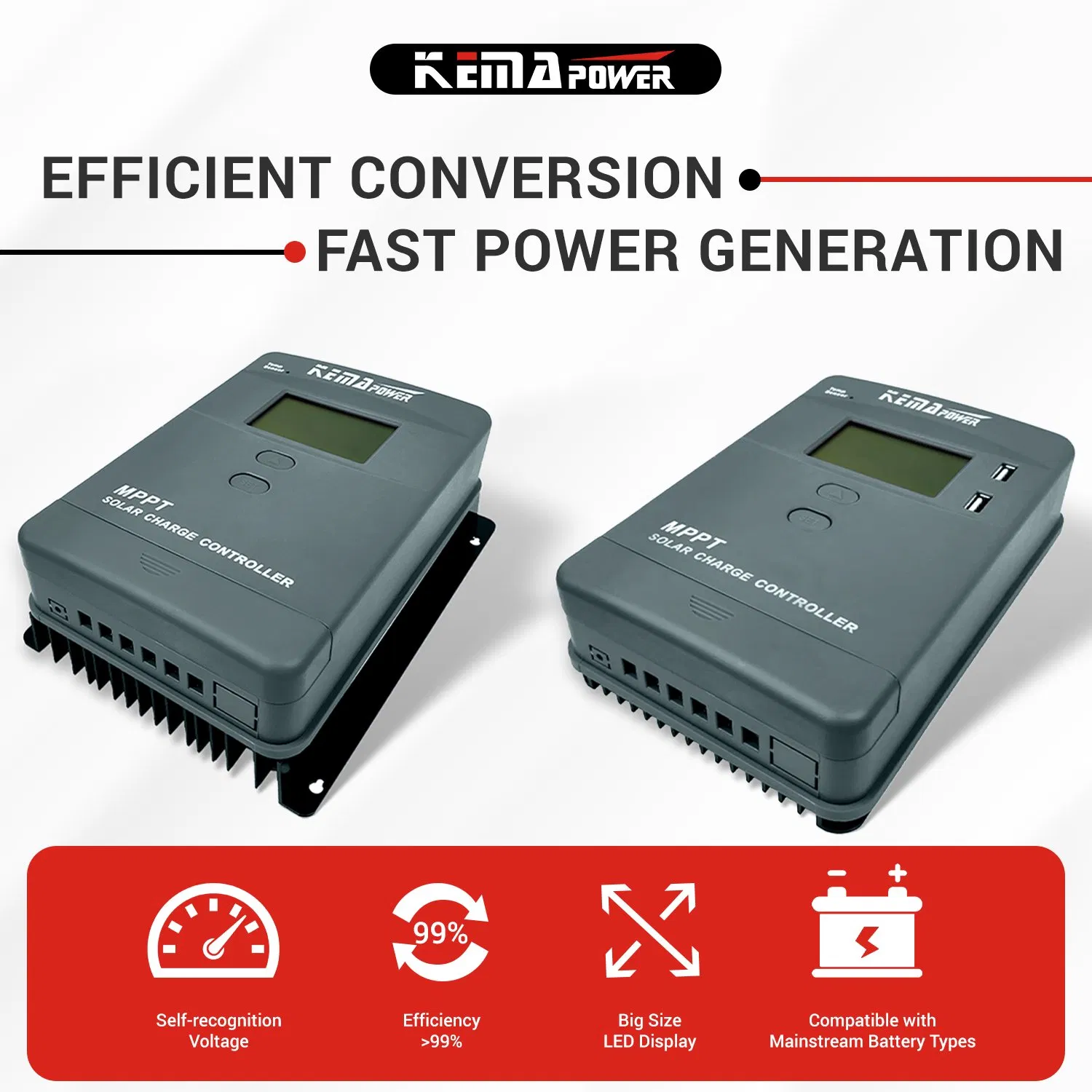

Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

MPPT-R

Condition

New

Certification

ISO, CB, CE

Application

Collector Controller, Solar System, Charger Controller, Wind Controller, Voltage Controller

Rated Voltage

12/24/36/48V

Color

Black

Transport Package

Safety Packing

HS Code

9032899090

Package Size

280.00cm * 204.00cm * 101.00cm

Gross Weight

2.800kg

Key Features

MPPT solar charge controller 12/24V 20-60A and 12/24/36/48V 30-100A

Common Positive, Max PV input 60/75/150V, efficiency >99%

LCD display for PV Bat Load parameter setup and working status

Multi-stages charging mode: Bulk, Absorption, Float, Equalization, CV

Supports GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, and customization

Temperature Compensation and current limiting charging function

Built-in Lithium battery activation Function

Internal Bluetooth or External WIFI Communication optional

2*2A/5V USB port available for 12/24V 20-40A controllers

Technical Specifications

Model		MPPT2420R	MPPT2430R	MPPT2440R	MPPT2450R	MPPT2460R	MPPT4830R	MPPT4860R	MPPT48100R
System voltage		12 / 24V Auto					12/24/48V Auto (36V Manual)
Rated current		20A	30A	40A	50A	60A	30A	60A	100A
Max PV VOC		<60V	<75V	<100V			<150V
Max PV Power	12V	260W	390W	520W	650W	780W	390W	780W	1300W
Max PV Power	24V	520W	780W	1040W	1300W	1560W	780W	1560W	2600W
Battery type		GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, customization
Lithium Activation		YES
Protection Class		IP30

Product Display

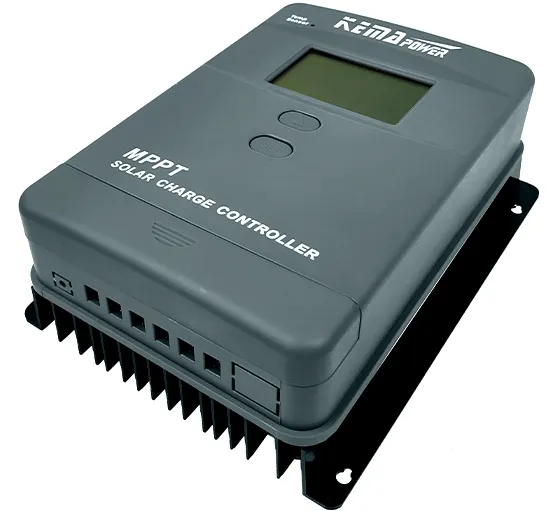

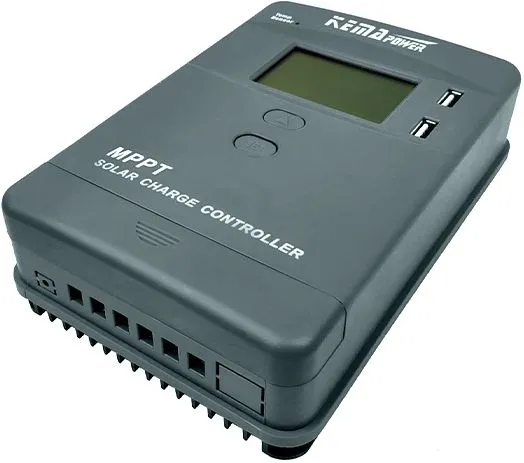

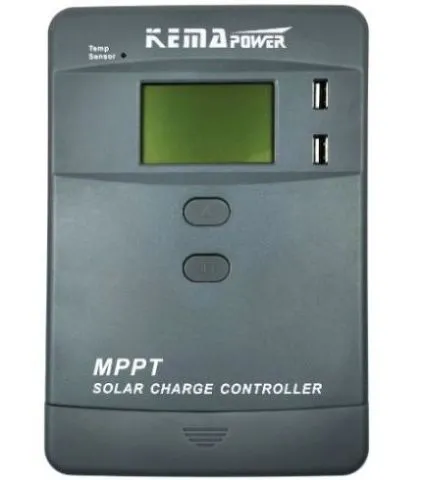

MPPT-R 20-40A Design

Compact Structure

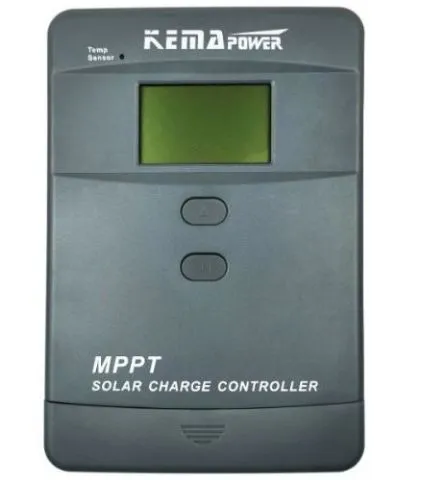

MPPT-R 50-60A Design

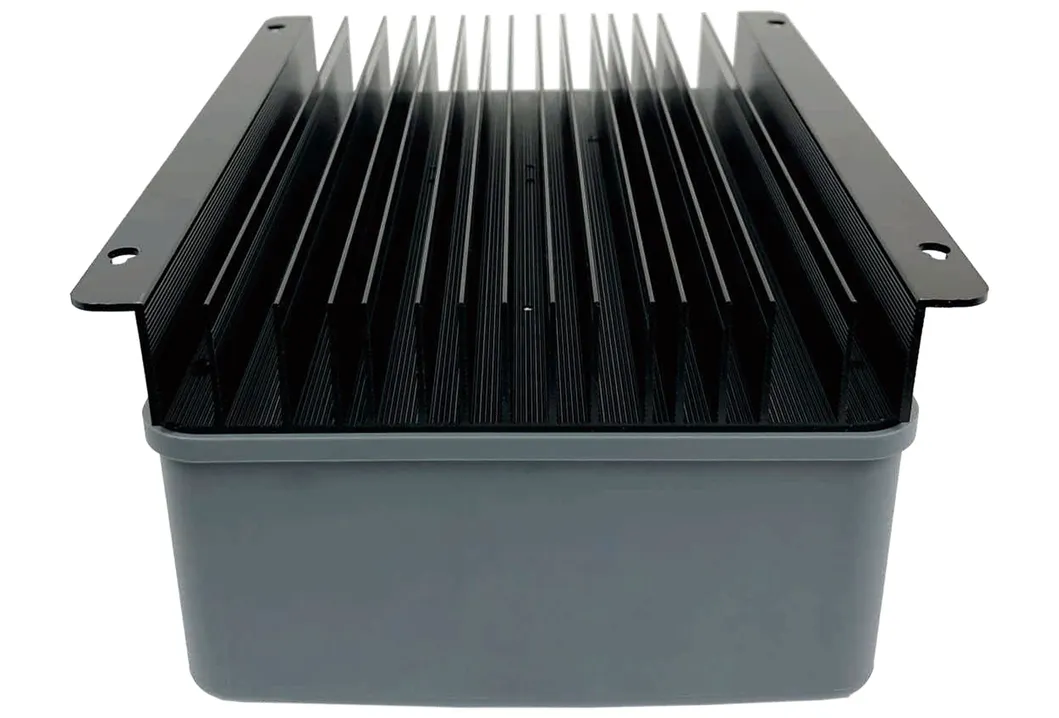

20-40A Natural Cooling

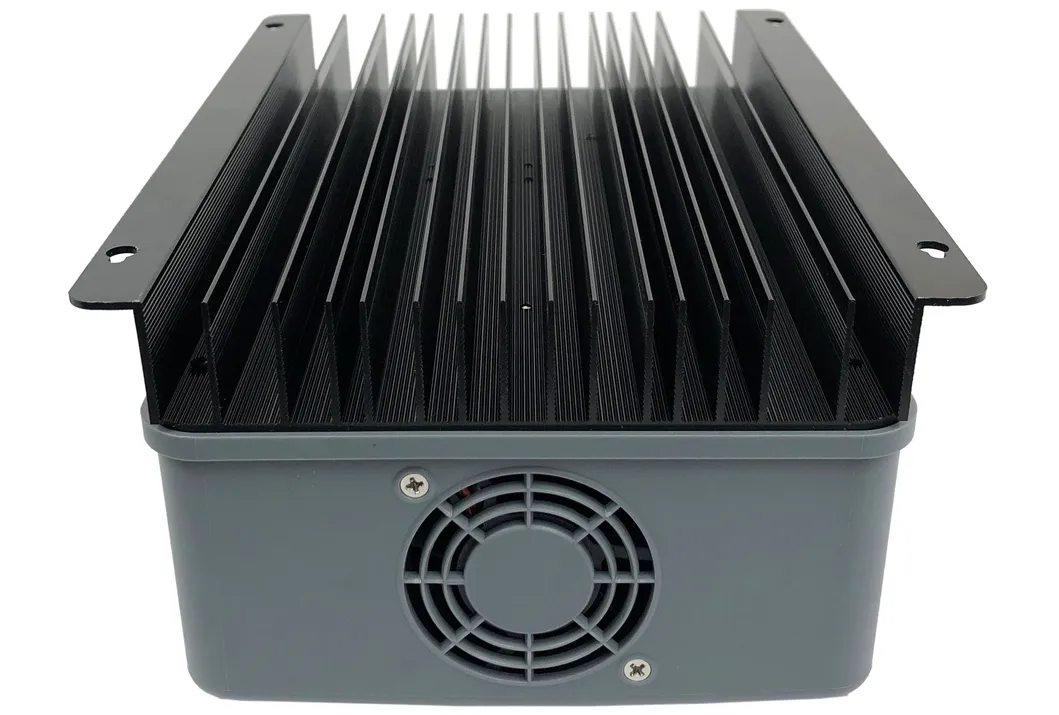

50-100A Fan Cooling

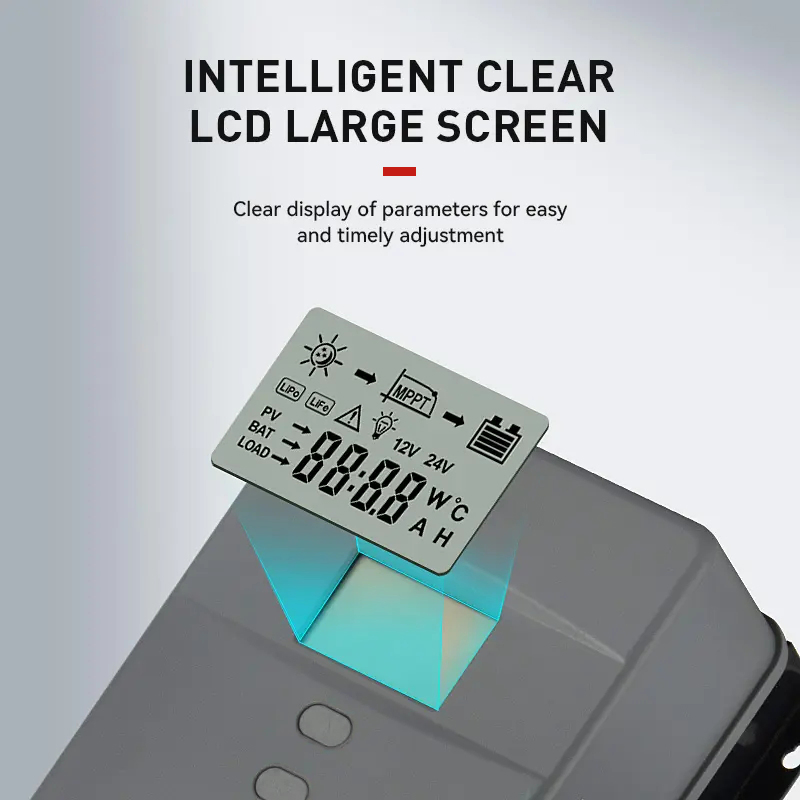

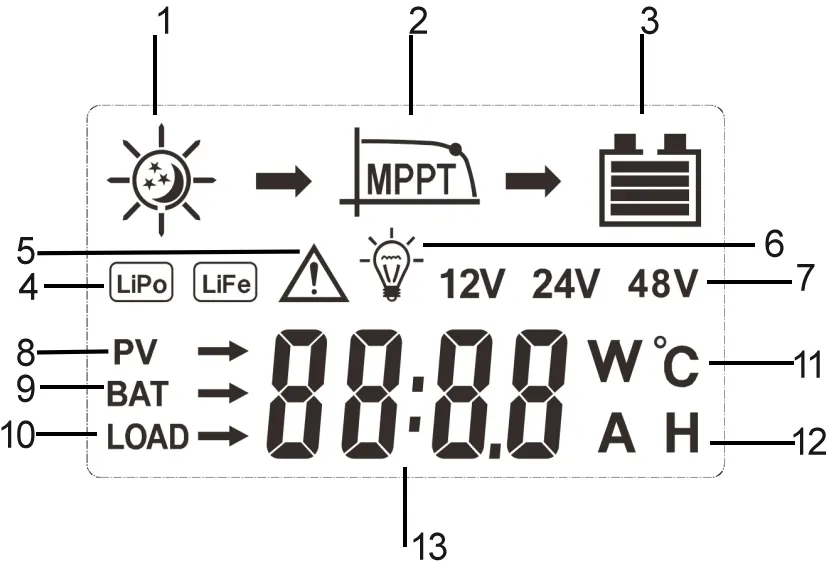

LCD Interface Explanation

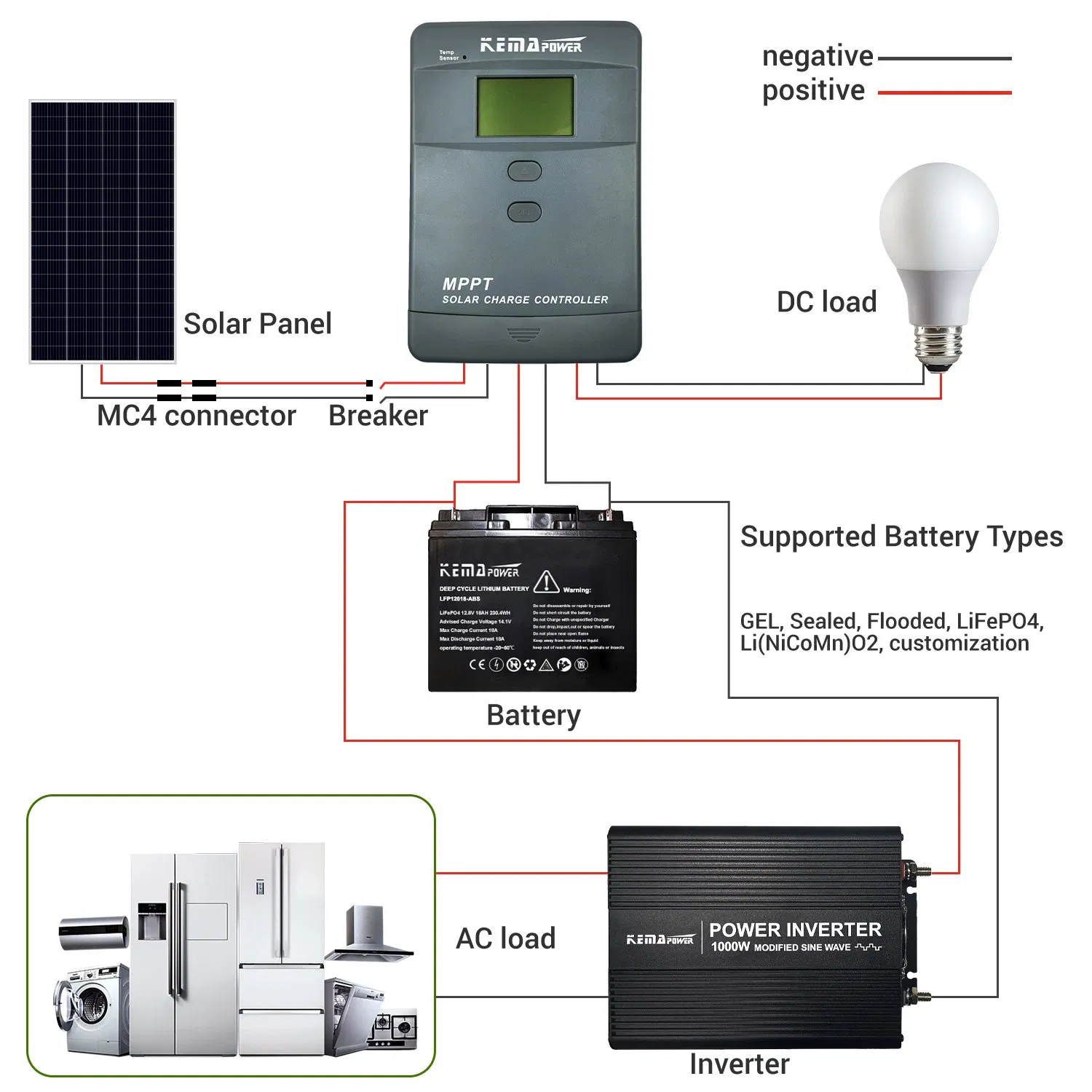

System Wiring & Dimensions

Frequently Asked Questions

What types of batteries can this MPPT controller charge?

The MPPT-R series supports GEL, Sealed, Flooded, LiFePO4, and Li(NiCoMn)O2 batteries, and offers customization options for other types.

Does this controller support lithium battery activation?

Yes, it features a built-in lithium battery activation function to ensure your lithium system starts safely.

What is the peak efficiency of this solar controller?

The MPPT-R series achieves a tracking efficiency of greater than 99% for optimal energy harvest.

Can I monitor the system remotely?

Yes, internal Bluetooth or external WiFi communication modules are available as optional features for remote monitoring via app.

How is the cooling handled for different models?

The 20A-40A models use natural convection cooling, while the higher power 50A-100A models utilize integrated fan cooling for heat dissipation.

What protections are built into the device?

It includes protection for PV reverse connection, battery reverse connection, battery over/low voltage, and load overload.
