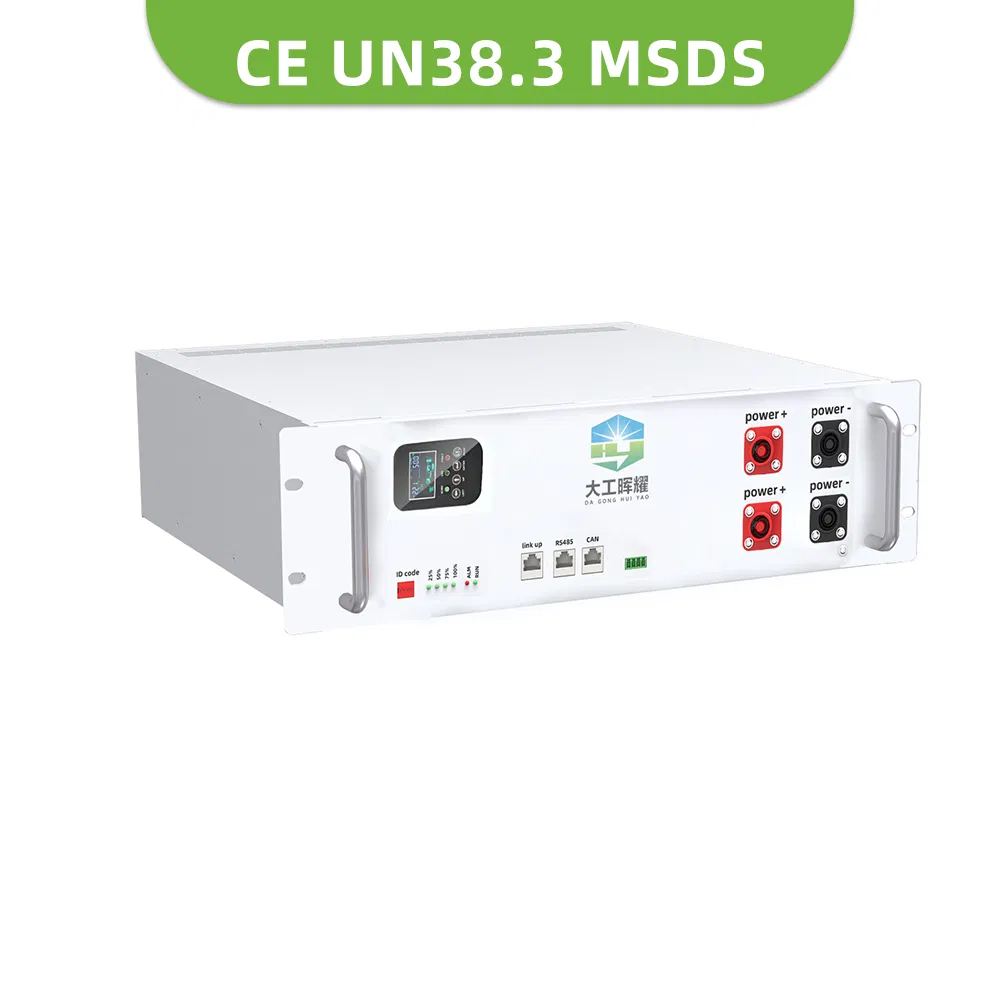

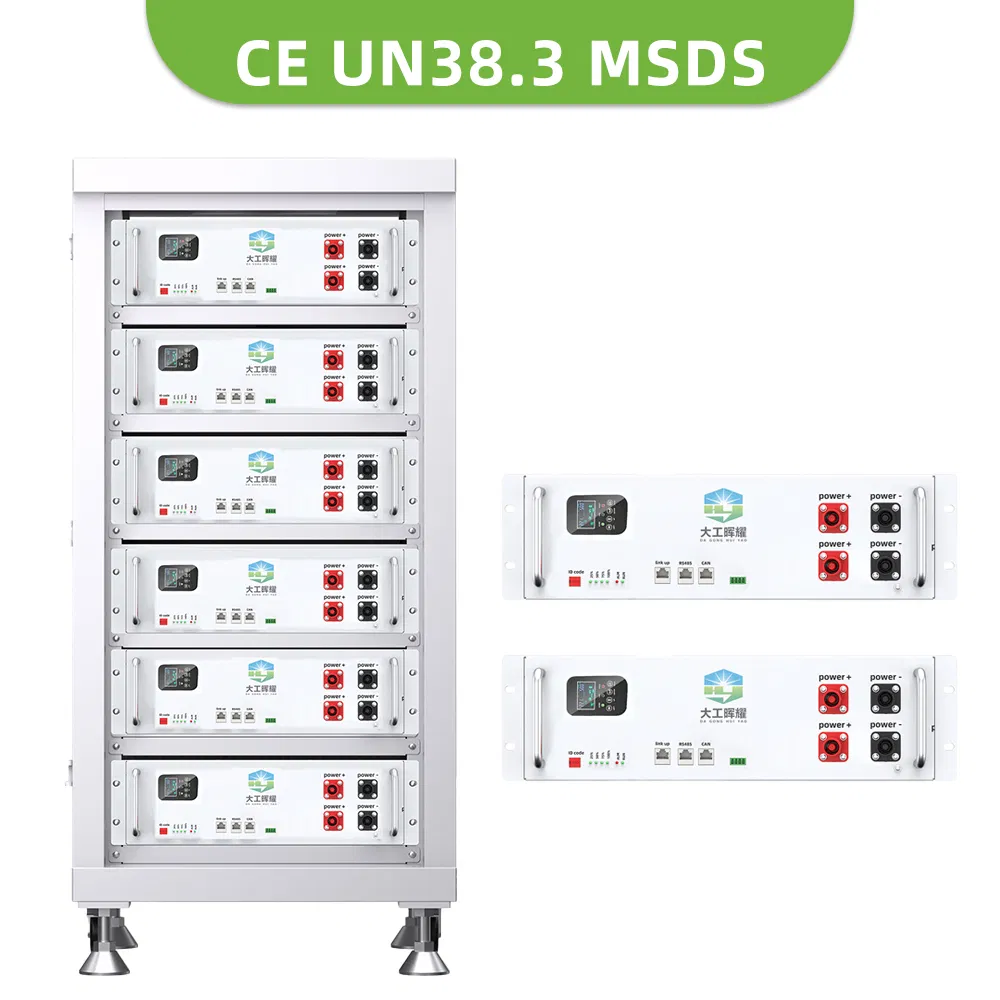

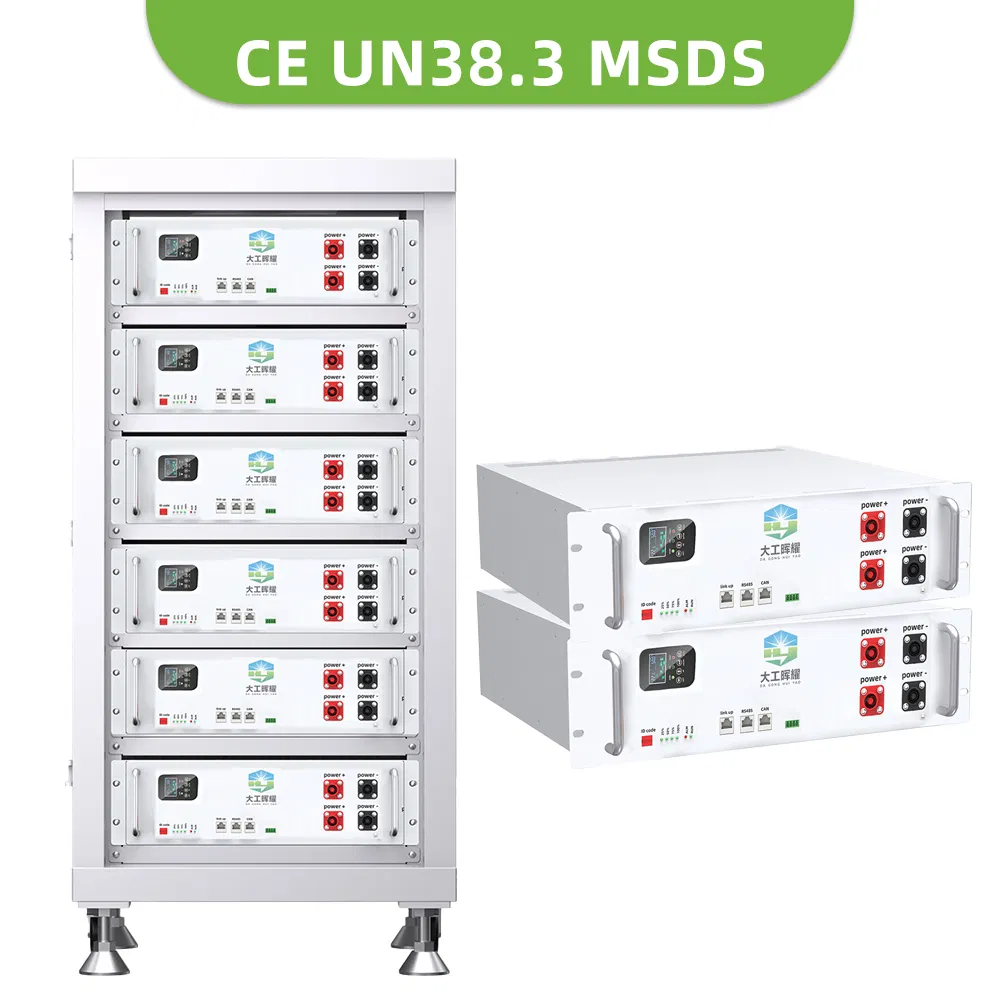

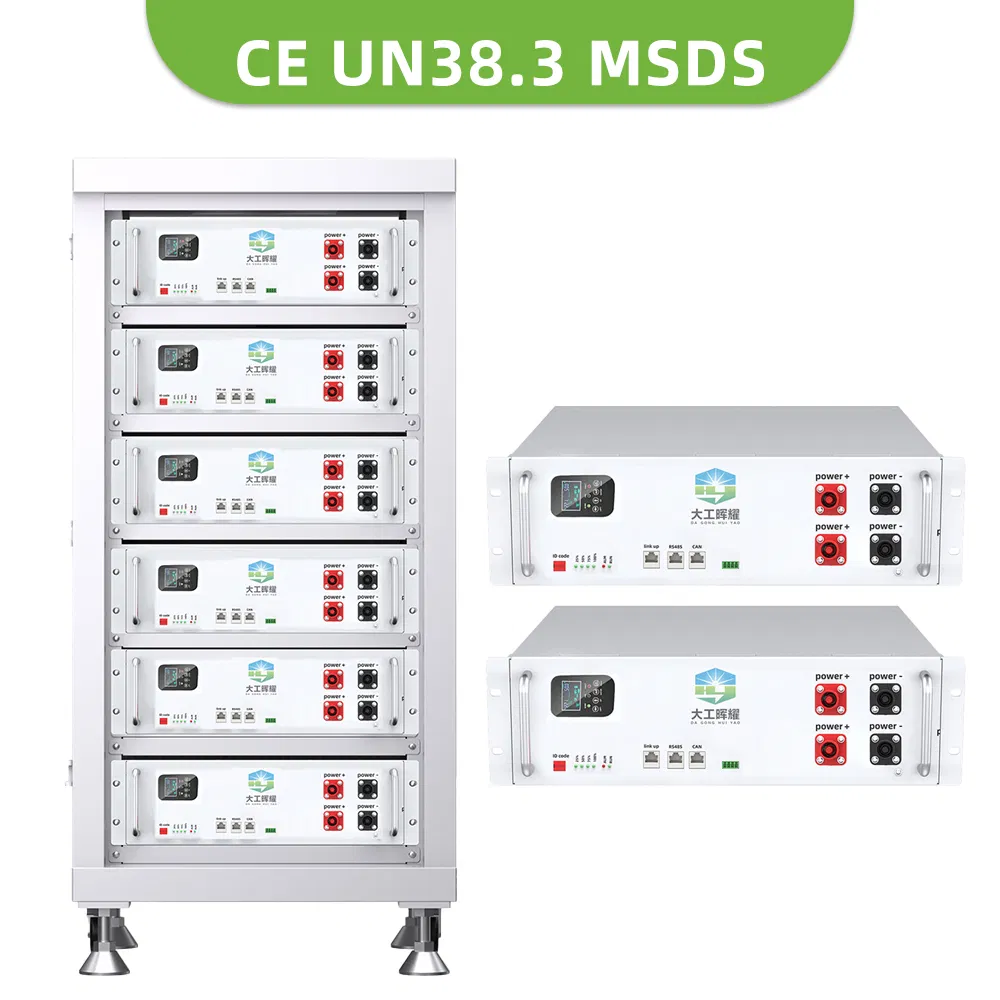

China 5kwh-60kwh Hy Tech Energy Storage 5kwh Portable Power Station

Customization: Available
Weight: 50kg
Warranty: 5years

Product Description

📊 Basic Information
Model NO.
DGHY-R-C
Cycle Life
6000 Times
Nominal Capacity
5kwh-60kwh
Capacity
Rack Battery 25kwh Cabinet
Material
LiFePO4
Battery Cell
Grade A+
BMS
Yes
Voltage
51.2V
Cell Capacity
100ah
Transport Package
Cartoon Box
Specification
602*532*215mm
Origin
China
HS Code
8507600090
Production Capacity
500 Sets/Month
Product Description
Battery Module Stacking Design

A smart Battery Management System (BMS) monitors voltage, temperature, and current in real-time, ensuring safe and stable operation. The modular design allows users to flexibly adjust battery capacity based on household energy needs.

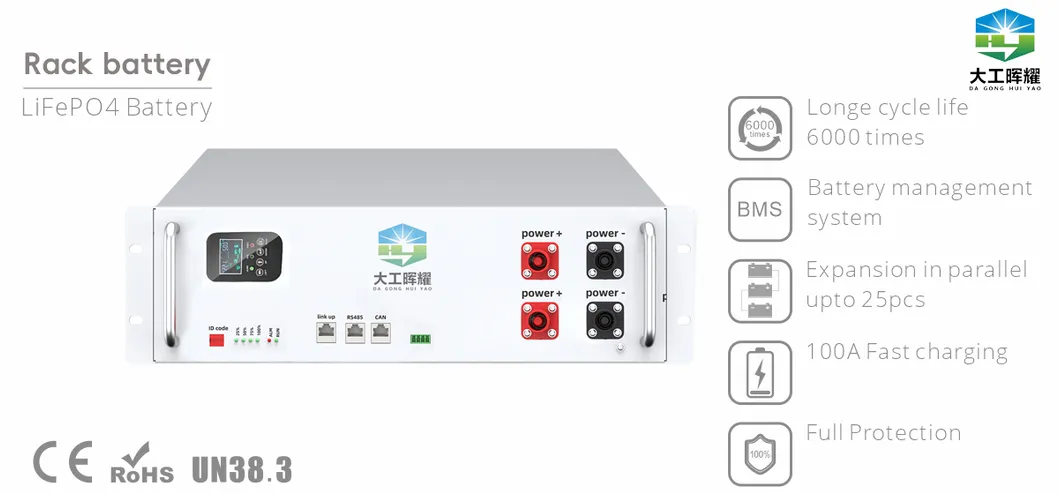

Energy Storage Design
Our Advantages
  • Grade A 100% brand new cells: Ensures consistent performance and long cycle life exceeding 5000+ times.
  • Integrated BMS: 6 protections including over-charge, over-heating, electric leakage, over-power, low-voltage, and short circuit protection.

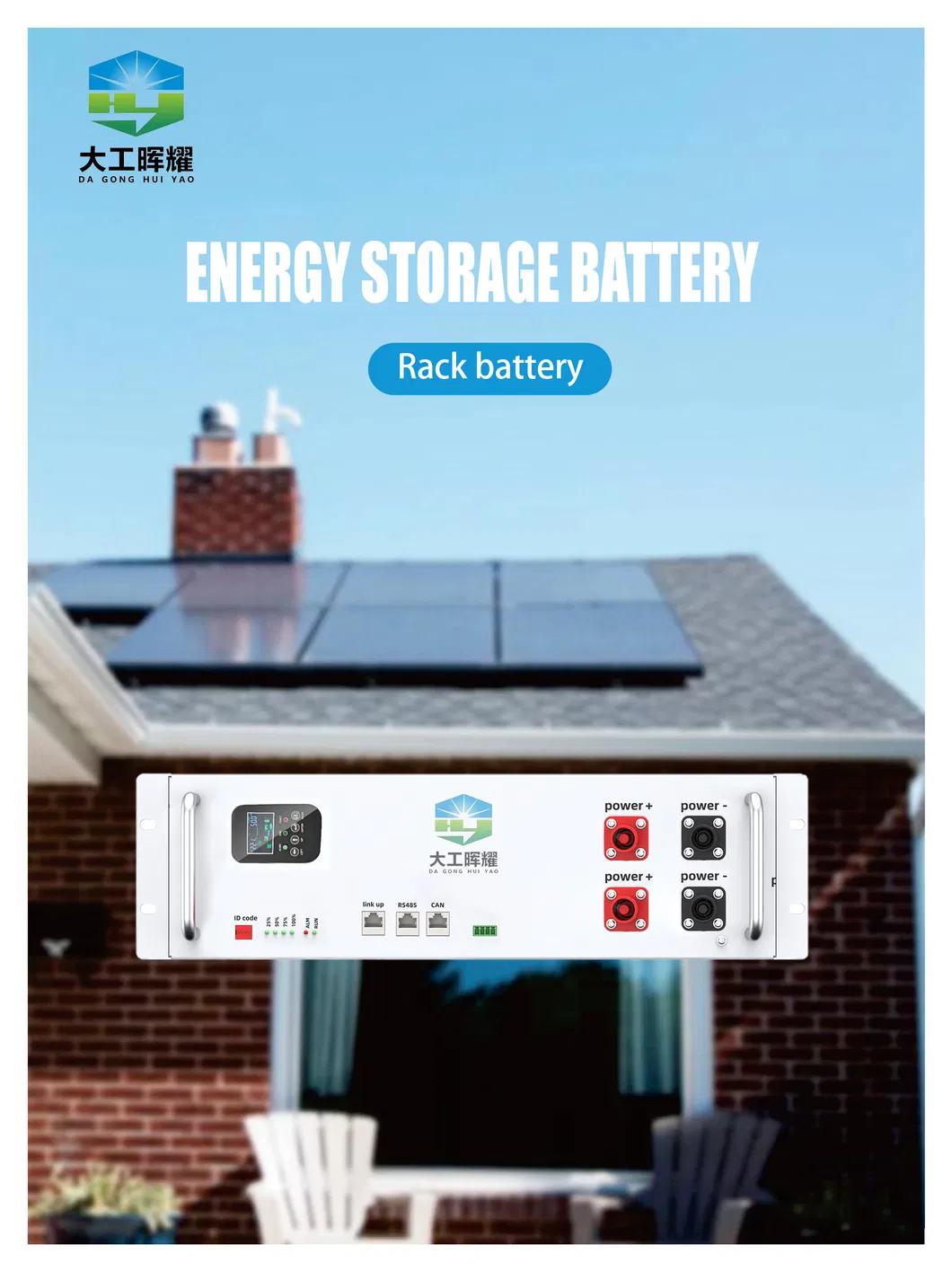

Battery Advantages

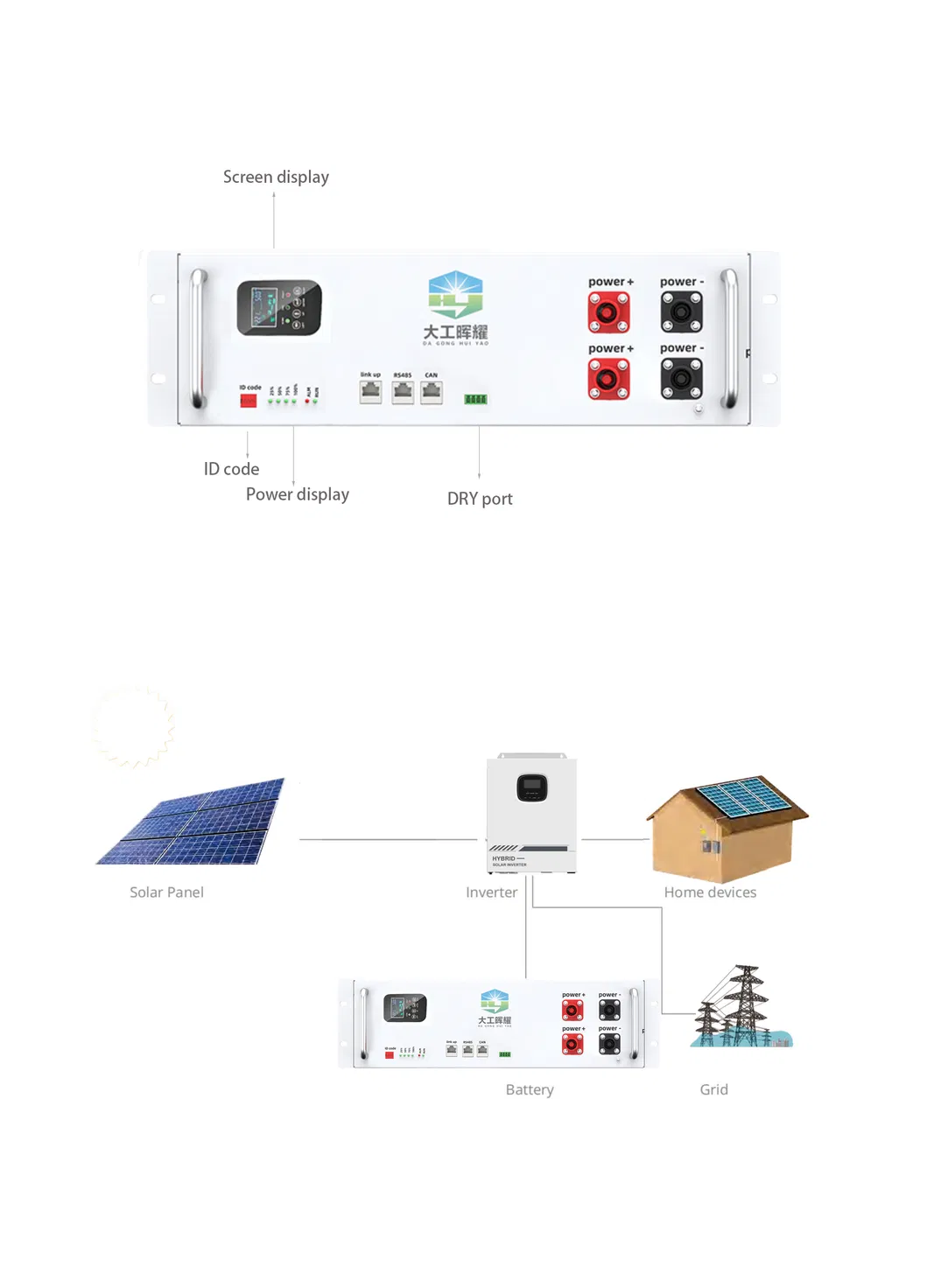

Communication Interface
Advanced Communication & Connectivity

Uses CAN bus or RS485 for enhanced anti-interference capabilities, suitable for complex environments. Supports multiple protocols and software upgrades.

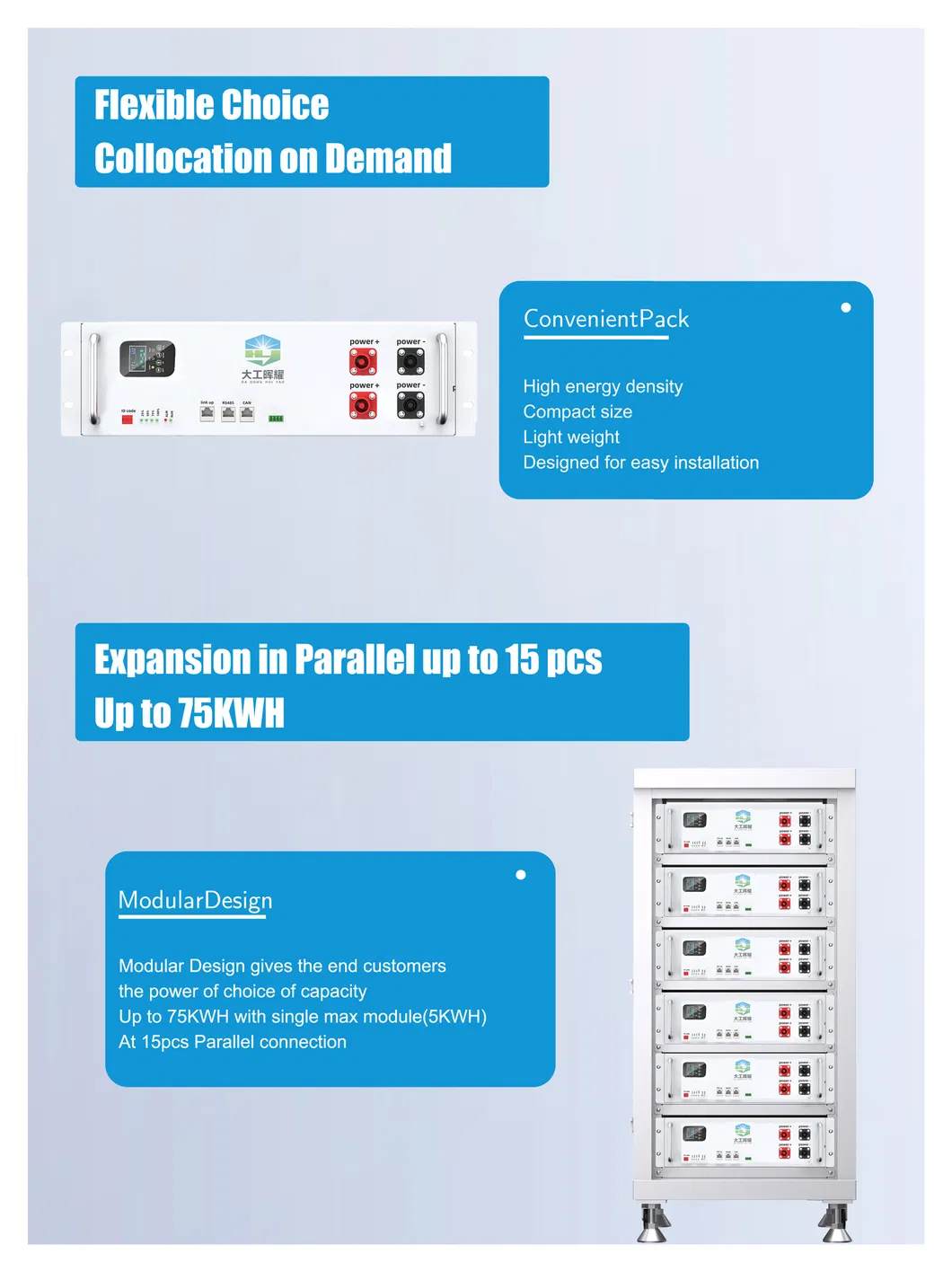

Hybrid Connection
System Features
Core Features & Scenarios

Discover our Flexible Choice Collocation Energy Storage System. High energy density and compact size facilitate easy handling and efficient energy management.

Battery Cell Quality
Household Scenarios
Installation Flexibility

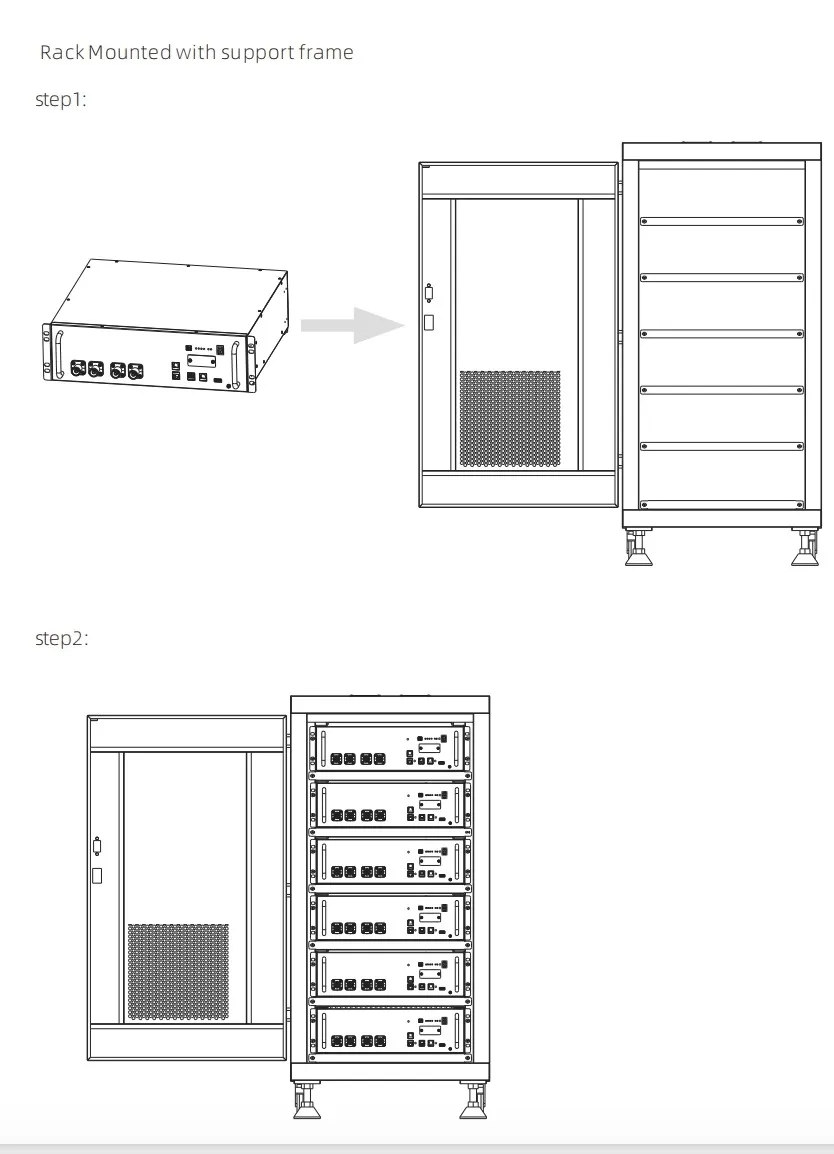

Rack Stacking

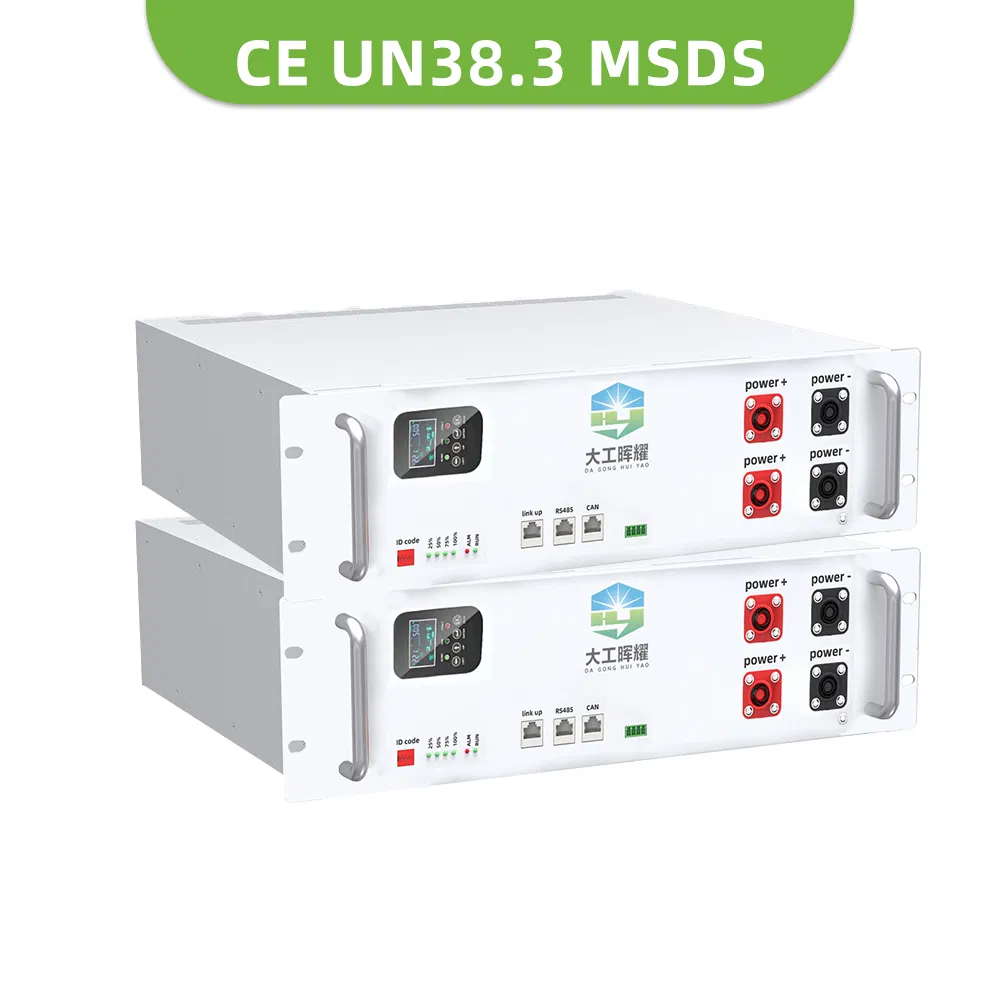

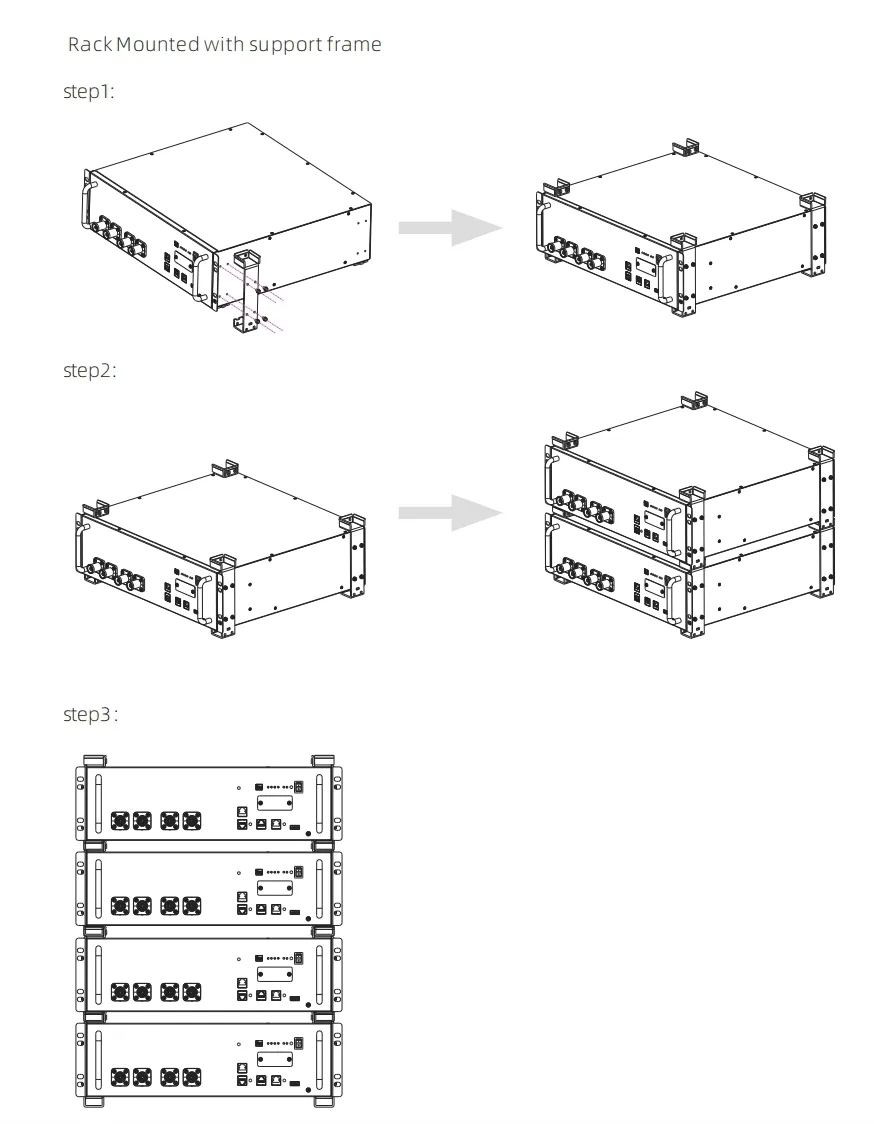

Battery Stacking
📋 Product Parameters
Battery Model Voltage Energy Capacity Size Current Material
DHDJ-5000*151.2V100Ah5.12kWh602*532*215mm100ALiFePO4
DHDJ-5000*251.2V200Ah10.24kWh602*532*430mm100ALiFePO4
DHDJ-5000*351.2V300Ah15.36kWh602*532*645mm100ALiFePO4
DHDJ-5000*451.2V400Ah20.48kWh602*532*860mm100ALiFePO4
DHDJ-5000*551.2V500Ah25.6kWh602*532*1075mm100ALiFePO4
📜 Certifications

ISO 9001, CE, UN38.3, MSDS

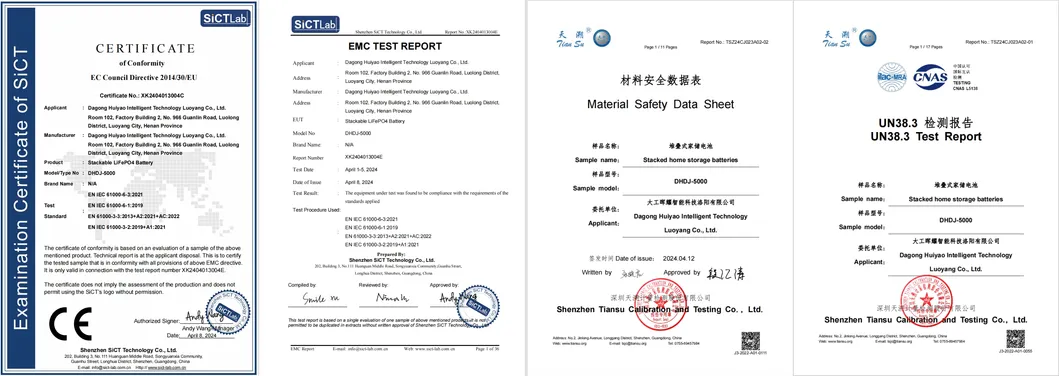

Certification 1

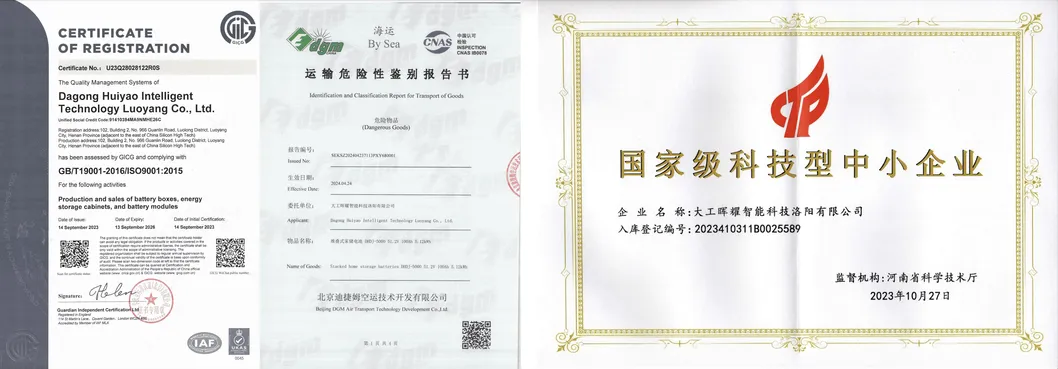

Certification 2
📦 Packaging & Shipping

Specialized hazardous packaging boxes are used to ensure compliance with international dangerous goods transportation standards (UN38.3). We hold safety certifications for land and sea transport, ensuring full compliance with maritime and port authority requirements.

Shipping Certificate

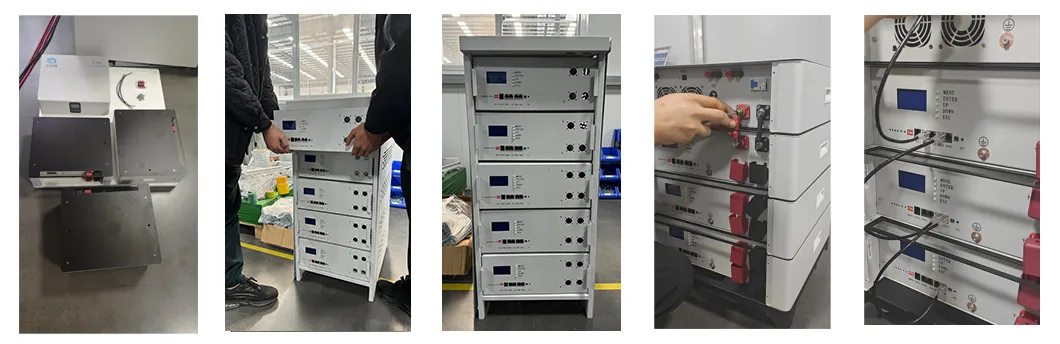

🛠️ Installation Instructions
  • Unboxing: Open packaging and remove battery units safely.
  • Stacking: Follow guidance to stack units without special tools.
  • Parallel Connection: Connect units in parallel for stable output.
  • Communication: Connect cable to the BMS for monitoring.
  • Power Up: Connect to PV, mains, and output systems.
Installation Guide
Frequently Asked Questions
Q1: Is any electrical adjustment required during the first startup? A: No adjustment is required; the system is preset at the factory and will automatically adapt to your environment.
Q2: What maintenance is required during operation? A: No manual changes are needed. You can monitor parameters via the built-in LCD screen or through a WIFI module connected to our app.
Q3: How many solar panels/batteries do I need for a 4000 kWh yearly consumption? A: 4000kWh/year is approx 10.9kWh/day. We determine the configuration based on this daily consumption and your specific sunlight hours.
Q4: What components do you provide? A: We specialize in complete solar energy systems, including high-efficiency inverters and Lithium battery storage.
Q5: What is the after-sales policy? A: Within the warranty period, product defects result in a free replacement. Outside the warranty, we provide components at a 20% discount.
Q6: How long is a price quotation valid? A: Standard quotations are valid for 15 days due to market fluctuations in raw materials.
