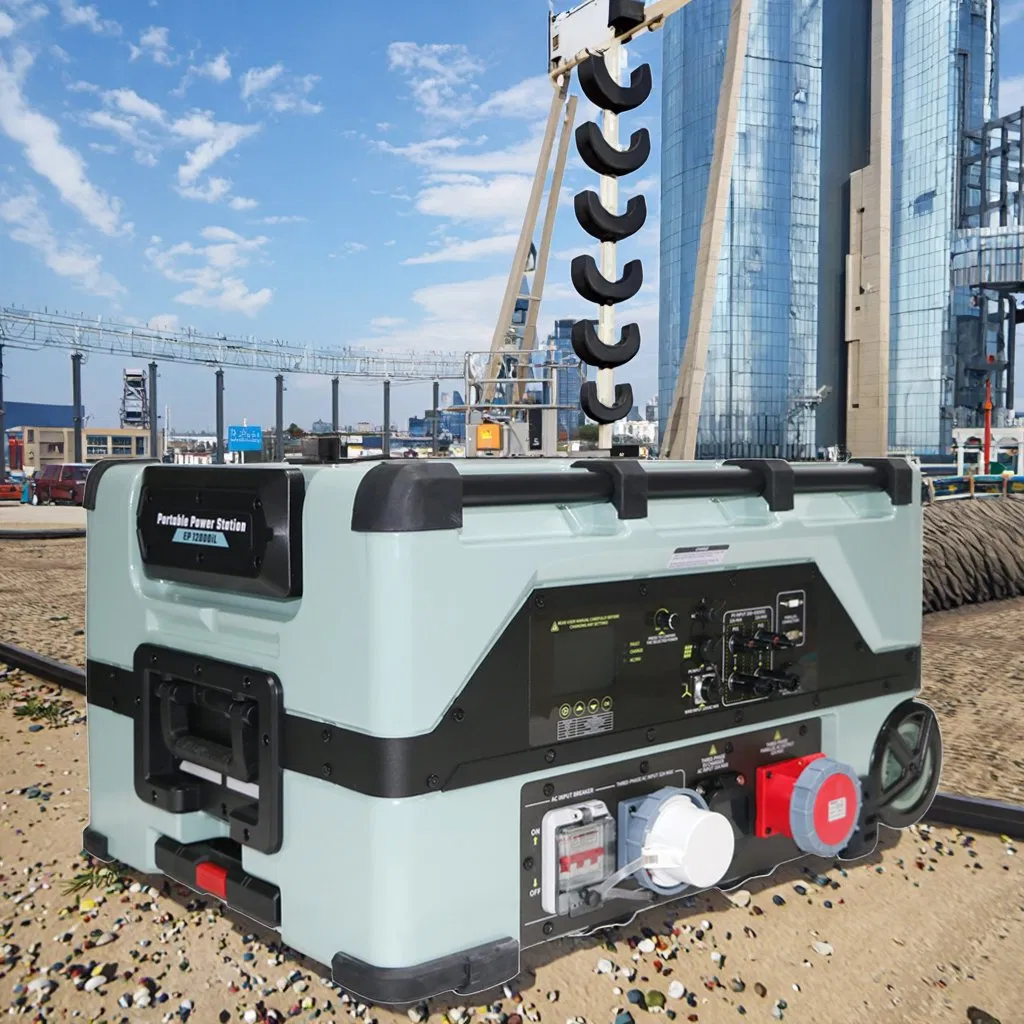

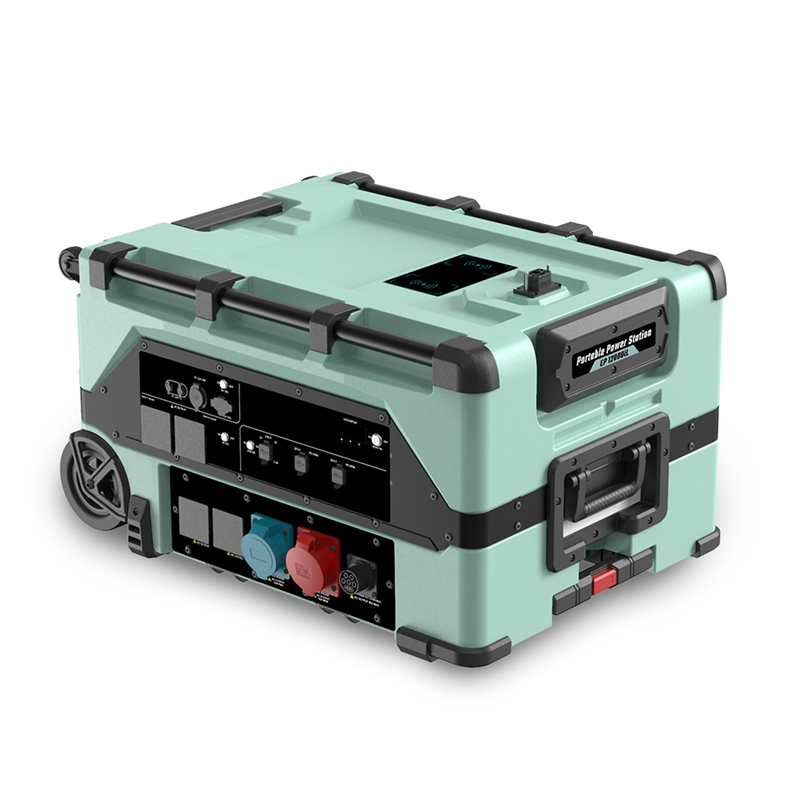

20kw off-Grid Solar Generator Home Energy Storage Solar System

1 / 5

20kw off-Grid Solar Generator Home Energy Storage Solar System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Super Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

Portability

Drawbar & Wheels

📦

Packaging & Delivery: Package Size: 97.00cm * 75.00cm * 57.00cm | Gross Weight: 220.000kg

💎 Product Advantages

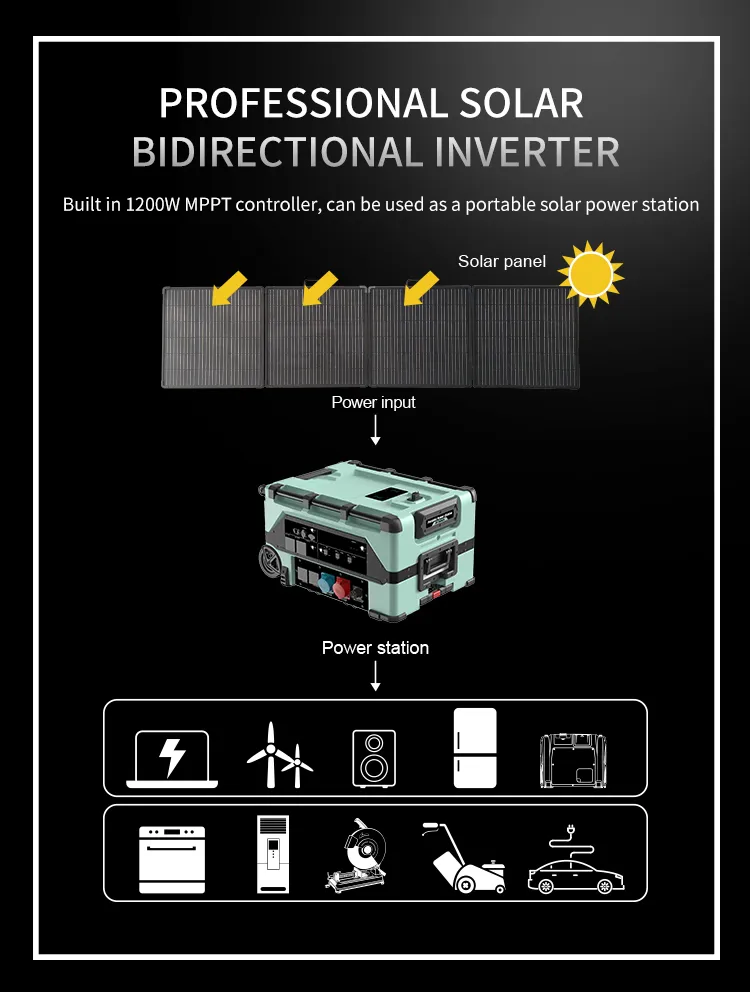

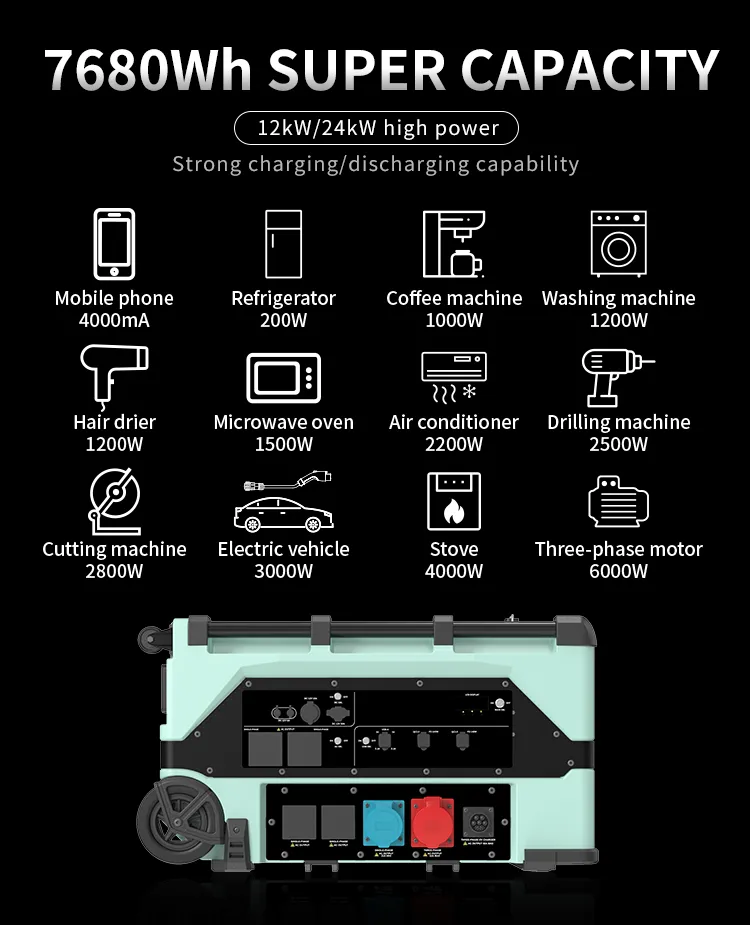

01Built in 7680*2Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

02Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

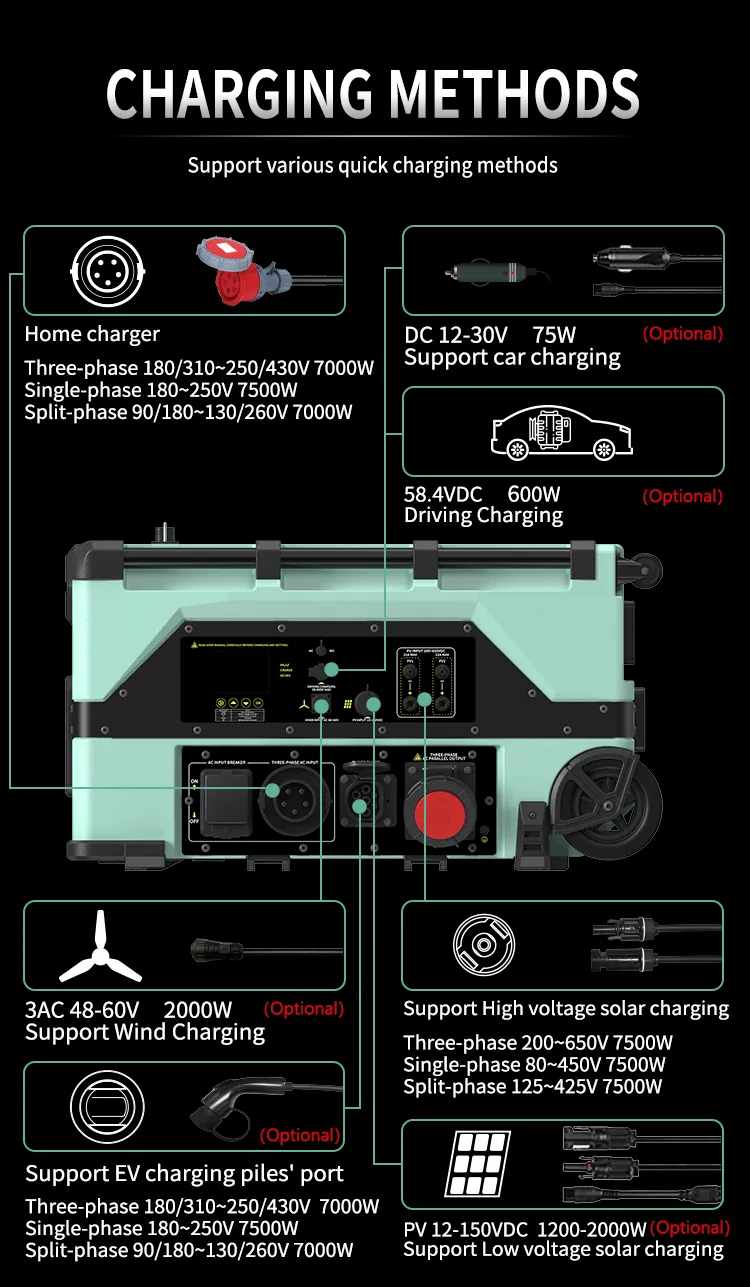

03Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

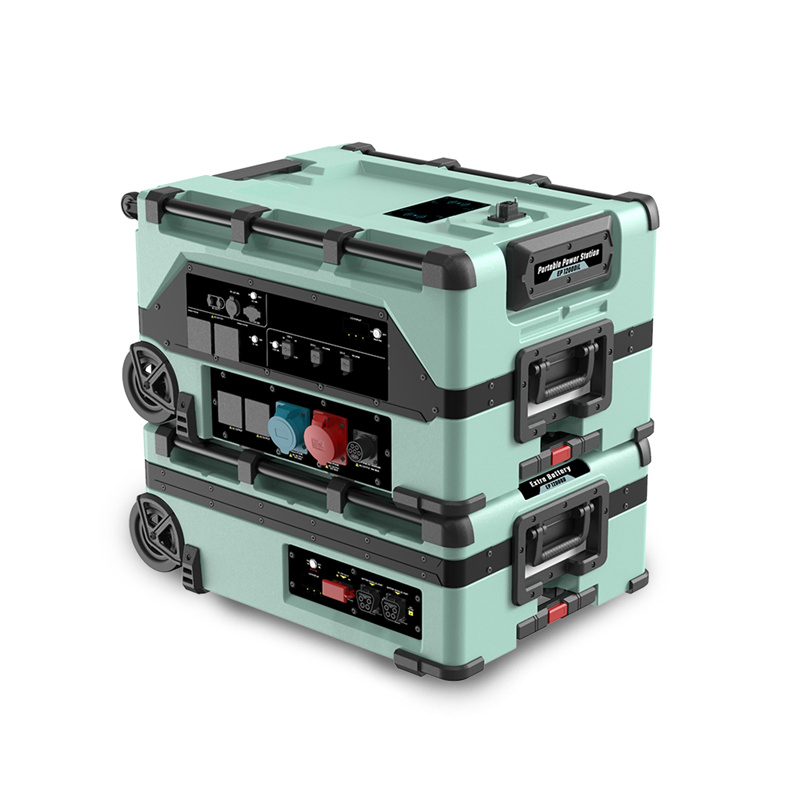

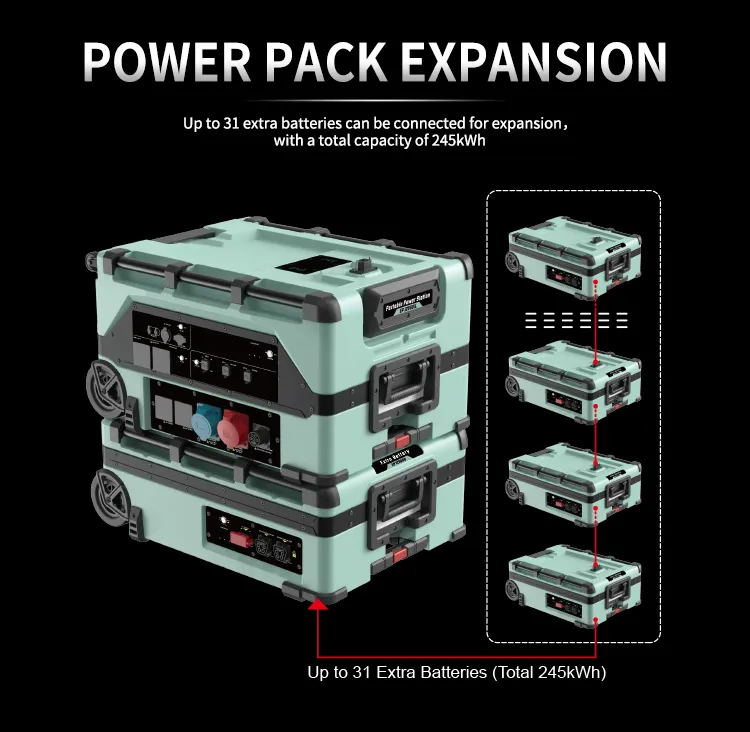

04Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

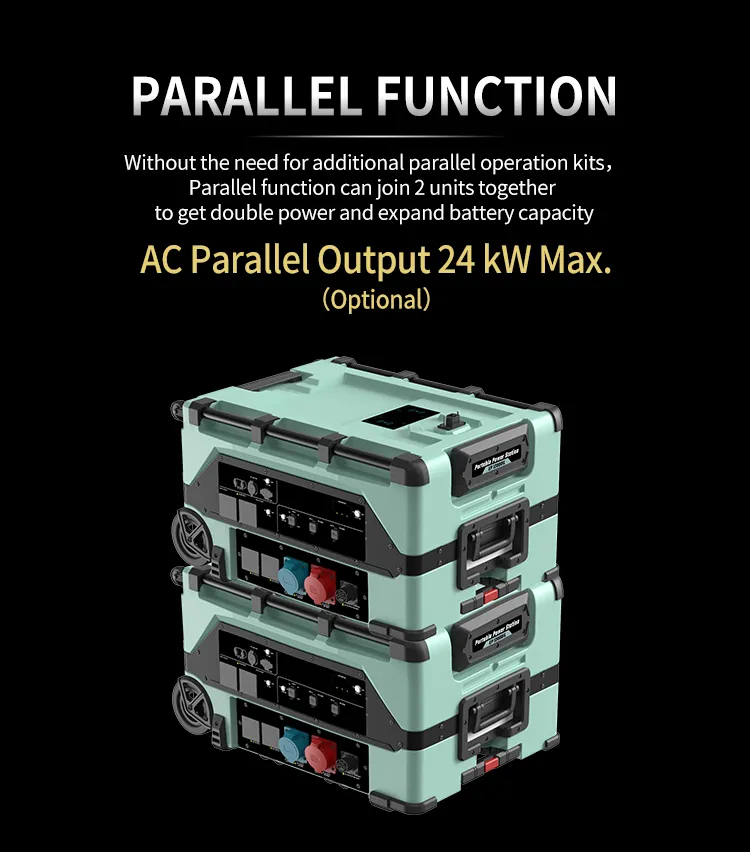

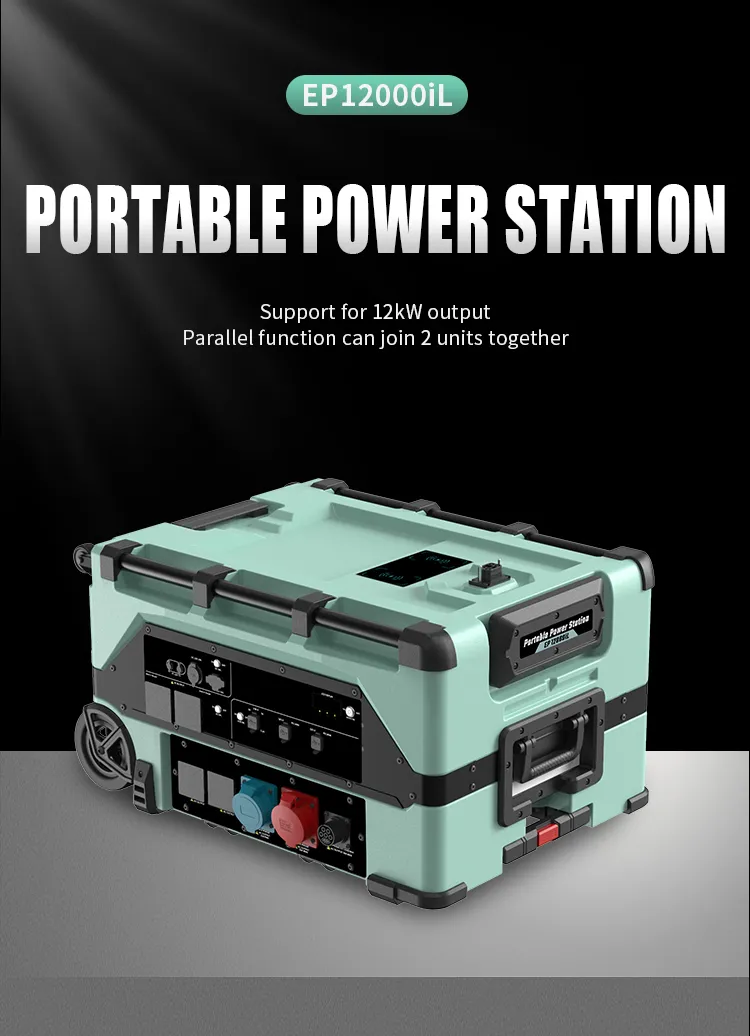

05Stacked parallel patented technology, join 2 units for a continuous output of 24kW.

06Built-in electric vehicle charger, can charge cars up to 22kW.

07Unit IP53 and Battery Pack IP66 protection grade.

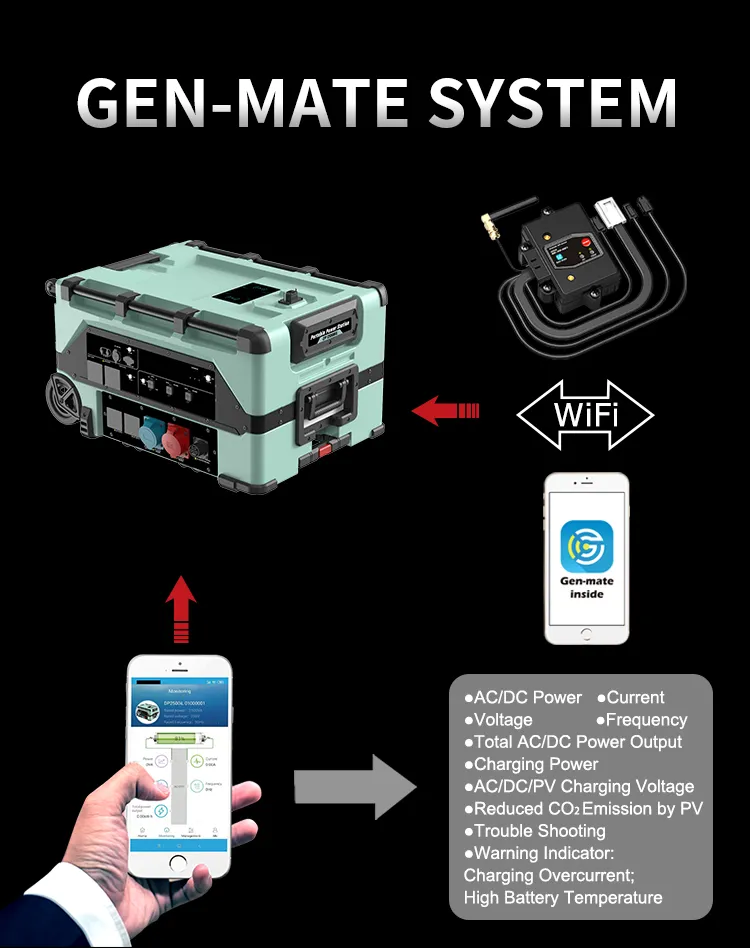

08Intelligent control and monitor by smartphone APP.

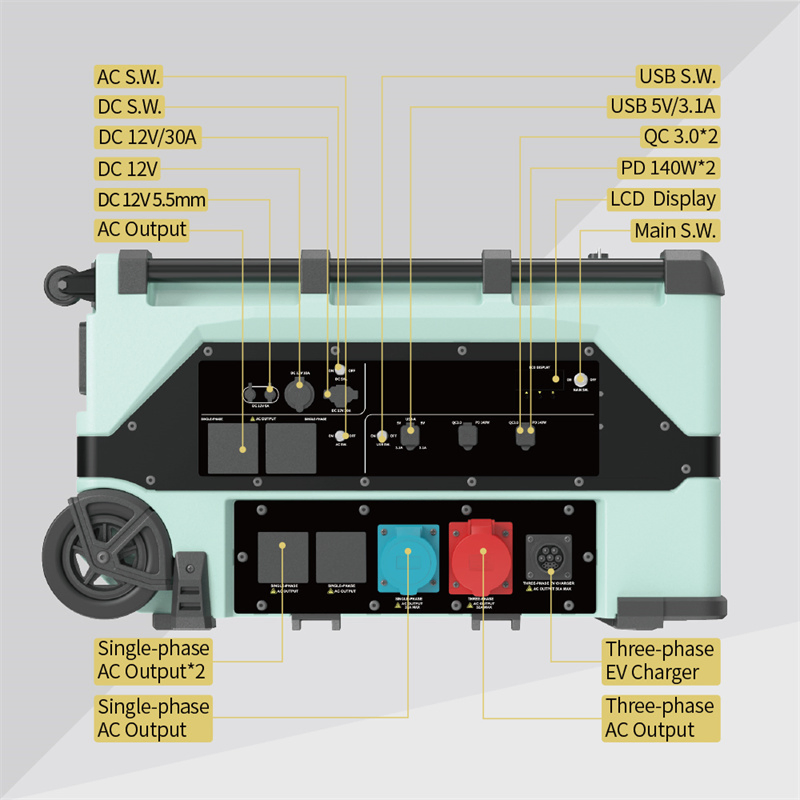

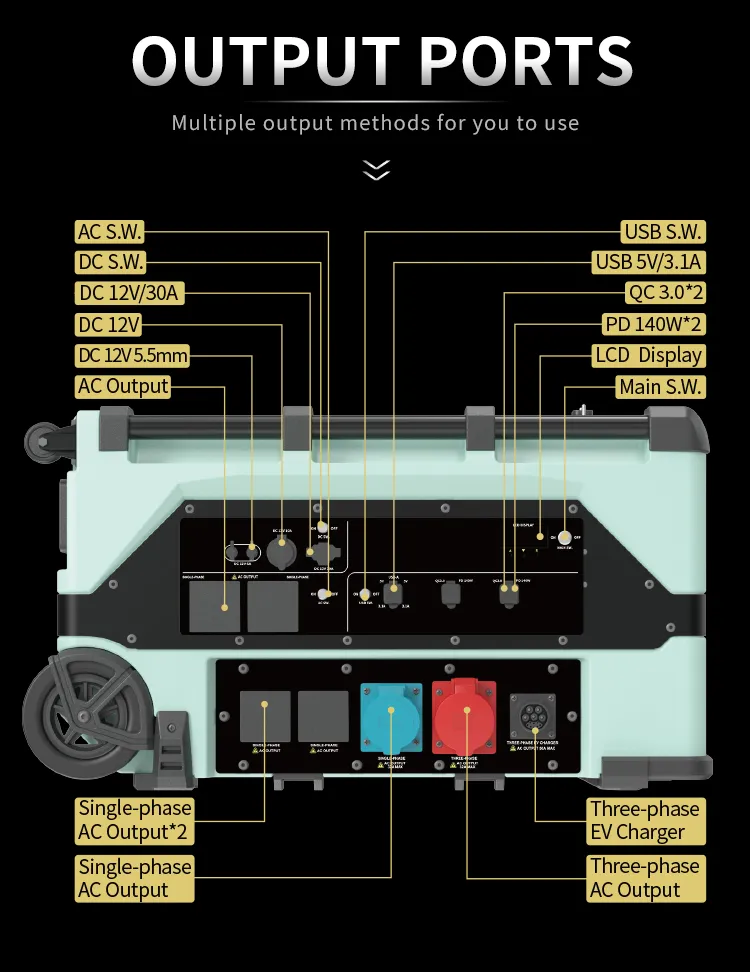

⚙️ Product Parameters (Output)

Category	Parameter	Specification Details
AC Output	Rated Power	12000VA (3-Phase) / 11000VA (Single-Phase) / 10000VA (Split-Phase)
	Peak Power	24000VA (3-Phase) / 22000VA (Single-Phase) / 20000VA (Split-Phase)

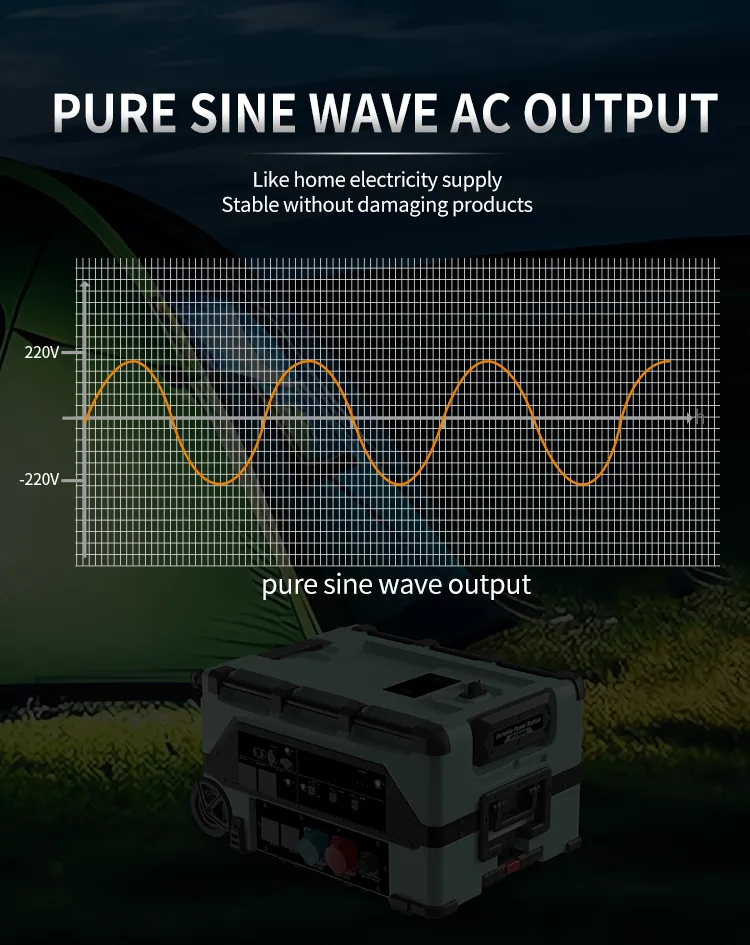

	Waveform	Pure-Sine Wave, THD < 3%
DC Output	XT90 / Cigarette Port	12V/30A \| 12V/10A
DC Output	USB / Type-C	QC3.0 (18W) \| Type-C PD 140W (Max)

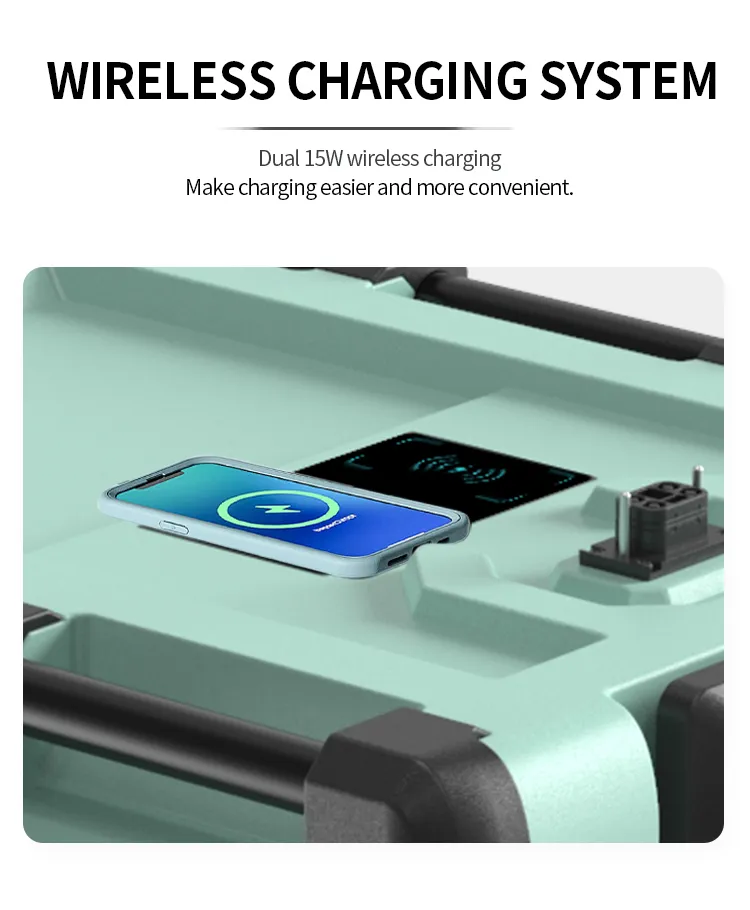

Wireless	Dual Output	2 × 15W

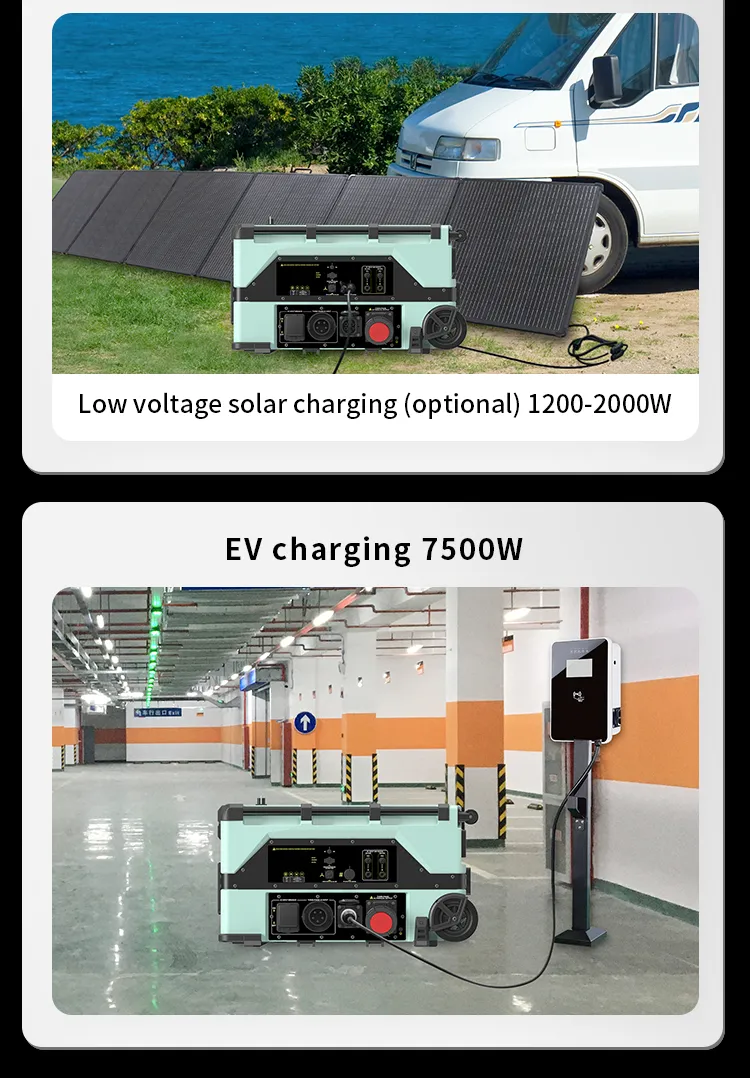

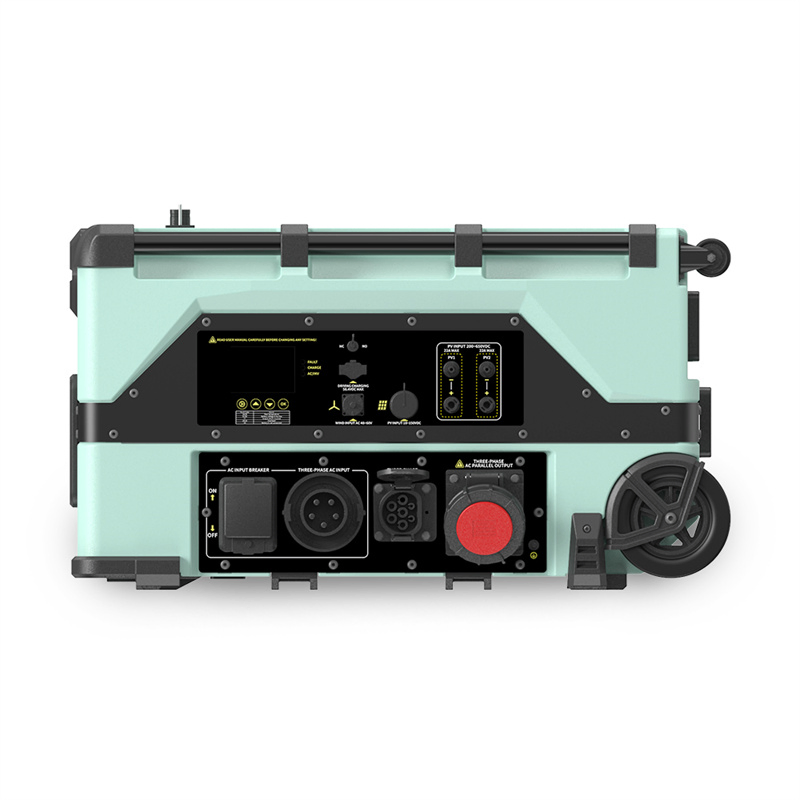

⚡ Charging Input Details

Source	Method	Charging Performance

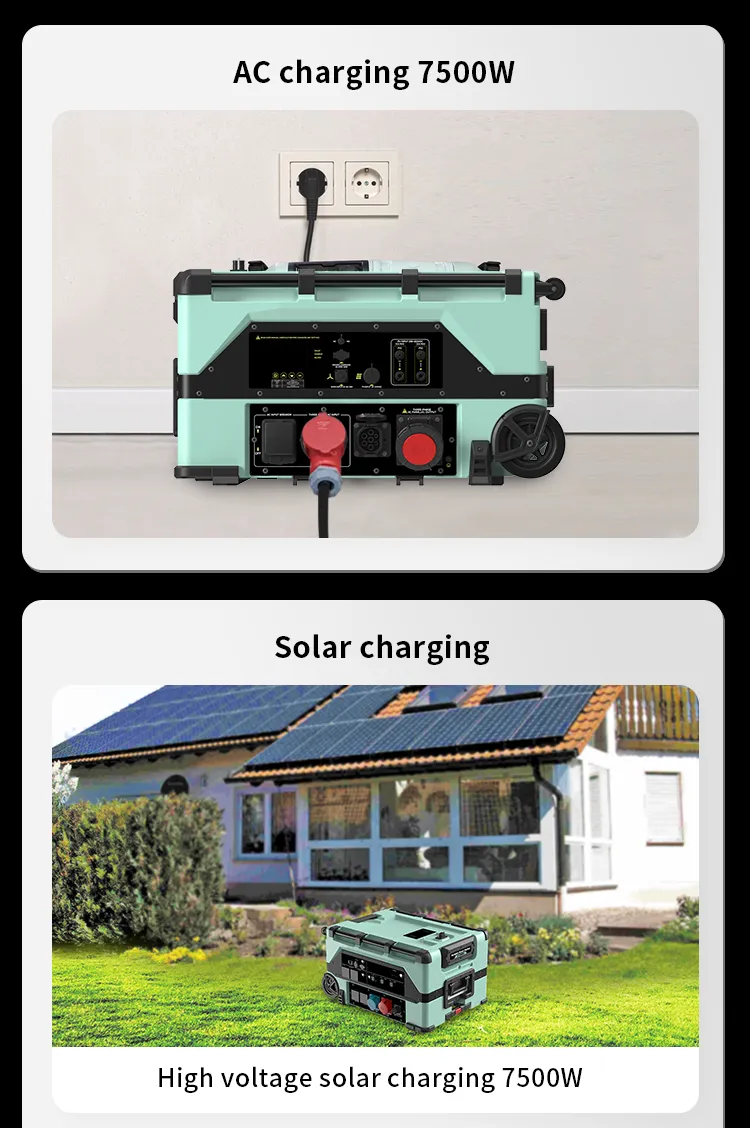

AC Wall / Generator	Standard AC	Max 7500W, 70 minutes fully charged

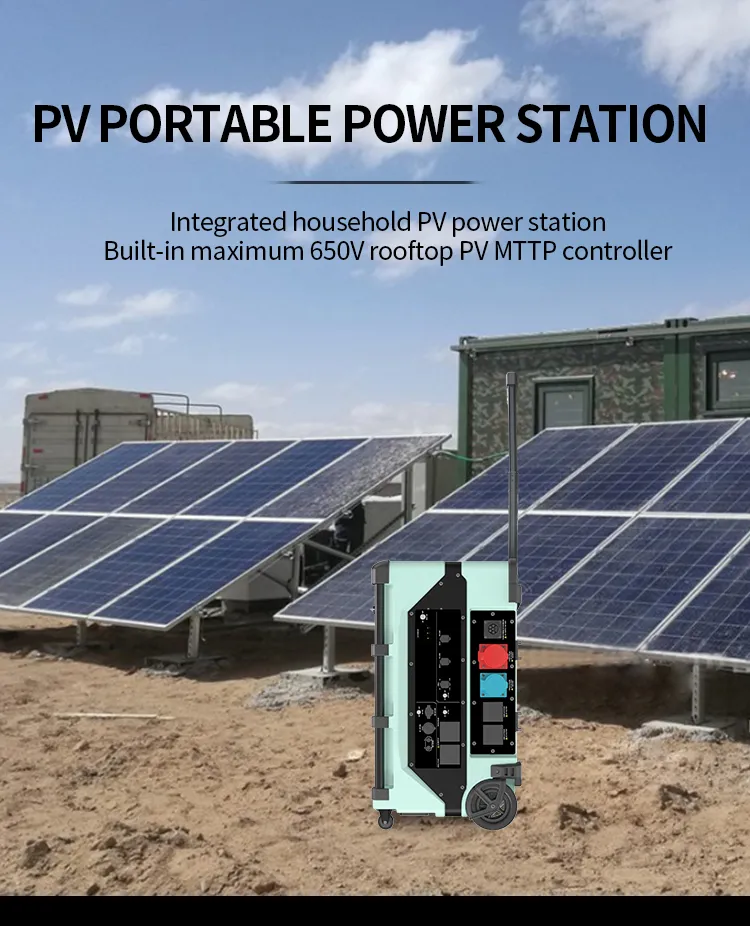

High-voltage Solar	MPPT Control	Max 7500W to battery, 70 minutes fully charged
EV Charger	Type 2 / Type 1 / GB/T	Max 7500W, 70 minutes fully charged
Wind Turbine	Wind Charger	Max 2000W, 4 hours fully charged

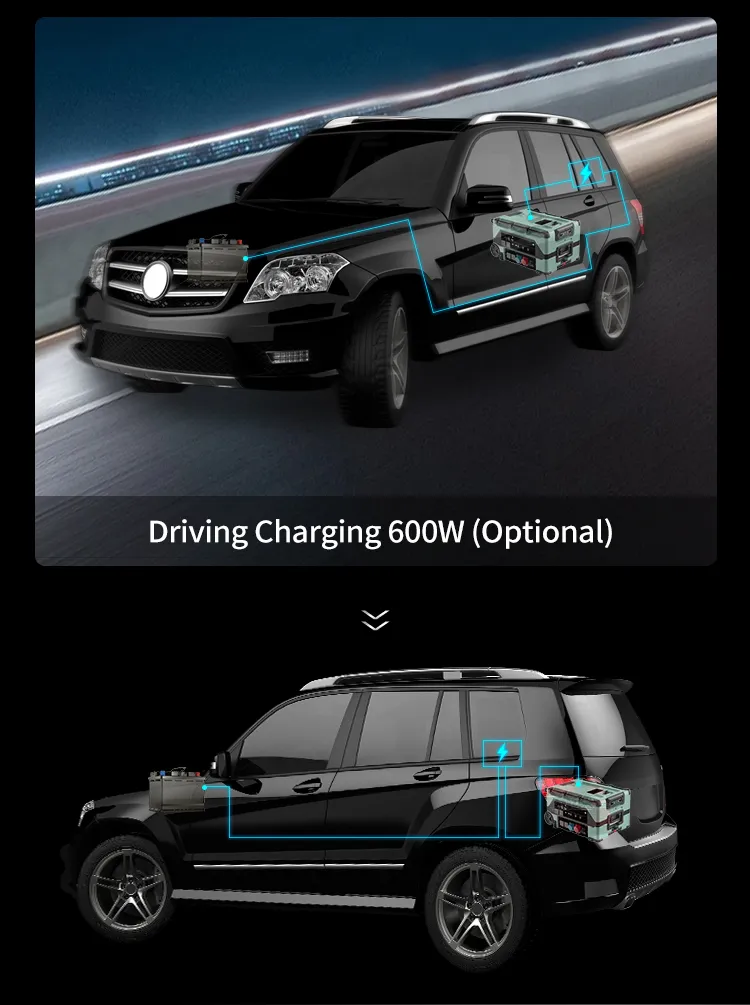

Driving Charging	XT60 Output	Max 600W, 13 hours fully charged

📸 Detailed Gallery

❓ Frequently Asked Questions

What is the total capacity and can it be expanded?

The base unit has a 7680Wh LiFePO4 battery. It can be expanded by connecting up to 31 extra battery units, reaching a maximum total capacity of 245kWh.

How fast can the EP12000iL be fully charged?

Using high-power AC or solar charging, the system can be fully charged in as little as 70 minutes.

Does this unit support three-phase power output?

Yes, it supports continuous 12kW AC three-phase output (220~415V), as well as single-phase and split-phase configurations.

Is it possible to charge an electric vehicle (EV) with this system?

Yes, it features a built-in electric vehicle charger capable of charging cars at up to 22kW, replacing traditional charging stations.

What is the expected battery lifespan?

The high-quality LiFePO4 battery is rated for 3000 cycles while maintaining over 80% of its original capacity.

Can I monitor the system remotely?

Absolutely. The system includes an intelligent control system that can be monitored and managed via a dedicated smartphone APP.
