Suman Tier 1 Brand Flexible Solar Panel Price Thin Film 300W 310W 320watt Solar PV Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

FFXS-100W

Application

Industrial

Certification

ISO, CB, CE, TUV

Material

Monocrystalline Silicon

Type

Flexible

Power

100W

Efficiency

20.0%

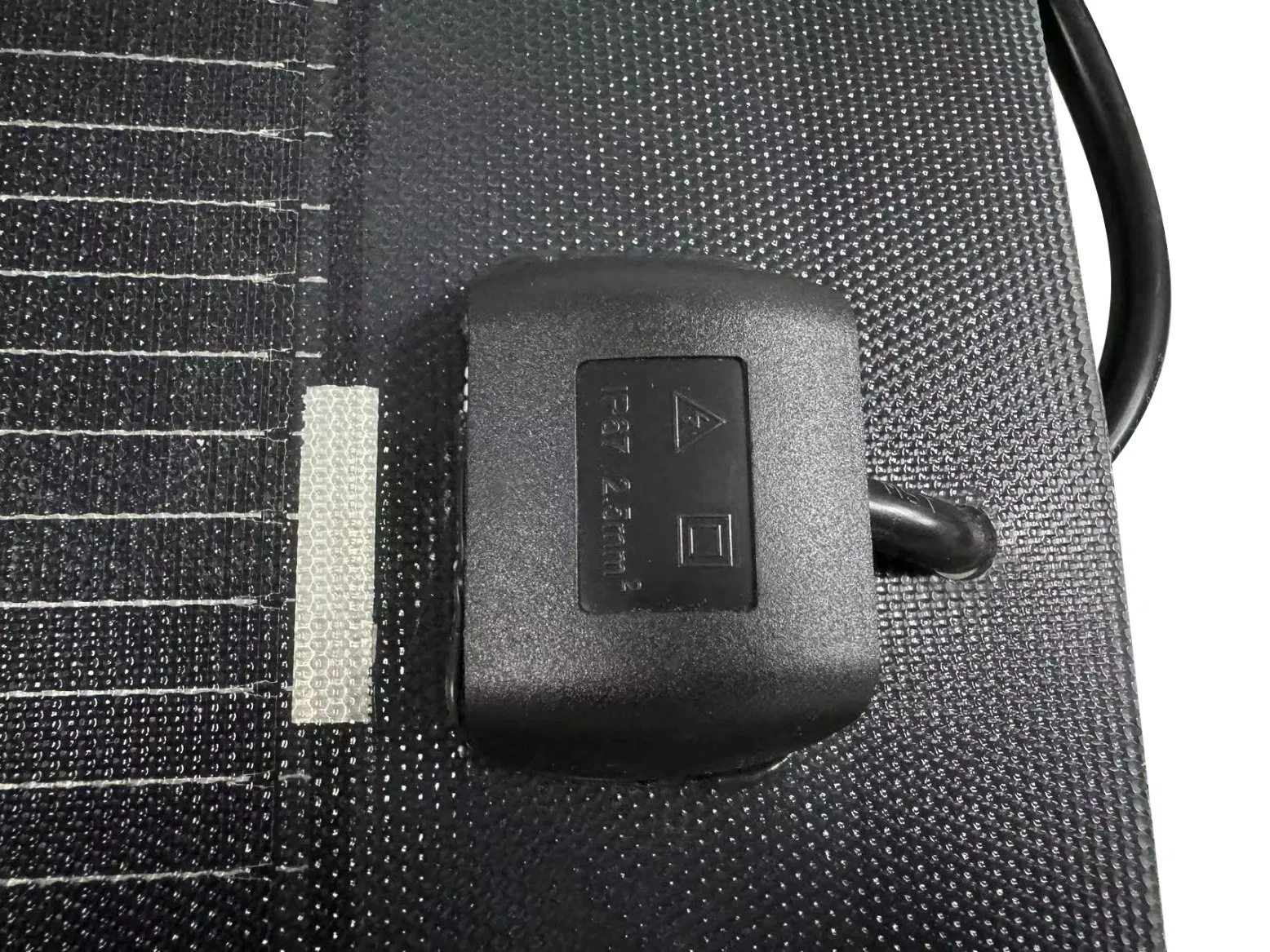

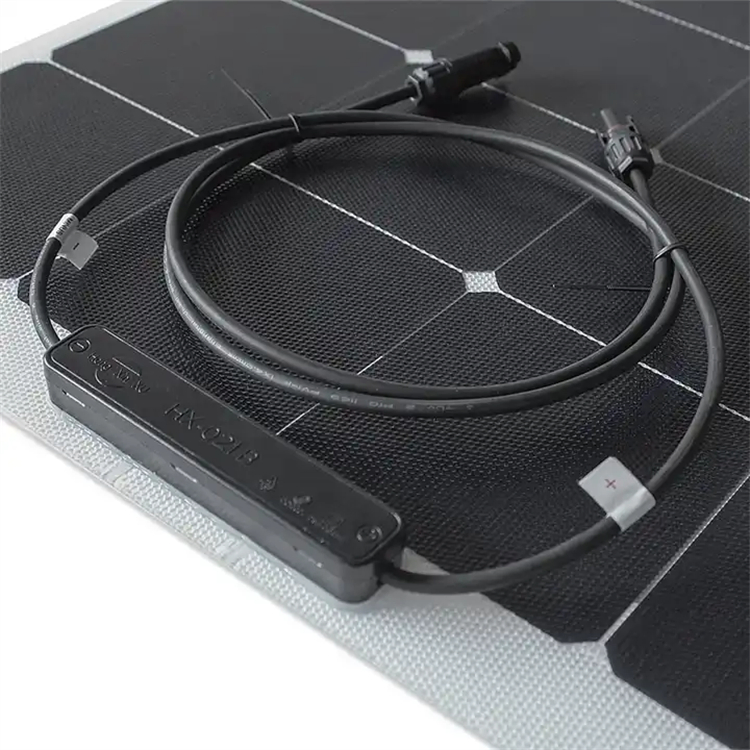

Junction Box

IP67 Rated

Dimensions

1145mm * 535mm * 3mm

Solar Cell

Mono 156.75*156.75

📝 Product Description

Item Number	100W Flexible Series
Solar Cell	High Efficiency Mono
Maximum Power(W)	100W
Optimum Power Voltage(Vmp)	17.6V
Optimum Operating Current(Imp)	5.7A
Open Circuit Voltage(Voc)	20.8V
Short Circuit Current(Isc)	6.67A
Size of Module(mm)	11455352.6MM
Temperature Range	-40°C to +85°C
Tolerance Wattage	±3%
Weight Per Piece	2.0KG
Cell Efficiency (%)	20.8~22.8%

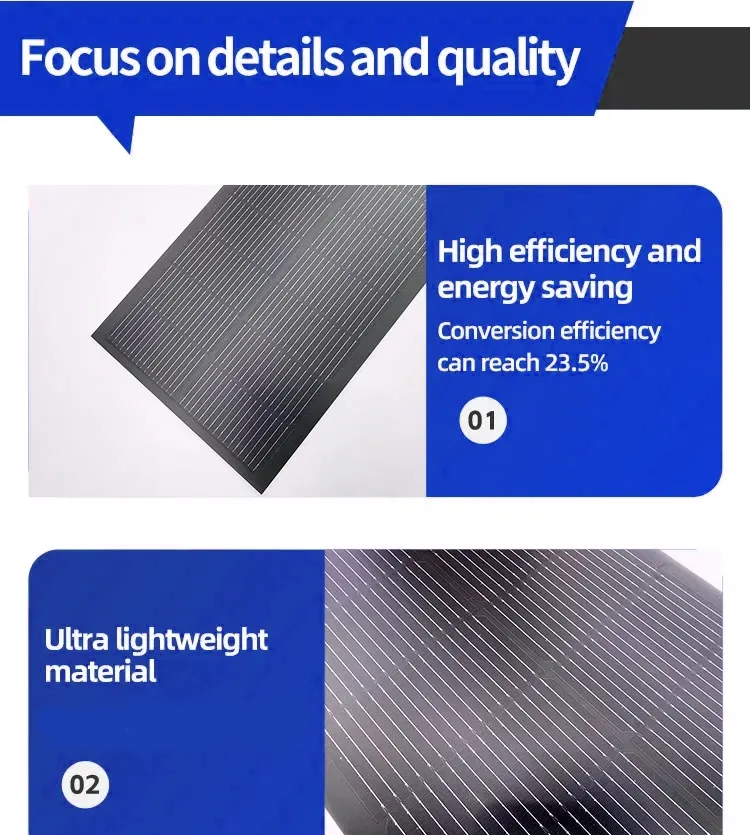

✨ Key Features

🚀 Ultra Lightweight: Only 2kg including cables, making it easy to transport and install.

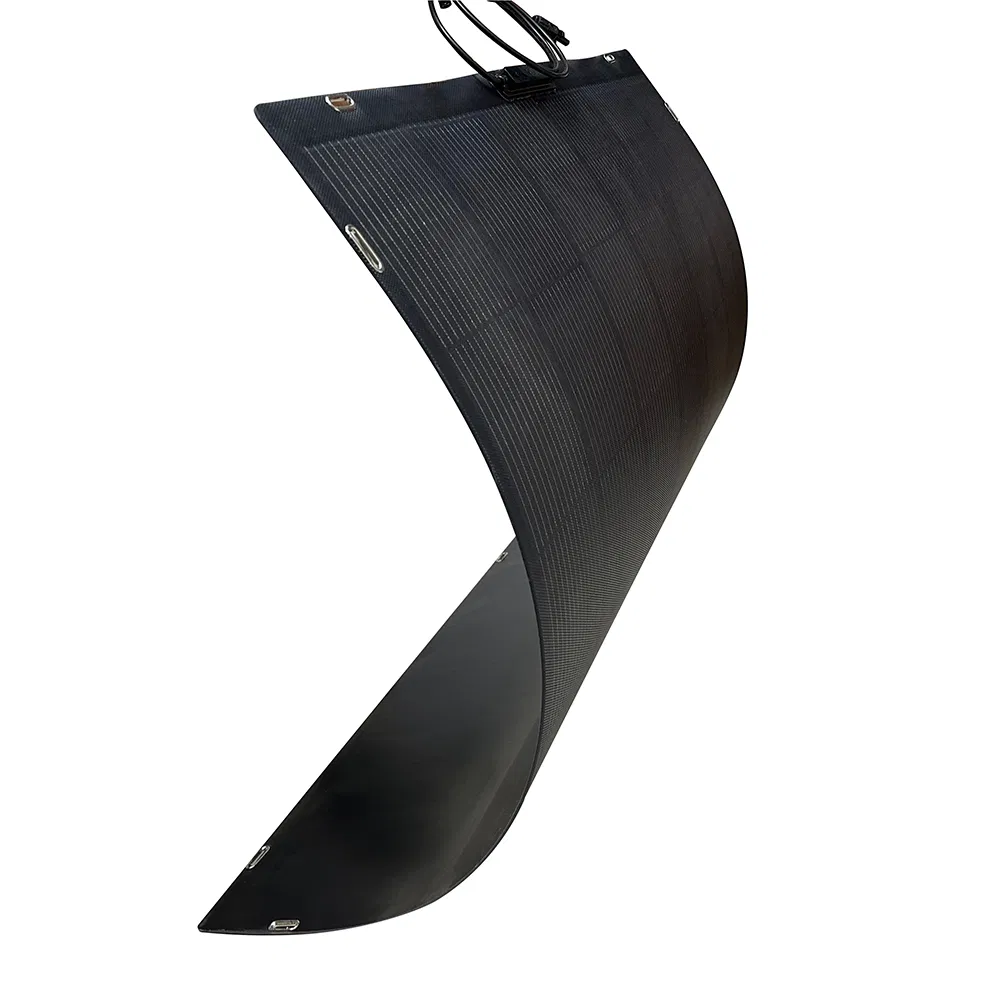

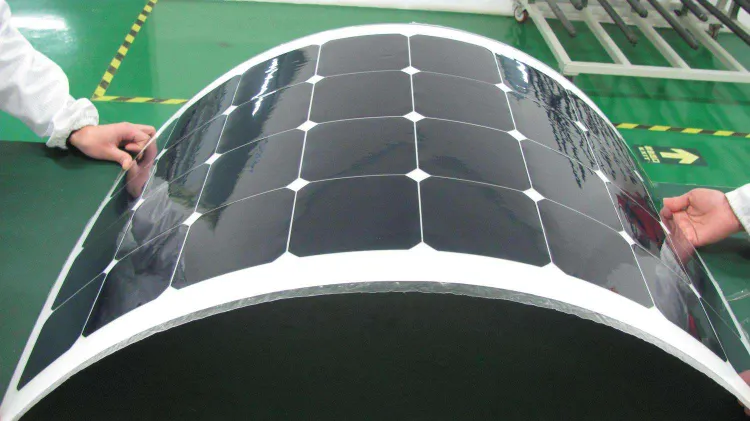

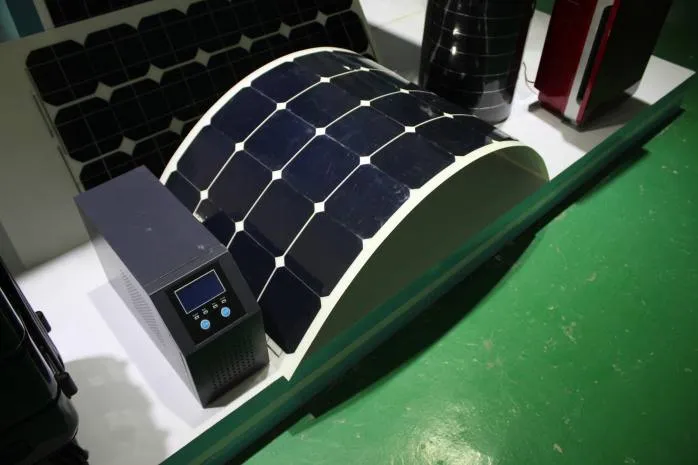

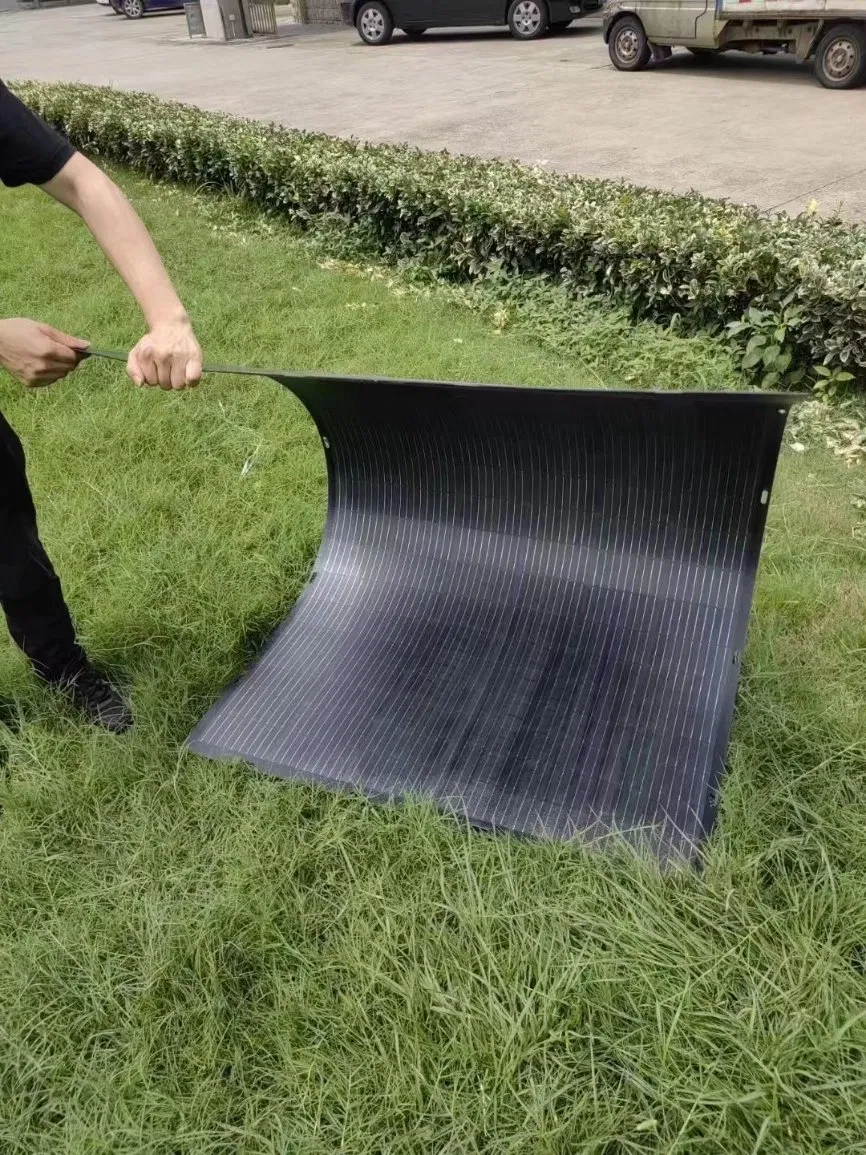

🔄 Semi-Flexible: Bending angle up to 30-90 degrees, perfect for curved surfaces.

🛡️ Durable Design: Built with TPT backsheet, no glass, and rounded corners for safety.

☀️ High Efficiency: Utilizes high-efficiency solar cells with 22%-24% efficiency.

📐 Slim Profile: Only 2.6mm - 3mm thickness, ideal for yacht or RV roof integration.

🌊 Wide Application: Suitable for RV, Boat, Golf cart, Electric cars, and Tents.

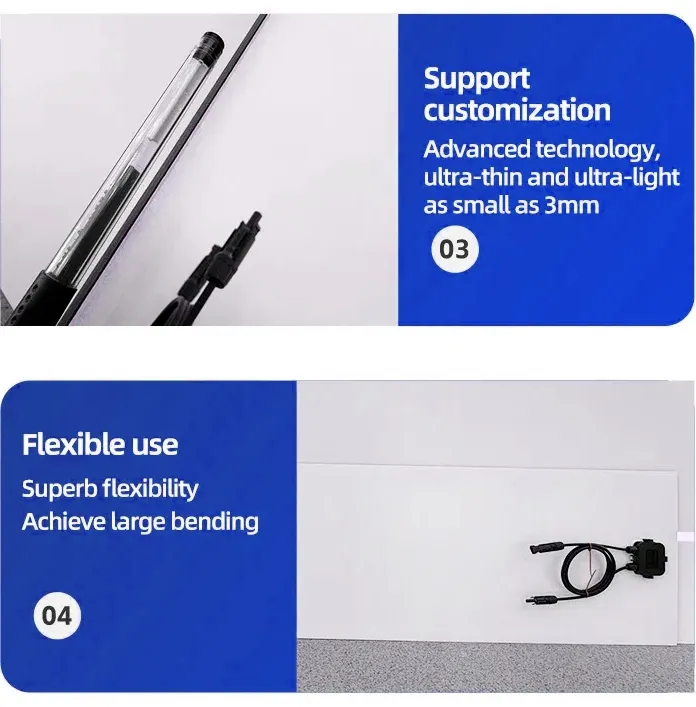

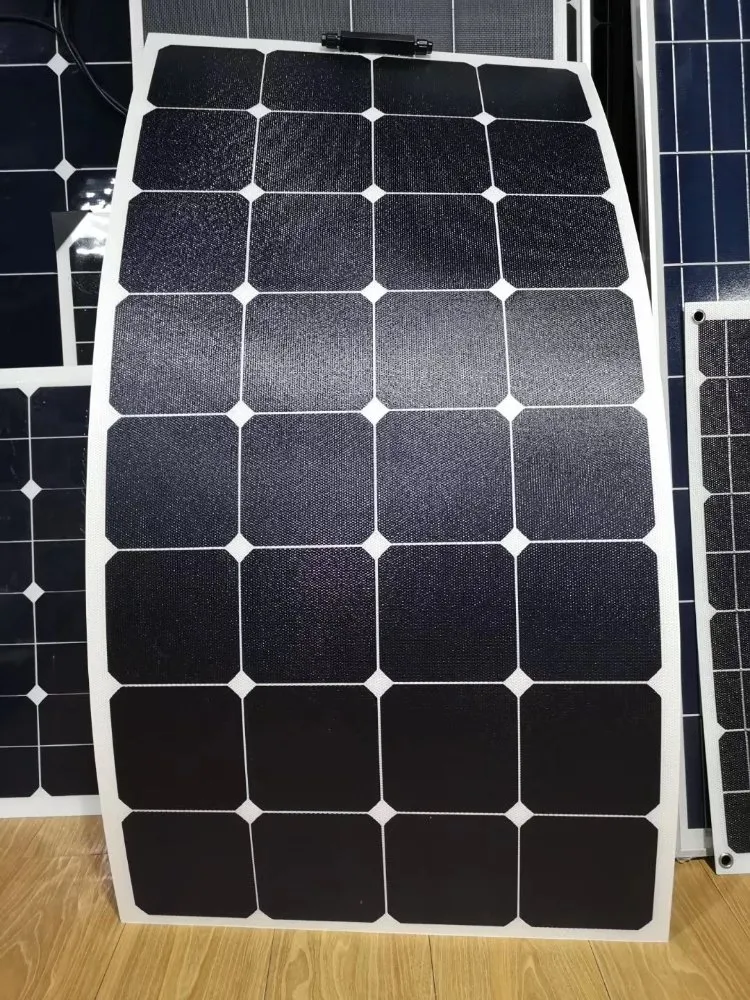

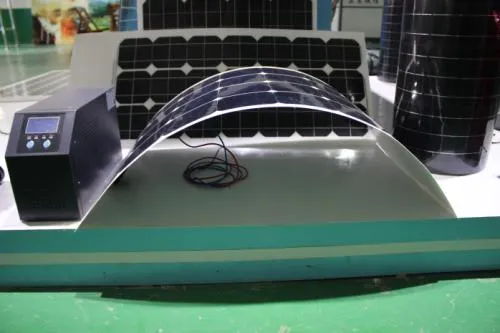

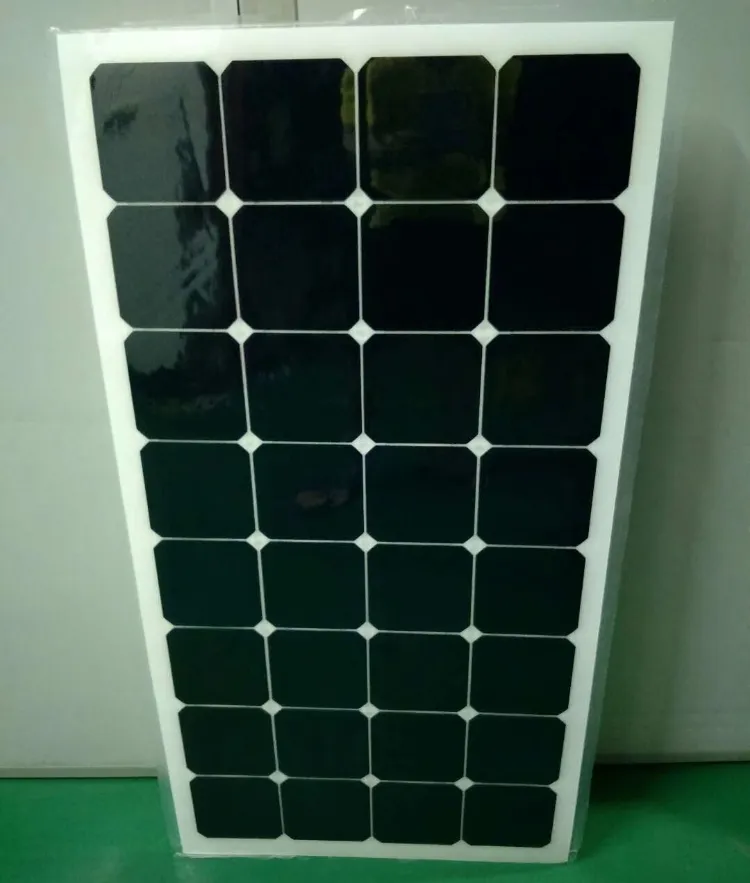

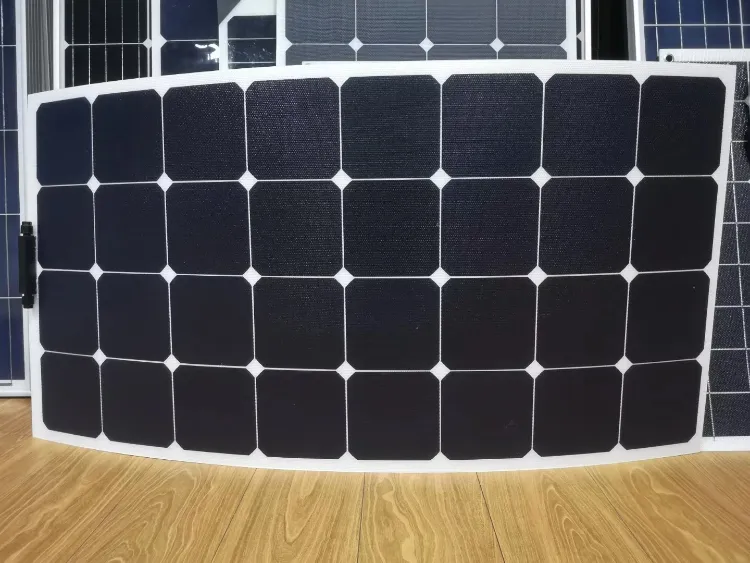

📸 Detailed Photos

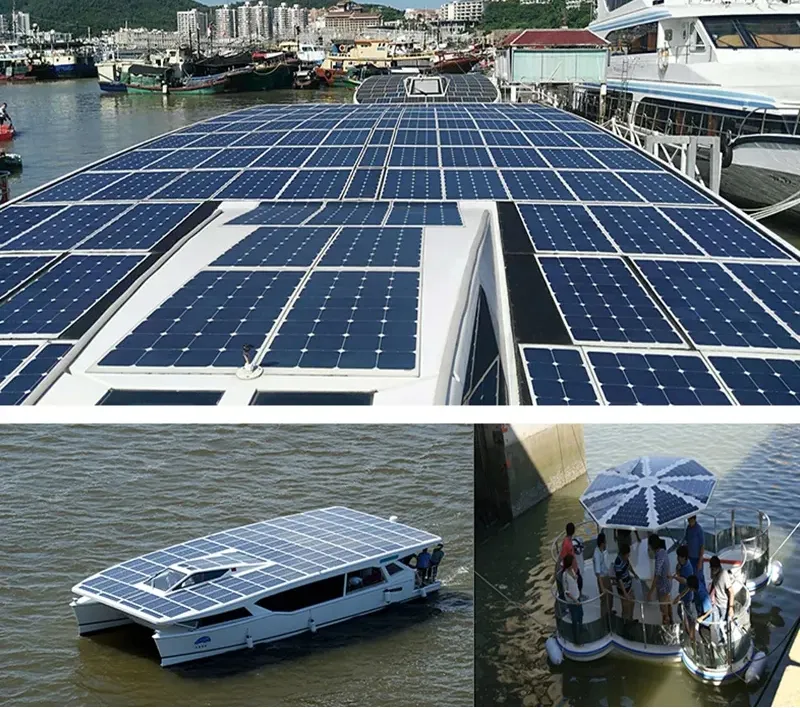

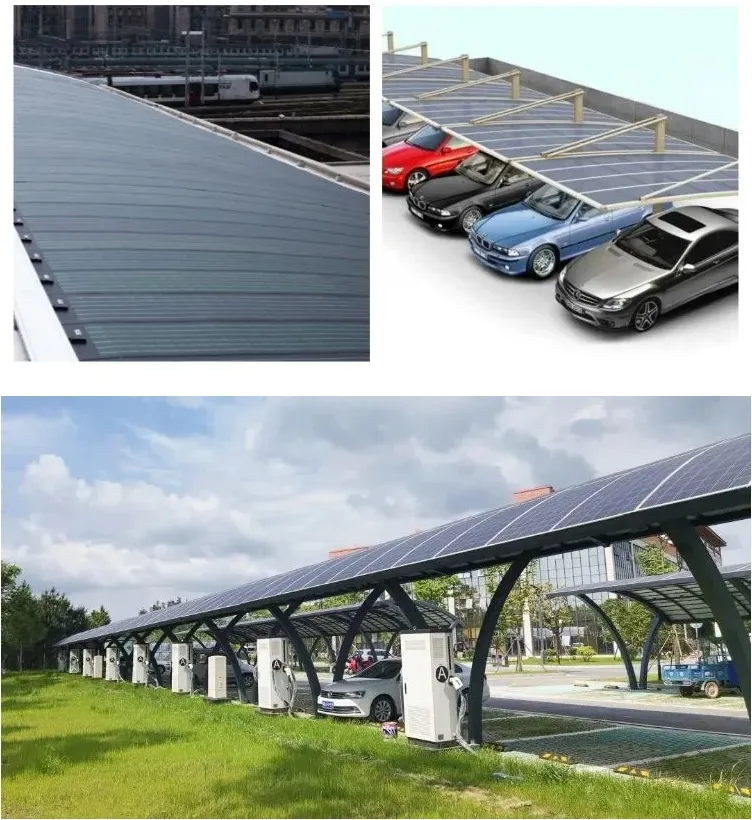

🌍 Practical Applications

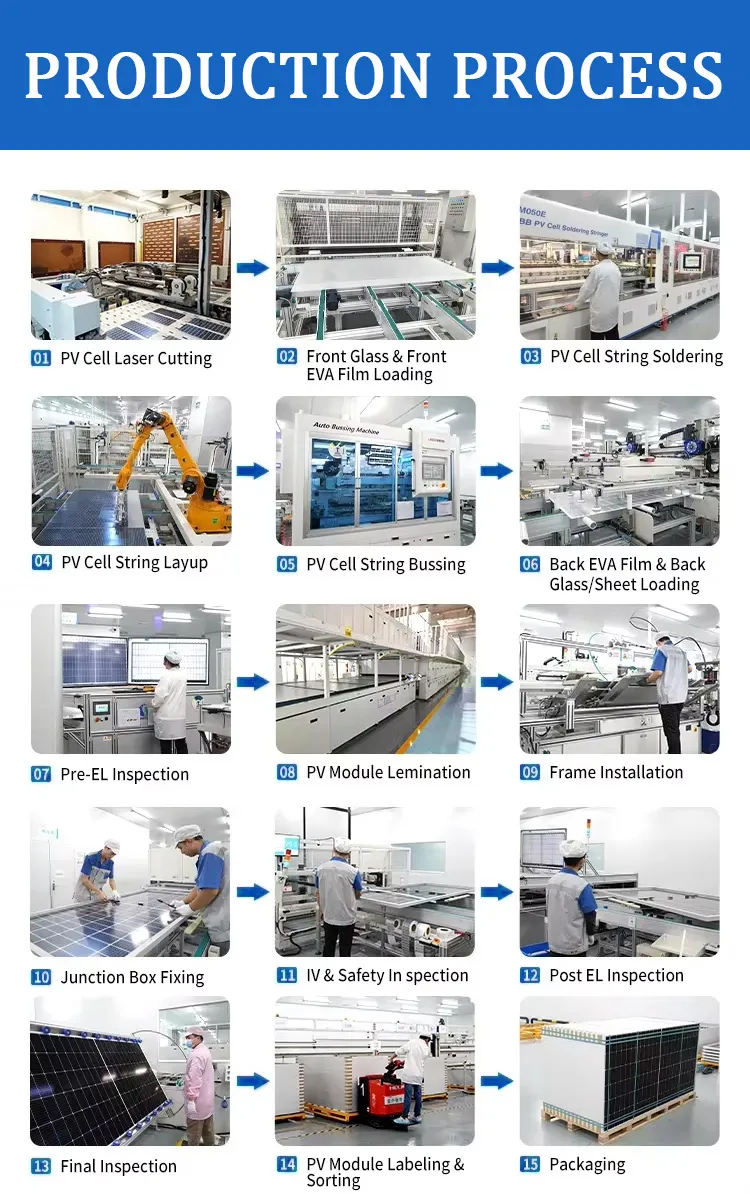

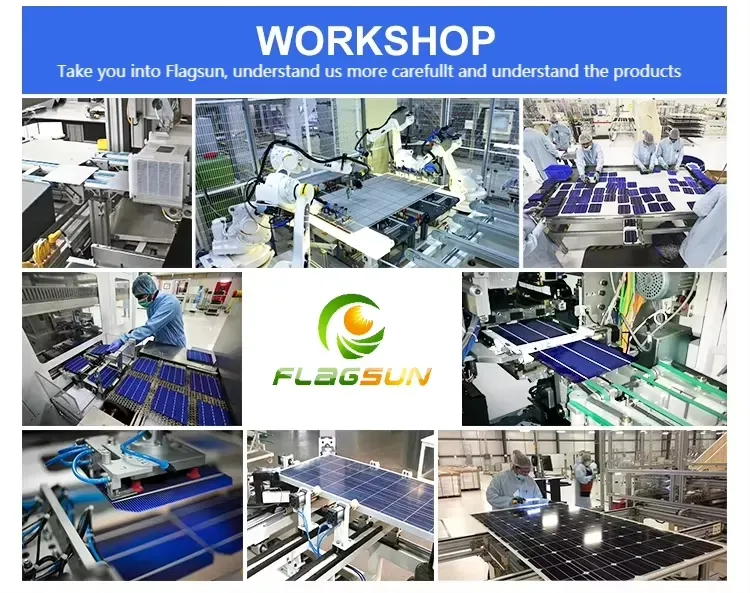

🏭 Production & Certifications

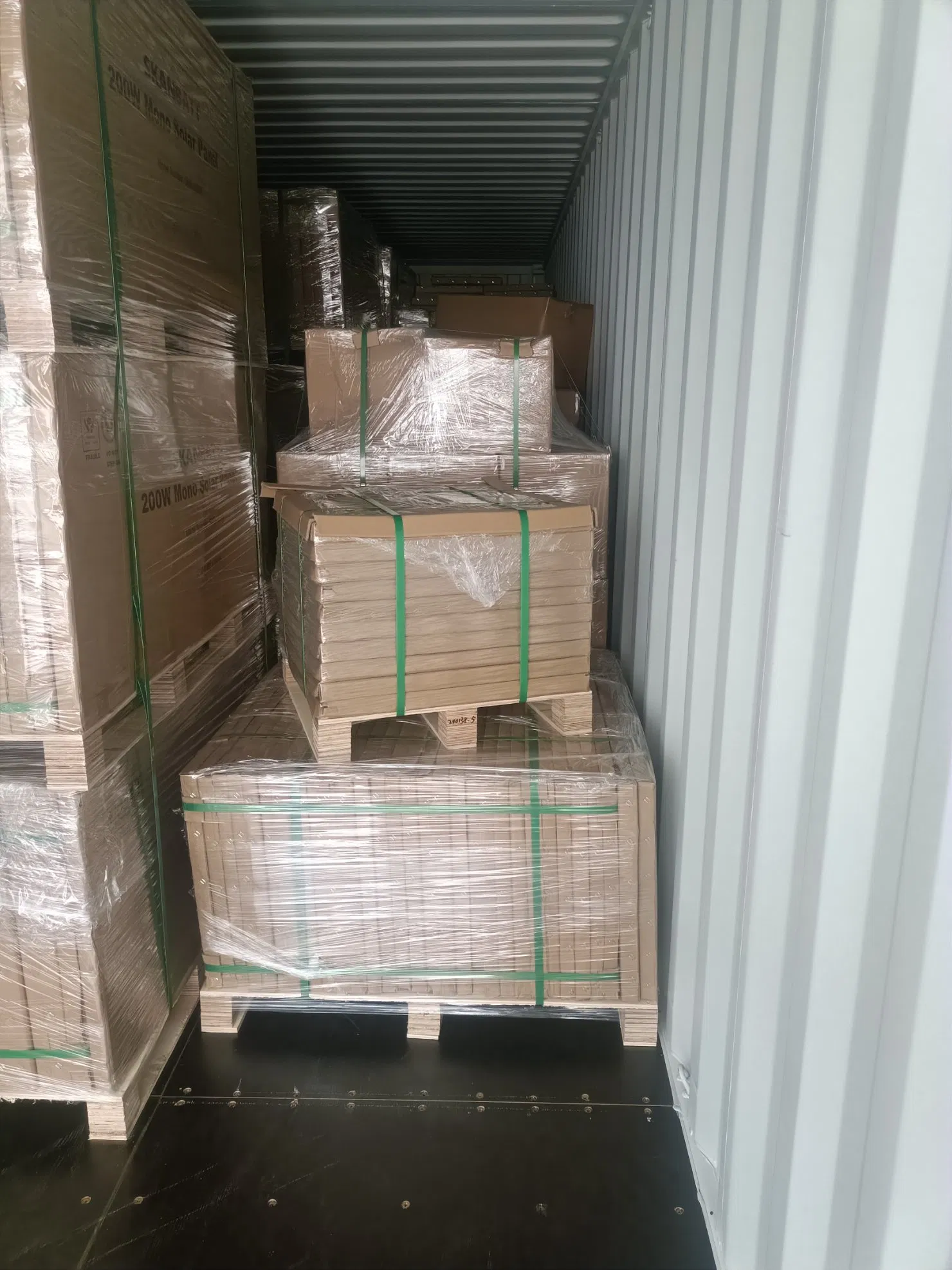

📦 Packaging & Logistics

❓ Frequently Asked Questions

What is the bending capability of this solar panel?

This semi-flexible solar panel can handle a bending angle of up to 30 to 90 degrees, making it ideal for installation on curved surfaces like RV roofs or boat decks.

How heavy is the 100W flexible panel?

The panel is extremely lightweight, weighing only approximately 2.0kg including the cables, which simplifies installation and reduces load on vehicles.

Can these panels withstand harsh weather conditions?

Yes, the panels are designed to operate in temperatures ranging from -40°C to +85°C and feature an IP67 rated junction box for excellent water resistance.

What is the efficiency of the solar cells used?

We use high-efficiency monocrystalline solar cells with a cell efficiency ranging between 20.8% and 22.8%, ensuring maximum power output in a compact size.

Is it possible to step on these panels?

These panels are durable and can be stepped on when wearing soft-soled shoes, provided they are installed flat against a solid surface like a yacht deck.

What certifications do these panels have?

Our products have passed multiple international standards including ISO, CB, CE, TUV, and IEC61215, ensuring high quality and safety.
