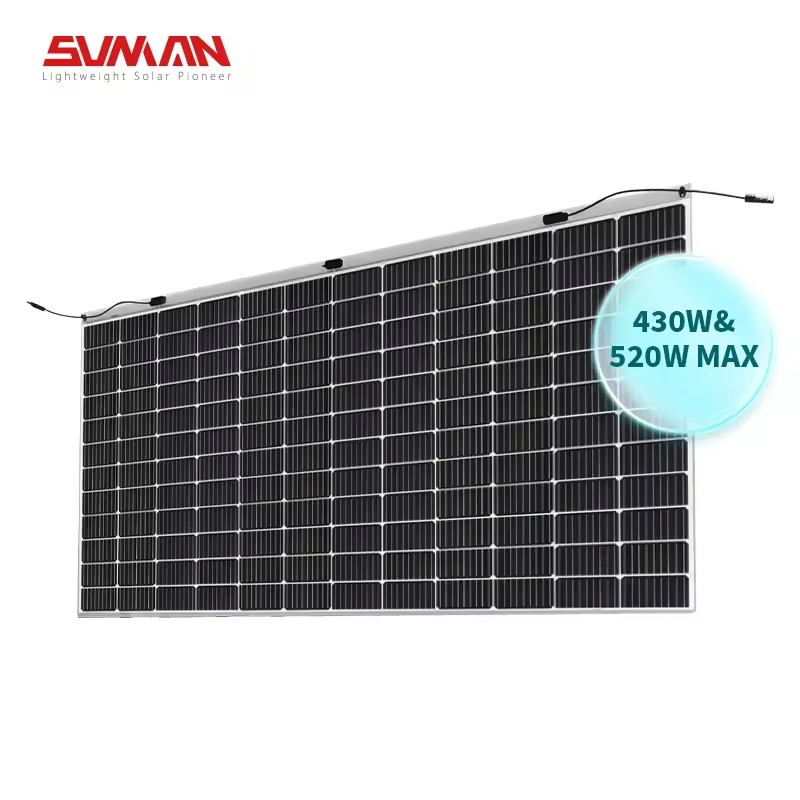

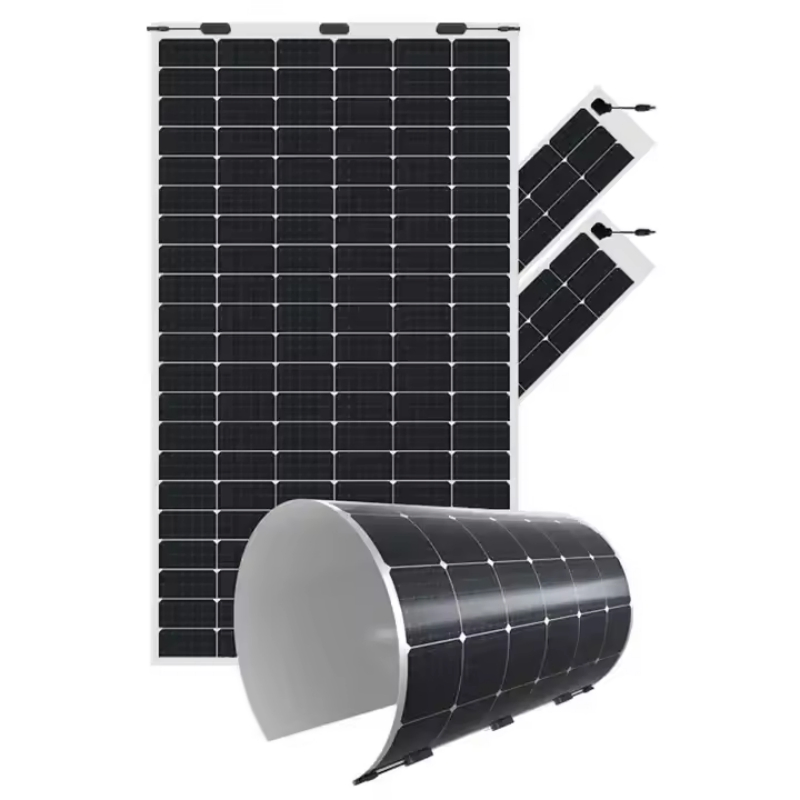

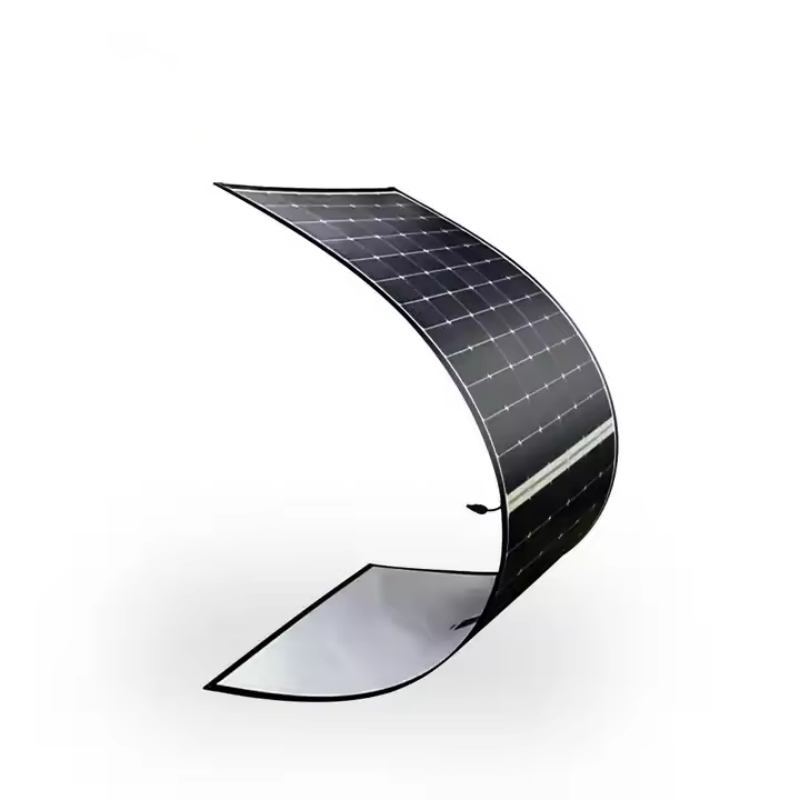

Fast Delivery Sunman Flexible Solar Panel Half Cell 430W 520W Panel Thin Film PV Monocrystalline Portable Flexible Solar Panel for Home

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Information
Model NO. SMF520J-12X12UW
Number of Cells 144cells
Application Homeuse
Condition New
Certification ISO, CE, TUV
Material Monocrystalline Silicon
Transport Package 66PCS/Pallets
Specification 2246*1197*2mm
Origin China
HS Code 8541402000
Production Capacity 2000000000watt/Week
Packaging & Delivery
Package Size 212.00cm * 105.00cm * 132.00cm
Package Gross Weight 500.000kg
Product Description

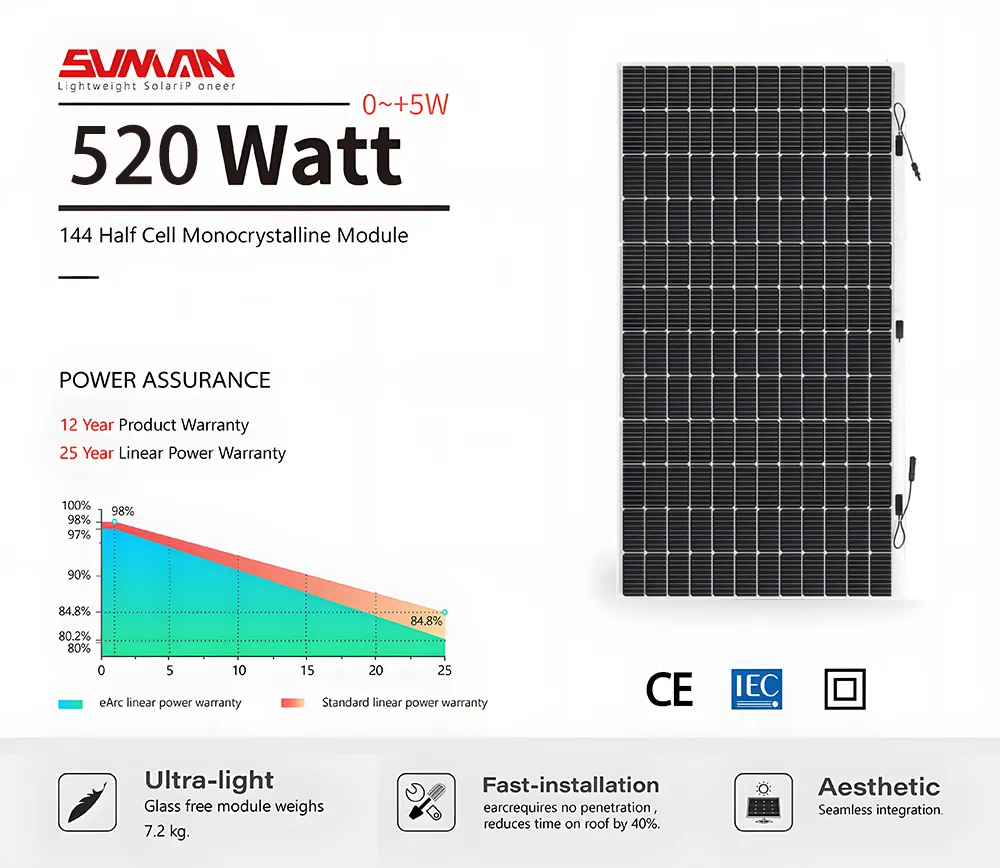

Flexible Solar Panel
Product Parameters
STC Parameter Specification Value
ModelSMF520J-12X12UW
Maximum Power (Pmax)520W
Maximum Power Voltage (Vmp)42.3V
Maximum Power Current (Imp)12.31A
Open-circuit Voltage (Voc)49.5V
Short-circuit Current (Isc)13.56A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Maximum Series Fuse Rating25A
Application ClassClass A
Power Tolerance0/+5 W
Weight8.6KG
Size2246*1197*2mm

*STC: Irradiance 1000W/m2, Cell temperature 25ºC, AM=1.5. Tolerances of Pmax, Voc and Isc are within ±5%

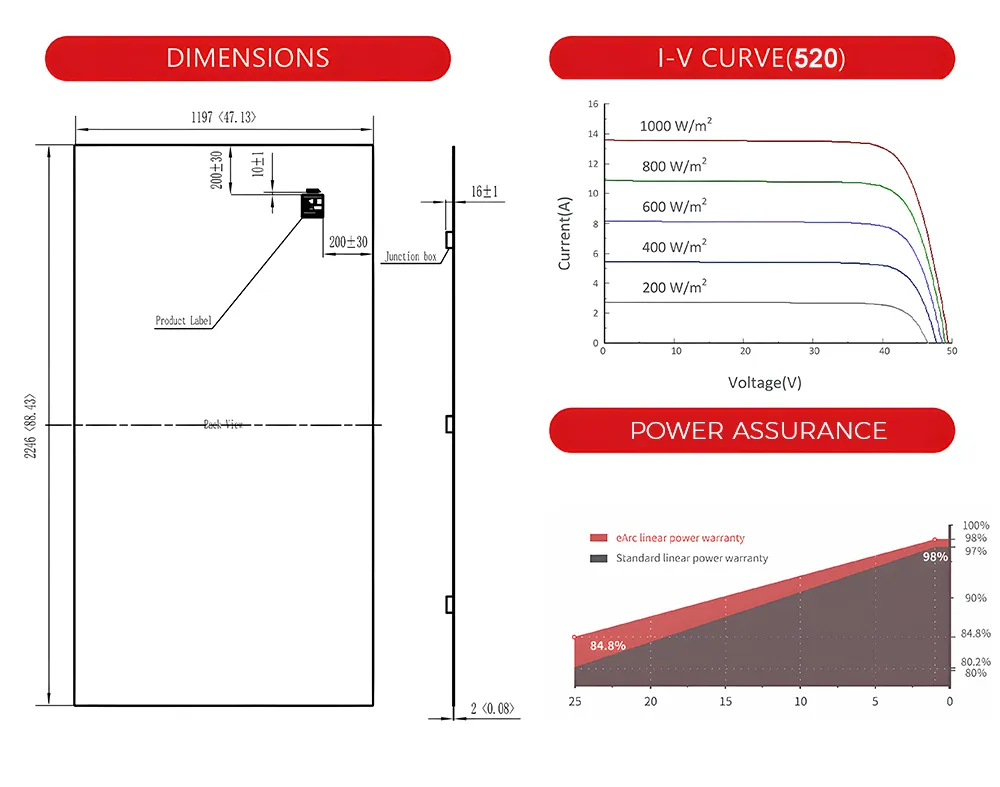

Technical Drawing
Detailed Photos

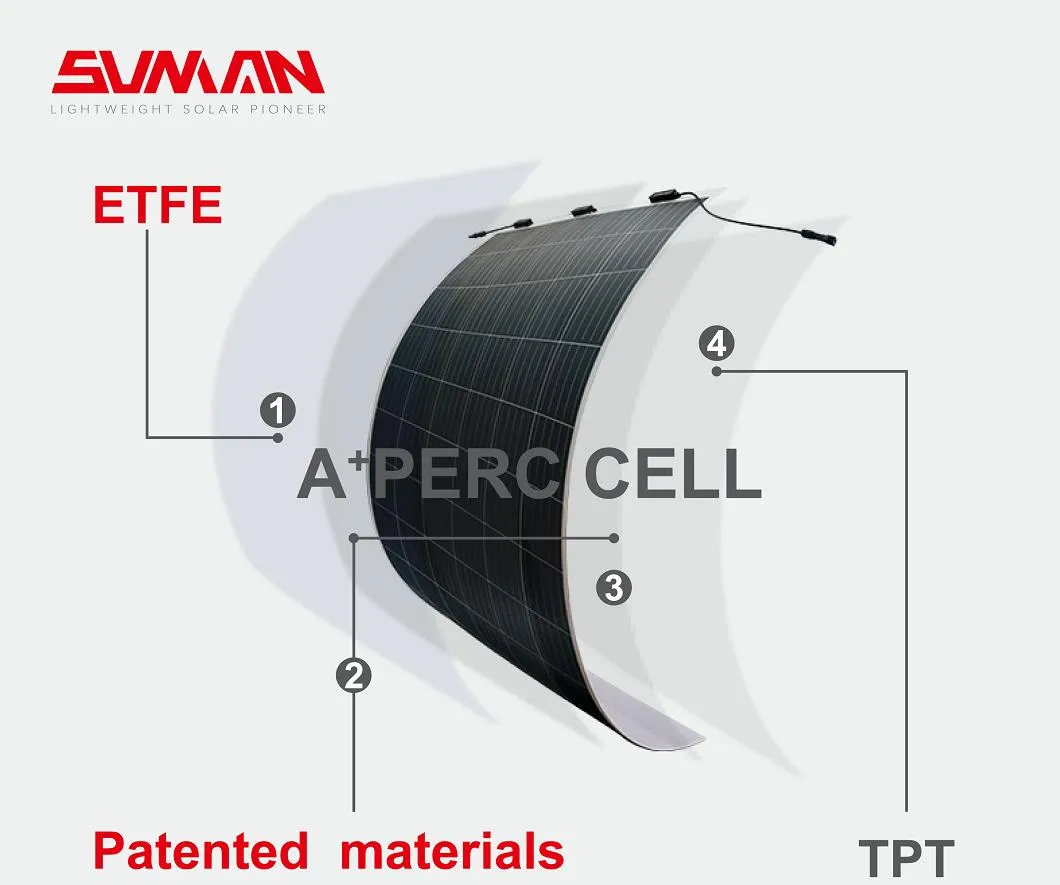

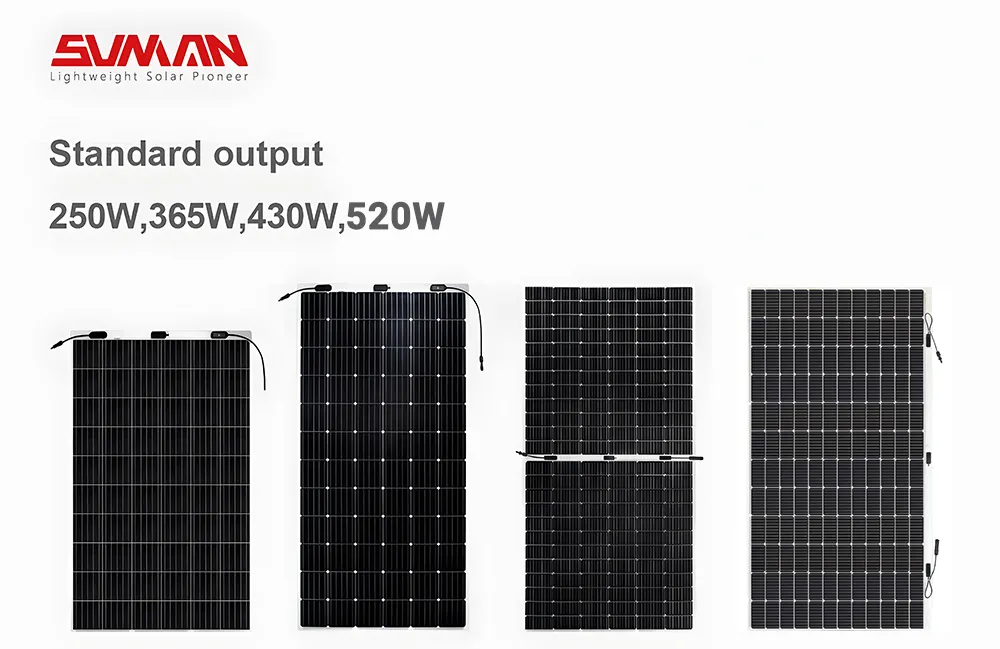

Product Detail 1 Product Detail 2
Project Case

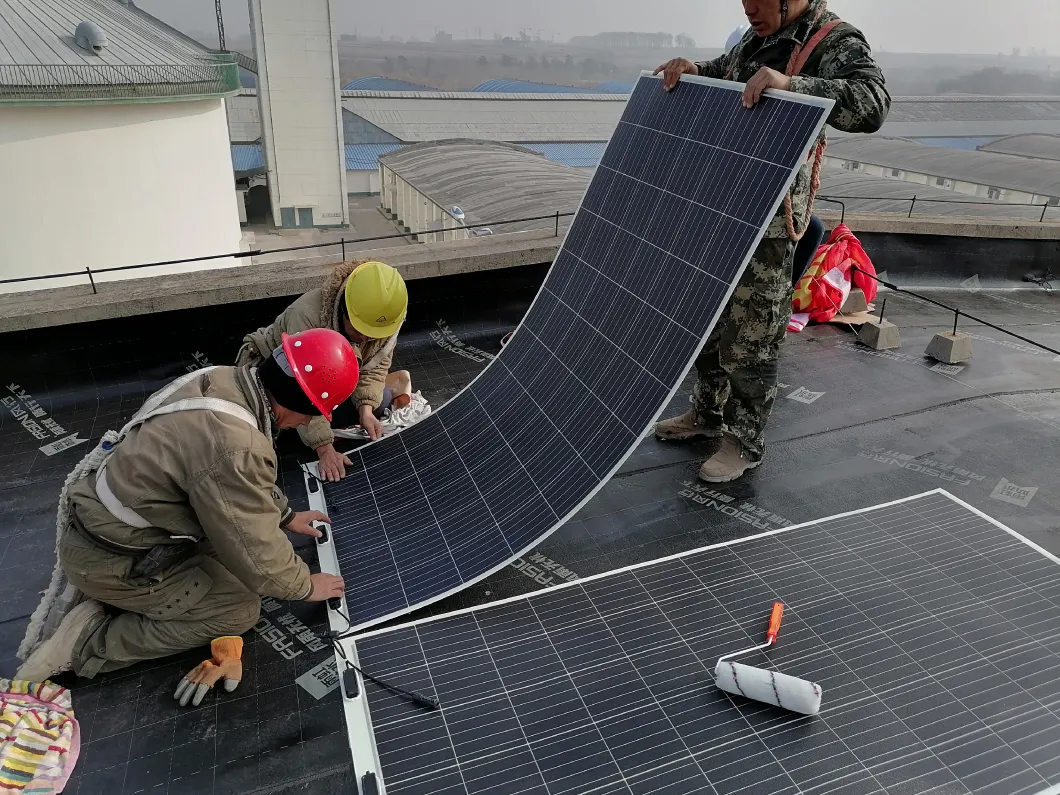

Case 1

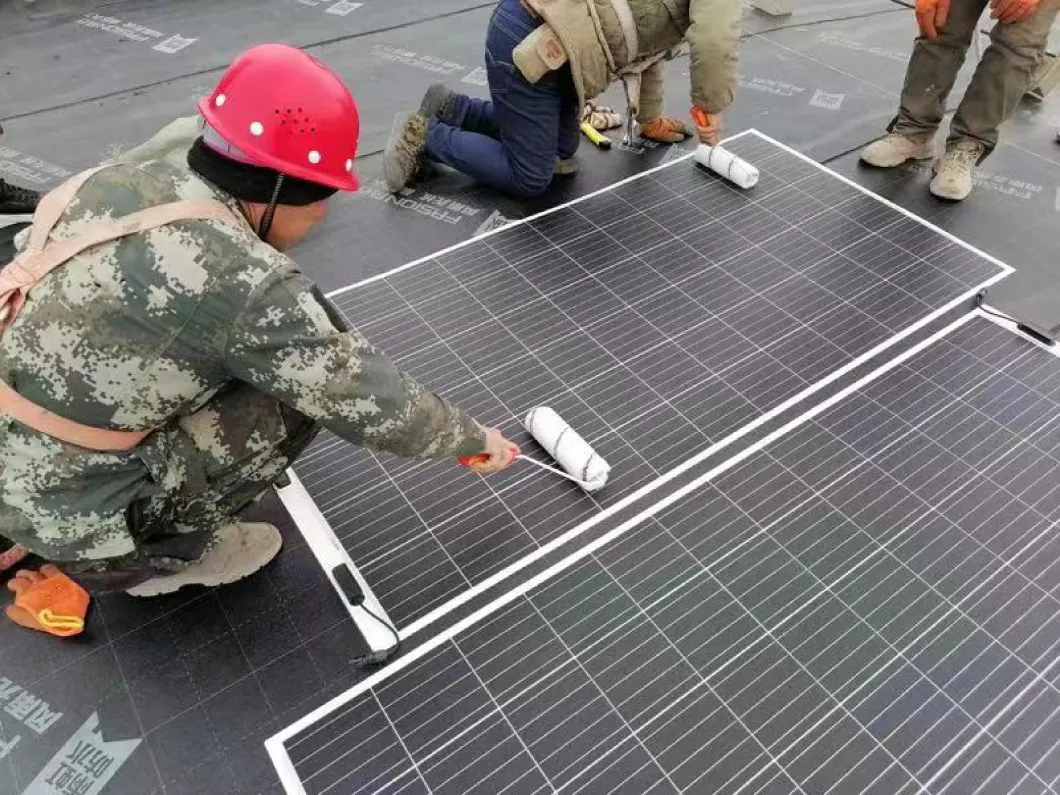

Case 2

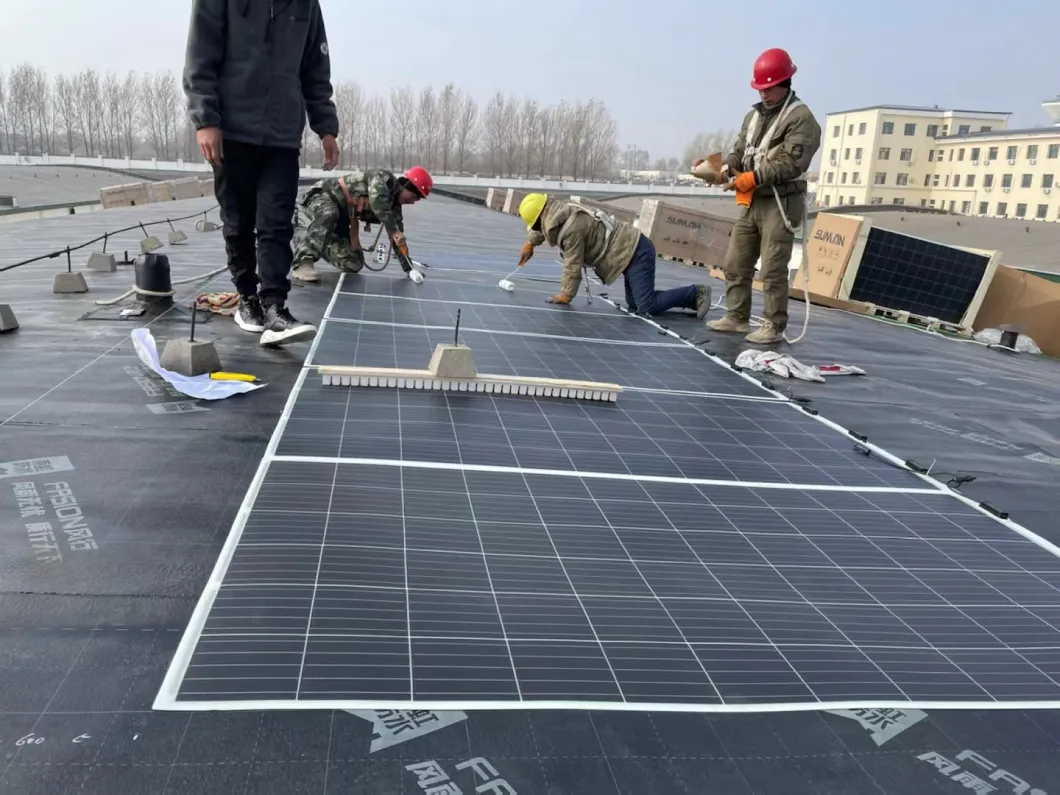

Case 3

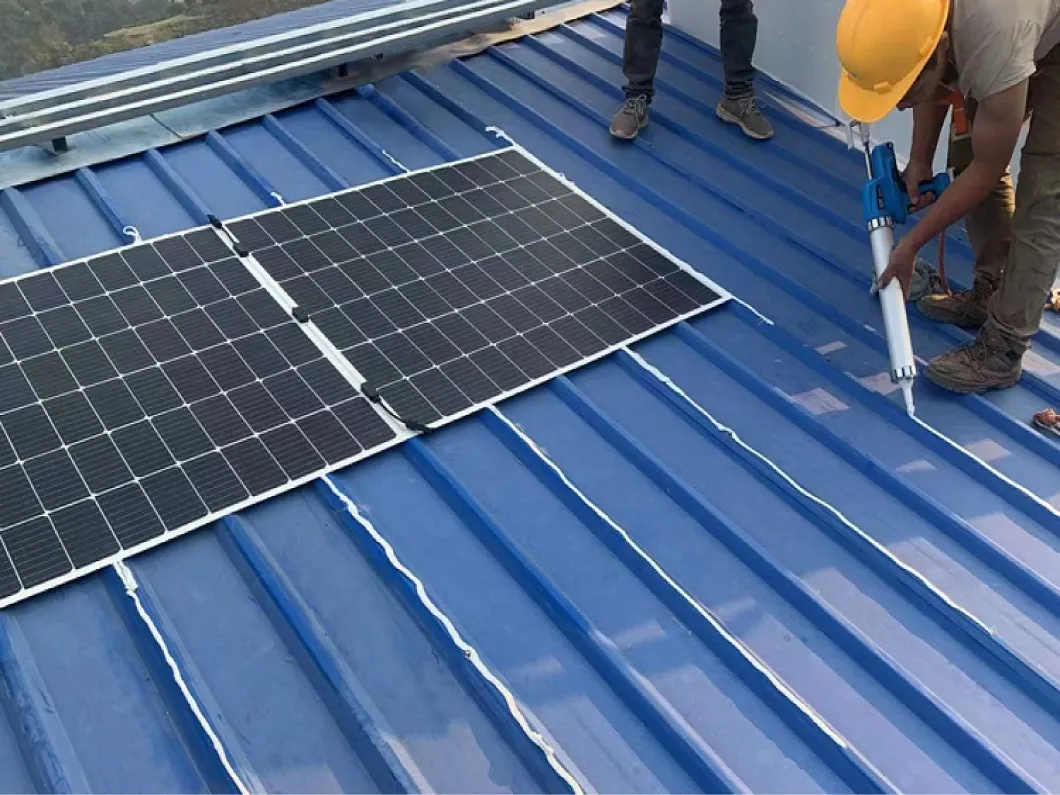

Case 4
Production Environment
Facility 1
Facility 2
Equipment Certification Banner
Packaging & Shipping
Packaging Detail Shipping Logistics
Global Cooperation
Global Network
Frequently Asked Questions
How to choose the right panel?
Tell us your demand, then our sales team will recommend a suitable panel for your specific project requirements.
What's the difference between Mono and Poly panels?
Monocrystalline solar panels have the highest efficiency rates since they are made out of highest-grade silicon. Polycrystalline processes are simpler and cost less, resulting in slightly lower efficiency but better cost-effectiveness.
How about the delivery time?
The standard delivery time is 7 days for samples and approximately 15 days for bulk orders.
What is the warranty for solar panels?
Generally, the warranty for the solar panel is 10 years for materials and workmanship, and we also offer a 25-year linear output power warranty.
How can I get better technical service?
We have a professional engineer team that can provide the best support based on your requirements. We offer 24-hour online service to solve any issues within 1 hour.
Are flexible panels suitable for home use?
Yes, flexible panels are ideal for home use, especially on curved surfaces or roofs with weight limitations where traditional panels cannot be installed.
