Product Overview
Model NO.
Micro Inverter Series
Source Flow
Passive inverter
Certification
European Market Standards
Circuit Topologies
Half-Bridge Type
Wave String
Sine Wave Inverter
Output Frequency
50Hz/48Hz-51Hz
Description & Key Features
The KS micro inverter features high reliability, high efficiency, and simple installation. Designed with multiple protection functions, it can be directly connected to the home power grid. It includes an MPPT function and an intelligent WiFi module, integrated with a new generation smart home WiFi monitoring system for real-time intelligent online monitoring.
⚡ Stable Output
Provides stable voltage and frequency output to ensure the quality and consistency of AC power for domestic use.
🔍 Power Tracking (MPPT)
Real-time adjustment of the inverter's working state based on solar panel output to maximize energy extraction and conversion.
📱 Intelligent Management
Equipped with a monitoring system to display operating status and power output of the solar system in real-time.
Detailed Photos

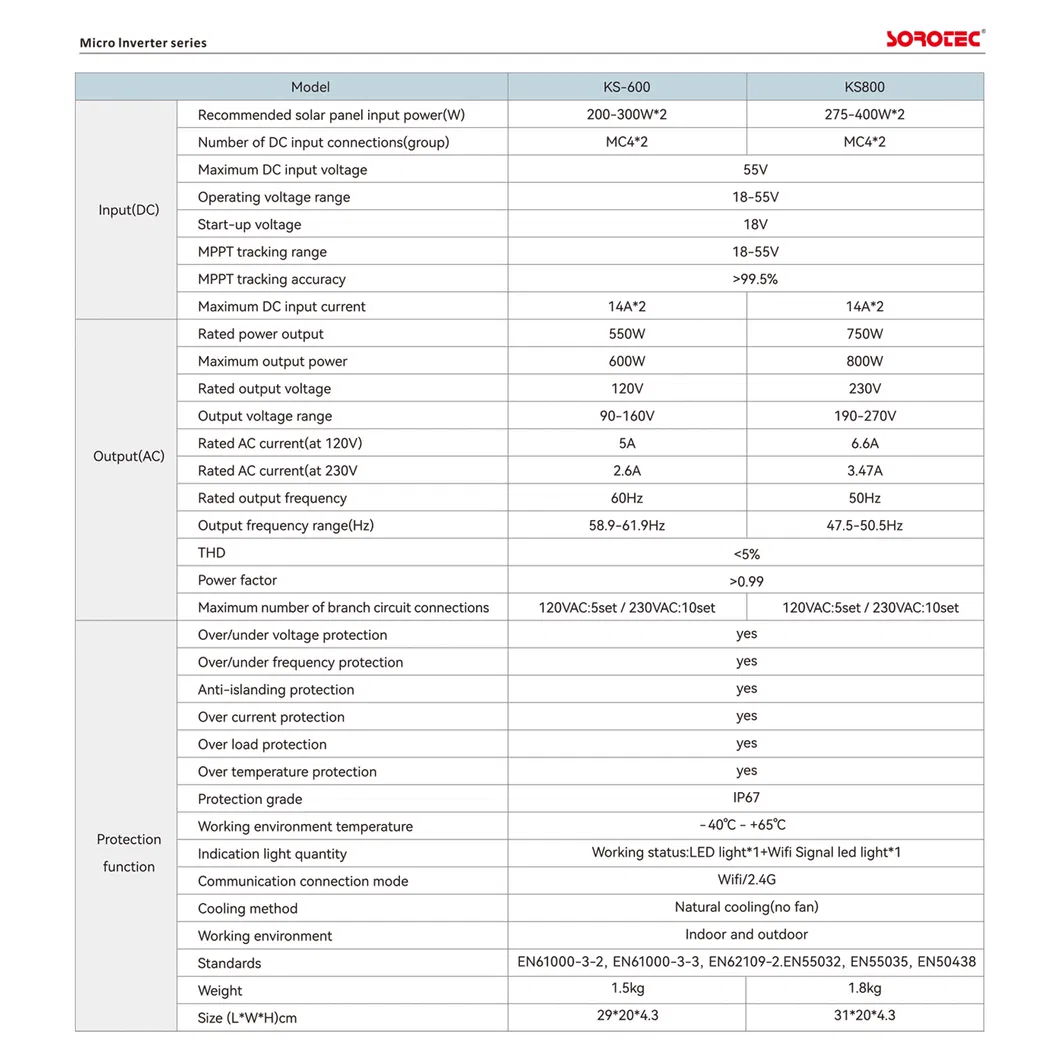

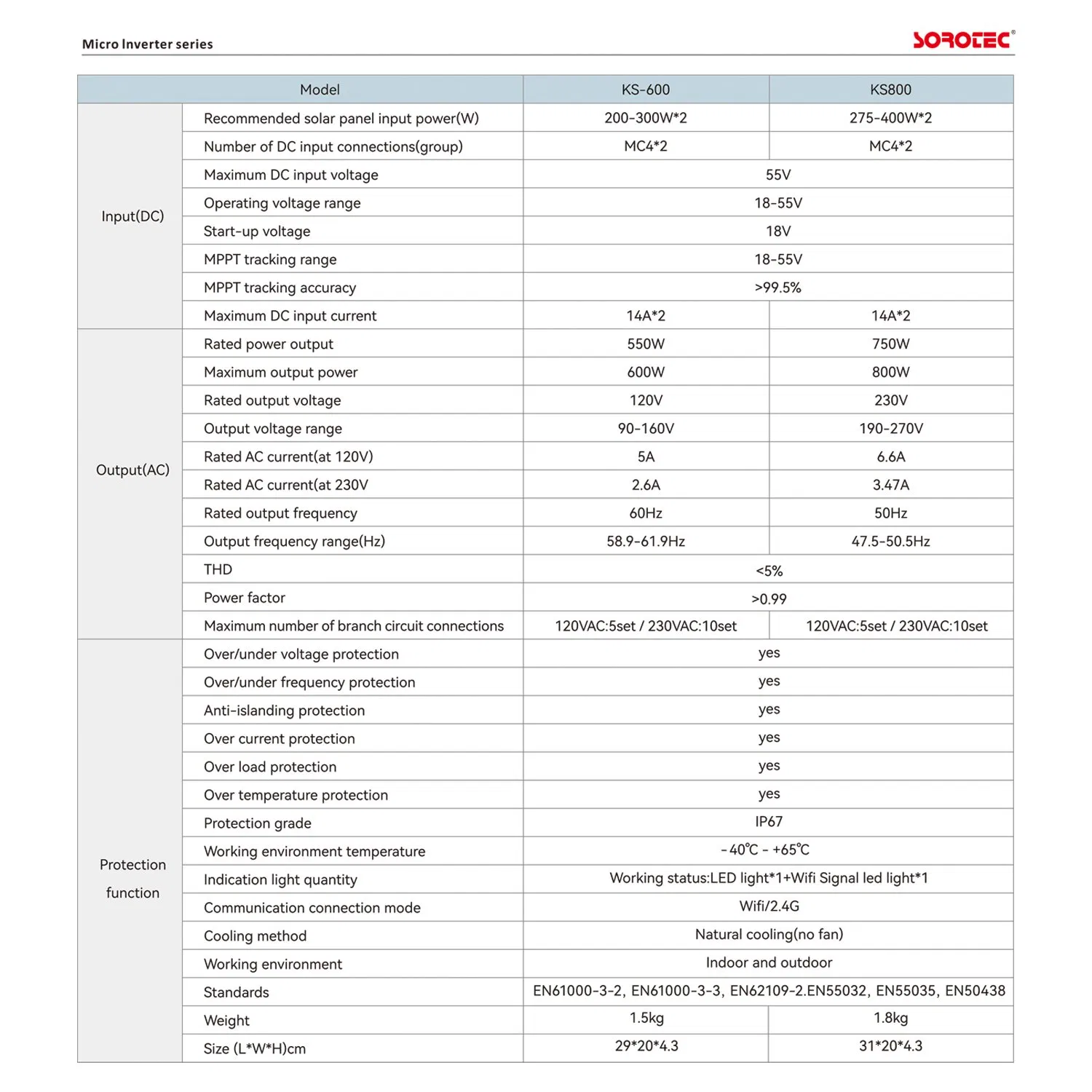

| Parameter |
Specification |
| Communication (Inverter To ECU) | WiFi |
| Isolation Design | High Frequency Transformers, Galvanically Isolated |
| Energy Management | Energy Management Analysis (EMA) system |
| Warranty | 5 Years Standard / 10 Years Optional |
| Protection Degree | Over-temperature, Grid-loss, etc. |
Installation Guide
- Check if the machine was damaged during transportation and ensure all accessories are complete.
- Prepare appropriate length AC cables (L-brown for live, N-blue for null, G-yellow/green for ground).
- Install in a low-humidity, rain-proof, and well-ventilated area to prevent overheating.
- Ensure the ground wire is correctly connected to the grounding sign.
- The inverter input must only be connected to solar panels meeting specific voltage requirements.
Operation Safety
- Only qualified maintenance personnel should disassemble or repair the machine.
- Avoid contact by children to prevent electric shock during operation.
- Do not cut AC/DC wires or disassemble the unit while the inverter is active.
- Grid-connected generation stops automatically when the utility power grid is cut off.
- Surface temperatures can be high; avoid touching with bare hands during operation.
Frequently Asked Questions
❓ How does a micro inverter differ from a string inverter?
Micro inverters are installed on each individual solar panel, ensuring that if one panel is shaded or underperforming, it does not affect the output of the entire system, unlike traditional string inverters.
❓ Is the WiFi monitoring system easy to set up?

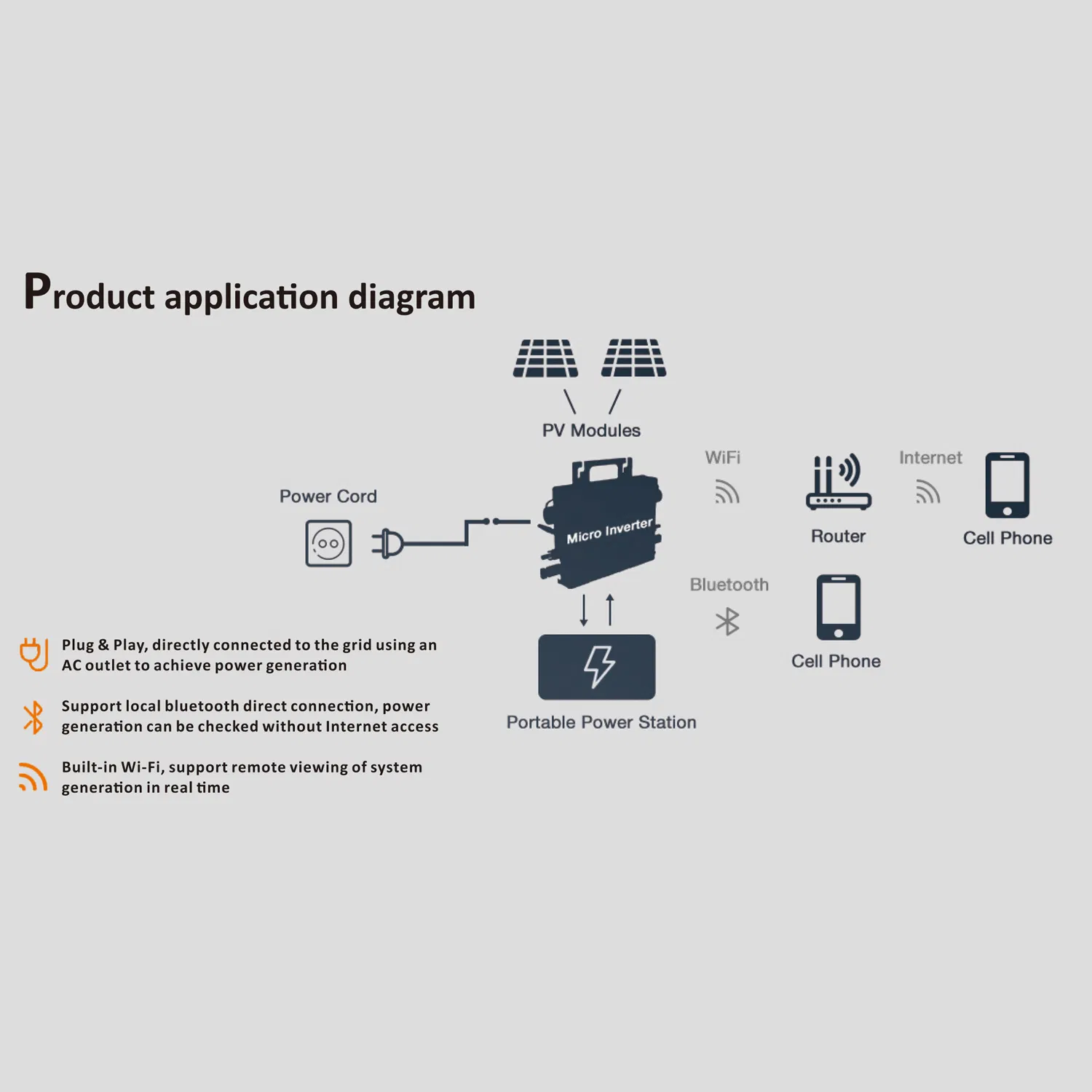

Yes, the inverter comes with a built-in intelligent WiFi module. Once connected to your home network, you can monitor performance and energy production via a smartphone or PC.
❓ What safety protections are built into the unit?
The system includes over-temperature protection, anti-islanding protection (stops generating when the grid is down), and galvanic isolation via high-frequency transformers.
❓ Can this inverter be used for wind power systems?
The input of this specific inverter series is designed strictly for solar panels. Please ensure your solar panel's open-circuit voltage matches the specifications provided.
❓ What happens if the inverter gets too hot?
The machine features an over-temperature protection system. If the temperature exceeds safe limits, it will pause operation and automatically resume once it has cooled down.
❓ How many units can be connected in parallel?
Multiple inverters can be connected in parallel to scale your power output. However, ensure all units are powered off before making any new cable connections.
