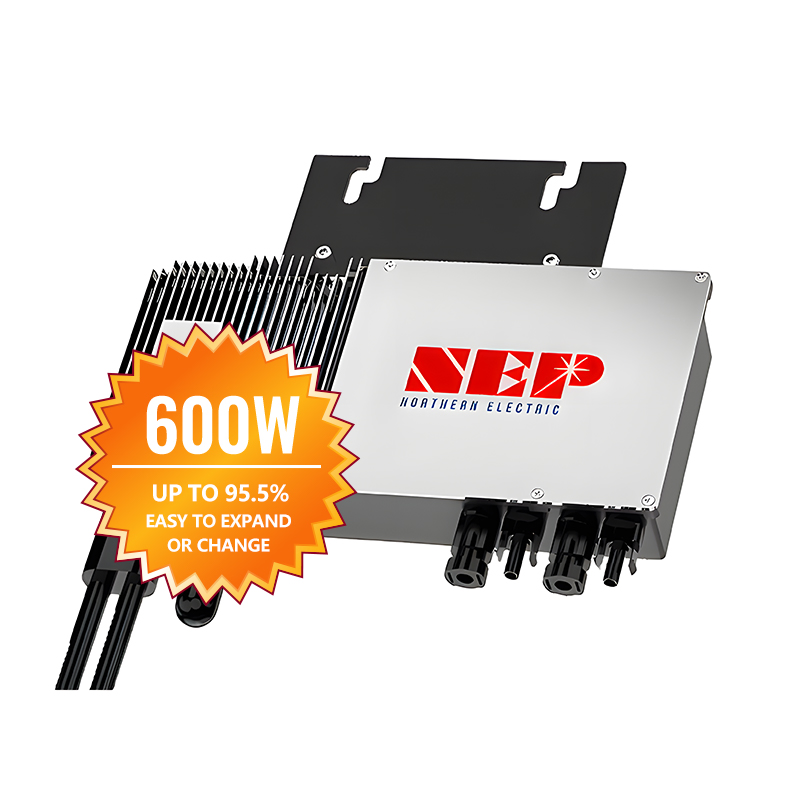

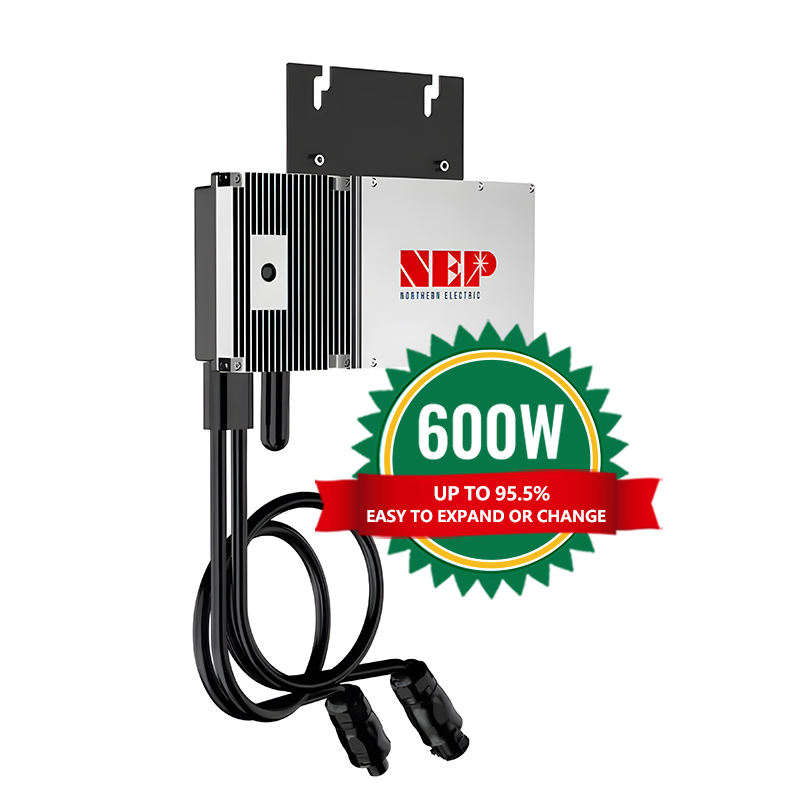

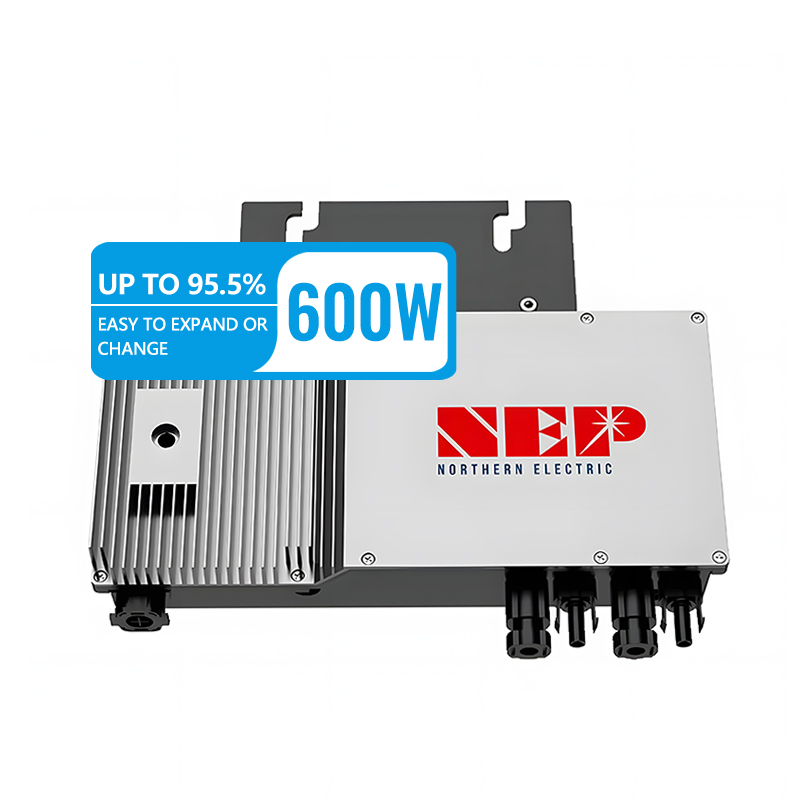

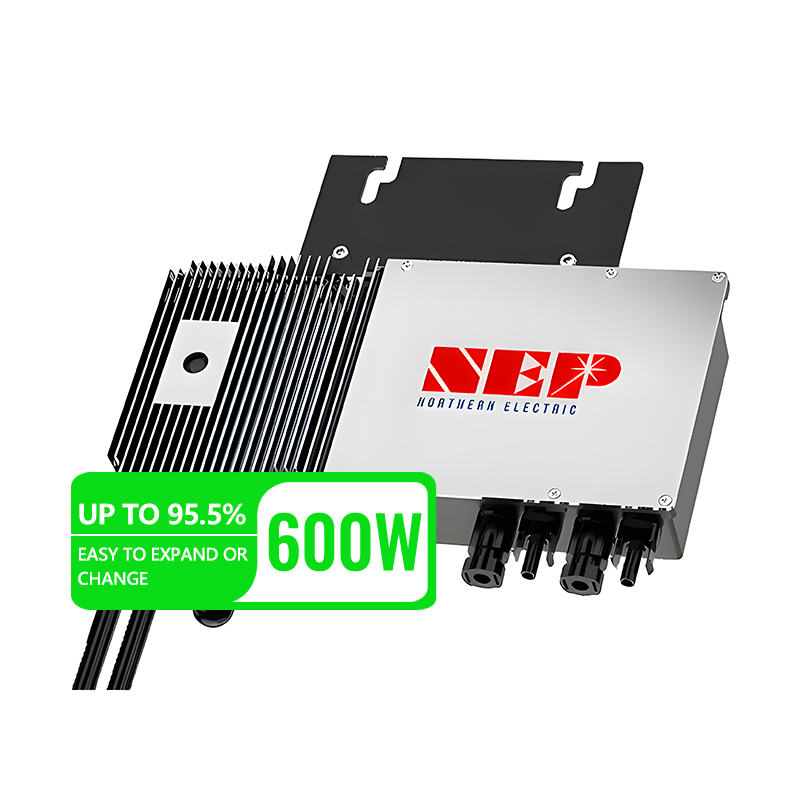

Micro Inverter on Grid Tie Portable PV Nep 800W Micro Inverter for Solar System Use Mini Solar System

Customization: Available
After-sales Service: Yes
Warranty: 10years

Product Description

Basic Information
Model NO. BDM 300/500/600/800
Nature of Source Flow Passive inverter
Phase Single
Output Power 501 - 1000W
Certification CE
Power Source Solar Power
Inverter Efficiency 97%
Specification 212*229*40mm (Without mounting bracket and cable)
Production Capacity 2000PCS/Week
Product Description

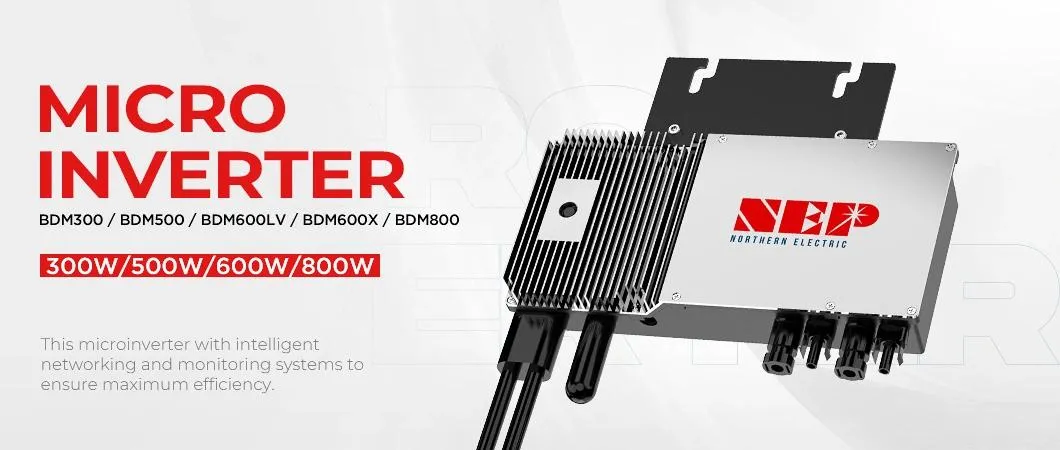

Micro Inverter Presentation

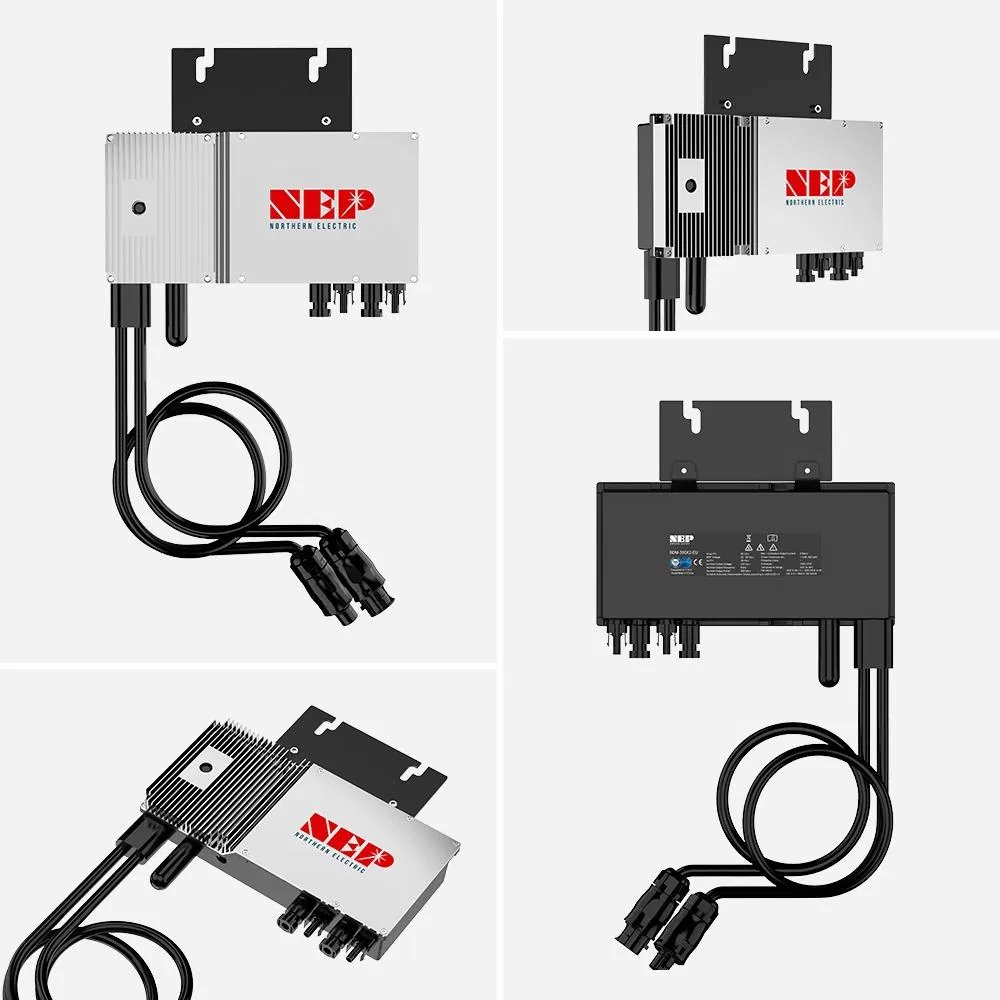

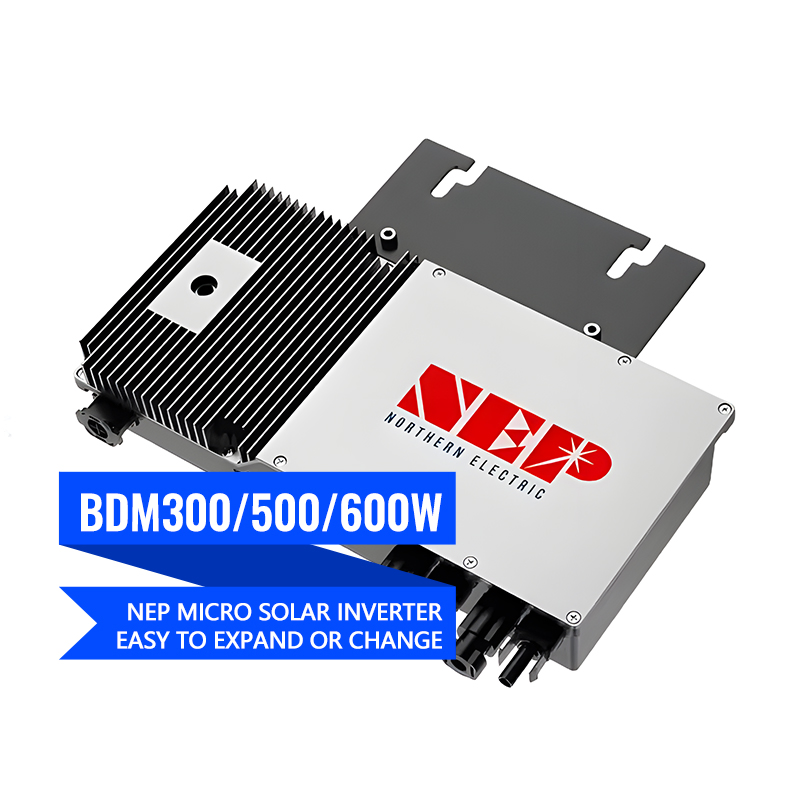

Product View
System Connection

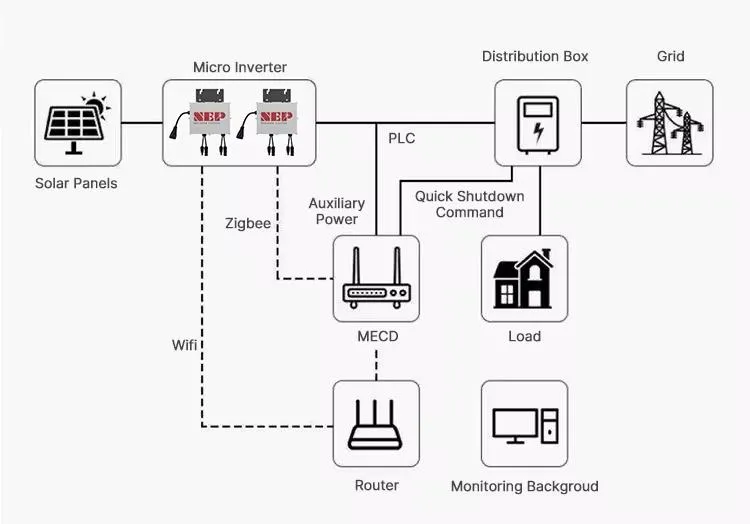

System Connection Diagram
Technical Specifications

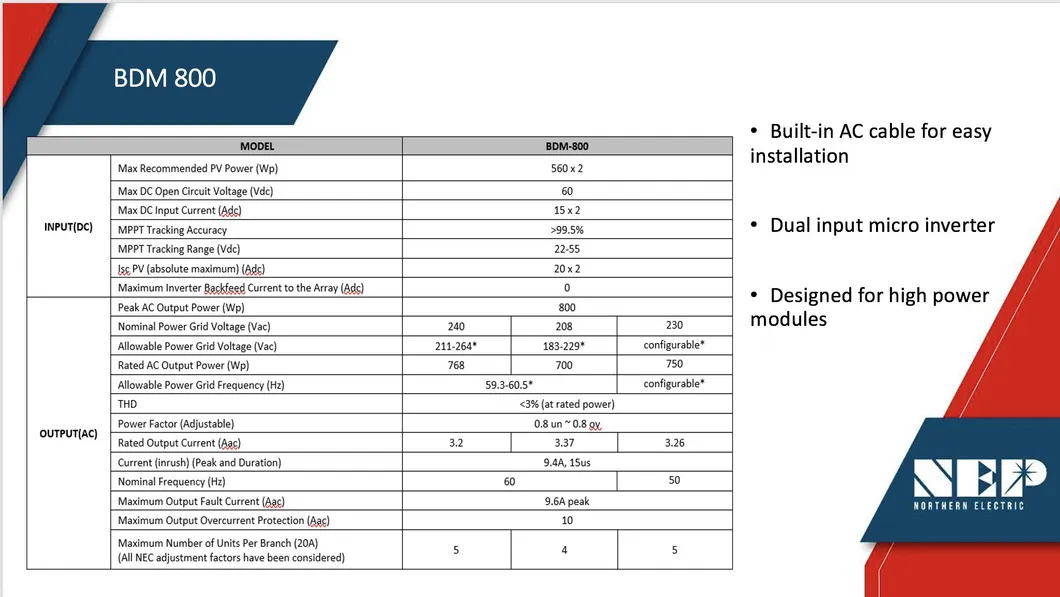

Specifications Table Image
Model BDM300 BDM500 BDM600 BDM800
Recommended Max PV Power 450W 750W 450W*2 600W*2
Max DC Input Current 14A 15.5A 14A*2 17A*2
MPPT Tracking Accuracy >99.5%
MPPT Tracking Range 22-55V 35-55V 22-55V 22-55V
Rated AC Output Power 300W 500W 500W 800W
Nominal Power Grid Voltage 240V/208V/230V
Protection Degree NEMA-6/IP-66/IP-67
Weight 1.5kg 4.0kg 2.9kg 2.9kg
Production Process

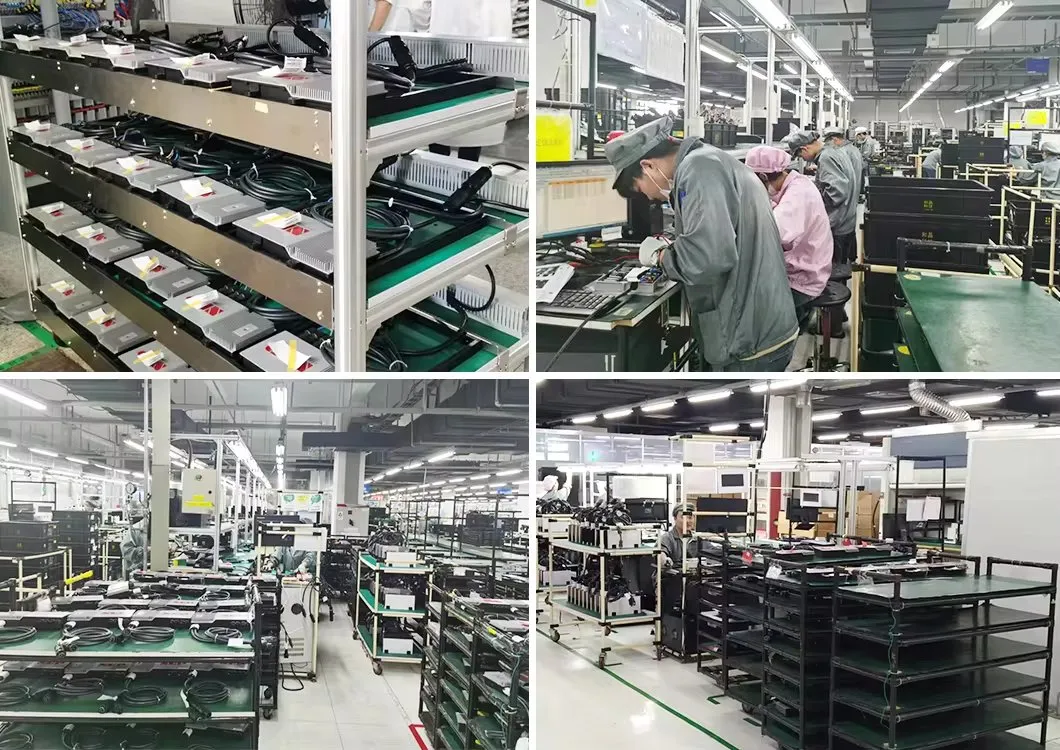

Production Process 1 Production Process 2
Packaging & Shipping

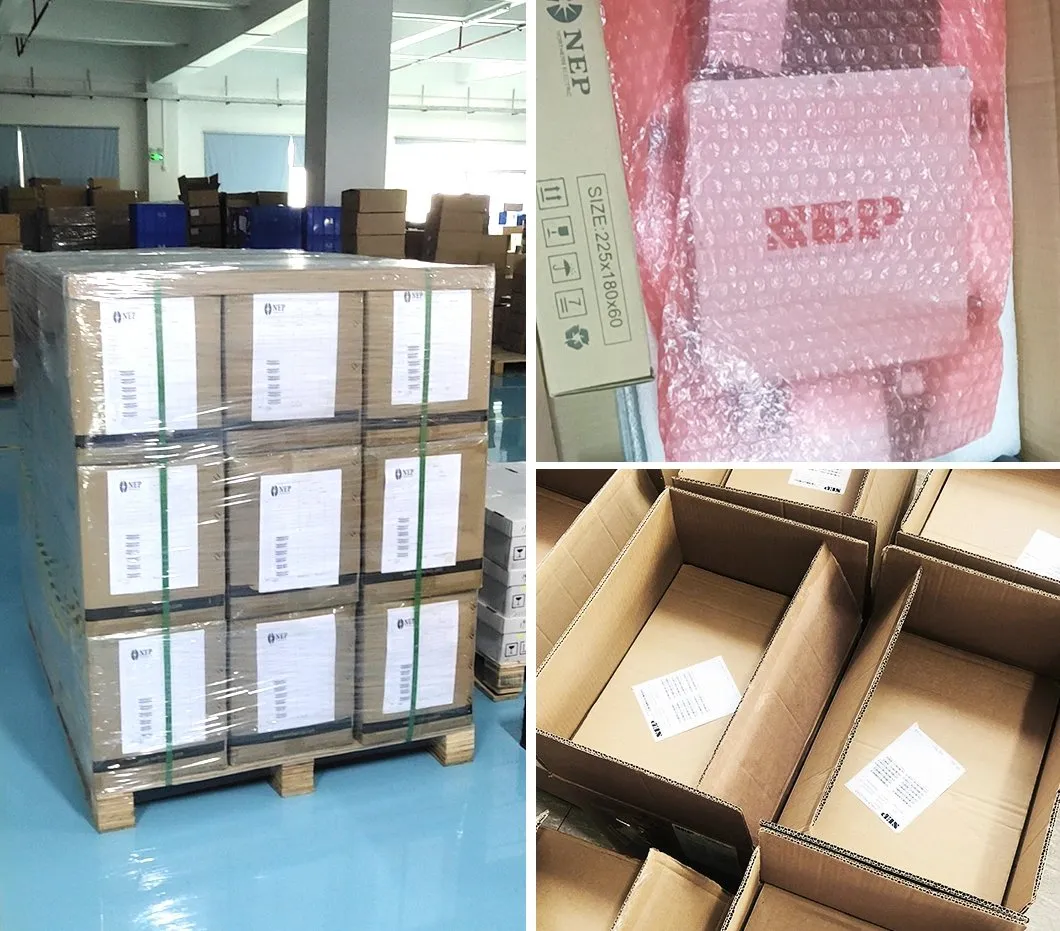

Packaging and Shipping Details
Frequently Asked Questions
Q1: How to choose the right system?
Please inform us about the type of energy storage system required, the capacity of the PV project installation, the installation scenario, and the arrangement of the components for a tailored recommendation.
Q2: What is the estimated delivery time?
The delivery time typically ranges from 7 to 20 days for bulk orders, depending on the order volume and specific requirements.
Q3: What are the warranty terms for the solar system?
We offer a 25-year warranty for solar panels, a 5-year warranty for on-grid and hybrid inverters, and a 2-year warranty for off-grid inverters.
Q4: How can I receive technical support?
Our professional engineering team provides comprehensive support based on your requirements. We offer 24-hour online service and aim to resolve any operational issues within 1 hour.
Q5: What is the efficiency and protection level of these inverters?
These micro inverters feature a 97% efficiency rate and are built with IP66/IP67 protection degrees, making them highly durable for various environments.
Q6: Do these inverters support different grid voltages?
Yes, they are compatible with nominal grid voltages of 208V, 230V, and 240V, and are configurable to meet specific local grid requirements.
