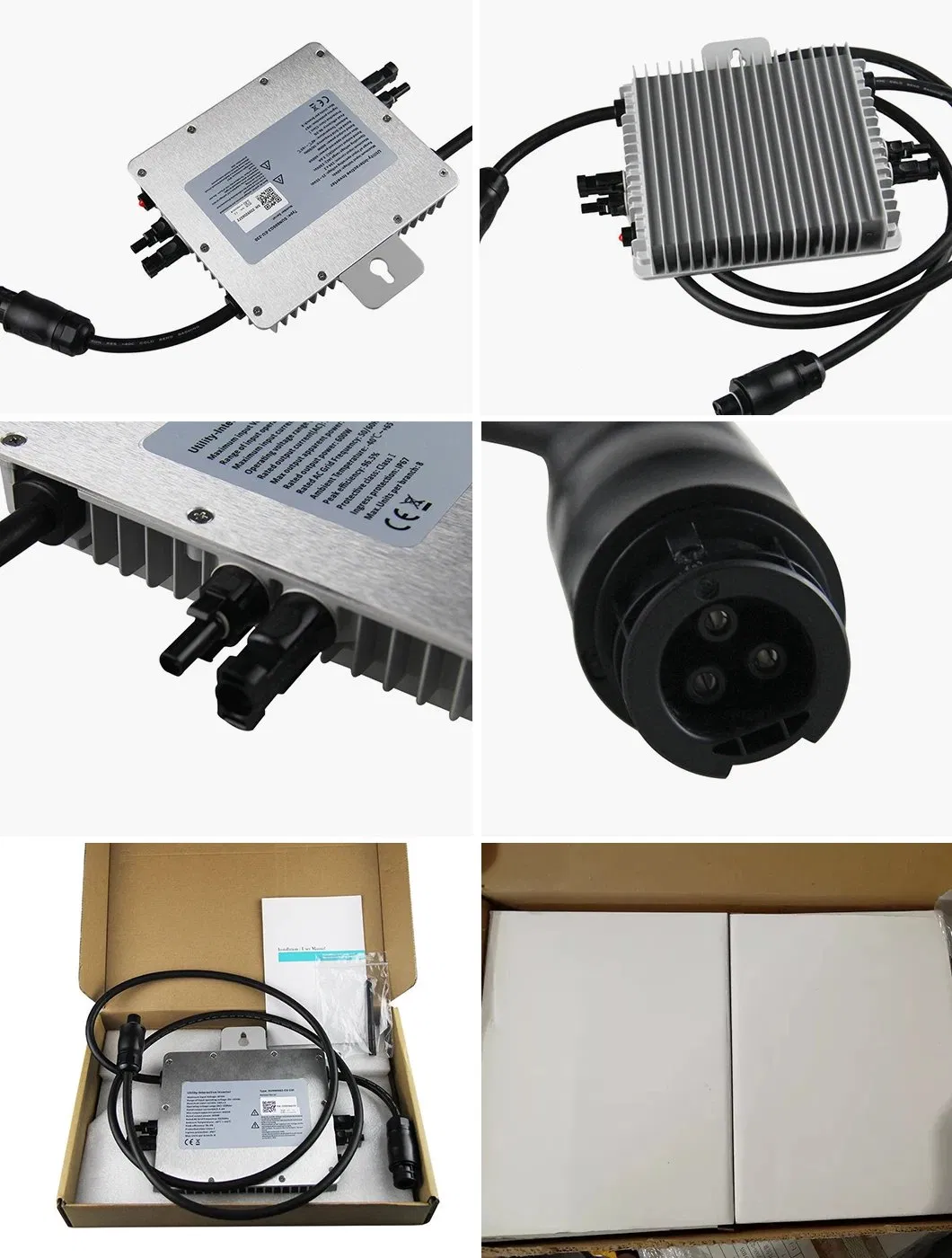

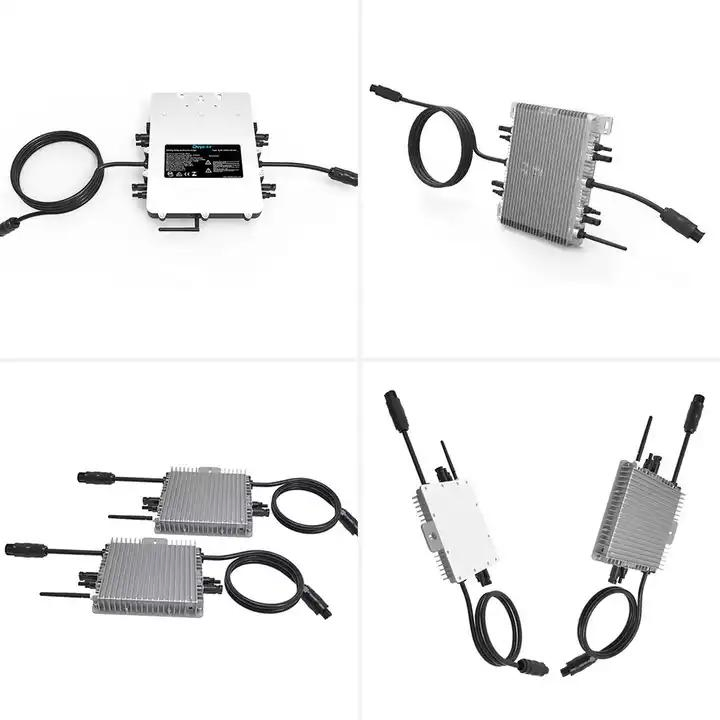

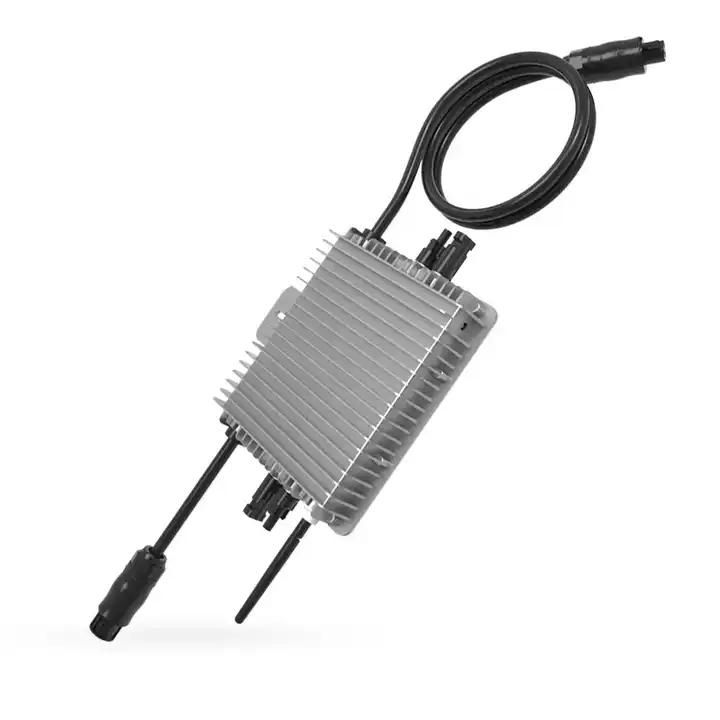

Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
1 / 5
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W
Active Single Deye Micro Solar Inverter 800W 1000W 1200W

Active Single Deye Micro Solar Inverter 800W 1000W 1200W

Customization: Available
Warranty: 5 Years
Nature of Source Flow: Active Inverter
Send Inquiry

Product Description

Basic Information
Model NO.SUN600/800/1000/2000G3-EU-230
PhaseSingle Phase
CertificationSAA, CE, ROHS, ISO9001
TypeDC/AC Inverters
Power SourceSolar Power
Circuit TopologiesFull-Bridge Type
Nature of WaveSine Wave Inverter
Weight3.6kg
HS Code8504403090
Capacity10000PCS Per Month
Product Description

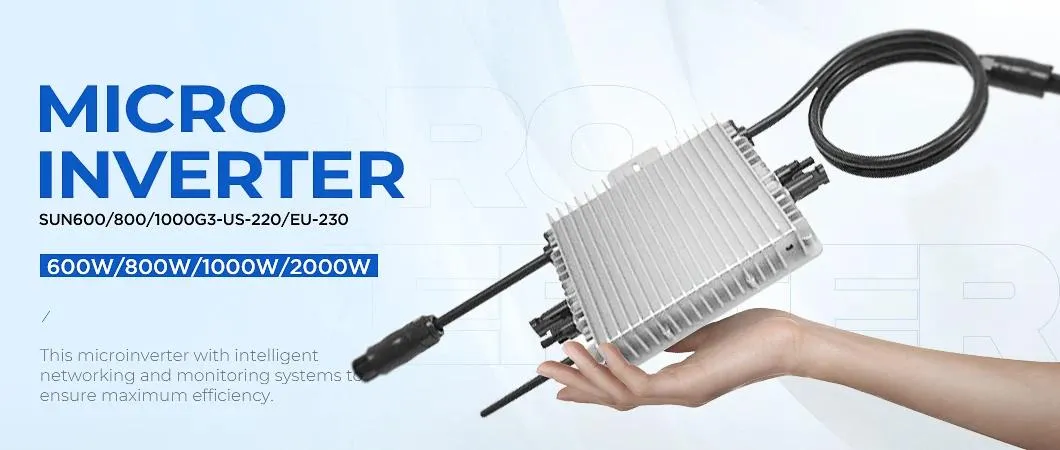

Deye Micro Solar Inverter

🚀 How does it work?

The micro-inverter system application includes several key components to ensure a complete running system:

  • PV modules for solar energy harvest.
  • Grid connection or Generator utility.
  • Powering all home or office appliances, including high-load motor types like refrigerators and air conditioners.

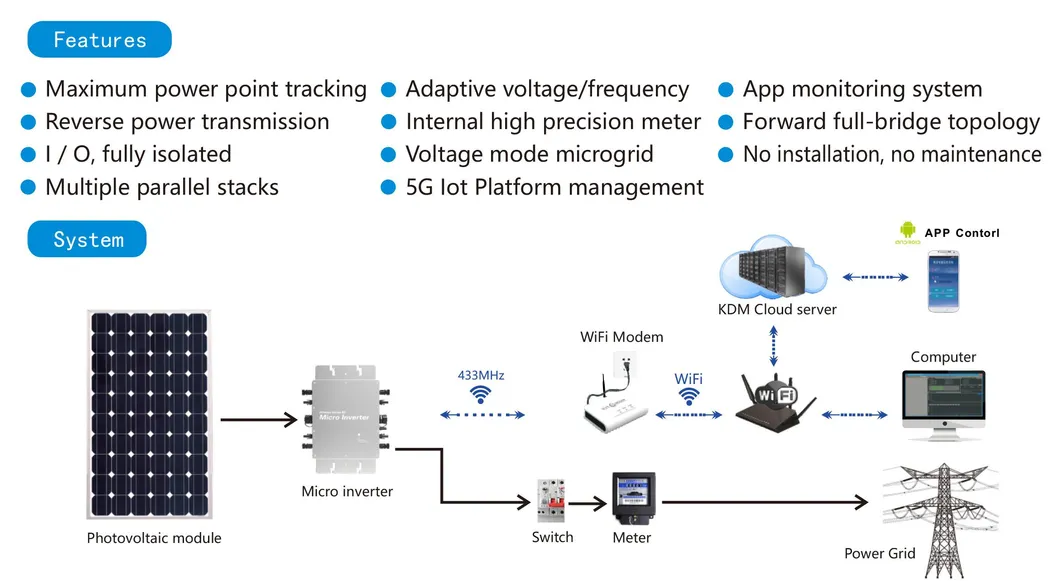

Inverter Workflow
Technical Specifications
Model SUN600G3-EU-230 SUN800G3-EU-230 SUN1000G3-EU-230 SUN2000G3-EU-230
Recommended Input 210~400W (2 Pcs) 210~500W (2 Pcs) 210~600W (2 Pcs) 210~600W (4 Pcs)
Max DC Voltage 60V
MPPT Range 25~55V
Rated Output Power 600W 800W 1000W 2000W
Max Efficiency Peak: 96.5% / MPPT: 99%
IP Rating IP67
Warranty 10 Years

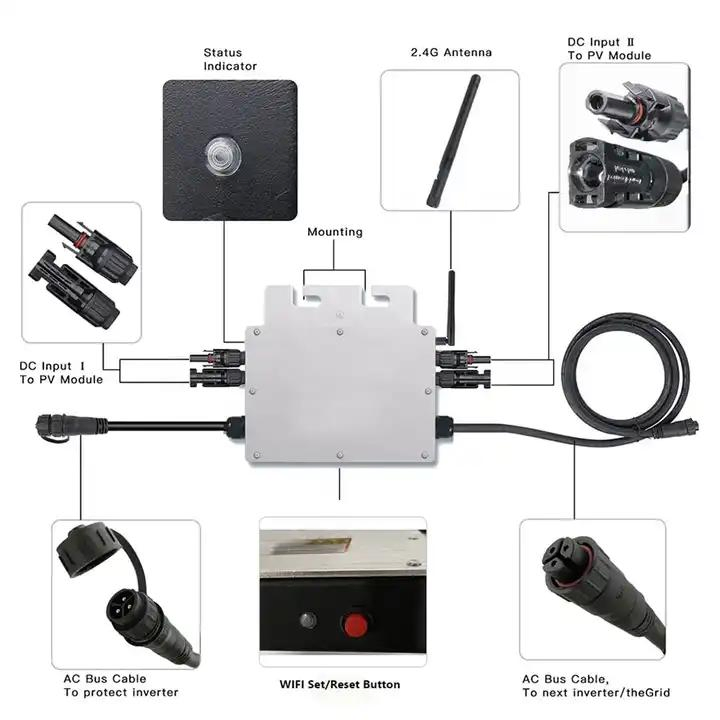

LED Indicator Functions
LED Indicator Guide

🔴 Red Solid: Power on, ready to work.

🔴 Red Flash: Prepared, entering delayed startup.

🟢 Green Flash: MPPT maximum power point searching.

🟢 Green Solid: MPPT locked state.

⚠️ Green to Red: Islanding/Frequency/Voltage protection or software shutdown.

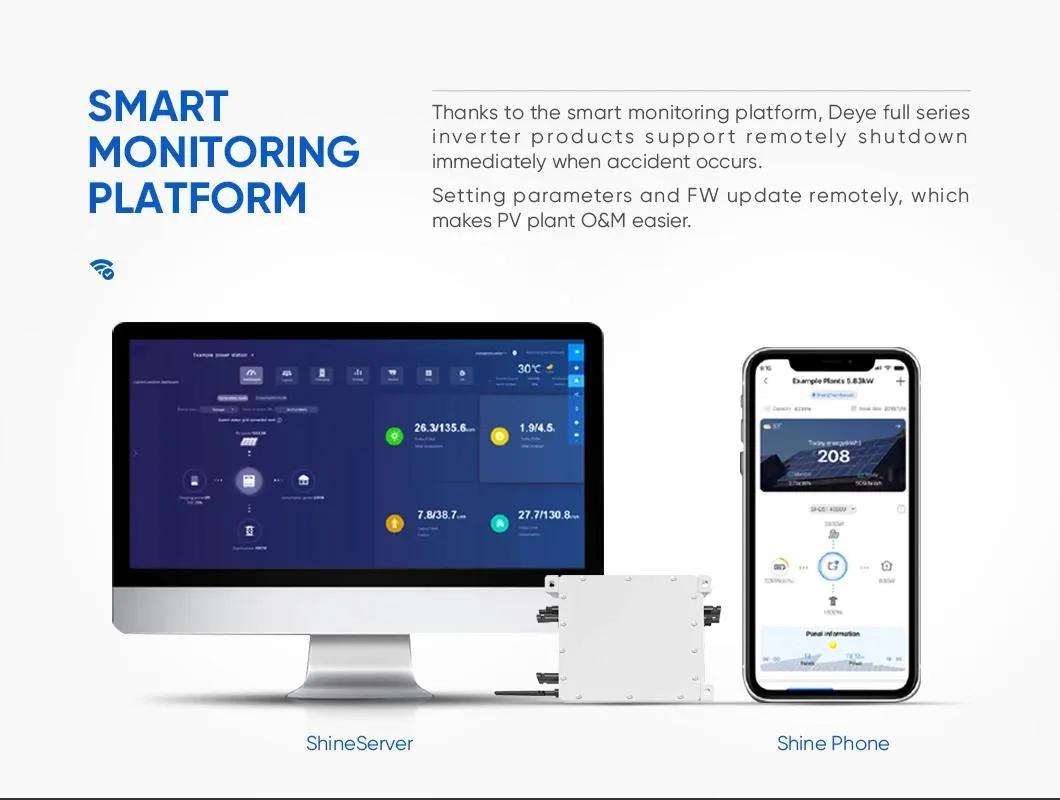

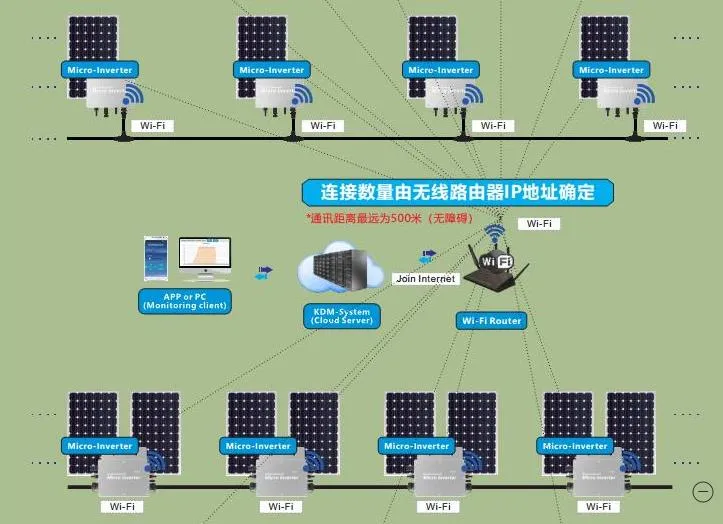

Intelligent Monitoring & Advantages
Intelligent Monitoring
  • Rapid Shutdown: Enhanced safety for emergency situations.
  • Higher Yield: Individual MPPT tracking for every panel avoids parallel effects and shading loss.
  • Long Lifespan: Designed for 25+ years with a 10-year standard warranty.
  • IP67 Protection: Fully waterproof and dustproof for harsh environments.
  • Smart Management: One-click installation and full lifecycle data storage.
Packaging & Delivery
Quantity (Pieces) 1 - 50 51 - 100 101 - 1000 >1000
Est. Lead Time 10 Days 15 Days 20 Days Negotiable

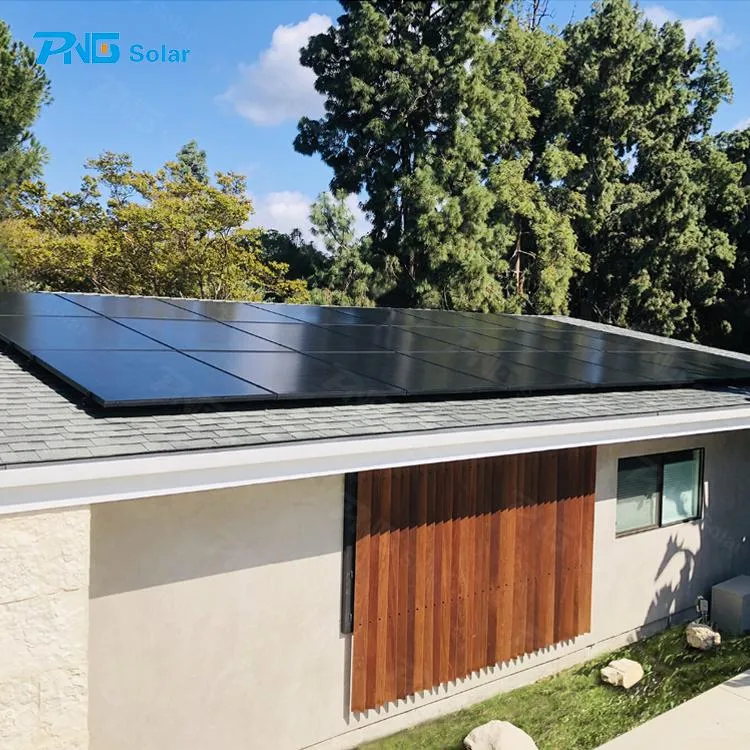

Packing 1
Packing 2

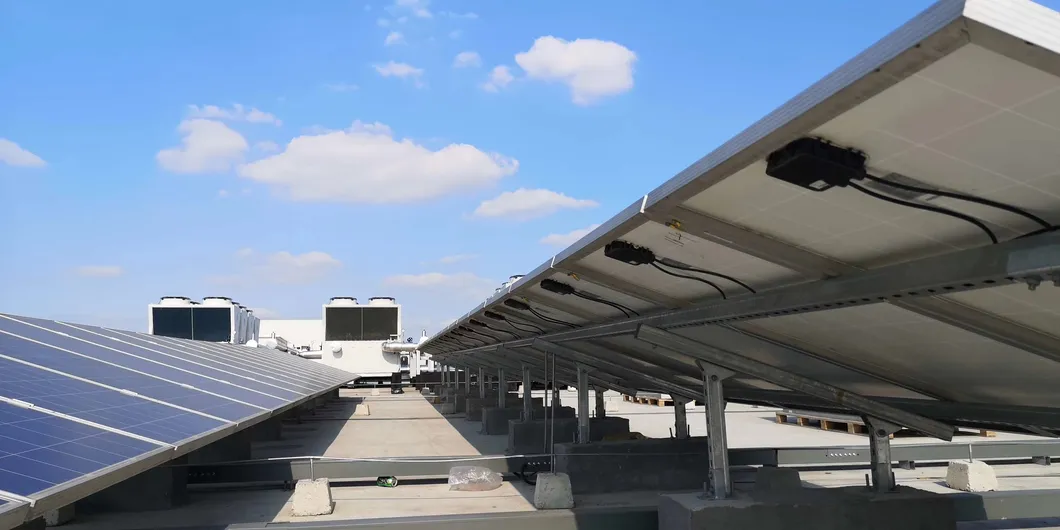

Packing 3
Advantages comparison

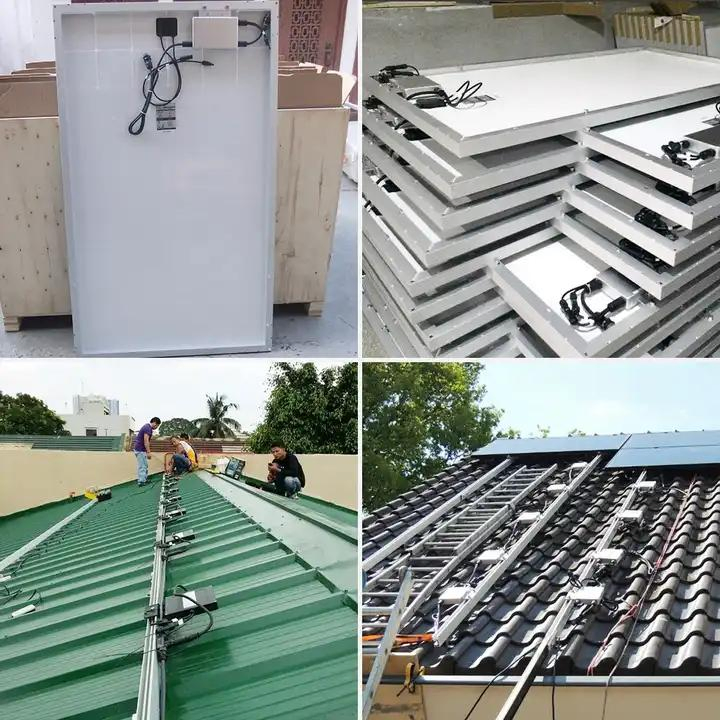

System view
Frequently Asked Questions
1. What are the accepted payment terms?
We accept T/T, Letter of Credit (L/C), PayPal, and Western Union. Shipping terms can be FOB, CIF, CFR, DDU, or DDP depending on your requirements.
2. What is the typical delivery timeframe?
For standard orders, the delivery date is usually around 15 to 20 working days after confirmation.
3. Is it possible to customize the product with our own labels?
Yes, we support OEM orders including custom sticker printing for quantities meeting the MOQ.
4. What is the MOQ for OEM orders?
The Minimum Order Quantity (MOQ) for custom OEM orders is typically one full container.
5. What makes micro-inverters better than string inverters?
Micro-inverters offer individual panel MPPT tracking to maximize yield in shaded conditions, integrated rapid shutdown for safety, and a significantly longer design lifespan (25+ years).
6. How durable is the inverter enclosure?
The inverters feature an IP67 environmental rating, making them completely protected against dust and capable of withstanding temporary immersion in water.
