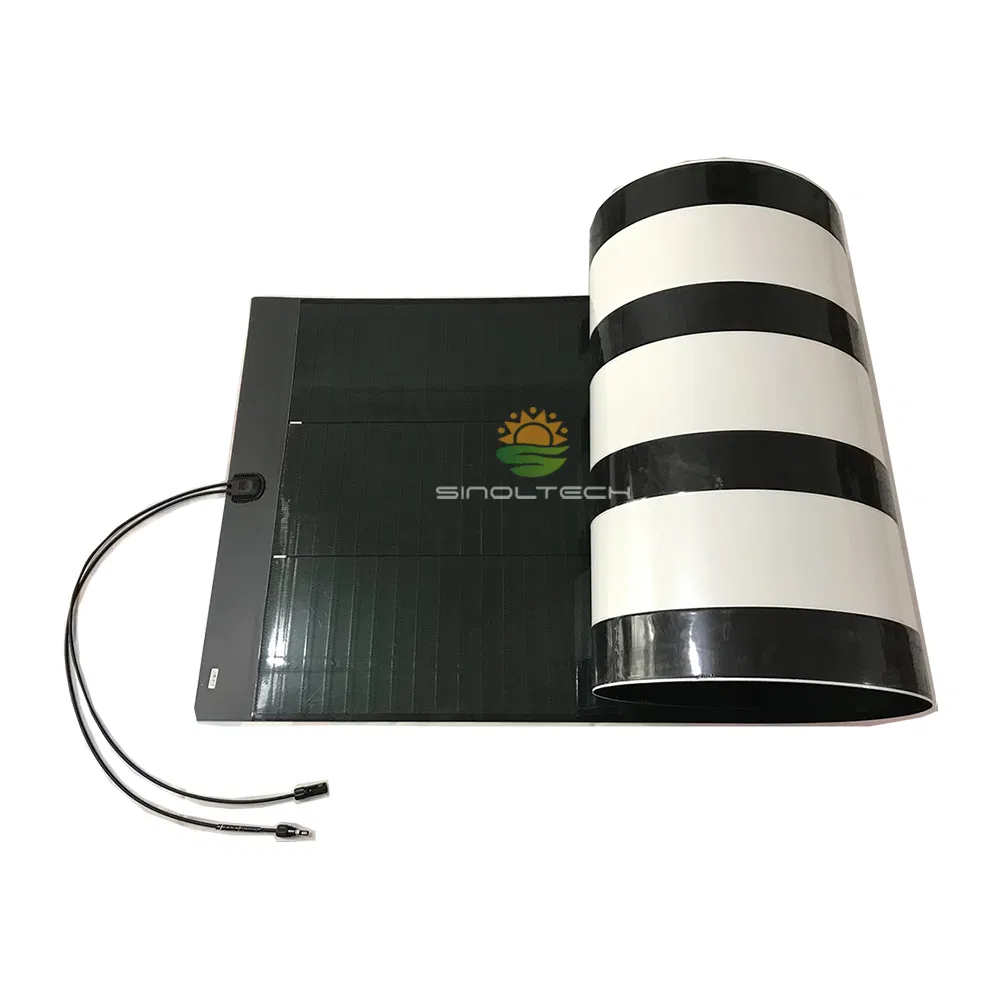

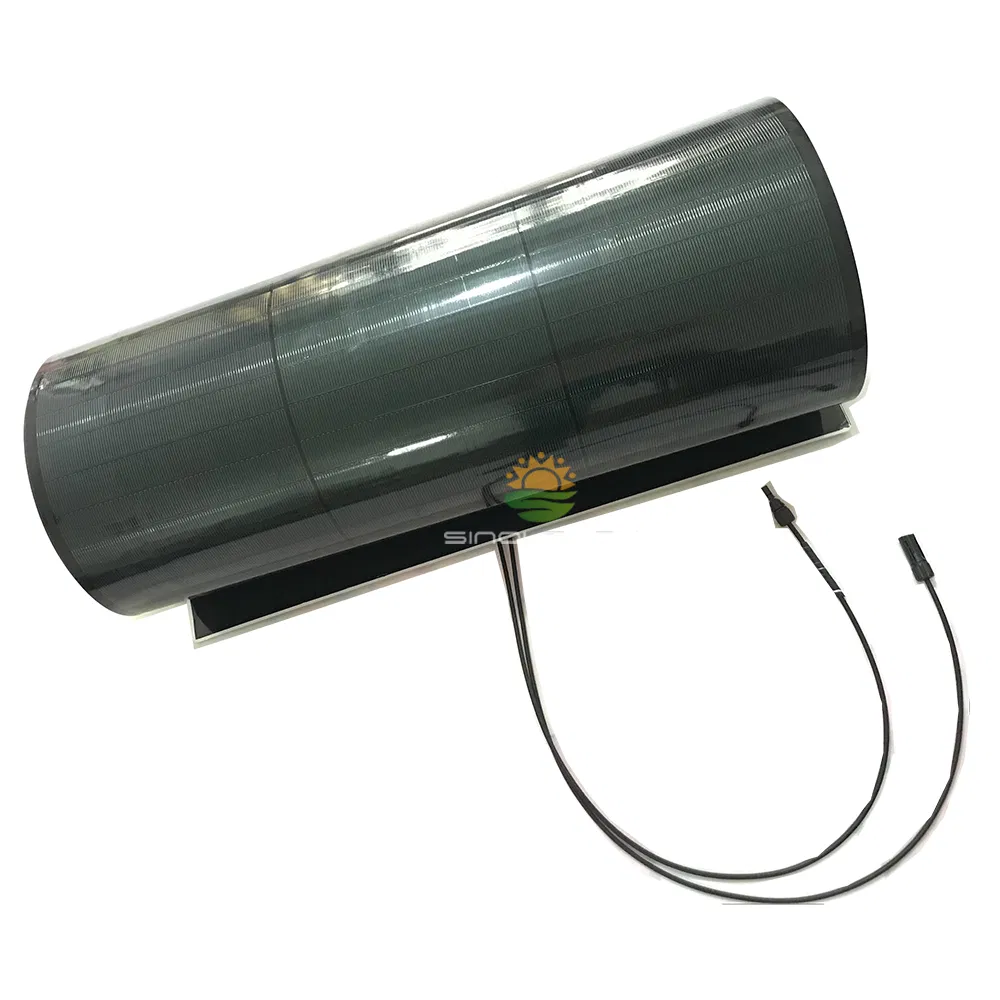

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
1 / 5
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ⓘ Overview & Basic Info
Model NO.
Flex-03M-1.7M
Number of Cells
1
Application
Light Industry
Condition
New
Certification
CE
Material
Amorphous Silicon
Capacity Rating
210W
Tolerance of Pmax
+10 / -0%
Aperture Efficiency
14.2%
Max Power Voltage
18.1V
Max Power Current
11.6A
Open Circuit Voltage
23.2V
Short Circuit Current
14.0A
Length
1710mm
Width
973mm
Weight
3.4 Kg (without adhesive)
Origin
China
Production Capacity
100000watts/Month
☀ Product Description

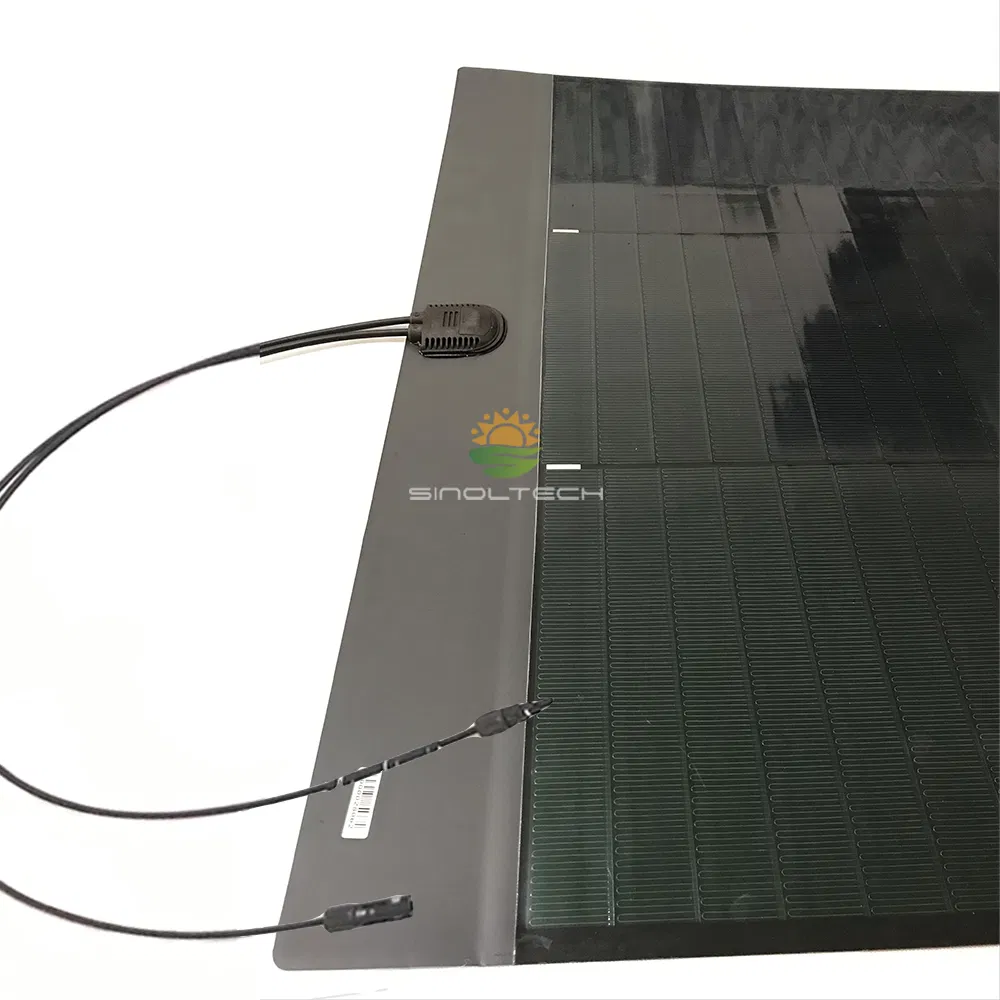

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Technology: Our flexible solar panel adopts CIGS technology, which has an aperture efficiency as high as 17%, rivaling that of rigid glass panels.

General Production Process: We begin with high-grade stainless steel foil and use an advanced semiconductor deposition process, PVD, to produce controlled, stable, and powerful flexible stainless steel CIGS cells. Protected by special water barrier plastics and internal aluminum film, these modules ensure long-term durability against water transmission.

★ Key Benefits
  • Light weight: Less than 2.4 kg/m². Ideal for structures with low load limitations like RVs, trucks, and rooftops.
  • Powerful: Highest efficiency thin-film CIGS modules in production today.

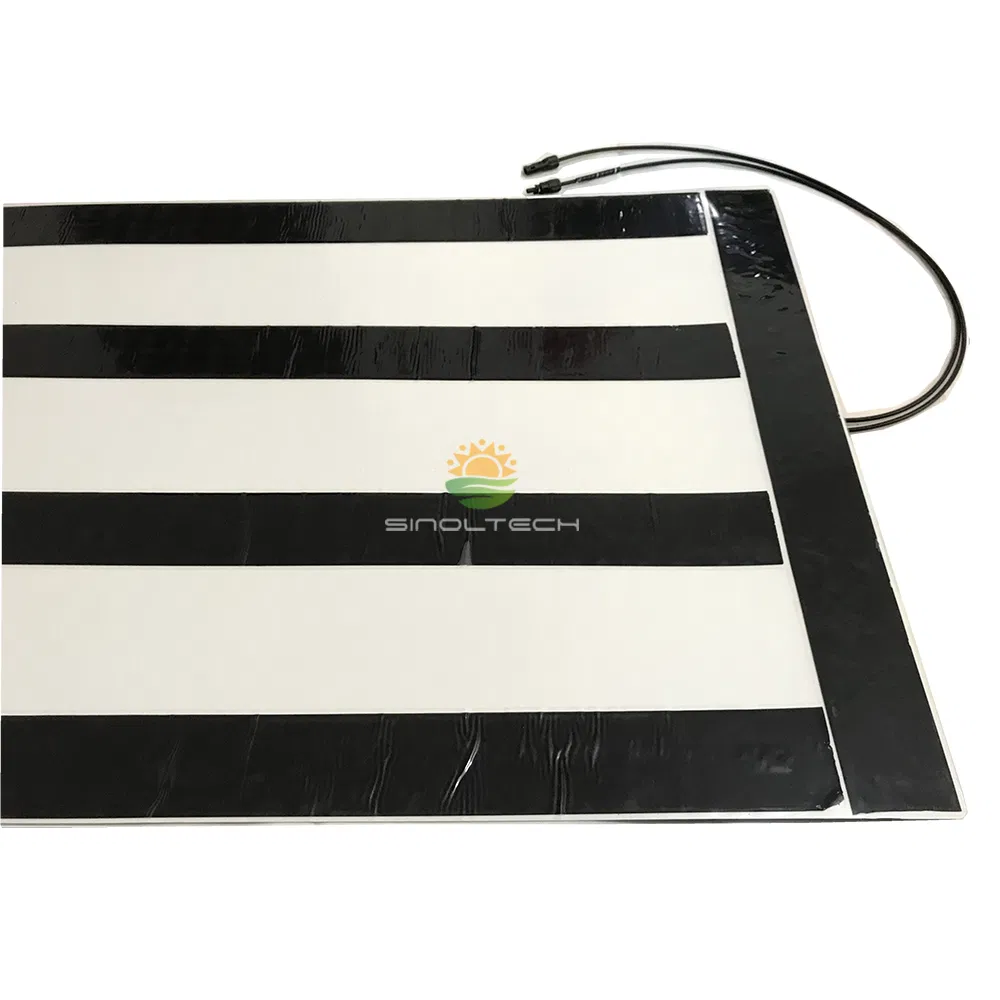

  • Easy to install: Peel-and-stick application eliminates the need for structural penetrations.
  • Flexible: Conforms to curved surfaces where traditional rigid panels cannot be used.
  • Disaster Resistant: Shatterproof and provides excellent wind and seismic resistance.
  • Reliable: Unique redundant interconnect design for industry-leading reliability.
⚙ Product Parameters
Capacity rating (Pmax) 210W 220W 230W 240W
Aperture Area Efficiency (%) 14.2% 14.9% 15.6% 16.3%
Maximum Power Voltage (Vmpp) 18.1V 18.8V 19.4V 20.0V
Maximum Power Current (Impp) 11.6A 11.8A 11.9A 12.0A
Open Circuit Voltage (Voc) 23.2V 23.7V 24.2V 24.7V
Short Circuit Current (Isc) 14.0A 13.9A 13.7A 13.6A

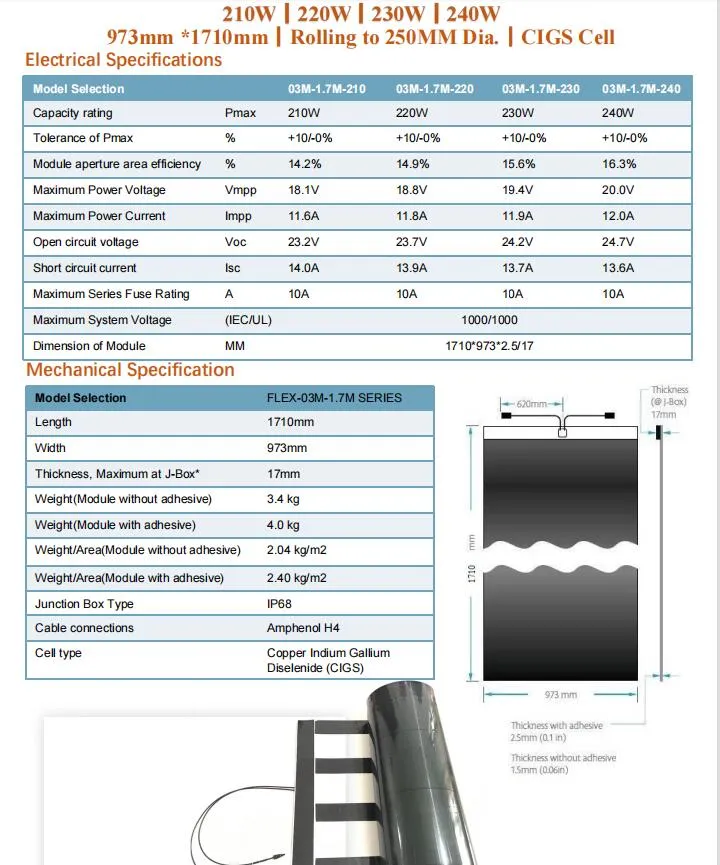

Data Sheet CIGS Thin Film
📷 Detailed Photos

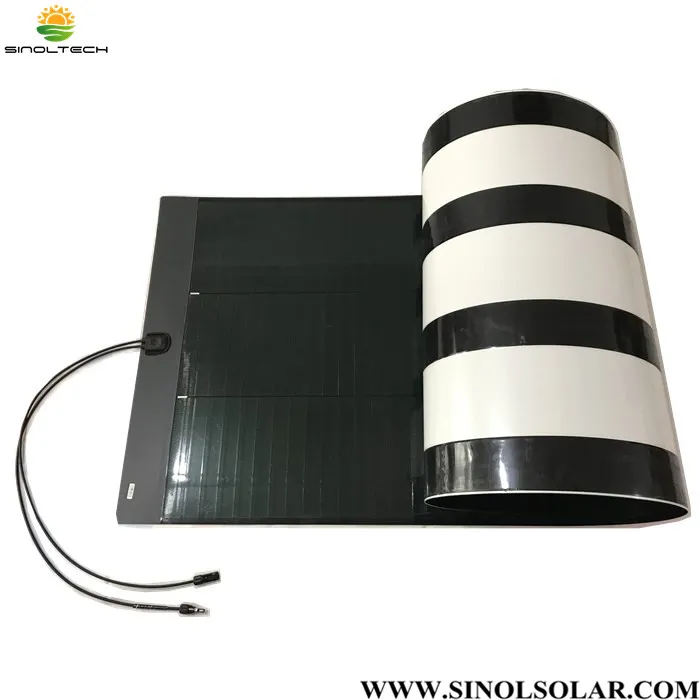

Detailed Photo 1

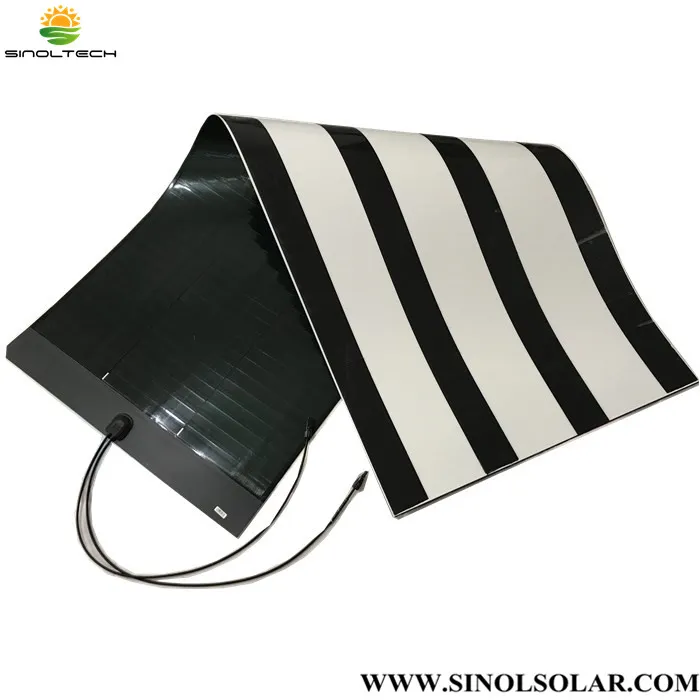

Detailed Photo 2

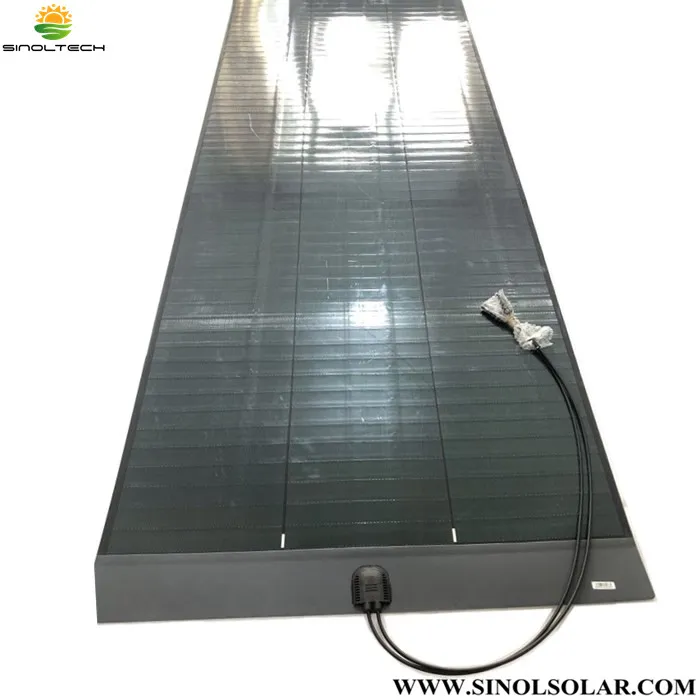

Detailed Photo 3

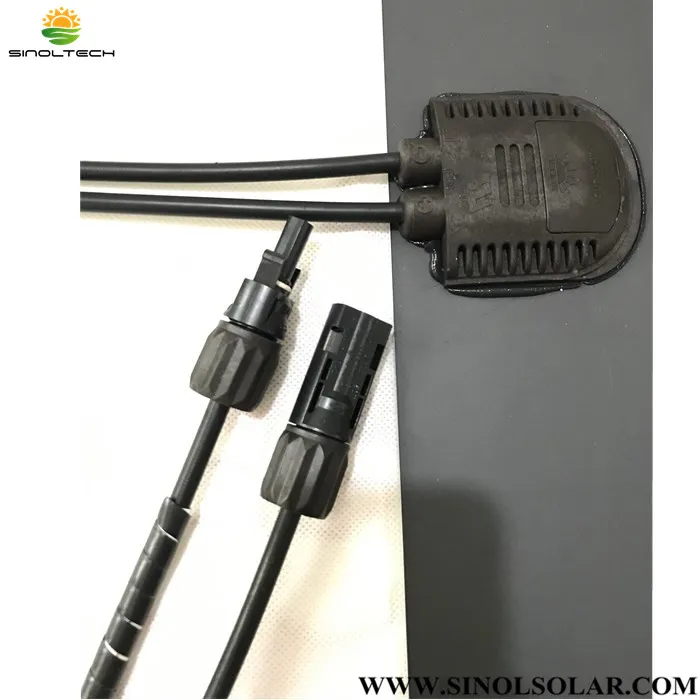

Detailed Photo 4

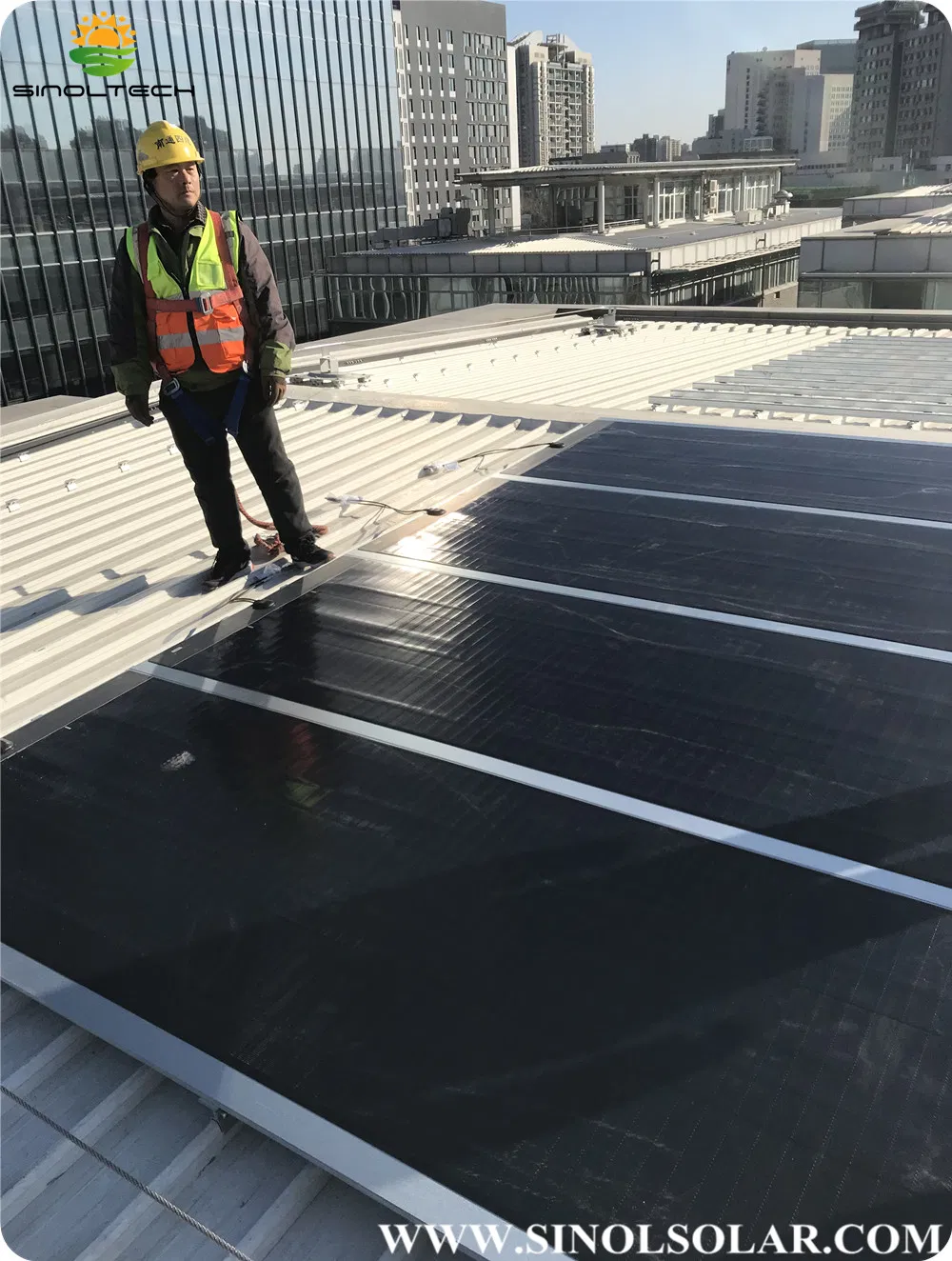

🚀 Application Cases

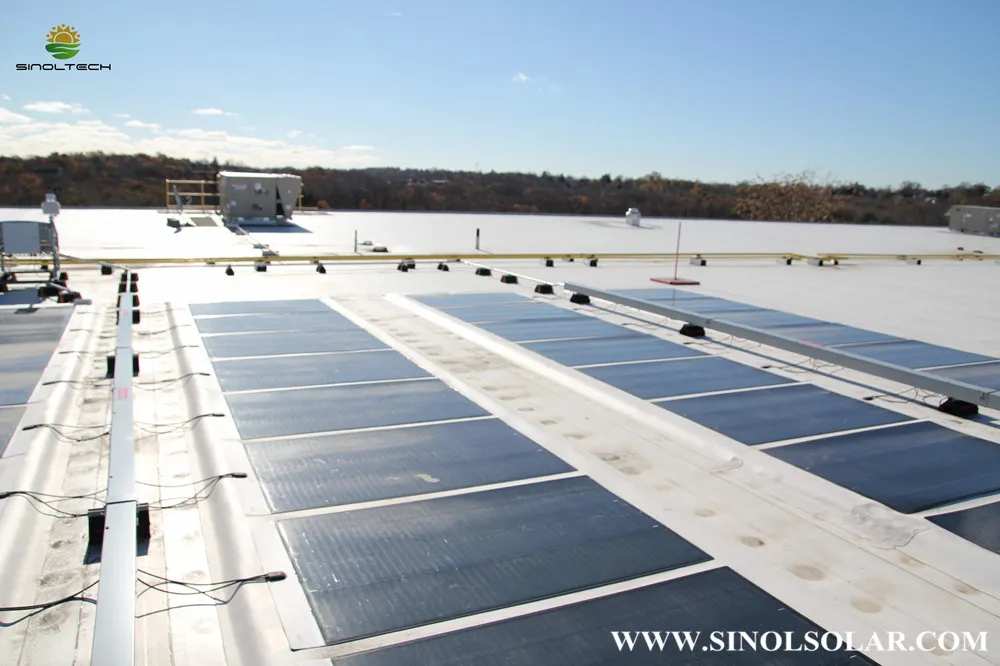

Application 1

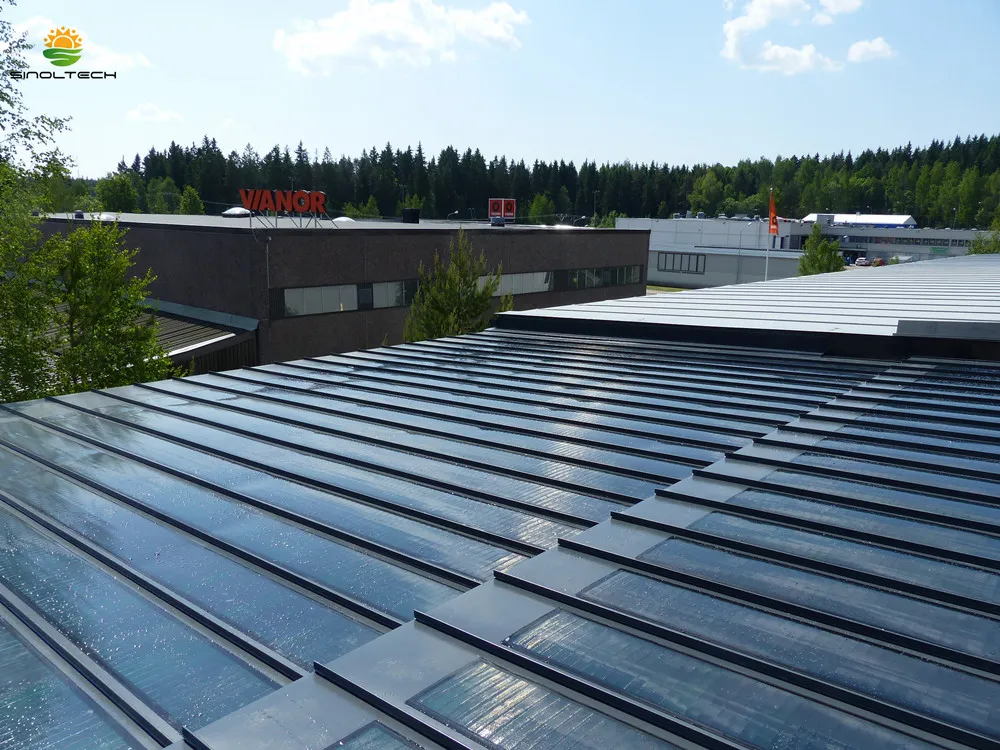

Application 2

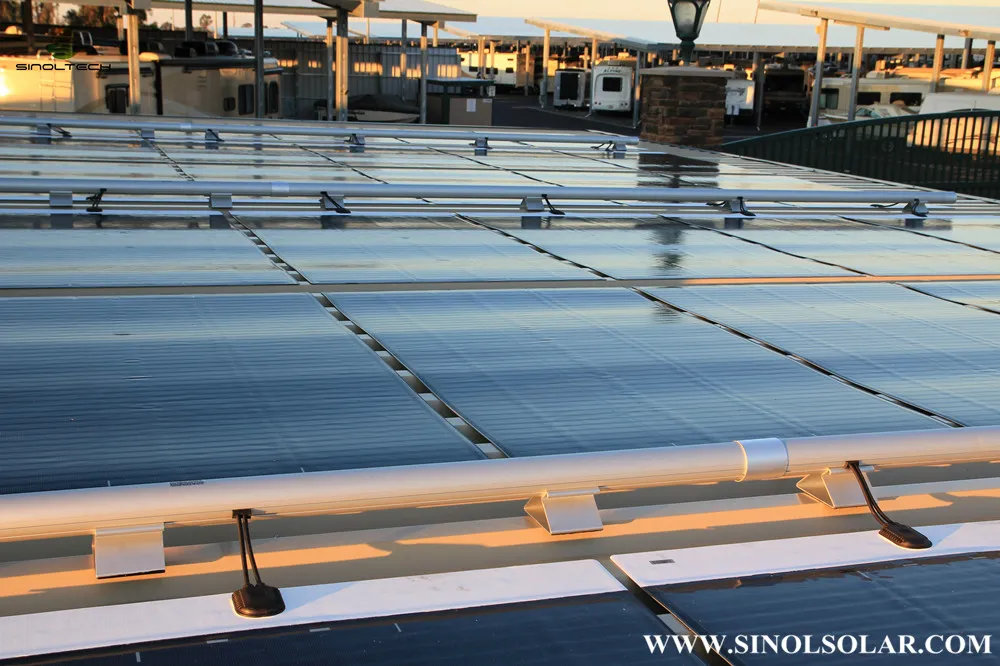

Application 3

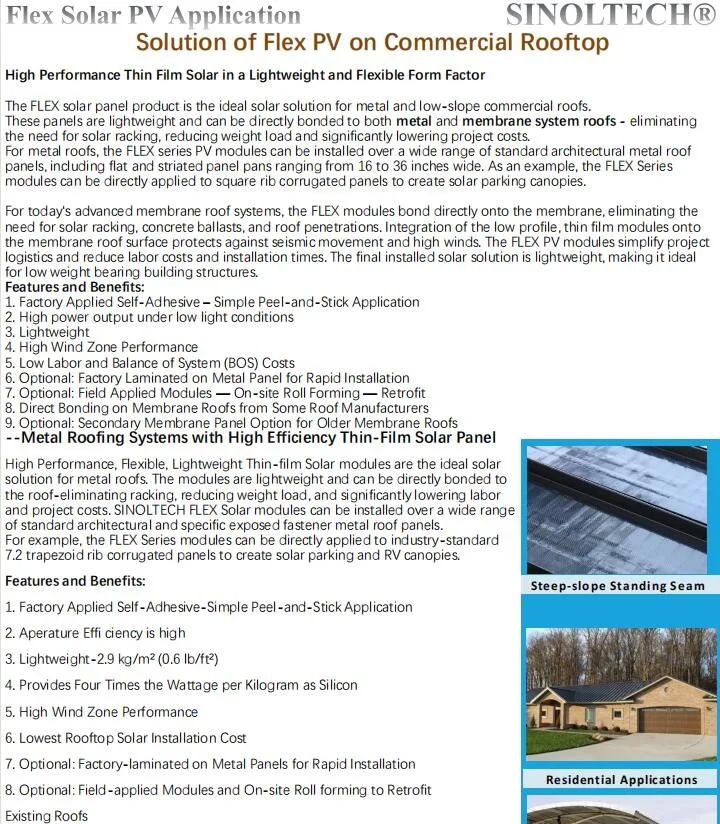

Application 4

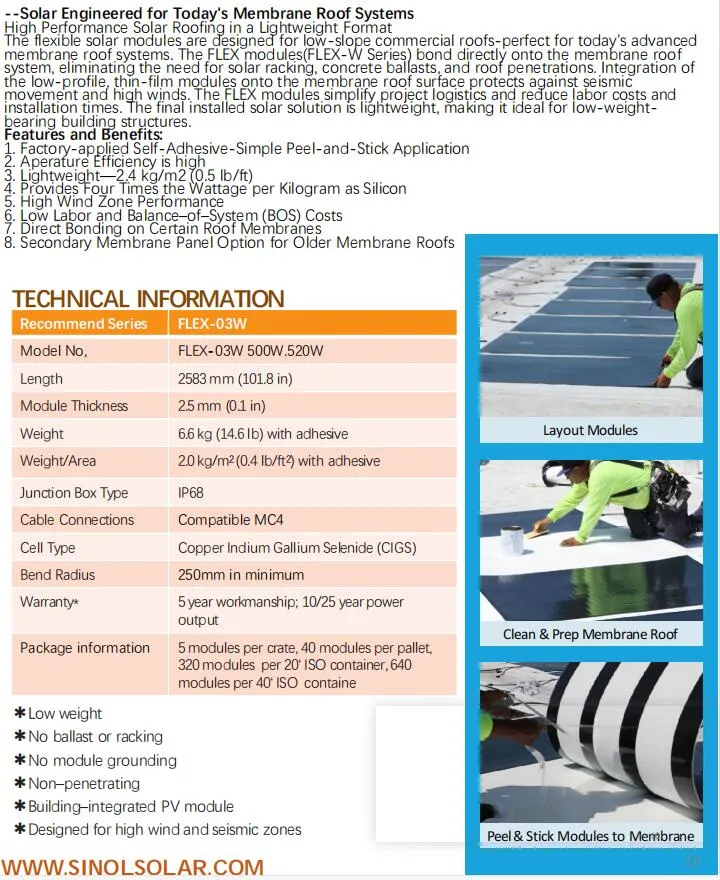

Application 5

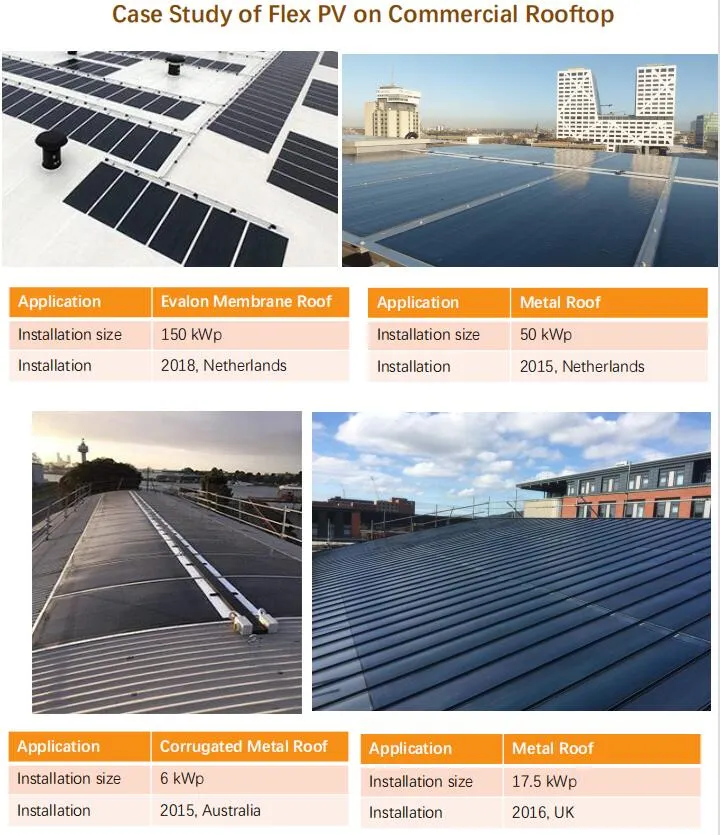

Application 6

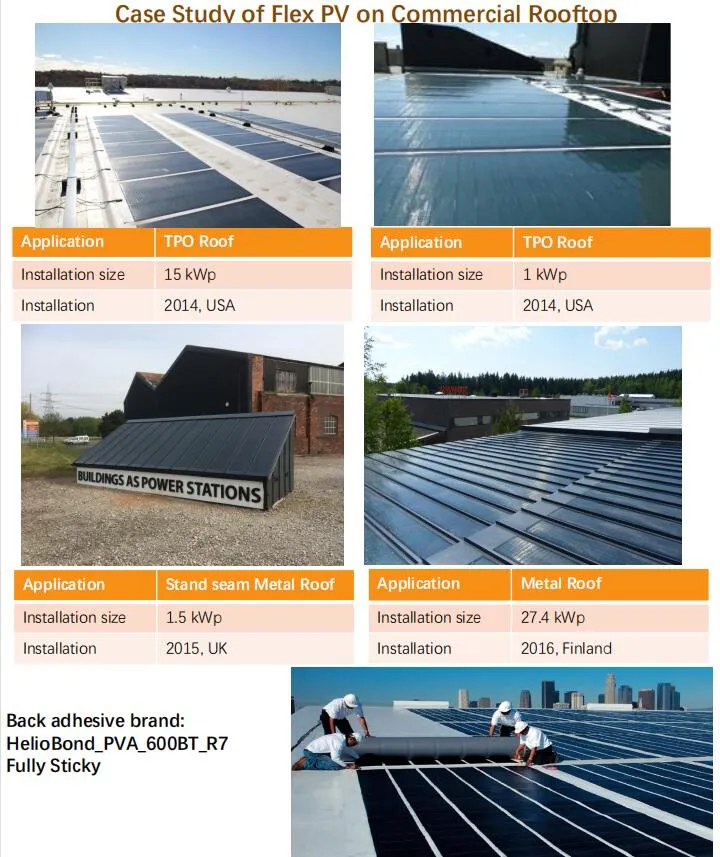

Application 7
❓ Frequently Asked Questions
What makes CIGS technology better than traditional silicon?
CIGS (Copper Indium Gallium Diselenide) technology allows for flexible, thin-film modules that are significantly lighter and more adaptable than rigid glass panels while maintaining high aperture efficiency.
How is the flexible solar panel installed?
These modules feature a "peel-and-stick" adhesive application, which means no racking, ballast, or roof penetrations are required, reducing installation time and complexity.
Can these panels be used on curved surfaces?
Yes, the FLEX series modules are designed to conform to curved surfaces, making them perfect for RVs, trucks, and unique architectural structures.
Are these panels durable in extreme weather conditions?
Absolutely. They are shatterproof and provide excellent wind and seismic resistance. The multi-layer plastic water barrier protects the cells from environmental erosion.
What is the weight of these modules?
The modules are extremely lightweight, weighing less than 2.4 kg/m², which is less than 0.5 lb/ft², making them ideal for load-sensitive rooftops.
What kind of warranty is offered with the FLEX series?
The product comes with a 5-year workmanship warranty and a 10/25 year warranty against power loss.
