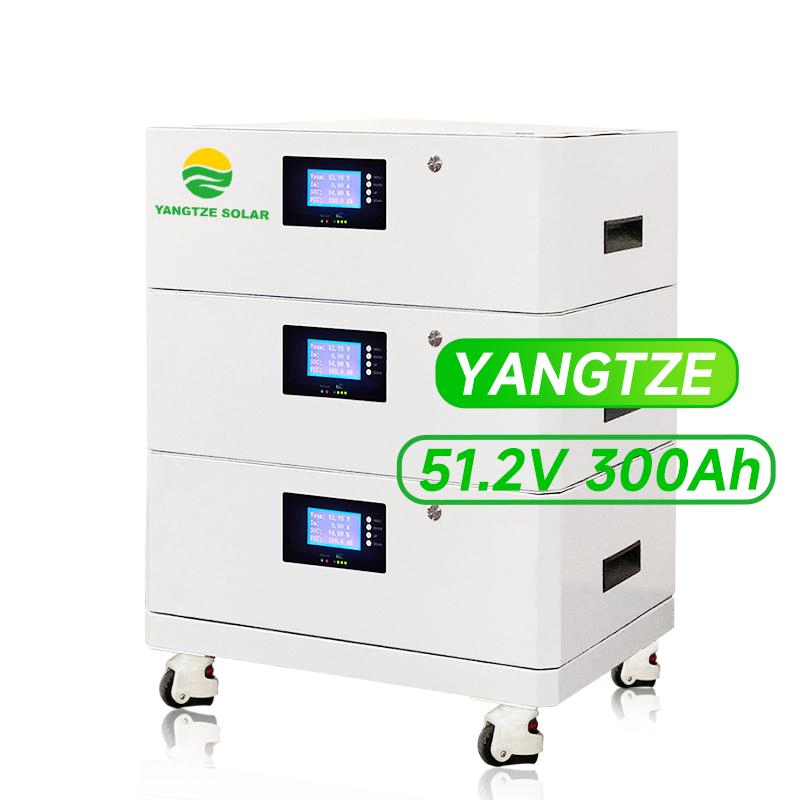

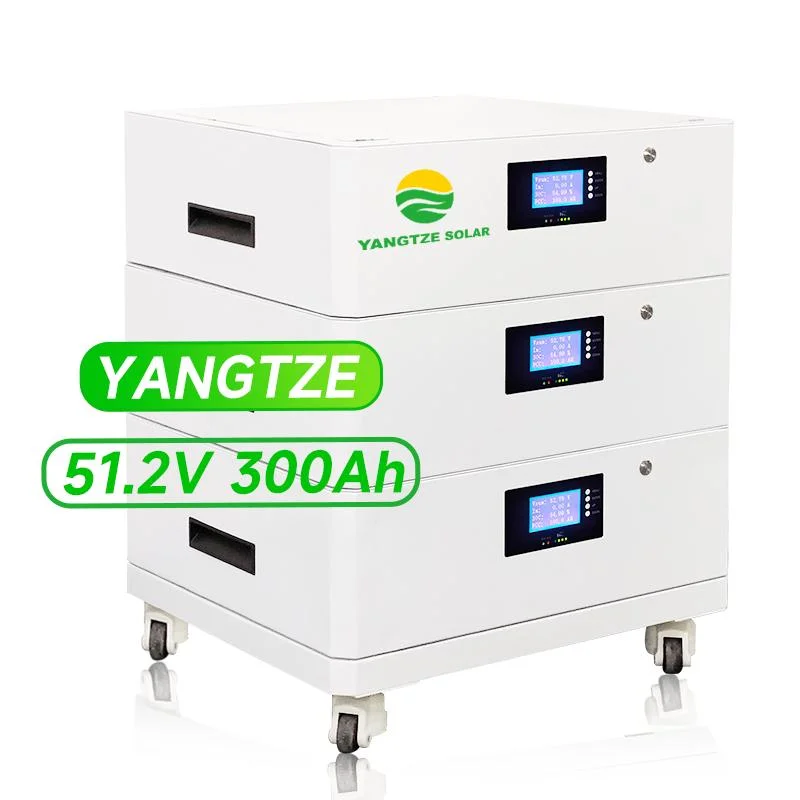

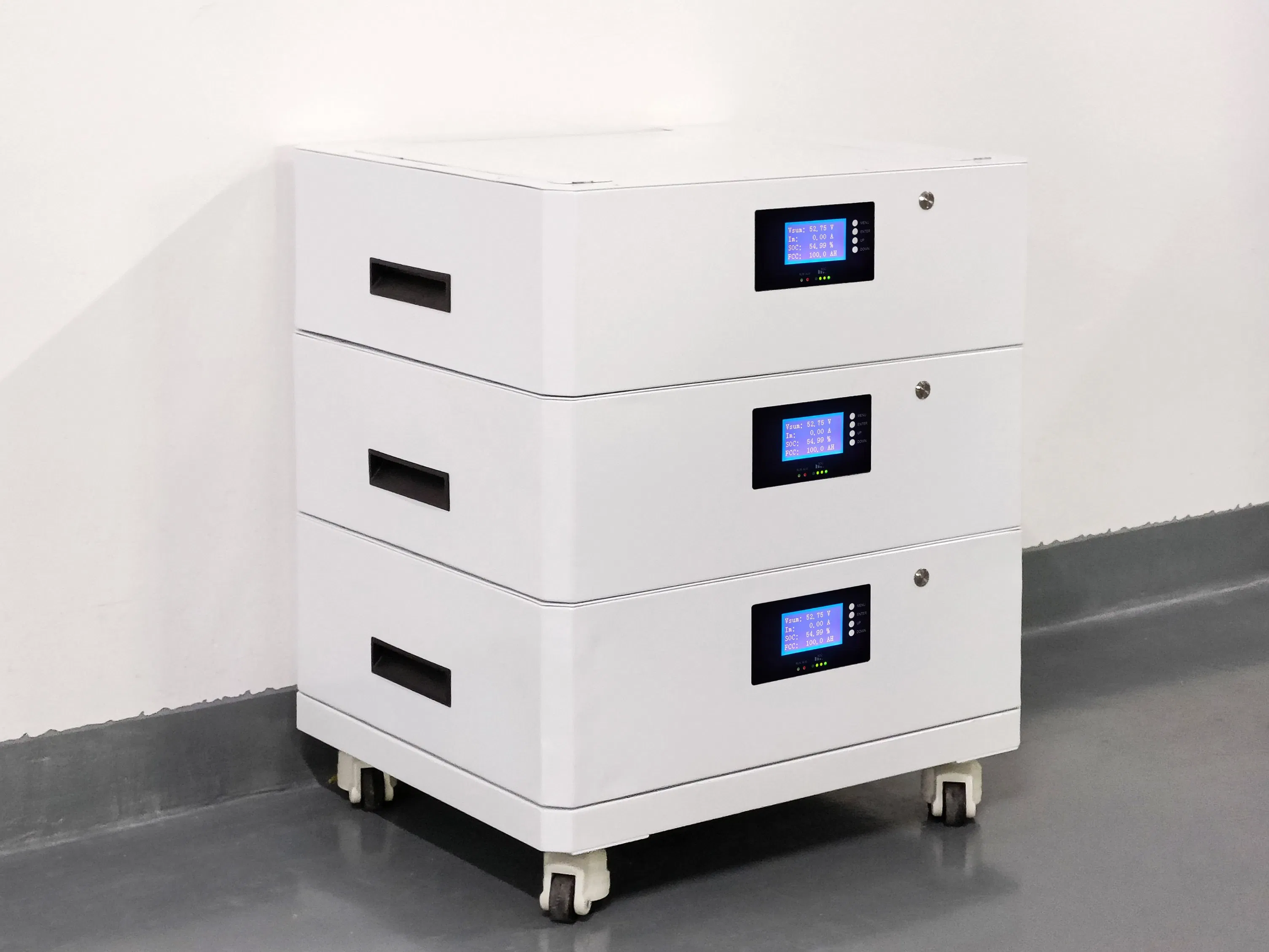

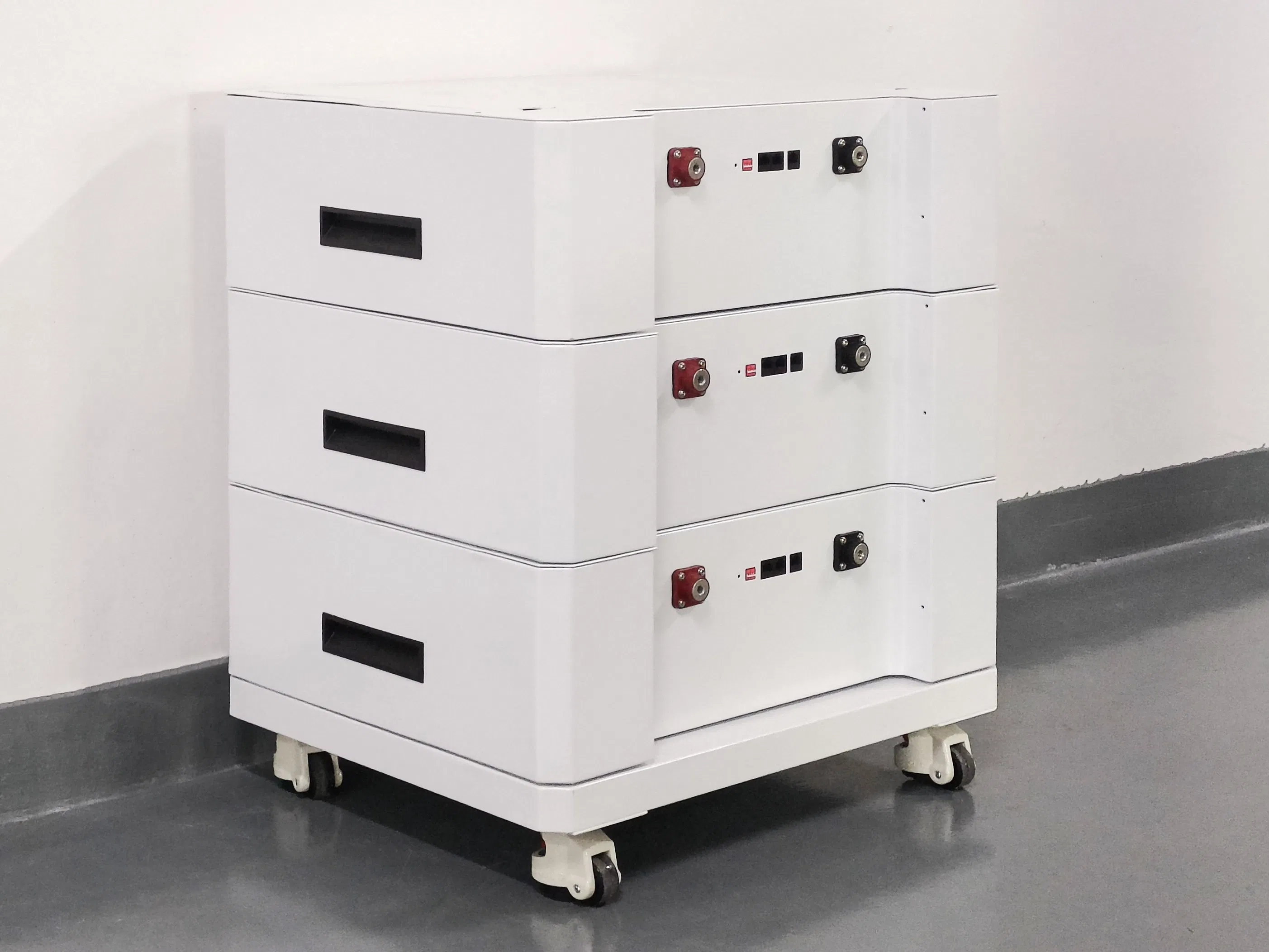

Yangtze Energy Storage Solar Battery LiFePO4 48V 300ah Lithium Ion Battery Pack

1 / 5

Yangtze Energy Storage Solar Battery LiFePO4 48V 300ah Lithium Ion Battery Pack

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LFeLi-48300S

Nominal Voltage

48V

Discharge Rate

Medium Discharge Rate

Shape

Square Battery

Electrolyte

Li-ion

Installation

Fixed

Rechargeable

Chargeable

Certificate

CE/RoHS/ISO9001/ISO14001/IEC60896/IEC61427

Maintenance

Free

Warranty

5 Years

Terminal

Copper

OEM Order

Acceptable

Color

White / Black

Production Capacity

200000 Pieces/Year

Product Description

Energy Storage Solar Battery LiFePO4 48V 300ah

◈

Longer Cycle Life: Up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.

◈

Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in" replacement.

◈

Higher Power: Delivers twice the power of lead acid battery, even at high discharge rates.

◈

Wide Temp Range: Reliable operation from -20ºC to 60ºC.

◈

Superior Safety: Lithium Iron Phosphate chemistry eliminates risk of explosion or combustion.

Main Applications:

✔ Wheelchairs and scooters

✔ Solar/wind energy storage

✔ Back-up power for small UPS

✔ Golf trolleys & buggies

✔ Electric bikes

Technical Parameters
Electrical Characteristics	Nominal Voltage	51.2V
	Nominal Capacity	300Ah
	Energy	15360Wh
	Internal Resistance(AC)	≤20mΩ
	Cycle Life	>3500 cycles @ 1C 80% DOD
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @1C
Standard Charge	Charge Voltage	58.4±0.2V
	Charge Mode	0.2C to 58.4V, then 58.4V, current to 0.02C(CC/CV)
	Charge Current	100A
	Max. Charge Current	100A
	Charge Cut-off Voltage	59.4±0.2V
Standard Discharge	Continuous Current	100A
	Max.Pulse Current	200A(<3s)
	Discharge Cut-off Voltage	40V

● Battery factory founded in 1996 with 2 million annual production capacity.

● Extensive range including VRLA, Gel, Lithium, Deep Cycle, and OPzV/OPzS batteries.

● Certified by CE, RoHS, and ISO standards.

● Global export reach to more than 150 countries.

Frequently Asked Questions

❓ What is the lifespan of this 48V 300Ah Lithium battery?

The battery offers over 3,500 cycles at 80% Depth of Discharge (DOD), which is significantly longer than traditional lead-acid alternatives.

❓ Can I use this battery in cold environments?

Yes, the discharge temperature range is from -20ºC to 60ºC, making it suitable for various climatic conditions.

❓ Is this battery a direct replacement for lead-acid batteries?

Yes, it is designed as a "drop-in" replacement, being approximately 40% lighter while offering twice the power of a comparable lead-acid battery.

❓ What safety protections does the battery have?

It utilizes Lithium Iron Phosphate (LiFePO4) chemistry, which inherently eliminates the risk of explosion or combustion from high impact or overcharging.

❓ What is the warranty period for this product?

This model comes with a standard 5-year warranty, ensuring long-term reliability and support.

❓ Is the battery maintenance-free?

Yes, this is a maintenance-free Li-ion battery system designed for fixed installations and ease of use.
