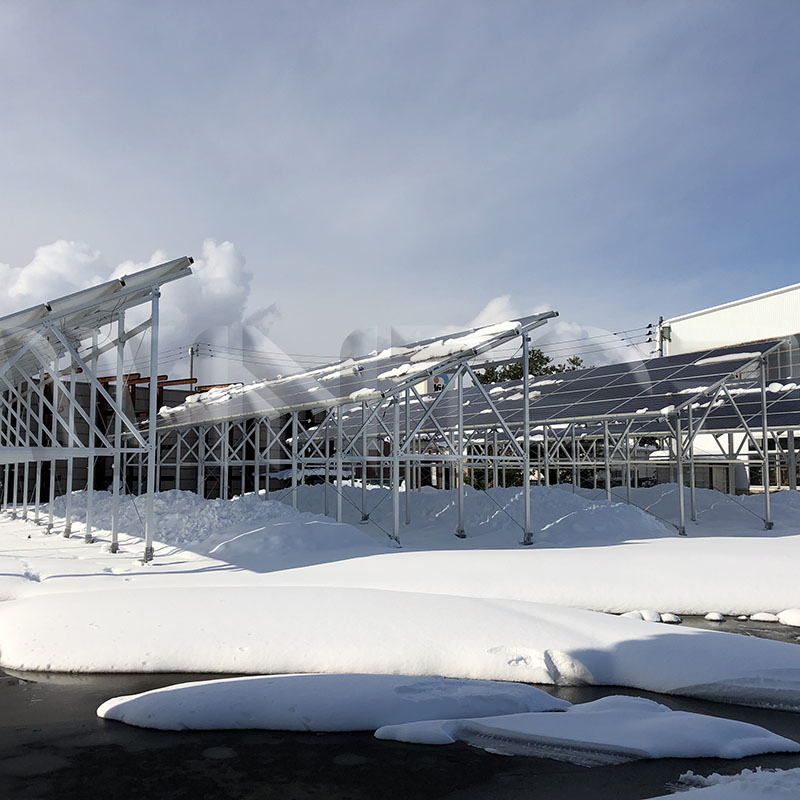

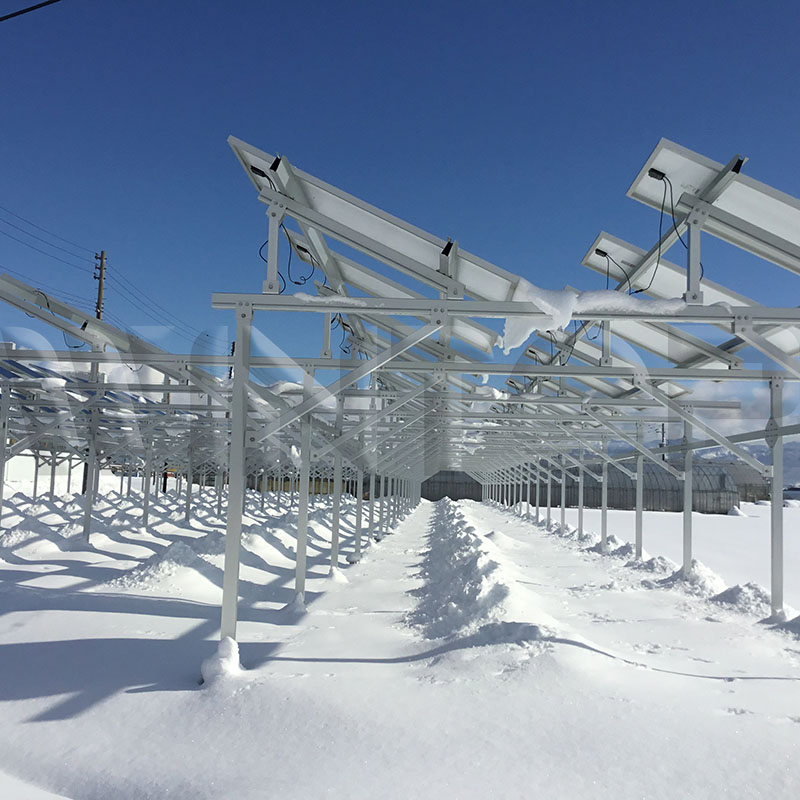

Solar Ground Mount Installation System for Agriculture

1 / 4

Solar Ground Mount Installation System for Agriculture

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Agricultural Installation System

Certification

ISO, CE

Application

Commercial

Material

Aluminum Alloy

Type

Ground Bracket

Install Site

Open Terrain

Orientation

Landscape, Portrait

Anti-Corrosive

Anodized

Max Wind Speed

60m/S

Max Snow Load

1.6kn/M²

Duration

More Than 20 Years

Product Description

Solar Ground Mount Installation System For Agriculture

Aluminum ground screw solar mounting system wide installation, suitable for various soils such as sandy soil and loamy soil. Ground-mounted solar panels can be installed in any place with enough open space and good sunlight. The panel can be placed anywhere from a few inches to a few feet above the ground, depending on how the bracket system is set up.

Product Parameters

Installation location	Ground
Installation foundation	Ground Screw
Installation angle	Up to request
Wind load	60m/s (216kmh/133mph)
Snow load	1.4KN/m²
Applicable module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation	Horizontal, Vertical
Design standard	AS/NZS1170, JIS C 8955-2017
Bracket material	AL6005-T5(Anodized Oxidation)
Fastener Material	Stainless steel SUS304
Warranty & Duration	10 years & More than 20 years

Features & Benefits

1. Light weight, easy transportation & installation and safe construction.

2. The surface is treated by oxidation, high corrosion resistance & good stability.

3. Suitable for various designs and solutions.

4. The maximum pre-assembly, save construction time and labor cost.

5. Wide installation, suitable for various soils such as sandy soil and loamy soil.

6. Environmental protection, suitable for variety of geological conditions. Durable and recyclable.

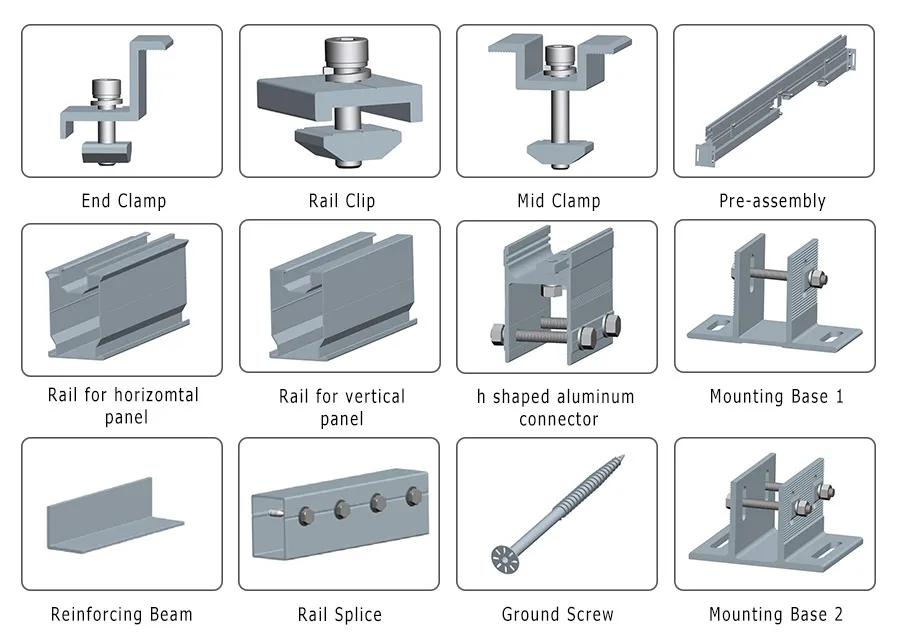

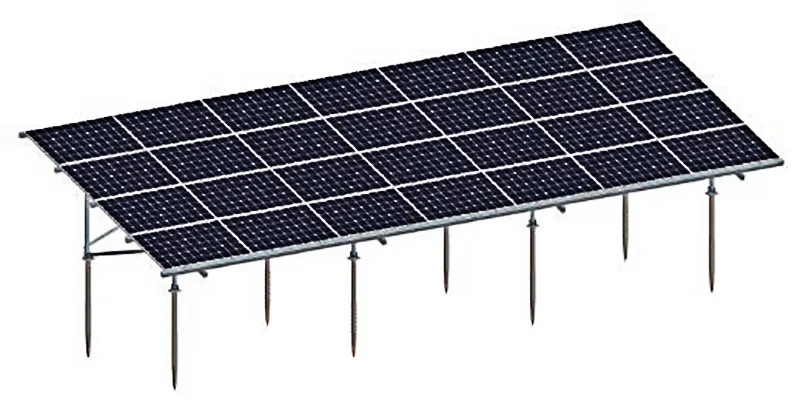

Product Components

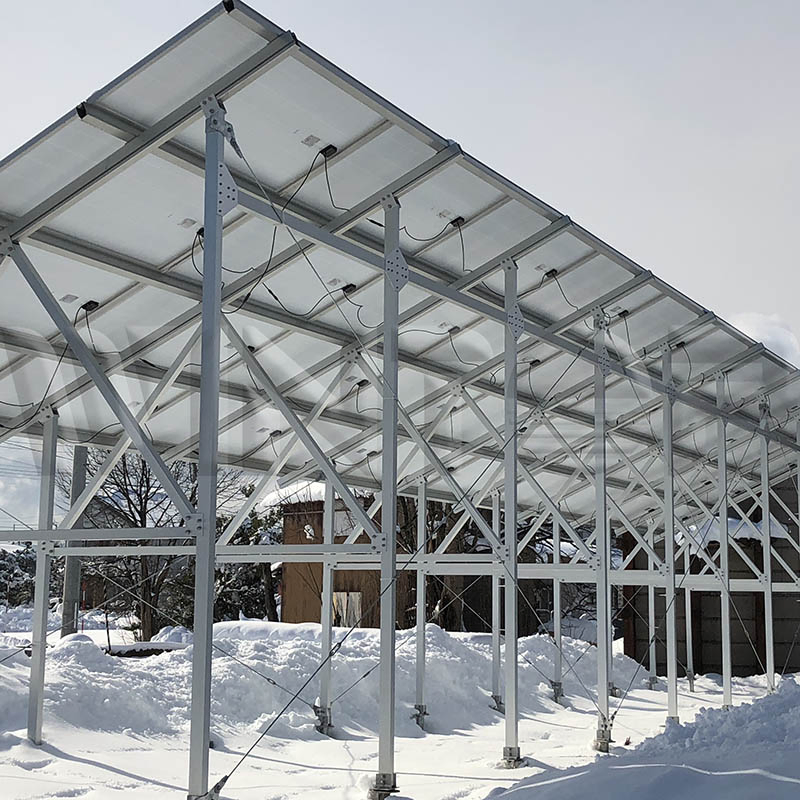

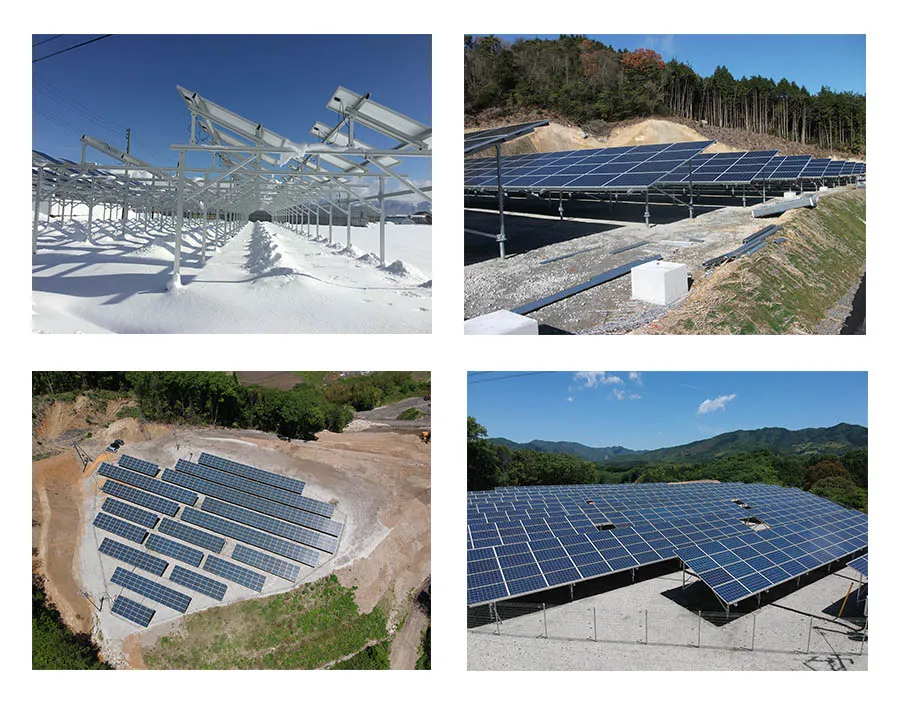

Project Showcase

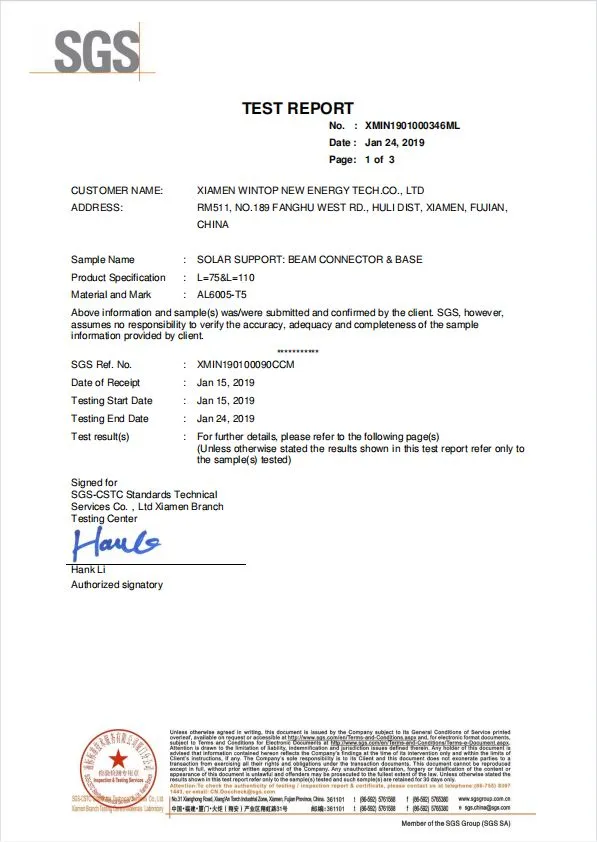

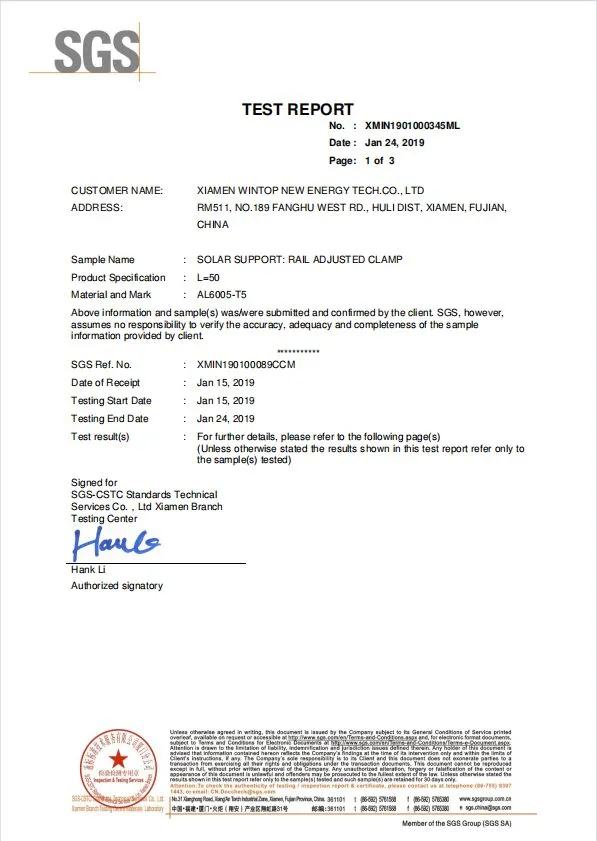

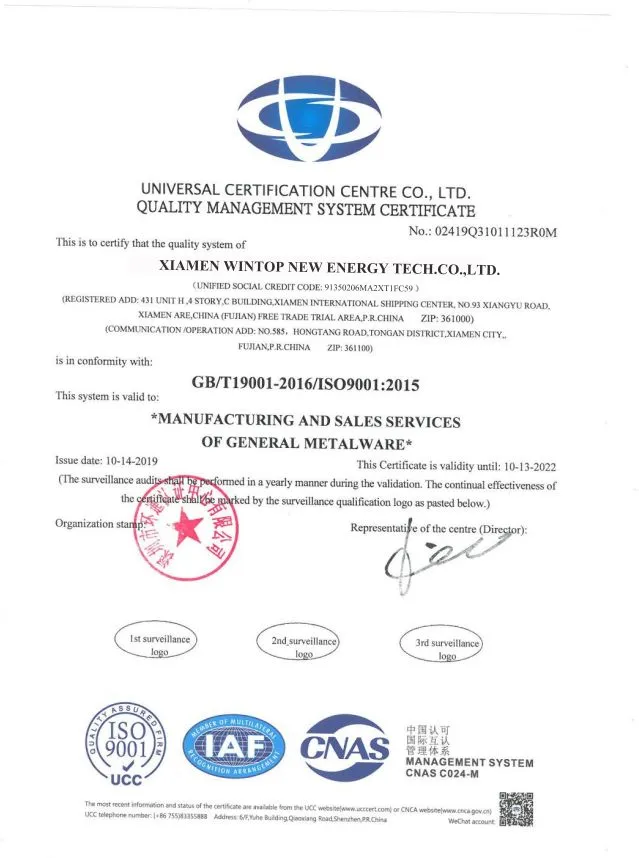

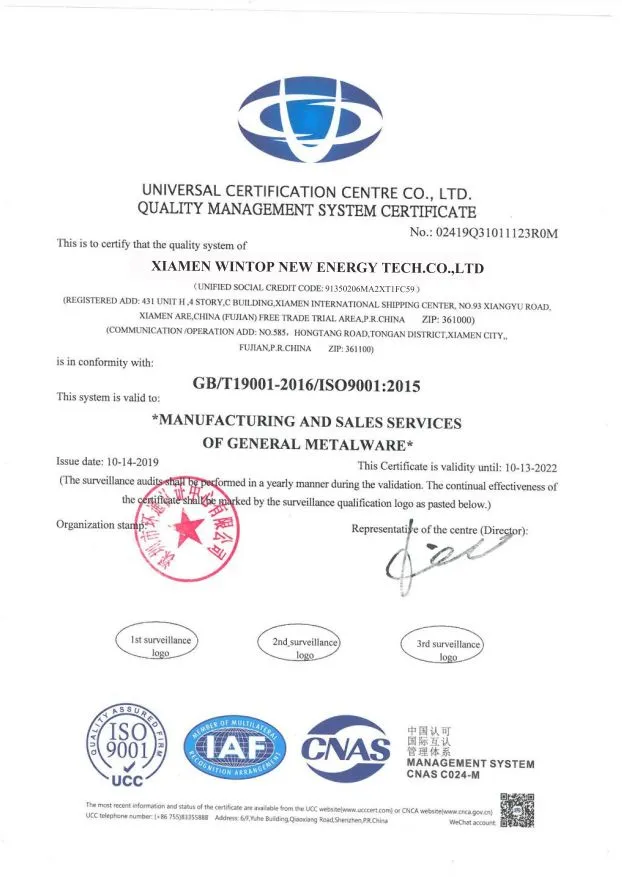

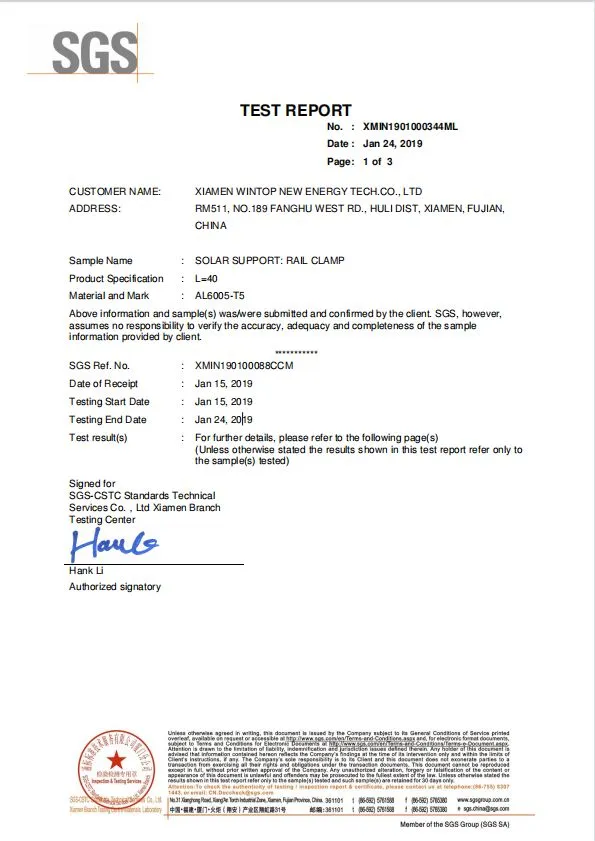

Certifications

Profile

Established in 2016, we are a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting Systems for residential, commercial and utility scale customers.

Frequently Asked Questions

What materials are used for the mounting brackets?

The brackets are primarily made of AL6005-T5 Aluminum Alloy with an anodized surface for high corrosion resistance, and fasteners are made of SUS304 stainless steel.

Is this system suitable for high wind and snow load areas?

Yes, the system is designed to withstand wind speeds up to 60m/s and snow loads up to 1.6kn/m², meeting AS/NZS1170 and JIS C 8955-2017 standards.

Can the system be installed on different types of soil?

Absolutely. The aluminum ground screw mounting system is designed for wide installation versatility, making it suitable for sandy soil, loamy soil, and various other geological conditions.

What is the expected lifespan and warranty of the product?

The product is designed for a duration of more than 20 years, and we offer a 10-year warranty on the mounting system components.

Are samples available for testing?

Yes, we provide samples for quality verification. Minimum order quantities start from 1 set. Shipping costs for samples are generally covered by the requester.

How does the pre-assembly feature help during installation?

Most components are pre-assembled before shipment, which significantly reduces on-site construction time and labor costs while ensuring higher safety during installation.
