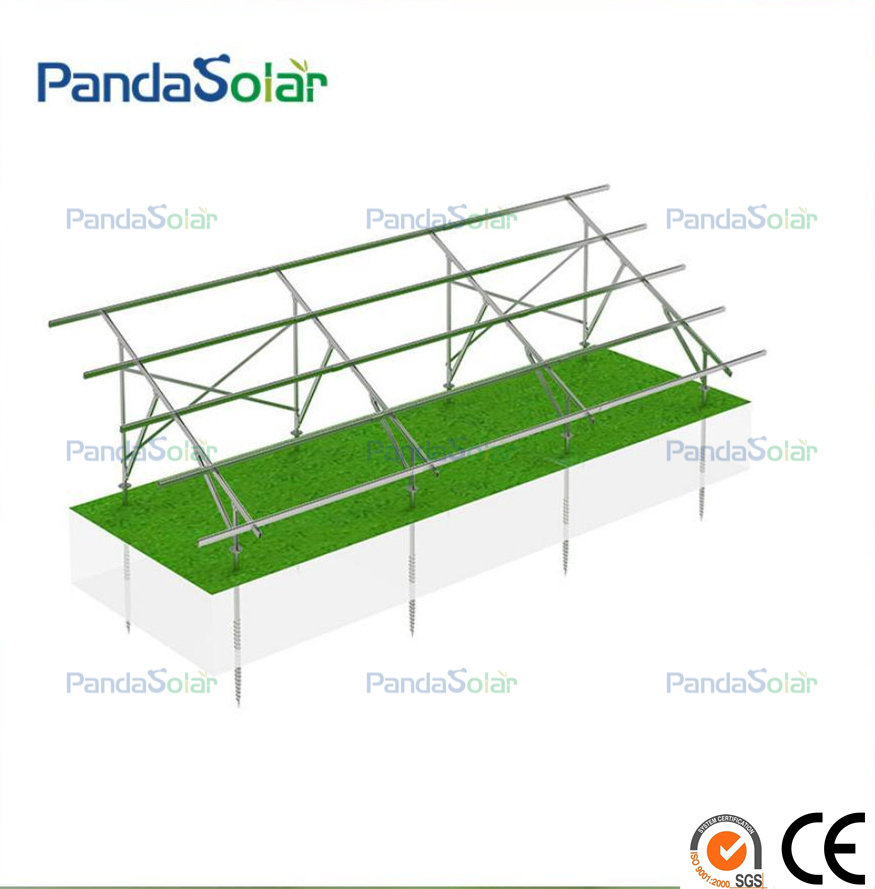

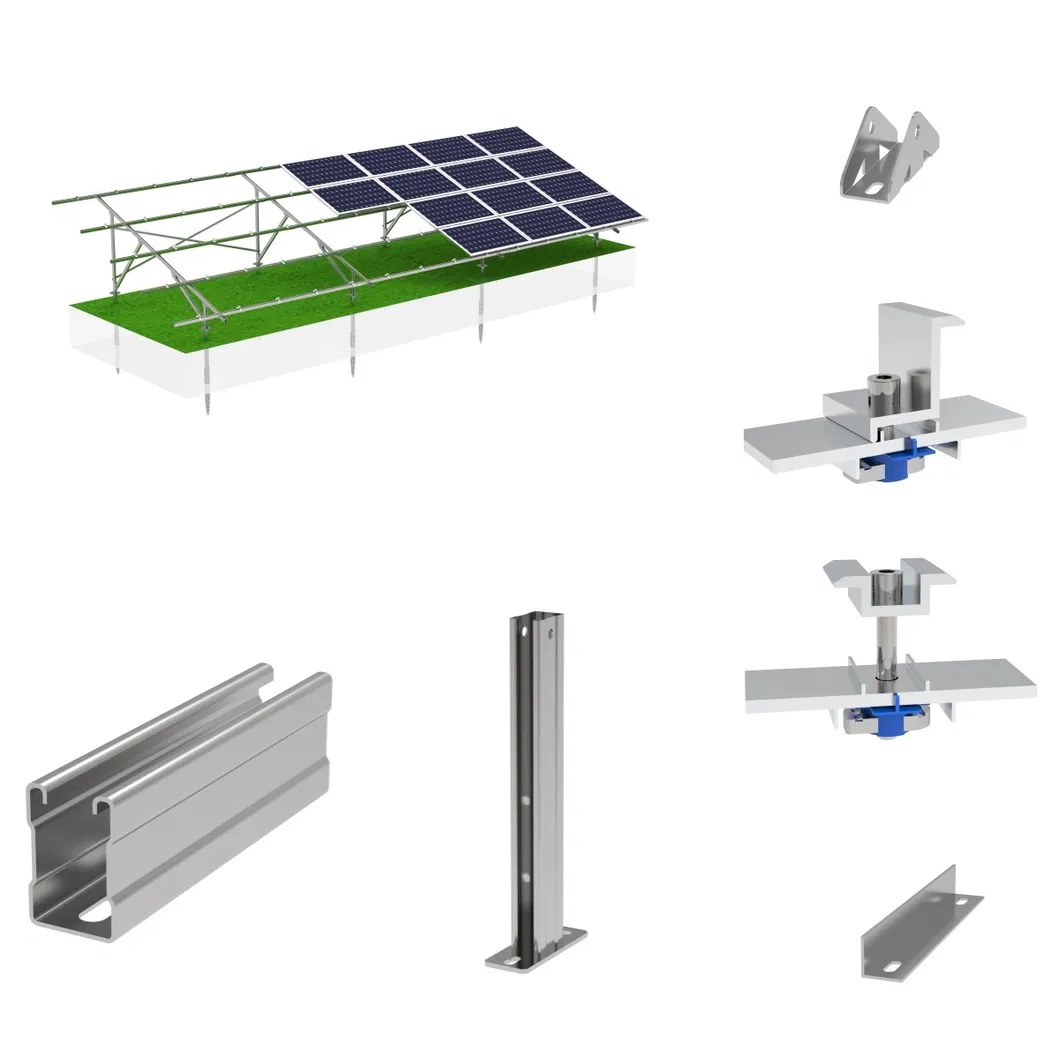

Customizable Solar Ground Mounting Solution
GM3 is an HDG solar ground structure design made of fully hot-dip galvanized steel. The thickness of hot-dip galvanizing reaches 80μm, which meets the environmental conditions of most countries. The structural frame has continuous rows of holes, providing large installation fault tolerance and simple construction, greatly reducing costs.
Structural Features:
Our Advantages:

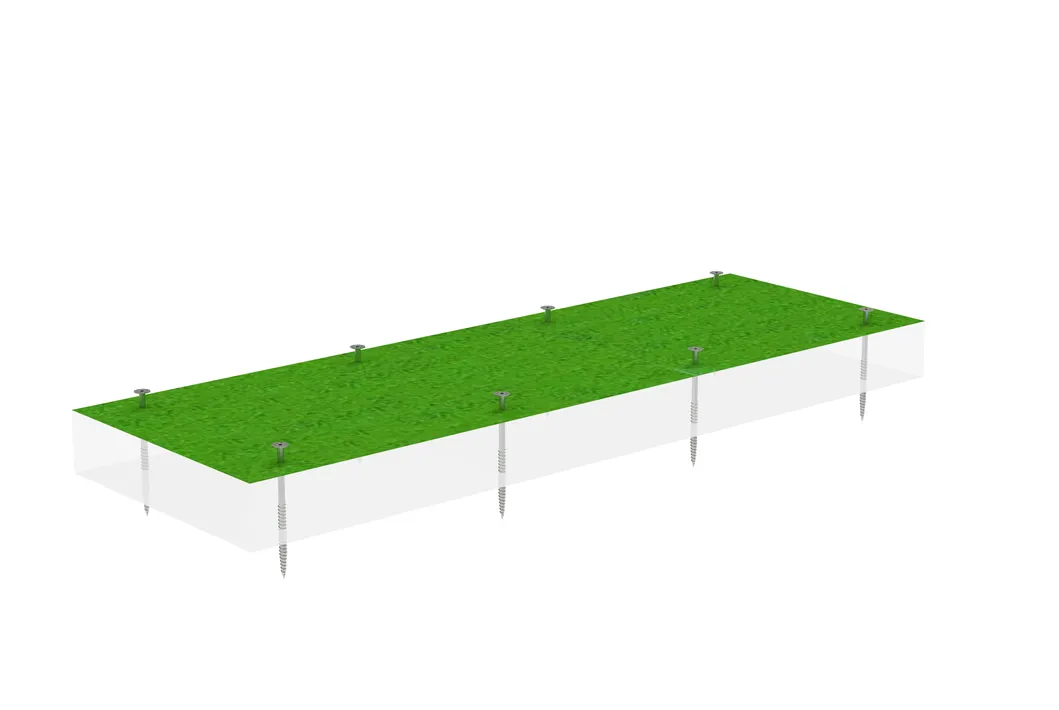

Install the ground anchor screw into the suitable point and keep on a parallel line.

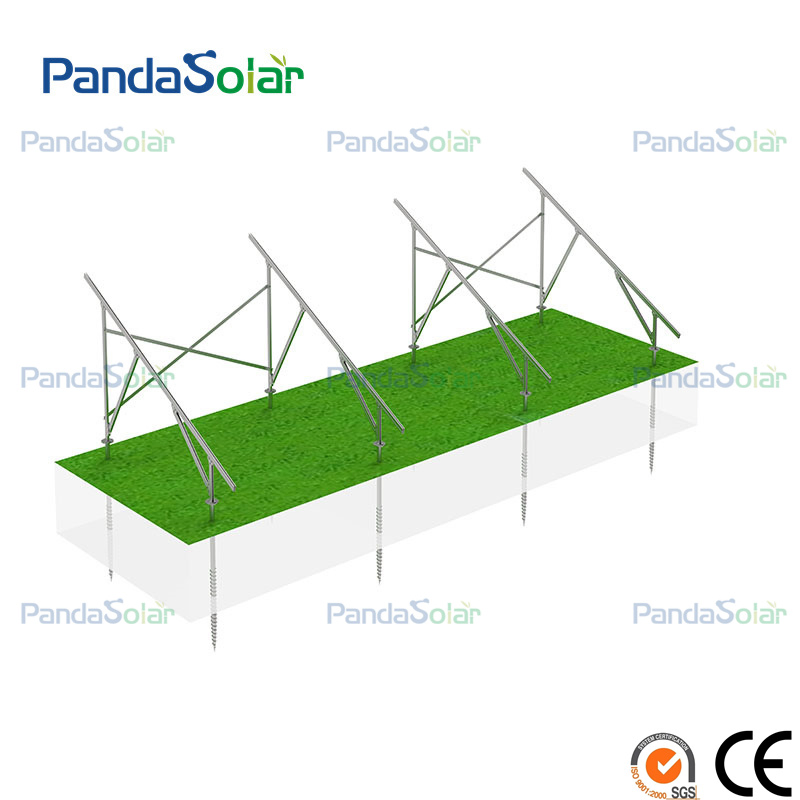

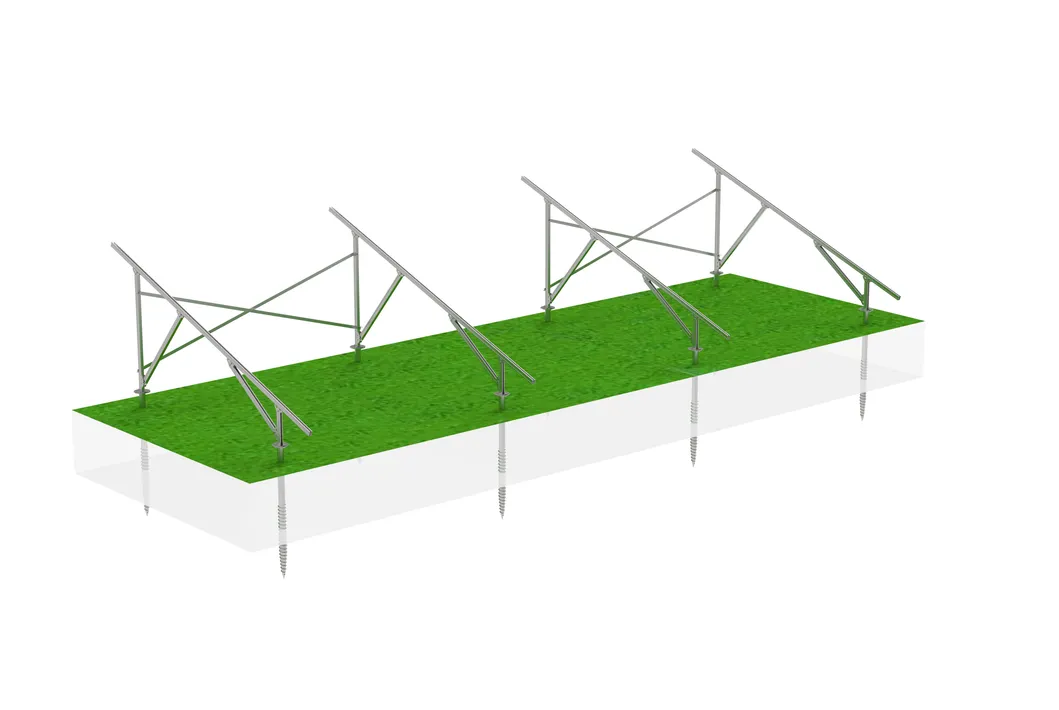

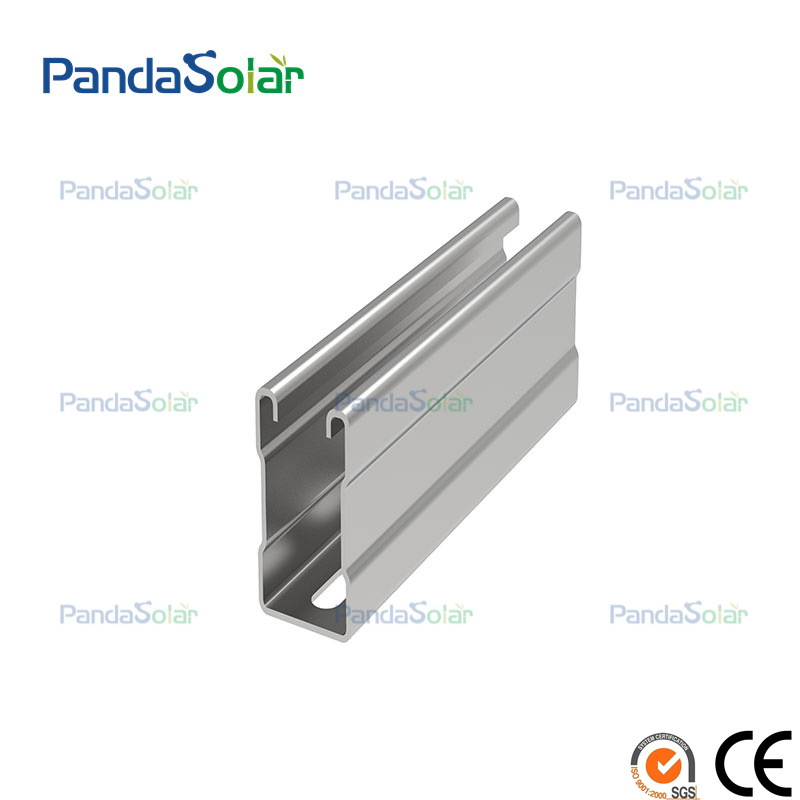

Install U profile column, diagonal brace and beam on the suitable position by matched connector.

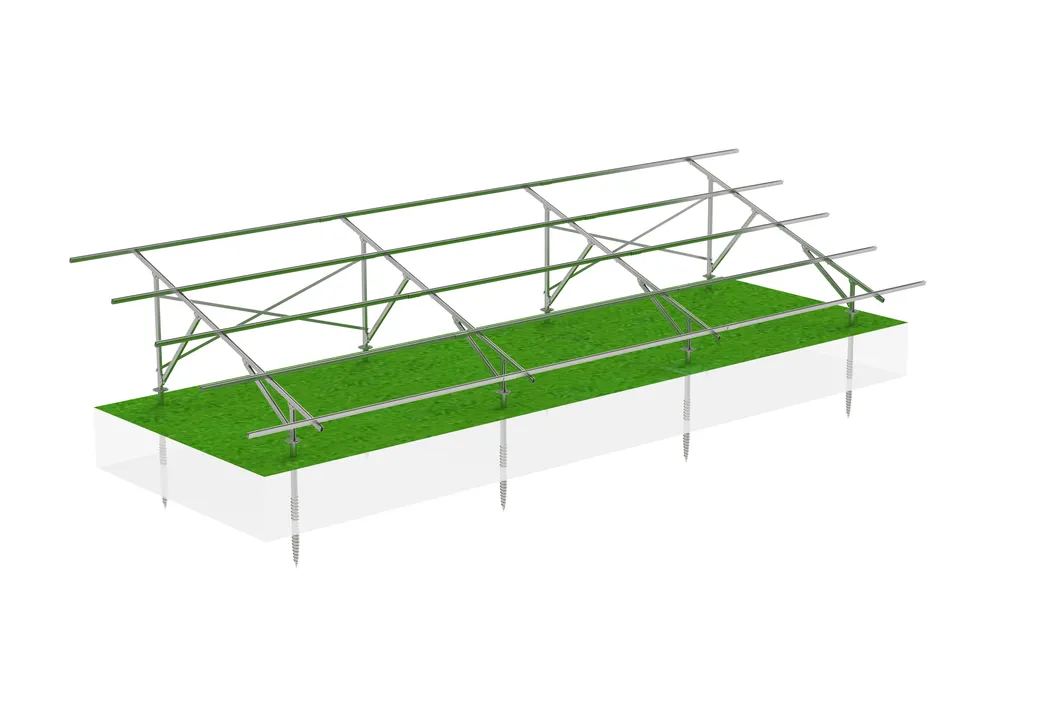

Install solar rails on the beam and fasten by hexagon bolt and nut.

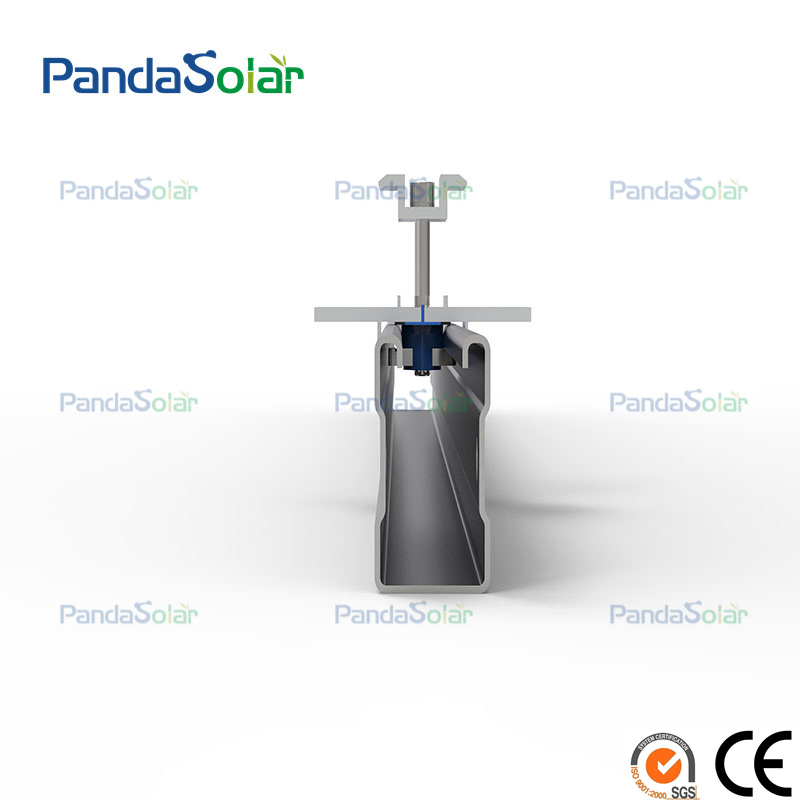

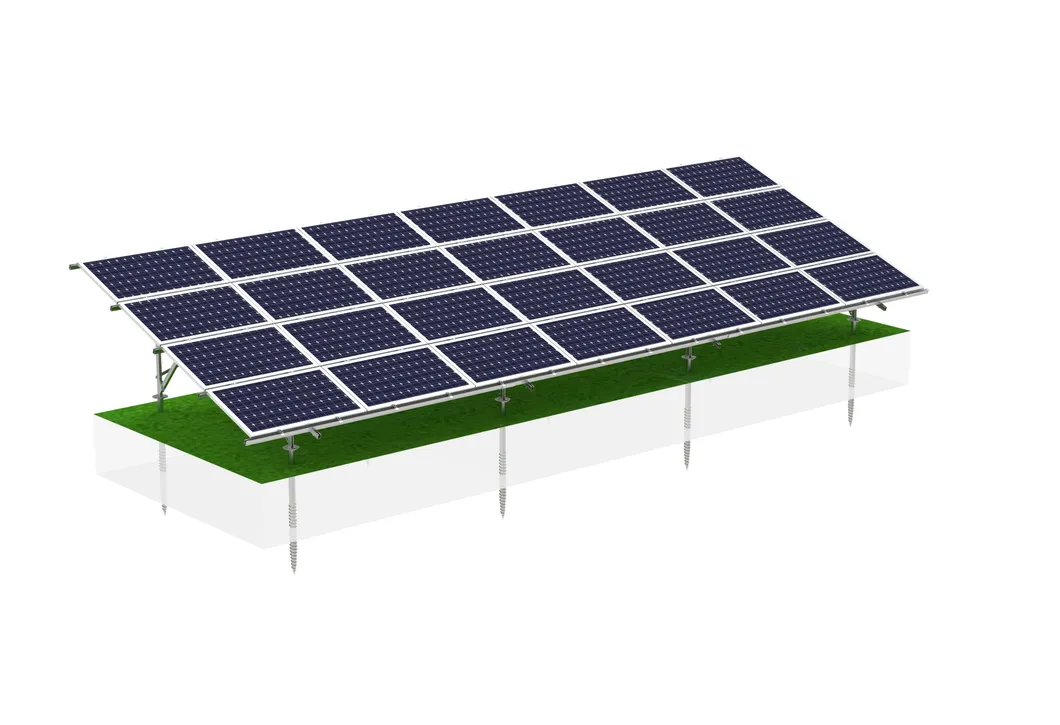

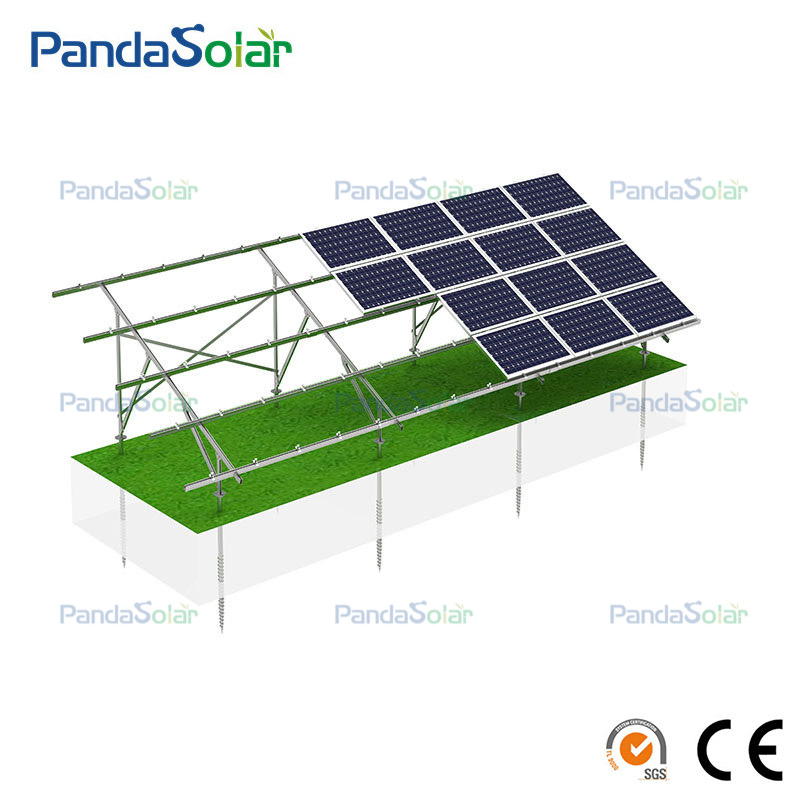

Install solar panels on the rails and fixed by solar mid clamps and end clamps.
| Parameter | Specification |
|---|---|
| Material | Structure: Q235B (HDG); Components: AL6005-T5, SUS304 |
| Surface Treatment | Hot DIP Galvanized |
| Wind Speed | 0-45 m/s |
| Snow Load | 0-150 cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |
| Service Life | 30 years |

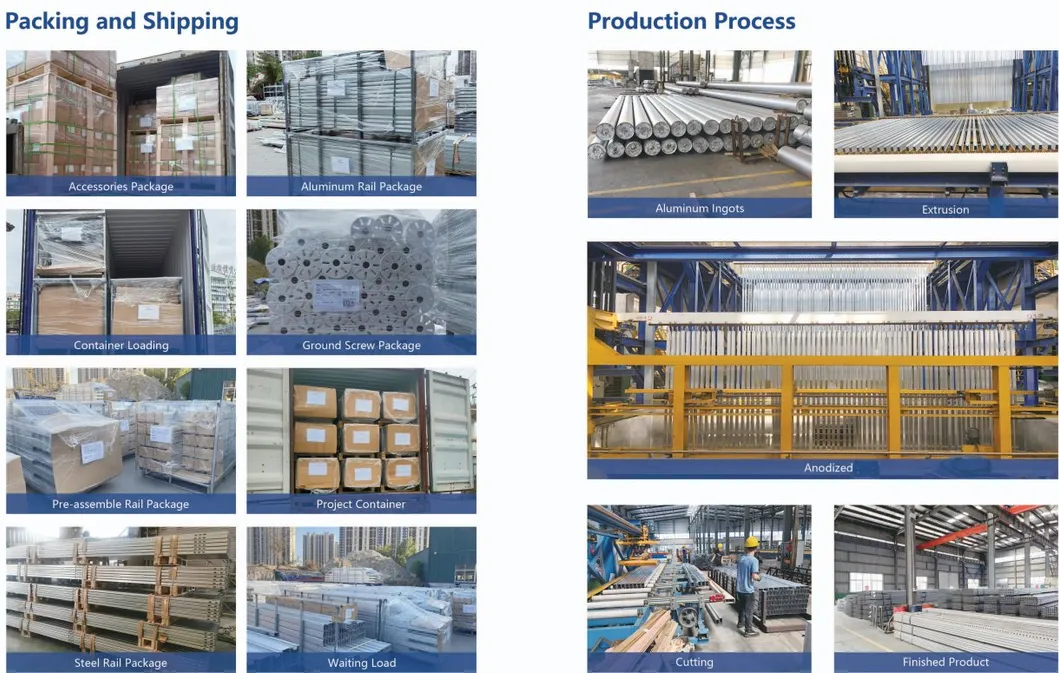

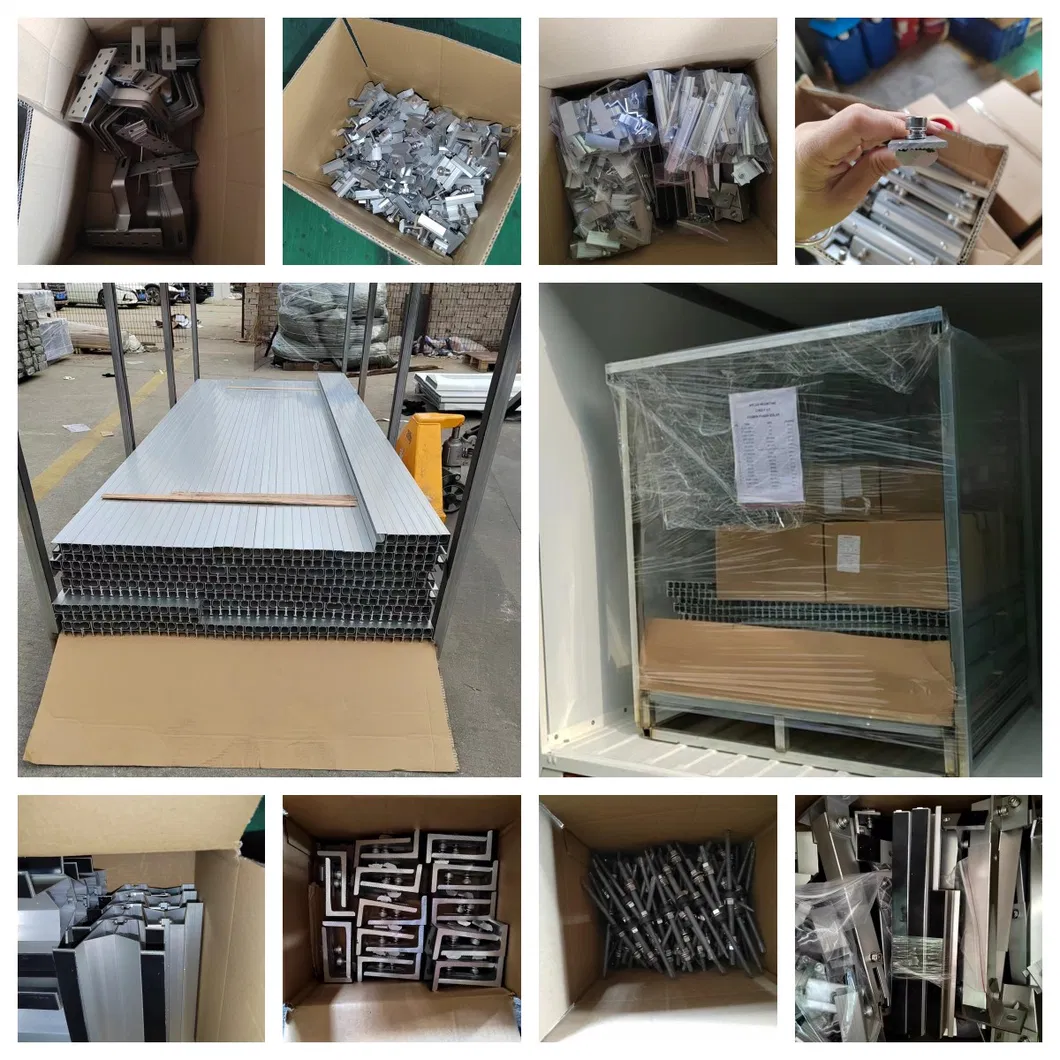

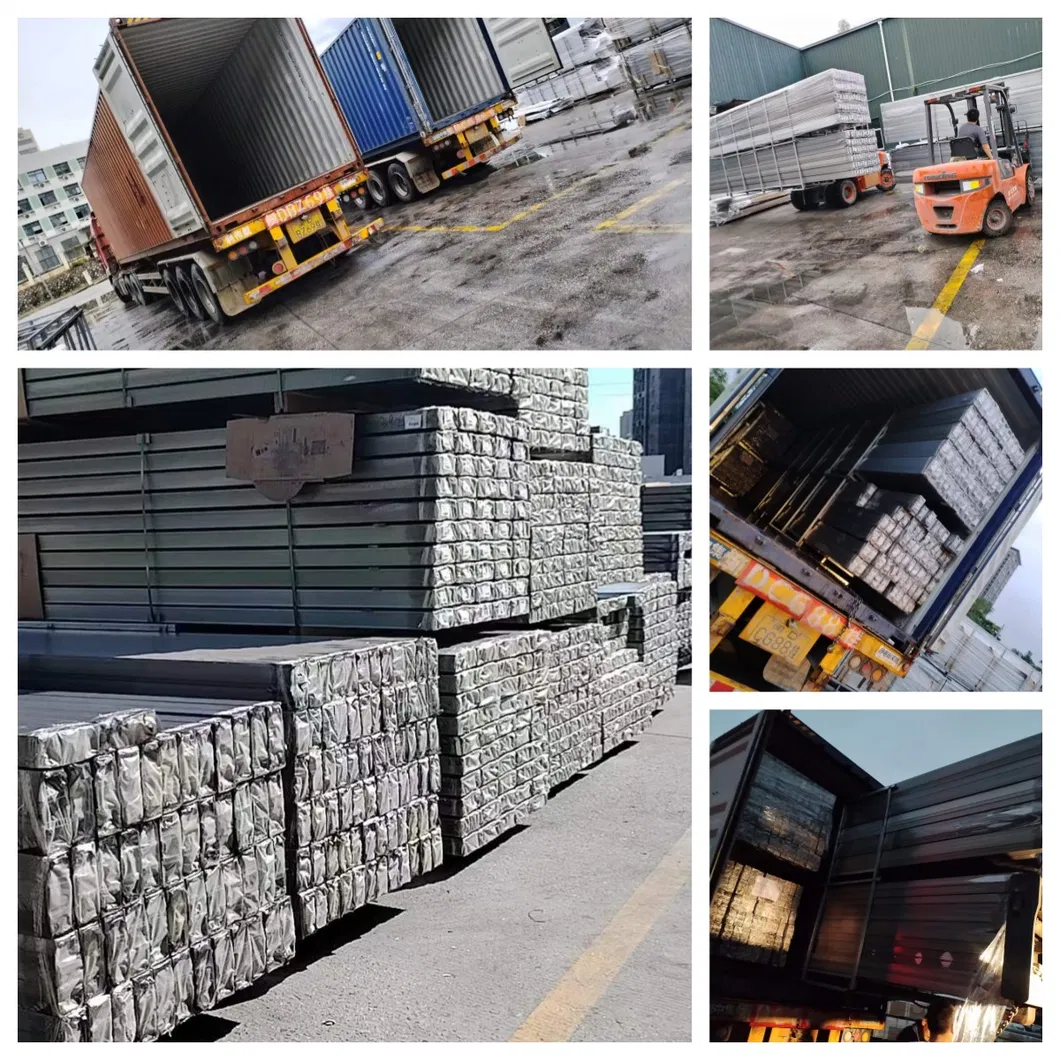

Each item is packed in cartons, and several cartons are packed on steel plates. Our experienced personnel ensure safe transportation across the ocean.
We have professional workshops for aluminum and steel material processing, including cutting, drilling, stamping, and forging, with a productivity of 40-50MW per month.
Established in 2019, we are committed to developing solar clean energy mounting systems, including ground, agriculture greenhouse, tile roof, metal roof, and carport mounting solutions. As a specialized manufacturer, we offer stringent quality control, customization options, and technical support directly from our factory.
