C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
1 / 5
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure
C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure

C-Steel Ground Mount Solar Racking System Ground PV Module Support Mounting Structure

Customization: Available
After-sales Service: Free Replacement Parts Provided
Warranty: Ten Years Warranty
Send Inquiry

Product Description

i

Basic Information

Model NO.:WHS-C-Steel Ground
Condition:New
Certification:ISO, CB, CE
Application:Home, Industrial, Commercial
Solar Panel Type:Monocrystalline Silicon
Wind Load:60m/S
Material:Anodized Aluminum & Galvanized Steel
Installation Angle:10deg-60deg
Installation Site:Open Ground
Snow Load:1.4kN
C-Steel Ground Mount Solar Racking
Ground PV Module Support
D

Product Description

C-Steel Ground Mounting System

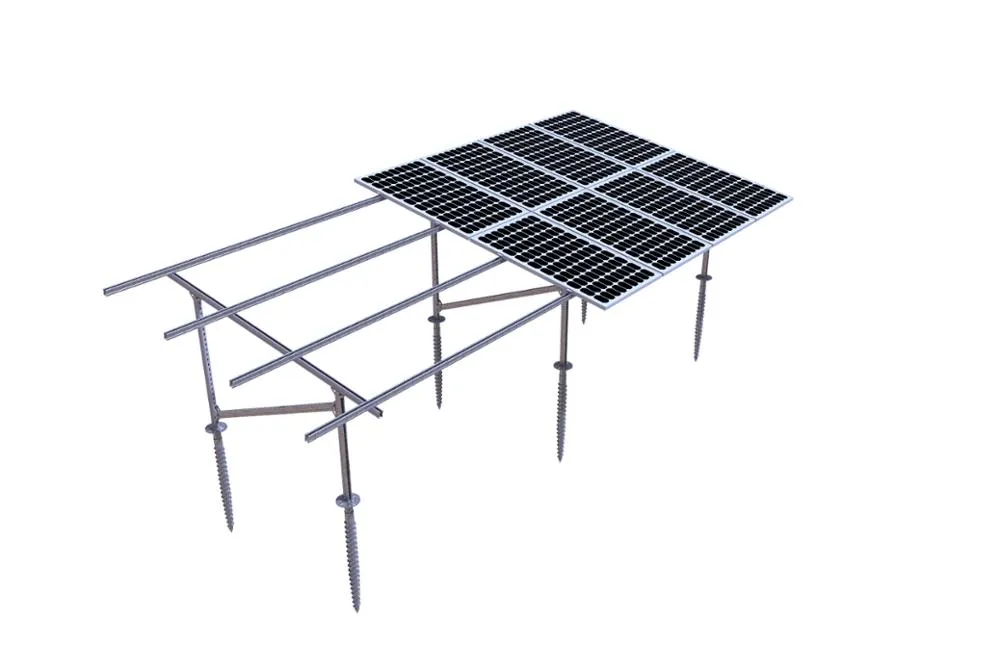

C-Steel System Overview
S

Technical Specification

Install SiteLow profile roof or open field
Tilt Angle10deg-60deg
Building HeightUp to 20m
Max Wind SpeedUp to 60m/s
Snow LoadUp to 1.4KN/m2
StandardsAS/NZS 1170 & DIN 1055 & Others
MaterialAnodized aluminum & Galvanized steel
Anti-corrosiveAnodized & Galvanized
WarrantyTen years warranty
DurationMore than 20 years

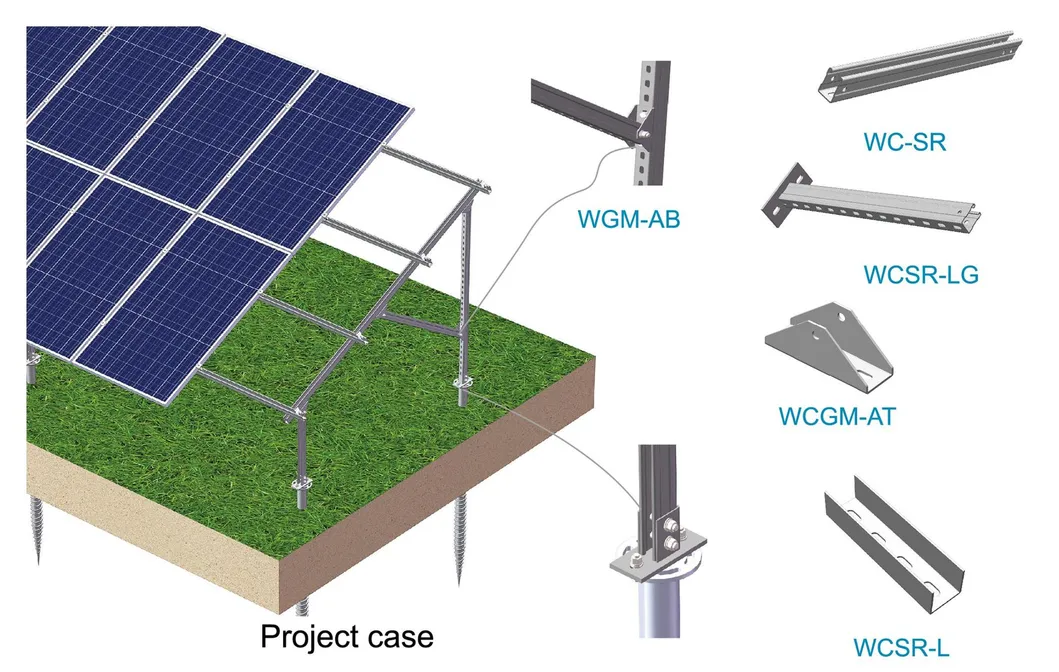

Technical Drawing
A

Key Advantages

1. Easy Installation

Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2. Great Flexibility

Designed as a universal racking system, framed modules from all the popular manufacturers can be used.

3. Maximum Lifespan

Made of quality extruded aluminium, C-steel and stainless steel. High corrosion resistance guarantees longevity and recyclability.

4. Guaranteed Durability

We provide a guarantee of 10 years on the durability of all components used in the mounting system.

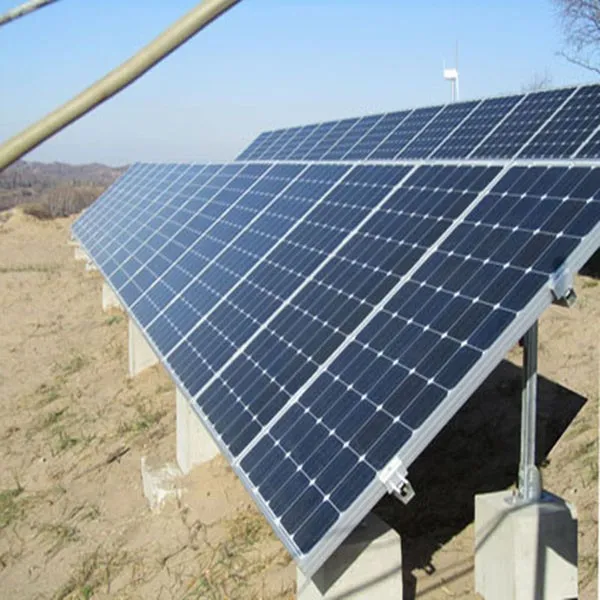

Detail 1
Detail 2

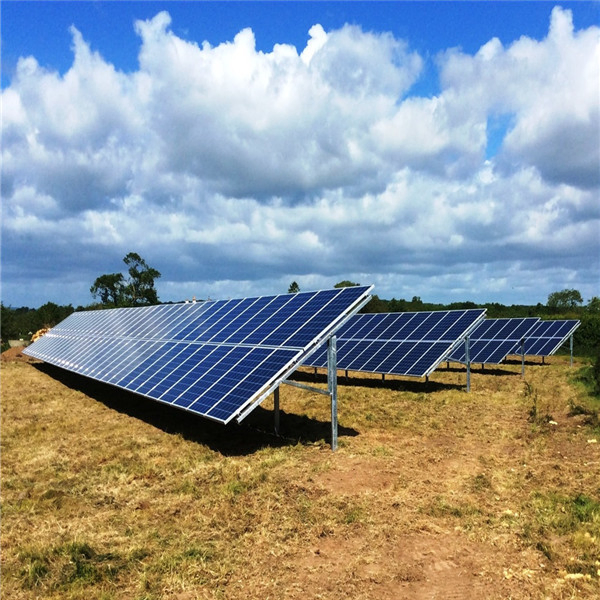

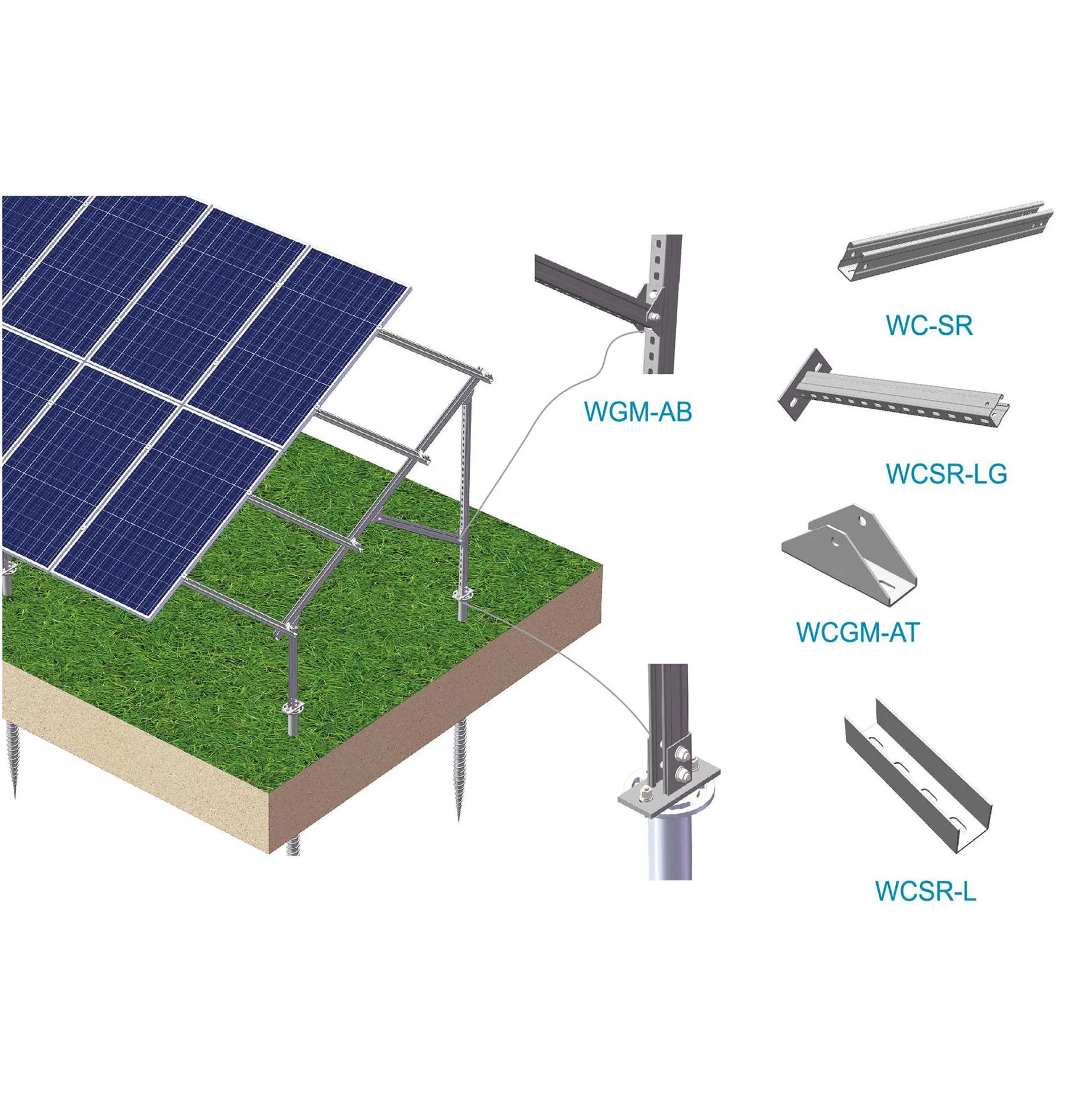

Structure Detail
Installation Overview
M

Management & Quality

We apply standardized and internationalized management concepts, strictly following ISO9001:2008, CP, APQP, FMEA, MSA, and SPC systems across R&D, manufacturing, and service phases.
Quality Control
E

Global Exhibition

Exhibition Presence
Installation Project
?

Frequently Asked Questions

Q: What is the maximum wind and snow load this system can handle?
A: The C-Steel ground mounting system is engineered to withstand wind speeds up to 60m/s and snow loads up to 1.4KN/m2.
Q: What materials are used in the construction?
A: The system utilizes high-quality Anodized Aluminum and Galvanized Steel, ensuring excellent anti-corrosive properties and durability.
Q: Is the installation process difficult?
A: No, the system features pre-assembled and pre-cut components, which significantly reduces installation time and labor costs on-site.
Q: What is the expected lifespan of the mounting structure?
A: The structure is designed for a service life of more than 20 years, supported by a 10-year warranty on all components.
Q: Can this system be used for different types of solar panels?
A: Yes, it is designed as a universal racking system compatible with framed modules from most popular manufacturers.
Q: What is the typical delivery time for orders?
A: For standard products, the delivery time is generally around 15 days.
