| Model NO. | SPT-5.5K |
| Certification | ISO, TUV, CE |
| Application | Industrial |
| Material | Stainless Steel |
| Type | Tracking Bracket |
| Product Name | Solar Tracker |
| Module Size | 1956*992*40mm |
| Weight | 600kg |
| Scope of Rack | 26m2 |
| Power Supply | 110V / 220V |
| Driving Power | 300W |
| Daily Power Consumption | <0.85kwh |
| Protection Level | IP65 |
| Communication Protocol | RS485 |
| Transport Package | Standard Carton |
| Production Capacity | 100000 Watts Per Month |

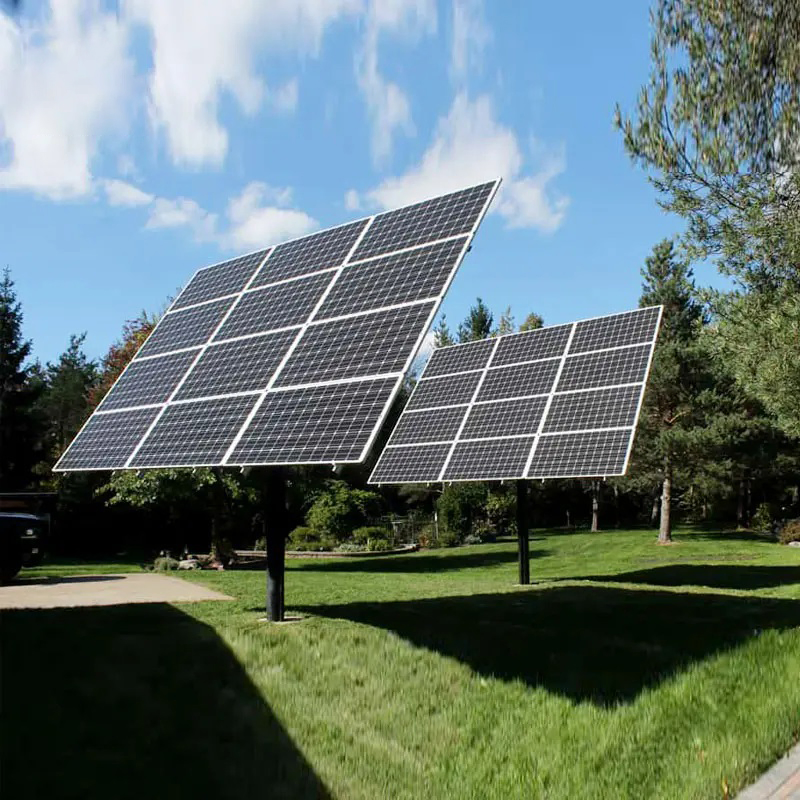

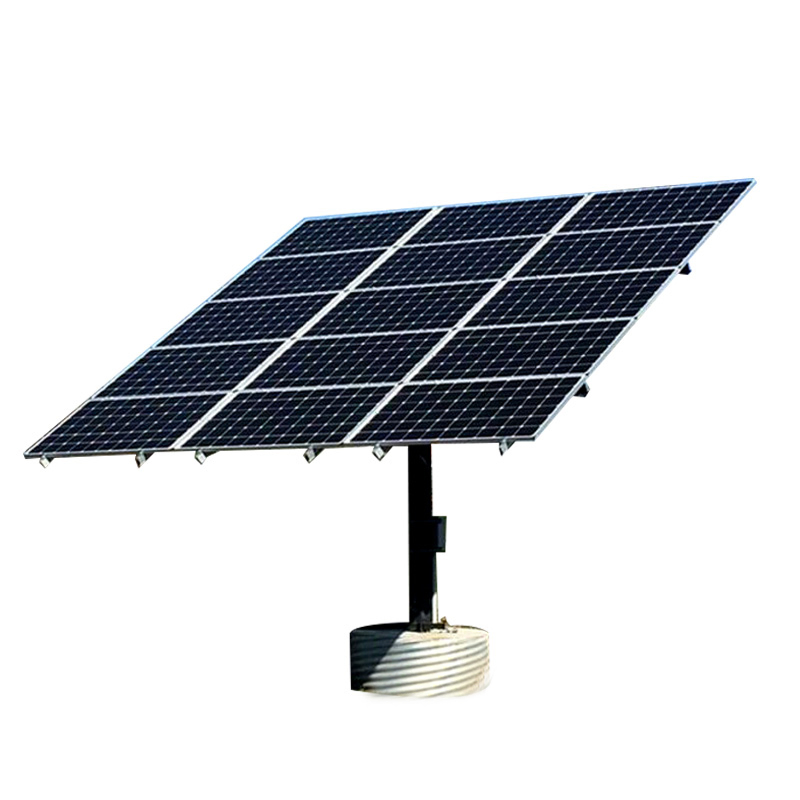

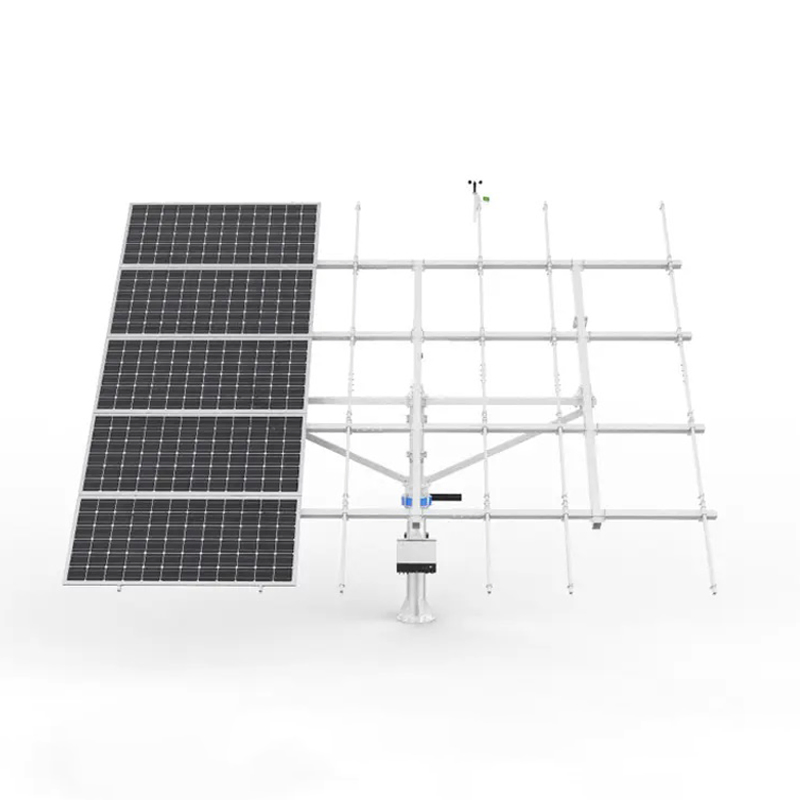

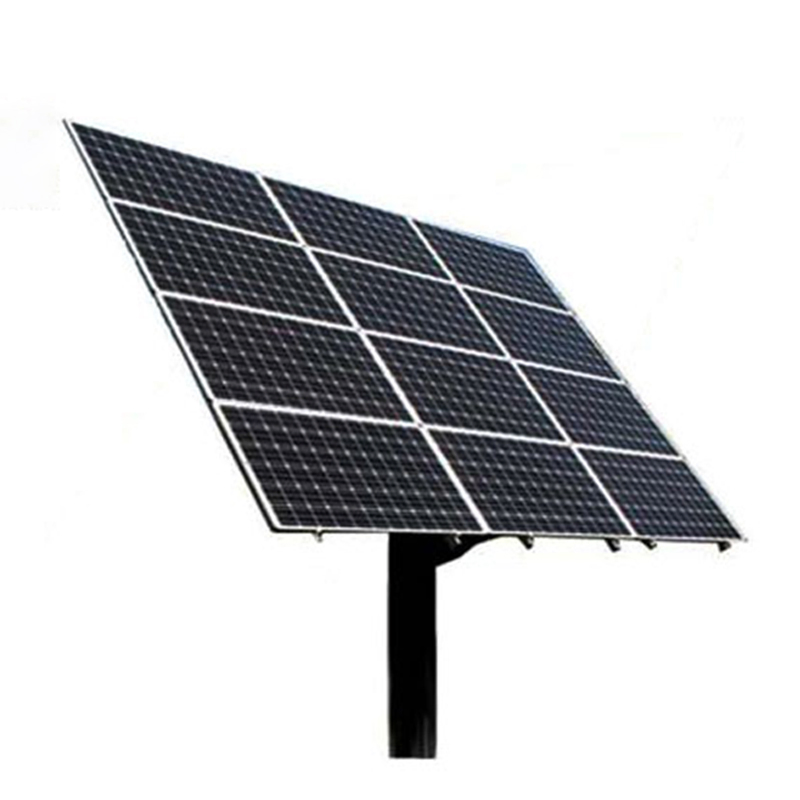

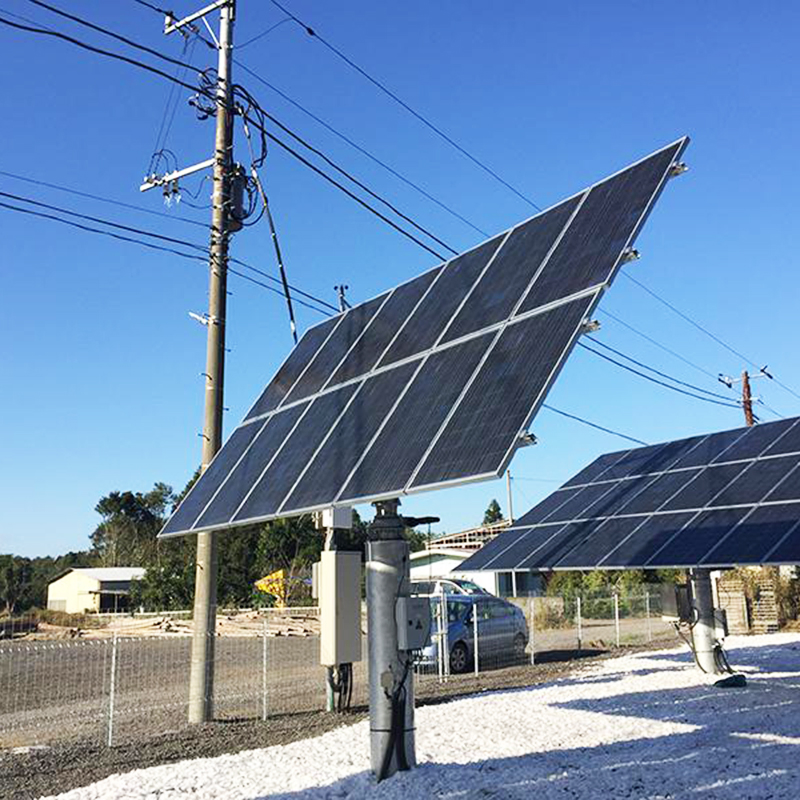

5.5kw Solar Tracking Controller Dual Axis Solar Tracking Bracket System
The control unit adopts inclination sensor feedback + closed-loop control system, which has high tracking accuracy and reliability. Compared with the stationary type, it can increase the power generation by about 35-50%.
Compatible with 98% of the panel specifications on the market; the design versatility is superior.
Operating power is small; the daily self-use power of the system is less than 0.85 kwh.
| Solar Panel Type | 1956*992*35mm |
| Number Of Solar Panels | 15 PCS |
| Grid Area | ≈26 m2 |
| Safe Working Wind Speed | 17 m/s |
| Survival Wind Speed | 37m/s (Customizable <60m/s) |
| Snow Load | 0.8-1.6KN/m2 |

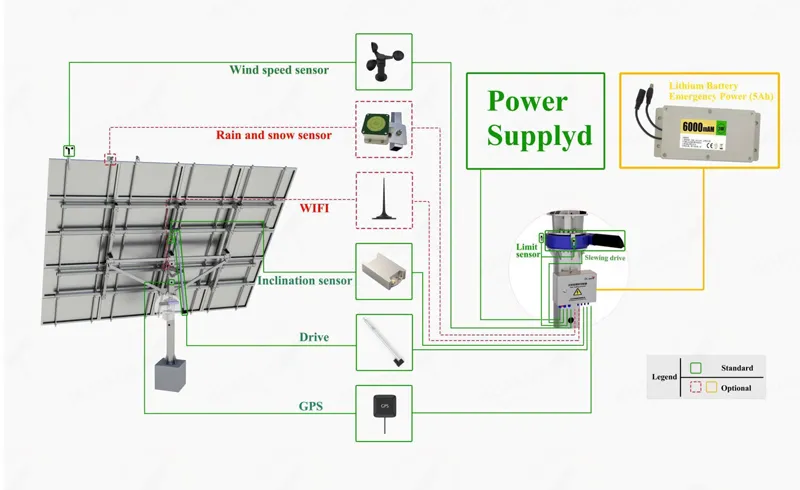

| Control Algorithm | Astronomical Algorithm + Position Sensor Closed Loop Control |
| Working Temperature | -30ºC~+70ºC |
| Azimuth Tracking (X Axis) | -135°~+135° (Any Range Within ±175°) |
| Azimuth Tracking (Y Axis) | 0°~60° (Customizable Angle) |
| Protection Level | IP65 |
